Lewmar Marine
67 products
67 products
Sort by:
- Featured
- Most relevant
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
From $88.99

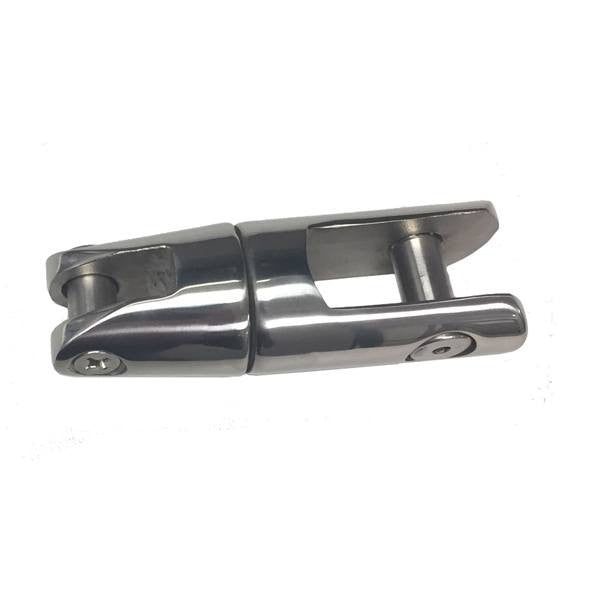

Lewmar Stainless Anchor Swivel
Lewmar Anchor Swivel is made from 316 Stainless Steel and can swivel 360 degrees. Attach the swivel between the anchor and the chain, allowing the rope to swivel instead of twisting up.
Models Available:
SWIVEL312F
Working Load: 4500 lbs
Chain Size: 1/4"-5/16"
SWIVEL500F
Working Load: 7000 lbs
Chain Size: 3/8"-1/2"
Frequently Asked Questions
- What is the Lewmar Stainless Anchor Swivel used for? The Lewmar Stainless Anchor Swivel connects between the anchor and chain, allowing the rope to swivel instead of twisting up. It is made from 316 stainless steel and can swivel 360 degrees.
- How does the Lewmar Anchor Swivel help prevent rope twisting? The Lewmar Anchor Swivel provides a 360-degree swivel connection between the anchor and chain. This allows the rope to swivel as part of the anchoring setup rather than twisting up.
- What chain sizes are compatible with the Lewmar Stainless Anchor Swivel? Chain-size compatibility depends on the model. The SWIVEL312F is designed for 1/4"-5/16" chain, while the SWIVEL500F is designed for 3/8"-1/2" chain. Verify your chain size when selecting the appropriate model.
- What is the working load of the Lewmar Stainless Anchor Swivel? The SWIVEL312F has a working load of 4,500 lbs., while the SWIVEL500F has a working load of 7,000 lbs. Choose the model that matches your chain size and the working load requirements of your anchoring setup.
- What is the Lewmar Stainless Anchor Swivel made from? The Lewmar Stainless Anchor Swivel is made from 316 stainless steel. It is available in the SWIVEL312F and SWIVEL500F models, with different chain-size compatibility and working-load ratings.
From $552.99

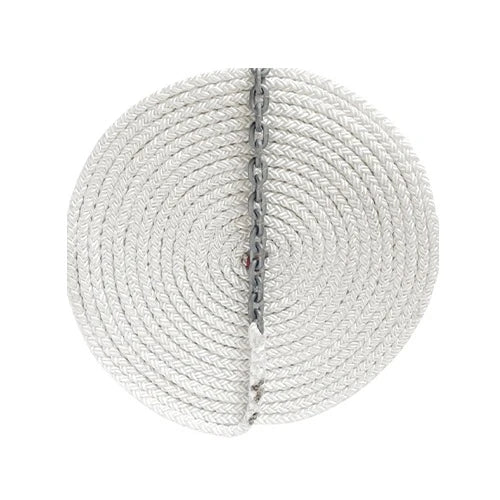

Lewmar Anchor Line 8 Plait
Lewmar Anchor Rodes feature 8 plait nylon line joined with a tapered splice to ACCO Hi-Test hot-dipped galvanized chain. Each anchor rode comes with a shackle to attach the chain to the anchor.
Features:
Anchor rodes complement rope chain gypsies fitted to all Lewmar windlasses
Chain is hot-dipped galvanized to minimize corrosion
Enables 50% more line in locker than 3-strand rope
Same tensile strength as 3-Strand.
8-Plait nylon rope is 1/3 more absorbent than 3-Strand rope. Weight means line falls better into the anchor locker.
Relaxed line will not twist, knot or loop over itself. 8 Plait falls limp into lockers, eliminating hockles common to 3 strand.
8 individual braided strands woven together rather than twisted make 8 plait supple when relaxed.
Specifications:
Chain: 15' of 1/4" G4 Chain with shackle
Rope: 300' of 1/2" 8PLT, spliced to chain
Recommended for H-900 (Concept 1, V-2&3 use 001 gypsy) Windlasses
Lewmar USA Premium 8-Plaited Nylon Anchor Rope
8-Plait Features:
Eliminates some of the service problems associated with the 3-strand ropes. 8-Plait uses 8-individual braided strands woven together that allow the rope to be relaxed. But, when under load, it tightens up to a firm lay. The higher the load the harder the lay becomes.
Carries the same tensile strength as 3-Strand.
Does not coil or create a "birds nest" in the locker like 3-Strand will. 8-Plait flakes and falls upon itself.
Will not twist and knot up.
Will not loop over onto itself.
Has less stretch so it will not bury itself deep into the gypsy's grip when overloaded, which means less damage to the stripper when the windlass is abused or overloaded.
Pays off of the windlass into the locker much like chain, allowing for better use of smaller locker designs.
80% less prone to becoming stiff when used in salt water than 3-Strand.
1/3 more absorbent than 3-Strand rope. More absorbent means more weight; more weight means better fall into the anchor locker.
Should be soaked in water (salt or fresh - it does not matter) to pre-lubricate the rope so it can be used in the windlass initially. When rope is used dry and new, we have seen either slippage or sticking in the rope pocket of the gypsy. Once the rope is wet and used, it out performs the 3-Strand. The longer it is used the better it gets.
- What size windlass would best suit my boat? Use our windlass selection chart found on page 2 to determine the general size of windlass to be fitted to your boat by using length and displacement. For example, if you have a 10m (33 ft) boat, typically a 270kg (600 lb) pull windlass would be selected. The rule to crosscheck your windlass selection is to add the total weight of the chain and the weight of the anchor together. Rope is very light and does not affect the actual lifting performance of the windlass, but can be factored in. For safe cruising in all types of conditions and sea areas, Lewmar recommends that you multiply the total weight of your anchor and chain x4 (x2 for V6 to V12). This number should be less than the maximum pull of the windlass you have selected. Should your findings be at or more than the maximum pull, select the next largest windlass. The windlass does not stow the anchor rode in the locker. Gravity stows the rode in the locker. There must be a free and clear area under the hawse pipe for the incoming rode to lie; if not, the rode will jam. Your windlass is a retrieval device; the windlass retrieves the anchor and rode. A windlass is not a high-load-bearing device. When at anchor your rode should be secured to a chain stopper, a cleat or other mooring point on the bow.
- How long is the anchor rode I wish to use, and will the windlass put the entire rode into my locker? Begin by examining the depth of the anchor locker to determine the fall that is available. The fall is the vertical distance between the top of the anchor locker and the top of the anchor rode when the entire …
$33.49

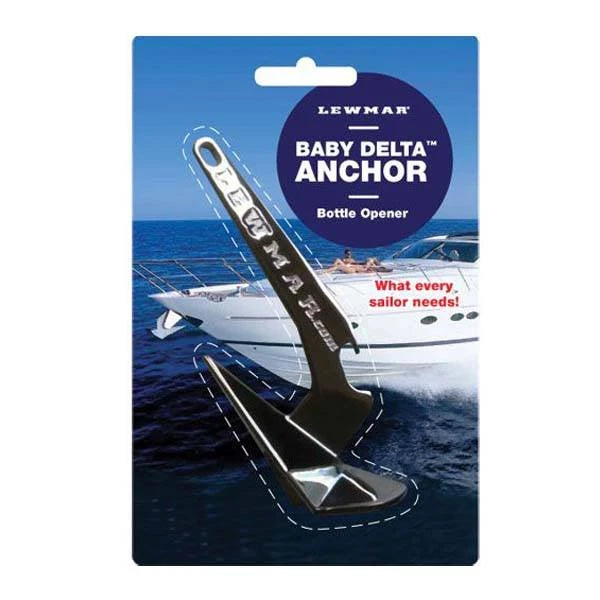

Lewmar Baby Delta Anchor Stainless Bottle Opener. Modeled after the popular Delta anchor, this bottle opener is sure to fill every boaters void! Made from solid stainless steel.
**Not to be used as an anchor.
From $223.14

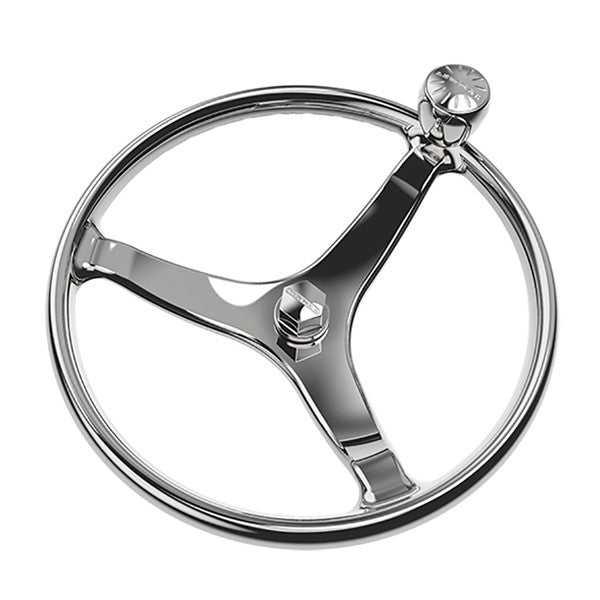

Lewmar Power Grip Steering Wheel w/ 5/8" Welded Nut
This Lewmar Power Grip Wheel w/ 5/8" Welded Nut features a highly polished 316 stainless steel construction with a ball-raced power-grip knob. It provides extra room and added comfort with its ergonomic design with finger grips and includes a welded nut to fit 5/8" threads. With cast spokes and an integrated hub, this power grip wheel offers exceptional satisfaction.
Features:
Highly Polished 316 Stainless Steel Construction
Ball-Raced Power-Grip Knob
Ergonomically Designed With Finger Grips
Cast Spokes With Integrated Hub
Provides Extra Room and Comfort
Non-Magnetic
Includes Wheel Nut To Fit 5/8" Threads
Specifications:
Hub: 3/4" Tapered Shaft
Spokes: 3
Dish: 19 Degrees
Welded Nut: 5/8"
Frequently Asked Questions
- What is the Lewmar Power Grip Steering Wheel w/ 5/8" Welded Nut designed for? The Lewmar Power Grip Steering Wheel w/ 5/8" Welded Nut is a steering wheel constructed from highly polished 316 stainless steel. It features an ergonomic design with finger grips, a ball-raced power-grip knob, cast spokes, and an integrated hub for added room and comfort.
- What type of steering shaft does the Lewmar Power Grip Wheel fit? The Lewmar Power Grip Wheel features a 3/4" tapered shaft hub. It also includes a welded wheel nut designed to fit 5/8" threads, as specified for this steering wheel.
- What is the Lewmar Power Grip Steering Wheel made from? The wheel is constructed from highly polished 316 stainless steel. It also features cast spokes with an integrated hub and a non-magnetic design.
- What features does the power-grip knob provide on the Lewmar steering wheel? The Lewmar Power Grip Steering Wheel includes a ball-raced power-grip knob. Combined with the ergonomic finger grips, the design provides extra room and added comfort while using the steering wheel.
- How many spokes does the Lewmar Power Grip Steering Wheel have? The Lewmar Power Grip Steering Wheel has three cast spokes with an integrated hub. The wheel has a 19-degree dish and a 3/4" tapered shaft hub.
- What are the key specifications of the Lewmar Power Grip Steering Wheel? The wheel has a 3/4" tapered shaft hub, three spokes, and a 19-degree dish. The included welded nut is designed for 5/8" threads. The wheel is constructed from highly polished 316 stainless steel and features a ball-raced power-grip knob.
From $108.99

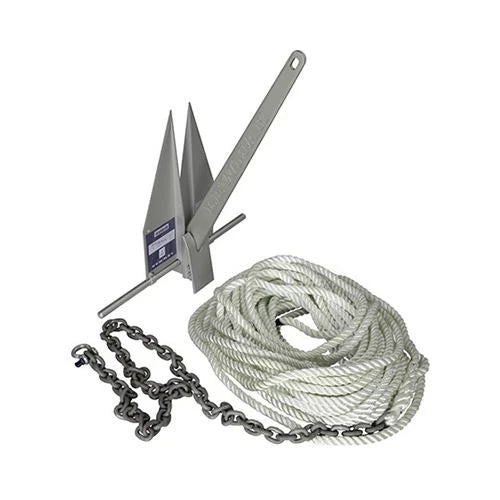

Lewmar Fluke Anchor Kit
This Lewmar Fluke Anchor Kit is a premium quality pre-packaged anchoring kit that comes pre-assembled and ready to use right out of the package.
Features:
Anchor is hot dip galvanized for minimal corrosion
Calibrated chain for even pitch and melded for maximum strength
Lewmar quick splice for rope chain connection
Premium grade three strand line for maximum abrasion resistance
One year warranty
Includes:
Galvanized fluke anchor
5' of 6mm chain spliced into 100' of 3/8" 3-strand line
Eye splice
2 Shackles
From $322.99

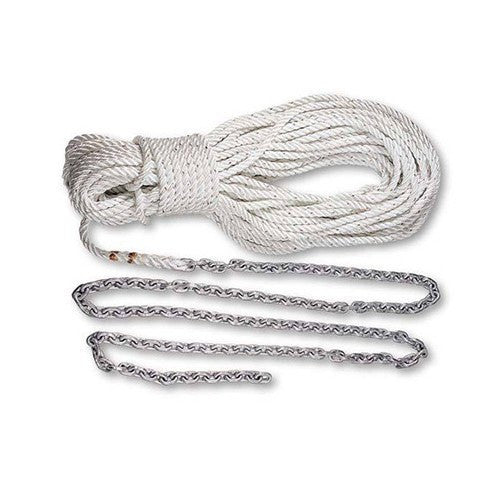

Lewmar Premium 3-Strand Anchor Rodes - Marine Grade with Rope & Galvanized Chain
Lewmar anchor rodes are a great economical choice for boaters looking for a windlass rode. These rodes are designed to work with the rope-chain gypsies fitted to all Lewmar Windlasses and help it operate smoothly. Keep in mind the size of the rode you have chosen and if your anchor locker has enough depth to store the Lewmar Anchor Rodes.
The Lewmar Premium 3-Strand Anchor Rode is made of 3-Strand nylon rope. There are several grades of this rope available. Make sure you are always using a premium windlass grade rope and ensure that the diameter is ½” (.500) or slightly larger, smaller sizes work poorly in ½ gypsies. Lower quality 3-strand rope tends to not lay properly.
Lewmer Anchor Rodes are manufactured with ¼” -5/16” shackles and are calibrated for even pitch. The smooth rope-to-chain transition is welded for greater strength. The whipping of the rope is hand sewn to help prevent unraveling.
These rodes can take on wear and tear and especially in salt-water conditions. If your lines begin to stiffen, soak in a bucket of fresh water and fabric softener. (the longer the better). This should repair some of the flexibility. However, if this doesn’t work your Lewmar anchor rodes should be replaced.
Features:
Designed to complement the rope-chain gypsies fitted to all Lewmar windlasses
1/4" G4 - 5/16" Shackle
Calibrated for even pitch
Hot dip galvanized to minimize corrosion
Welded for high strength
Smooth rope-to-chain transition
Helps your windlass operate smoothly
Hand-sewn whipping guarantees against unraveling
Frequently Asked Questions
- What are Lewmar Premium 3-Strand Anchor Rodes designed for? Lewmar Premium 3-Strand Anchor Rodes are designed for use as windlass rodes with the rope-chain gypsies fitted to Lewmar windlasses. The rode combines 3-strand nylon rope with hot-dip galvanized chain and is designed to provide a smooth transition between the rope and chain during windlass operation.
- What size rope is recommended for Lewmar Premium 3-Strand Anchor Rodes? The product information recommends using premium windlass-grade 3-strand nylon rope with a diameter of 1/2 inch (.500) or slightly larger. Smaller rope sizes may work poorly in 1/2-inch gypsies, while lower-quality 3-strand rope may not lay properly.
- What type of shackle and chain are used with Lewmar Premium Anchor Rodes? Lewmar Premium Anchor Rodes are manufactured with 1/4- to 5/16-inch shackles and calibrated for even chain pitch. The chain is hot-dip galvanized to help minimize corrosion, and the rope-to-chain transition is welded for high strength.
- How do Lewmar Premium Anchor Rodes help a windlass operate smoothly? These rodes are designed to complement the rope-chain gypsies fitted to Lewmar windlasses. The calibrated chain and smooth rope-to-chain transition help the rode move through the windlass properly during operation.
- How should a stiff Lewmar Premium 3-Strand Anchor Rode be maintained? If the line begins to stiffen, the product information recommends soaking it in a bucket of fresh water and fabric softener, preferably for an extended period. If this does not restore flexibility, the Lewmar anchor rode should be replaced.
- How is the rope on Lewmar Premium Anchor Rodes finished to help prevent unraveling? The rope uses hand-sewn whipping to help prevent unraveling. The rope-to-chain transition is also welded for high strength, providing a finished connection between the 3-strand nylon rope and galvanized chain.
$70.49

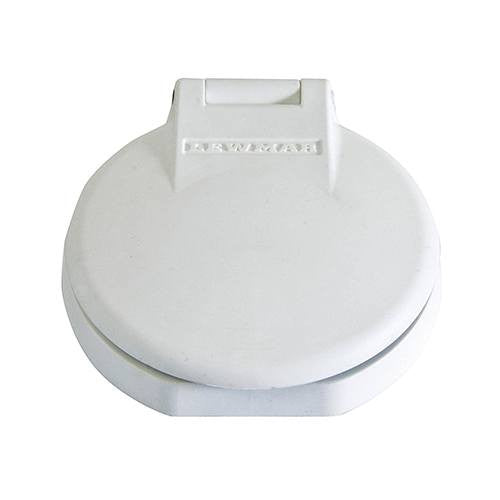

Lewmar White Deck Foot Switch
Lewmar deck foot switches are single direction switches and come ready to install. With a hinged cover to prevent accidental operation, they are suitable for DC electric windlasses running on 12 or 24 volts and must be used with a contractor or control box.
Features:
White finish
Single direction
Sold individually
$119.99

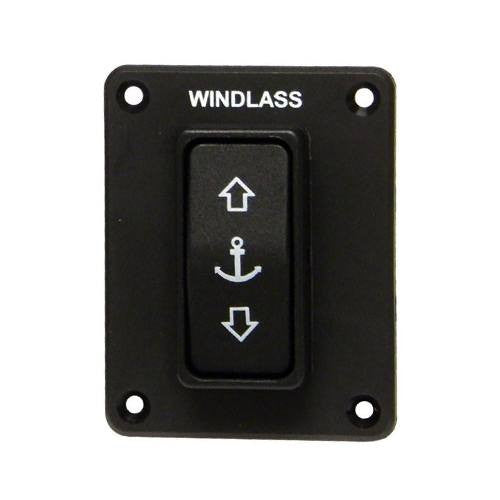

Lewmar Guarded Rocker Switch
Lewmar's Guarded Rocker Switch controls the up and down function of all Lewmar anchor windlass models. The switch can be mounted at the helm as the main switch for operation, or mounted at a second station as a secondary switch. It features a raised plastic guard surrounding the rocker switch which helps prevent accidental activation of the windlass.
From $162.99

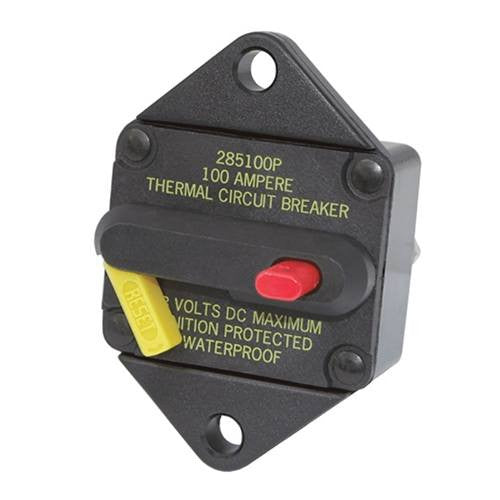

Lewmar Thermal Circuit Breaker
Lewmar circuit breaker to be installed with Lewmar Electric winches and windlasses.
Features:
Ignition Protected
Waterproof
Options:
25 amp
35 amp
50 amp
$1,093.99

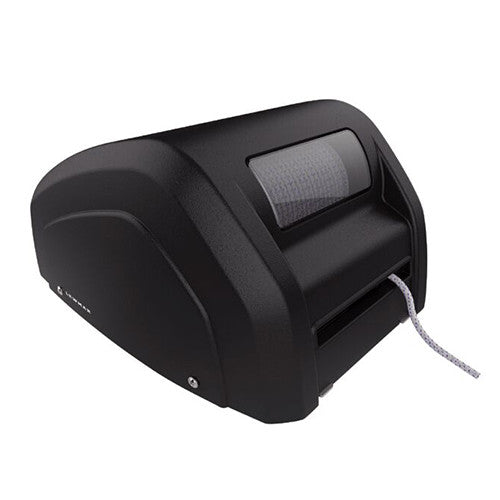

Lewmar CRW 400 Captive Reel Windlass
Lewmar's CRW400 windlass represents a step-change in engineering and design for small boat windlasses.
Built around a stainless steel chassis with composite bearing technology and a robust UV-stabilized ABS shell, the CRW400 is highly corrosion resistant and therefore suitable for use in salt-water.
The unique "level wind" feature ensures that the rode is always stowed neatly on the drum, ensuring tangle-free anchoring and maximum stowage capacity.
Specifications:
Motor Power (W): 400
Max Line Speed (m/min): 25
Normal Current Draw (A): 15
Max Anchor Weight (kg): 16
Rode: 35m of 6mm
Frequently Asked Questions
- What is the Lewmar CRW 400 Captive Reel Windlass designed for? The Lewmar CRW 400 Captive Reel Windlass is designed for small boat anchoring applications. It uses a stainless steel chassis, composite bearing technology, and a UV-stabilized ABS shell for corrosion resistance, making it suitable for use in salt water.
- How does the Lewmar CRW 400 keep the anchor rode organized? The CRW 400 features a unique level-wind system that keeps the rode neatly stowed on the drum. This helps provide tangle-free anchoring and maximizes the available stowage capacity of the captive reel design.
- What size rode and anchor can the Lewmar CRW 400 Captive Reel Windlass handle? The Lewmar CRW 400 is specified for 35 meters of 6mm rode and supports a maximum anchor weight of 16 kg. These specifications should be verified against your boat and anchoring setup before installation or use.
- What are the motor power and line speed of the Lewmar CRW 400? The CRW 400 has a 400W motor and a maximum line speed of 25 meters per minute. Its normal current draw is rated at 15 amps.
$7,447.49

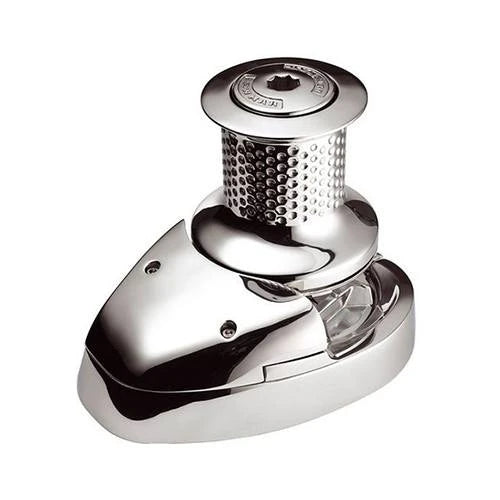

Lewmar V4 12V Vertical Windlass w/Capstan
The Lewmar V4 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.
Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 1600Watts
Max Pull: 2750 lbs
Working Load: 688 lbs
Max Line Speed: 82' per minute
Normal Current Draw: 125Amps
Circuit Breaker: 150Amps
Click here to download V4 Vertical Windlass w/Capstan Owner's Manual
$340.99

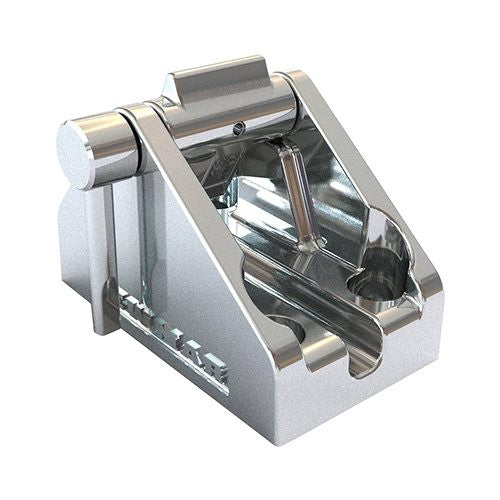

Lewmar 3/8" Chain Stopper
When your windlass is not in use and the boat is at anchor, the chain should be secured using a chain stopper. This helps prevent damage to your windlass. This Lewmar 3/8" Chain Stopper has a Safe Working Load (SWL) that is greater than the SWL of the chain and is constructed of 316 Stainless Steel. Fits 3/8" chain.
$59.99

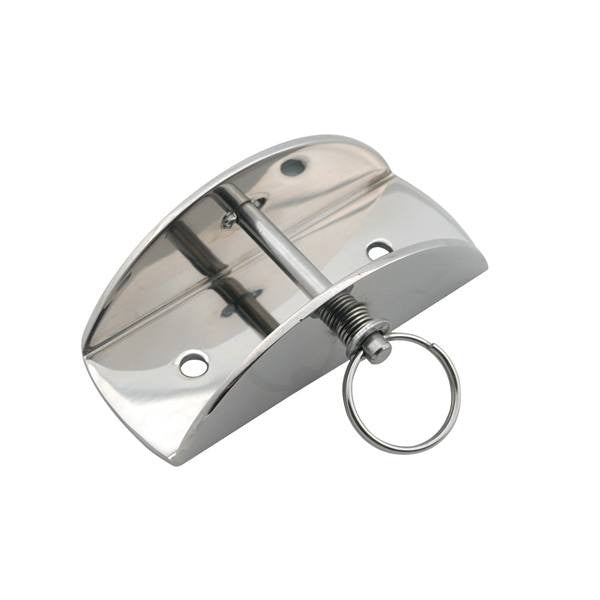

Lewmar Anchor Lock
This Lewmar Anchor Lock is composed of polished stainless steel. It locks the chain or shackle in place using a quick release 1/4" diameter captive pin. With a corrosion prevention electro-polishing technique, you can quickly secure your anchor without having to stow it in the locker or tie it off with a rope. This anchor lock allows quick release of anchors on bow rollers of 20' - 50' boats.
Features:
Locks Chain Or Shackle In Place Using Quick Release 1/4" Diameter Captive Pin
Corrosion Prevention Using Electro-Polishing Technique
Polished Stainless Steel Channel Lock
Designed To Keep Anchor In Place While Underway
Quickly Secure Your Anchor Without Having To Stow It In The Locker Or Tie It Off With A Rope
Allows Quick Release Of Anchors On Bow Rollers Of 20' - 50' Boats
For Anchors Up To 55 lb
Chain Or Shackles Up To 3/8" In Diameter
Specifications:
Dimensions: 4" L x 1-1/2" W x 1-1/2" H
3 Year Warranty
$385.49

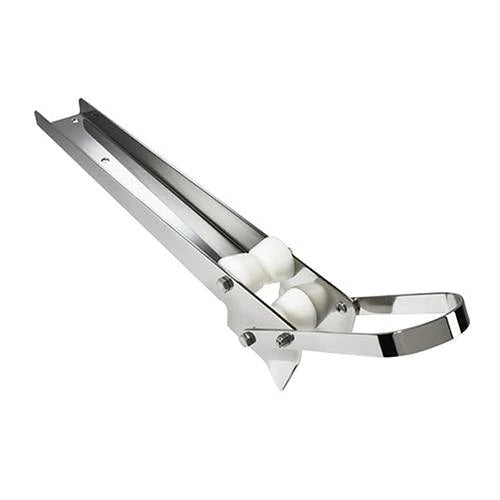

Lewmar Stainless Steel Anchor Roller
Features:
Friction-free surface to make dropping and weighing anchor easier
Won't damage the deck or topsides
Allows you to safely stow anchor while cruising and deploy at short notice
Constructed of 304 stainless steel
Range of rollers to fit the most common combinations of anchor, mounting style and boat
$342.49

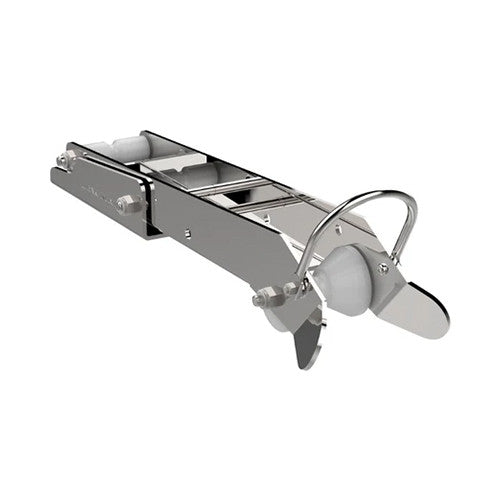

Lewmar Self-Launching Anchor Roller
This Lewmar Self-Launching Anchor Roller is suited for fluke style anchors of up to 35 lbs. Constructed of 304 stainless steel, it will not damage the deck or topsides. The friction-free surface allows for dropping and weighing anchor to be much easier. This pivoting and self-launching roller will allow you to safely stow anchor while cruising and also deploy at short notice.
Features:
Won't Damage The Deck Or Topsides
For Fluke Style Anchors Up To 35 lbs
Constructed Of 304 Stainless Steel
Pivoting, Self-Launching
Friction-Free Surface To Make Dropping and Weighing Anchor Easier
Range Of Rollers To Fit The Most Common Combinations Of Anchor, Mounting Style and Boat
Allows You To Safely Stow Anchor While Cruising and Deploy At Short Notice
$5,204.99

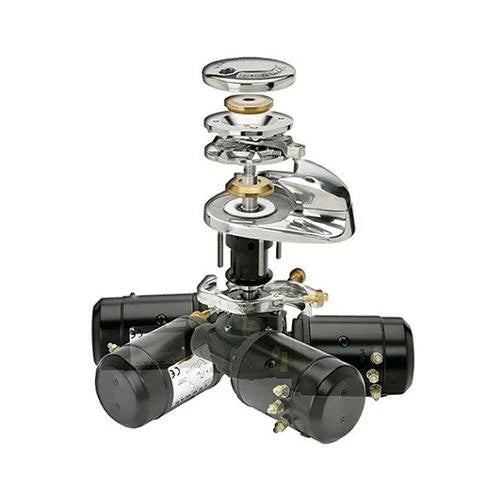

Lewmar V3 12V Vertical Windlass w/Capstan
The Lewmar V3 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.
Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 1000Watts
Max Pull: 1962 lbs
Working Load: 473 lbs
Max Line Speed: 92' per minute
Normal Current Draw: 85Amps
Circuit Breaker: 110Amps
Click here to download V3 Vertical Windlass w/Capstan Owner's Manual
Frequently Asked Questions
- What is the Lewmar V3 12V Vertical Windlass w/Capstan designed for? The Lewmar V3 12V Vertical Windlass w/Capstan is a stainless steel vertical windlass designed for anchor handling. Its low-profile construction, rope-chain gypsy, W.A.R.P drum, and capstan provide a compact setup with features for retrieving and deploying an anchor.
- What type of rope is compatible with the Lewmar V3 Vertical Windlass? The Lewmar V3 is specified for 5/8-inch rope and features a rope-chain gypsy. The product description does not specify a compatible chain size, so the chain size should be verified before installation or use.
- How does the FastFit system make the Lewmar V3 Windlass easier to install? The FastFit system is designed to simplify installation by aligning the deck unit with the motor gearbox. After aligning the deck unit, the gearbox can be slid up the shaft, allowing the clamp to be closed and tightened with the bronze nut.
- Does the Lewmar V3 Windlass have manual free-fall operation? Yes. The Lewmar V3 features a manual chain release for Free Fall operation. It also includes a fall safe anchor lock and cone clutch as part of its anchor-handling design.
- What are the pulling and operating specifications of the Lewmar V3 12V Windlass? The Lewmar V3 has a 1,000-watt motor, a maximum pull of 1,962 lbs., and a working load of 473 lbs. Its maximum line speed is 92 feet per minute, with a normal current draw of 85 amps and a 110-amp circuit breaker.
- What gearbox does the Lewmar V3 Vertical Windlass use? The Lewmar V3 uses a robust worm gearbox. The windlass also features a cone clutch and W.A.R.P drum, combining these components with its stainless steel construction and rope-chain gypsy.
$5,028.99
Lewmar V3 12V Vertical Windlass - Gypsy Only
The Lewmar V3 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.
Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 1000Watts
Max Pull: 1962 lbs
Working Load: 473 lbs
Max Line Speed: 92' per minute
Normal Current Draw: 85Amps
Circuit Breaker: 110Amps
Click here to download V3 Vertical Windlass Owner's Manual
Frequently Asked Questions
- What is the Lewmar V3 12V Vertical Windlass - Gypsy Only designed for? The Lewmar V3 12V Vertical Windlass - Gypsy Only is designed for boat anchoring applications and features stainless steel construction for durability and corrosion resistance. Its low-profile design helps keep the windlass out of the way while providing rope-chain rode handling and manual free-fall capability.
- What rope size does the Lewmar V3 Vertical Windlass use? The Lewmar V3 is specified for 5/8-inch rope and features a rope-chain gypsy. It also includes a W.A.R.P drum, manual chain release, fall-safe anchor lock, cone clutch, and robust worm gearbox.
- How does the FastFit system simplify installation on the Lewmar V3? The FastFit motor gearbox is designed for easy installation. Align the deck unit, slide the gearbox up the shaft, then swing the clamp shut and tighten it with the bronze nut. This allows the deck unit and motor gearbox to align for installation.
- Does the Lewmar V3 Vertical Windlass have a manual free-fall function? Yes. The Lewmar V3 features a manual chain release for free-fall anchoring. It also includes a fall-safe anchor lock and cone clutch as part of its windlass design.
- What are the pulling power and line speed of the Lewmar V3 Windlass? The Lewmar V3 has a maximum pull of 1,962 lbs. and a working load of 473 lbs. Its maximum line speed is 92 feet per minute. The 12V motor is rated at 1,000 watts with a normal current draw of 85 amps and a 110-amp circuit breaker.
$4,578.99

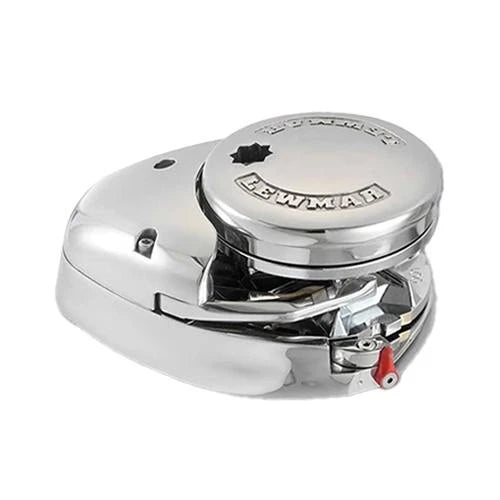

Lewmar V2 12V Vertical Windlass w/Capstan
The Lewmar V2 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.
Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 1/2" - 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 700Watts
Max Pull: 1433 lbs
Working Load: 358 lbs
Max Line Speed: 69' per minute
Normal Current Draw: 80Amps
Circuit Breaker: 90Amps
Click here to download V2 Vertical Windlass w/Capstan Owner's Manual
Frequently Asked Questions
- What is the Lewmar V2 12V Vertical Windlass w/Capstan designed for? The Lewmar V2 12V Vertical Windlass w/Capstan is designed for boat anchoring applications requiring a rope-chain gypsy and W.A.R.P drum. Its stainless steel construction provides corrosion resistance, while the low-profile design helps keep the windlass out of the way on deck.
- What rope size does the Lewmar V2 Vertical Windlass w/Capstan use? The Lewmar V2 is specified for rope sizes from 1/2 inch to 5/8 inch. It features a rope-chain gypsy for handling the anchor rode and a W.A.R.P drum as part of its vertical windlass design.
- How does the FastFit system work on the Lewmar V2 Windlass? The FastFit motor gearbox is designed to simplify installation. After aligning the deck unit, the gearbox slides up the shaft, allowing the FastFit clamping system to be closed and tightened with the bronze nut for alignment between the deck unit and motor gearbox.
- Does the Lewmar V2 Vertical Windlass have a manual free-fall function? Yes. The Lewmar V2 features a manual chain release for free-fall anchoring. It also includes a fall-safe anchor lock and cone clutch as part of its anchoring and rode-control features.
- What are the pulling power and line speed of the Lewmar V2 Windlass? The Lewmar V2 has a maximum pull of 1,433 lbs. and a working load of 358 lbs. Its maximum line speed is 69 feet per minute. The 12V motor is rated at 700 watts with a normal current draw of 80 amps and a 90-amp circuit breaker.
$4,402.49
Lewmar V2 Vertical Windlass Kit 6672011108-138
Manual Chain Release Free-Fall
Cone clutch for smooth, easy control
Fall safe anchor lock
Robust/reliable worm gearbox
Optional manual override motor gearbox
12 Volt
For Boats up to 45ft
Complete Kit V@ Windlass, Rocker Switch, Solenoid, Circuit Breaker
Anchor Rode Compatibility
3/8" Chain & 1/2"-9/16" 3 Strand Rope or 5/8" 8-Plat Rope
Specifications:
Motor Power: 700W
Max Pull: 1433 lbs.
Working Load: 358 lbs.
Max Line Speed: 69 ft/min
Normal Current Draw: 80A
Circuit Breaker: 90A
Approx Weight: 42lbs.
Includes:
Part No.DescriptionQty
68000813
V2 12V FF MG-BOX ASSY
1
68000318
12V SF WINDLASS CONT DC92-235P
1
68000828
V2V3 Go FF DECK UNIT
1
68000362
V1V2V3 GYPSY/STR KIT 002
1
65002489
WINDLASS X HANDLE
1
68000349
CIRCUIT BREAKER 90 AMP 9327
1
68000593
GUARDED ROCKER SWITCH
1
Frequently Asked Questions
- What is the Lewmar V2 Vertical Windlass Kit 6672011108-138 designed for? The Lewmar V2 Vertical Windlass Kit 6672011108-138 is a 12-volt vertical windlass kit designed for boats up to 45 feet. It features manual chain-release free-fall, a cone clutch for smooth control, a fall-safe anchor lock, and a robust worm gearbox for anchor handling.
- What anchor rode is compatible with the Lewmar V2 Vertical Windlass Kit? This Lewmar V2 windlass kit is compatible with 3/8-inch chain and either 1/2- to 9/16-inch 3-strand rope or 5/8-inch 8-plait rope. Verify that your existing anchor rode matches these sizes before installation.
- What are the pulling and operating specifications of this Lewmar V2 windlass? The Lewmar V2 has a 700W motor, 1,433-pound maximum pull, and 358-pound working load. Its maximum line speed is 69 feet per minute, with a normal current draw of 80 amps and a specified 90-amp circuit breaker.
- Does the Lewmar V2 Vertical Windlass Kit include the electrical controls? Yes. The complete kit includes a 12V V2 motor and gearbox assembly, windlass deck unit, gypsy and stripper kit, 90-amp circuit breaker, guarded rocker switch, solenoid, and windlass handle.
- How does the free-fall system work on the Lewmar V2 Vertical Windlass? The Lewmar V2 uses a manual chain-release free-fall system with a cone clutch for smooth, easy control. It also includes a fall-safe anchor lock. An optional manual override motor gearbox is available according to the supplied product description.
- What type of gearbox and motor does the Lewmar V2 Vertical Windlass use? The Lewmar V2 uses a robust worm gearbox and a 700W motor. The windlass also features a FastFit motor gearbox and clamping system designed to align the deck unit and motor gearbox for installation.
$3,253.49
Lewmar V1 Vertical Windlass
Features:
1/4" Chain & 1/2" 3 Strand Rope
Manual Chain Release Free-Fall
Cone clutch for smooth, easy control
W.A.R.P Drum
Fall safe anchor lock
Robust/reliable worm gearbox
Optional manual override motor gearbox
12 Volt
For Boats up to 40ft
Click here to download Lewmar V1 Vertical Windlass Owner's Manual
$1,350.00
Lewmar V700 Vertical Windlass – 12V with Solenoid and Rocker Switch 6670011108-312
The Lewmar V700 Vertical Windlass is a compact, high-performance anchoring solution designed for boats 20–35 feet. Built from 316 stainless steel for maximum corrosion resistance, the V700 delivers consistent power, fast retrieval speeds, and reliable operation in demanding marine environments. This model includes the solenoid and rocker switch for a complete electrical setup.
Key Features
Vertical 12V windlass engineered for boats 20–35 ft
700 lb maximum pulling power
100 ft/min retrieval speed for efficient anchor handling
316 stainless steel housing for long-term durability
Rope/chain gypsy compatible with 1/4" G4 chain and 1/2" line
IP67-rated sealed motor for water intrusion protection
Quiet, smooth, and controlled anchor retrieval
Includes solenoid and rocker switch for streamlined installation
Compact footprint minimizes deck impact
What’s Included
Lewmar V700 Vertical Windlass
Solenoid
Rocker Switch
Mounting Hardware
Installation Instructions
Compatibility
Fits most vertical bow roller configurations
Designed for 1/4" G4 chain and 1/2" three-strand nylon rope
Suitable replacement for earlier Lewmar vertical models with similar cutouts
Integrates with standard Lewmar accessories including breakers, switches, and chain counters
Installation Notes
The V700 mounts vertically through the deck with the motor housed below for reduced deck clutter and quiet operation. The included solenoid and rocker switch simplify the electrical setup. Routine maintenance consists of occasional cleaning and lubrication to ensure long service life.
Applications
Powerboats
Cruisers
Smaller sailboats
Boats requiring reliable anchor handling in varying bottom conditions
Click here to download the Lewmar V700 Owner's Manual
V700 Windlass Frequently Asked Questions
- What size boats is the Lewmar V700 designed for? The Lewmar V700 is designed for boats approximately 20-35 feet in length, making it a solid choice for small to mid-size powerboats and sailboats.
- What power supply does the Lewmar V700 use? This windlass operates on a 12V DC electrical system, which is standard for most boats in its size range.
- What type of rope and chain is compatible with the V700? The V700 is compatible with 1/4" G4 or BBB chain (6-7mm calibrated) and 1/2" anchor rope, making it suitable for common rope/chain combination rodes.
- What's included with this windlass kit? This kit includes the V700 vertical windlass, solenoid, rocker switch, and installation hardware, so you have the core components needed for installation.
- Is installation difficult? Installation is manageable for experienced DIY boaters comfortable with marine wiring and deck mounting. Proper deck reinforcement and following Lewmar's installation guidelines are important for best performance.
$2,148.49
Lewmar Pro Series 1000H Windlass
This Lewmar Pro Series 1000H Windlass is DIY-ready, easy to install and housed in 100% 316 stainless steel allowing for added protection and durability. With convenient above-deck installation and a powerful motor providing fast line speed, this windlass is built to last. A push-button control and a built-in manual emergency recovery system are featured for easy use.
Features:
DIY-Ready, Easy To Install and Housed In 100% 316 Stainless Steel, Making It Well Protected and Durable
Powerful Motor Providing Fast Line Speed (Power Up / Power Down)
Convenient Above-Deck Installation
Includes Push-Button Control and A Built-In Manual Emergency Recovery System
Manual Emergency Recovery Equipped - Requires A Common 1/2 Socket Wrench
For Boats Up To 20-45 ft
5 Year Warranty
Kit Includes:
Lewmar Pro 1000 Horizontal Windlass (Power Up / Power Down)
Installation Wrench
Dual-Direction Solenoid
Rocker Switch
Fast Mounting Studs
Circuit Breaker
Base Gasket Seal
Specifications:
Maximum Pulling Power: 454kg (1,000 lb)
Max Line Speed: 105 Feet Per Minute
Working Load: 250 lbs
Chain Size: 5/16" High Test
Rope size: 9/16"-5/8" or 5/8" 8 Plait
Voltage: 12V
Typical Power 700 Watts
Normal Current Draw: 50A
Circuit Breaker: 70A
Dimensions: 5-3/4" H x 9-5/4" L x 7" W
Typical Line Speed: 88 ft
Weight: 21 lbs
Frequently Asked Questions
- What is the Lewmar Pro Series 1000H Windlass designed for? The Lewmar Pro Series 1000H Windlass is a 12V horizontal windlass designed for boats 20-45 feet long. It provides powered up and down operation with a maximum pulling power of 1,000 lb and a maximum line speed of 105 feet per minute, making it suitable for anchor handling applications.
- What rope and chain sizes are compatible with the Lewmar Pro Series 1000H Windlass? The Lewmar Pro Series 1000H Windlass is specified for 5/16-inch high-test chain and 9/16- to 5/8-inch rope or 5/8-inch 8-plait rope. Verify that your existing anchor rode matches these specified sizes before installation and use.
- How is the Lewmar Pro Series 1000H Windlass operated? The windlass provides powered up and powered down operation through the included rocker switch and dual-direction solenoid. It also has a built-in manual emergency recovery system. Manual recovery requires a common 1/2-inch socket wrench.
- What is included with the Lewmar Pro Series 1000H Windlass? The kit includes the Lewmar Pro 1000 horizontal windlass, installation wrench, dual-direction solenoid, rocker switch, fast mounting studs, circuit breaker, and base gasket seal. These components support the windlass installation and electrical connection as specified by the product.
- What are the electrical specifications of the Lewmar Pro Series 1000H Windlass? The Lewmar Pro Series 1000H Windlass operates at 12V and has a typical power rating of 700 watts with a normal current draw of 50A. The specified circuit breaker is 70A. Follow the product instructions and applicable equipment documentation for installation and electrical requirements.
- What are the pulling power and working load of the Lewmar Pro Series 1000H Windlass? The Lewmar Pro Series 1000H Windlass has a maximum pulling power of 454 kg (1,000 lb) and a working load of 250 lb. Its typical line speed is 88 feet per minute, while the maximum line speed is specified as 105 feet per minute.
$1,400.99
Lewmar Pro-Sport 550 Windlass
Lewmar's Pro-Sport rope/chain windlass is designed as an economical package for rope and chain applications, without compromise to quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors. It's DIY-ready and easy to install. Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice. Complete with push-button control, anchoring has never been easier. A demonstration of Lewmar's commitment to provide stylish, affordable, quality products for boats from 6m-9m (20-30ft).
Includes:
Windlass
Base gasket seal
Fast mounting studs
Installation wrench
Contractor (68000939)
Guarded rocker switch (68000593)
Circuit breaker
Features:
For use on boats up to 28ft (9m)
Powerful motor providing superior line speed
Low power consumption / current draw
Dual direction powered operation
Manual freefall
Gypsy size, 7mm (1/4")chain
Convenient above-deck installation
Comprehensive range of switch gear options available
3-year warranty
Specifications:
Motor Power: 150 W
Max Pull Strength: 550 lbs.
Working Load: 137.5 lbs.
Max Line Speed: 98 ft/min
Normal Current Draw: 20 A
Circuit Breaker: 25 A
Approx. Weight: 14 lbs.
Use with Lewmar 1/2" 3-Strand Premium Anchor Rode with 1/4" G4 Chain
Click here to download Lewmar Pro Sport Windlass User Manual
Frequently Asked Questions
- What is the Lewmar Pro-Sport 550 Windlass designed for? The Lewmar Pro-Sport 550 Windlass is a rope/chain windlass designed for boats up to 28 feet (9m). It provides dual-direction powered operation, manual freefall, and above-deck installation, making it a practical option for rope and chain anchoring applications.
- What rope and chain are compatible with the Lewmar Pro-Sport 550 Windlass? The Lewmar Pro-Sport 550 uses a 7mm (1/4-inch) chain gypsy and is specified for use with Lewmar 1/2-inch 3-strand Premium Anchor Rode paired with 1/4-inch G4 chain. Verify that your anchor rode matches these specifications before installation.
- How does the Lewmar Pro-Sport 550 Windlass operate? The Pro-Sport 550 provides powered operation in both directions and includes manual freefall capability. It also comes with a guarded rocker switch for push-button control, allowing the windlass to be operated from its supplied switch.
- What are the pulling and line-speed specifications of the Lewmar Pro-Sport 550? The Lewmar Pro-Sport 550 has a maximum pull strength of 550 lb and a working load of 137.5 lb. Its maximum line speed is 98 feet per minute. The windlass uses a 150W motor with a normal current draw of 20A and a specified 25A circuit breaker.
- What is included with the Lewmar Pro-Sport 550 Windlass? The kit includes the windlass, base gasket seal, fast mounting studs, installation wrench, contractor (68000939), guarded rocker switch (68000593), and circuit breaker. The windlass features a rugged aluminum center case and composite side covers.
- What type of installation does the Lewmar Pro-Sport 550 require? The Lewmar Pro-Sport 550 is designed for convenient above-deck installation and is described as DIY-ready and easy to install. The kit includes mounting hardware, an installation wrench, a base gasket seal, and electrical components for the specified windlass setup.
$2,370.49
Lewmar Pro-Fish 1000 Windlass
The NEW Freefall Horizontal Windlass is the ultimate windlass for fishermen. The horizontal Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision. No more running your motor or wasting fuel while you "hover fish". When you're ready to go, you can retrieve your anchor just as easily, with the push of a button. Plus, the Pro-Fish comes equipped with a reliable spur gear-box, is DIY ready and made of 100% 316 stainless steel. Strength, speed, efficiency and durability - a perfect catch, all around.
Features:
Use with Lewmar 9/16" 3-Strand Premium Anchor Rode with 5/16" G4 Chain
Automatic freefall
Powerful motor providing fast line retrieval speed
Manual recovery operation-all you need is a common 1/2"(12mm) socket wrench
Strong 100% 316 Stainless steel, including control arm and stripper
Maximum pulling power: 1000lbs (454Kg)
Convenient above deck installation
For Boats up to 38ft.
5-year warranty
Includes: Windlass, Dual-Direction Contactor, Rocker Switch, Base Gasket Seal, Fast Mounting Studs, and Installation Wrench.
Lewmar Pro-Fish 1000 Windlass
Frequently Asked Questions
- What is the Lewmar Pro-Fish 1000 Windlass designed for? The Lewmar Pro-Fish 1000 Windlass is a horizontal freefall windlass designed for fishermen who need quick and precise anchor deployment. Its automatic freefall function allows the anchor to be dropped rapidly, while the powered retrieval system lets you bring the anchor back up with the push of a button.
- What anchor rode is compatible with the Lewmar Pro-Fish 1000 Windlass? The Lewmar Pro-Fish 1000 Windlass is specified for use with Lewmar 9/16-inch 3-strand Premium Anchor Rode paired with 5/16-inch G4 chain. Verify that your anchor rode matches these specified dimensions before installation and use.
- Does the Lewmar Pro-Fish 1000 have an automatic freefall function? Yes. The Lewmar Pro-Fish 1000 features automatic freefall, allowing the anchor to deploy quickly without manually paying out the rode. This feature is designed for situations where fast and precise anchoring is important, including fishing over wrecks or ledges.
- How can the Lewmar Pro-Fish 1000 Windlass be manually recovered? The Lewmar Pro-Fish 1000 includes a manual recovery operation for situations when manual anchor retrieval is needed. A common 1/2-inch (12mm) socket wrench is all that is specified for this manual recovery function.
- What boats is the Lewmar Pro-Fish 1000 Windlass suitable for? The Lewmar Pro-Fish 1000 Windlass is specified for boats up to 38 feet. It provides a maximum pulling power of 1,000 lb (454 kg) and features convenient above-deck installation. Verify that this windlass is appropriate for your boat and anchor setup before installation.
- What is included with the Lewmar Pro-Fish 1000 Windlass? The kit includes the windlass, dual-direction contactor, rocker switch, base gasket seal, fast mounting studs, and installation wrench. The windlass is DIY-ready and constructed from 100% 316 stainless steel, including the control arm and stripper.
Showing 24/67
Related collections
Lewmar Marine products currently published by All Marine World.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
