Wiper
16 products
16 products
Sort by:
- Featured
- Most relevant
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
From $12.99

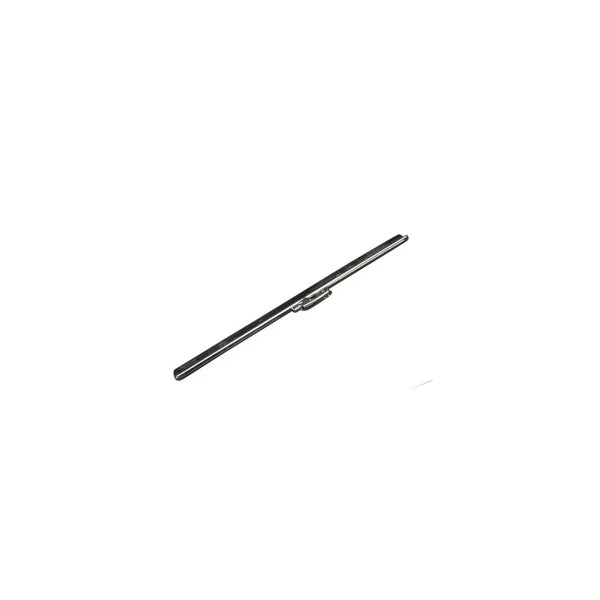

Sea Dog Hinge Style Wiper Blade
Replacement slip-on hinge style wiper blade.
Hinge style blades fit newer Sea Dog wipers (sold after 1993)
Sizes:
- 411151-1
Length: 11"
Weight: .07
411154-1
Length: 14"
Weight: .09
From $14.49

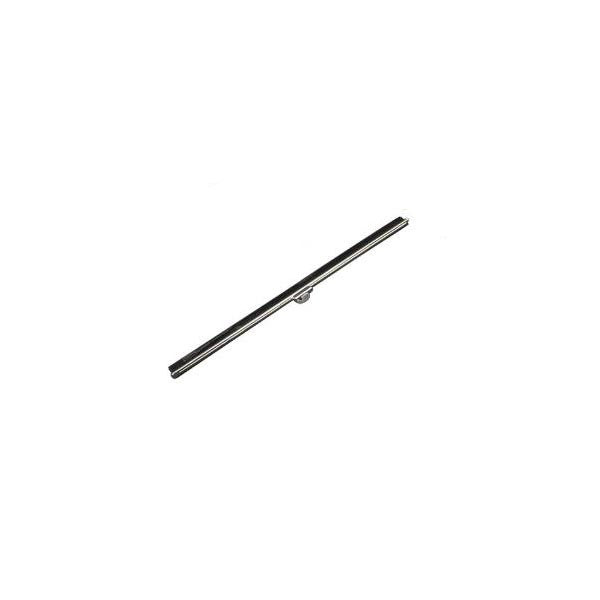

Sea Dog Wiper Blade - Hook Style
All hook style wiper blades and arms are replacements for Sea-Dog wipers sold prior to 1993.
In addition, the hook style wiper blades and arms will fit most older wipers sold by AFI, Wilcox, NA Taylor, GEM, L.S. Brown and others.
Sizes Available:
11"
14"
$23.99

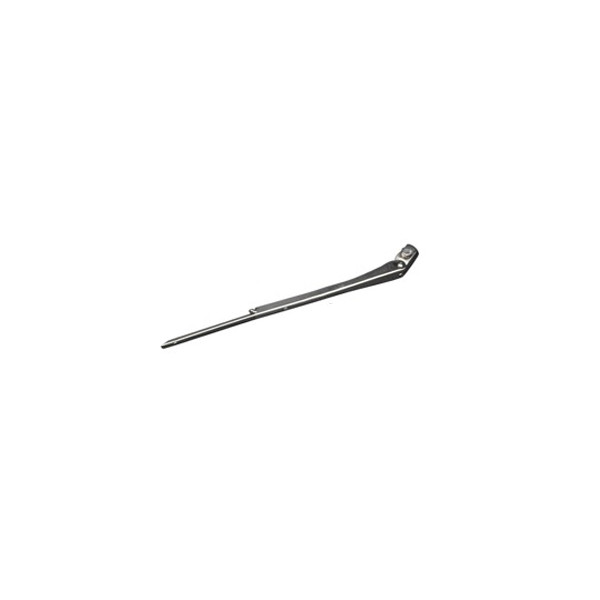

Sea Dog Hinge Style Wiper Arm
Replacement Sea Dog hinge style wiper arm. Constructed of stamped 304 stainless steel.
Replacement arm for Sea Dog new style wipers (sold after 1993)
Fits all standard and waterproof standard motors with 3/8" shaft diameter.
Sizes Available:
- 410051-1
Shaft Size: 3/8"
Length: 8" - 12"
410054-1
Shaft Size: 3/8"
Length: 9-1/4" - 13-1/4"
$35.49
Marinco Deluxe Windshield Wiper Blade - 18"
This Marinco Deluxe Windshield Wiper Blade - 18" features all stainless steel construction and is designed for extreme durability and long lasting use. A push-on attachment allows this wiper blade to be easily attached. The marine-grade silicone squeegee provides exceptional satisfaction. This deluxe windshield wiper blade will work well on curved or flat windshields.
Features:
Works Well On Curved Or Flat Windshields
All Stainless Steel Construction
Push-On Attachment
Marine-Grade Silicone Squeegee
Applications: Marinco Wiper Arms
Sold Individually
$33.29
Marinco Deluxe Windshield Wiper Blade - 16"
This Marinco Deluxe Windshield Wiper Blade - 16" features a push-on attachment that allows this wiper blade to be easily attached. The marine-grade silicone squeegee provides exceptional satisfaction. With its all stainless steel construction, it is designed for extreme durability and long lasting use and will work well on curved or flat windshields.
Features:
All Stainless Steel Construction
Push-On Attachment
Marine-Grade Silicone Squeegee
Works Well On Curved Or Flat Windshields
Applications: Marinco Wiper Arms
Sold Individually
$30.99

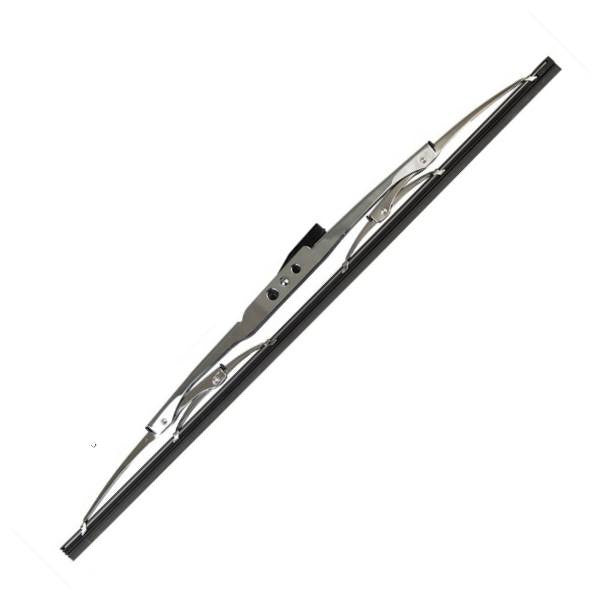

Marinco Deluxe Windshield Wiper Blade - 14"
This Marinco Deluxe Windshield Wiper Blade - 14" features a marine-grade silicone squeegee that provides exceptional satisfaction. It will work well on curved or flat windshields. With its all stainless steel construction it is designed for extreme durability and long lasting use and with push-on attachment, this wiper blade can be easily attached.
Features:
Push-On Attachment
All Stainless Steel Construction
Works Well On Curved Or Flat Windshields
Marine-Grade Silicone Squeegee
Applications: Marinco Wiper Arms
Sold Individually
$28.99
Marinco Deluxe Windshield Wiper Blade - 12"
This Marinco Deluxe Windshield Wiper Blade - 12" will work well on curved or flat windshields. With its all stainless steel construction it is designed for extreme durability and long lasting use. The marine-grade silicone squeegee provides exceptional satisfaction. With push-on attachment, this wiper blade can be easily attached.
Features:
Marine-Grade Silicone Squeegee
Works Well On Curved Or Flat Windshields
All Stainless Steel Construction
Push-On Attachment
Applications: Marinco Wiper Arms
Sold Individually
$302.99
AFI 1000 Waterproof Wiper Motor w/ 2.5" Shaft
The AFI 1000 Waterproof Wiper Motor is a heavy-duty wiper motor capable of powering 18" deluxe arm and 18" deluxe combination at sweep sets of 80 degrees or less, or 16" deluxe arm and 16" deluxe blade combinations at a swwp set of 110 degrees. This motor features a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic.
Specifications:
12V
.625" diameter shaft
2.5" Shaft length
Stall torque: 55 in-lbs
Stall current: 9.8-10.0 amps
No load current: 0.8-1.2 amps
6.625" L x 3.375" W x 2" D
Features:
Heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
RF shielded circuitry
Options Available:
80° Sweep
110° Sweep
$464.49
AFI 1000 Wiper Kit - 80 Degree Sweep Set
The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.
Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
0.625" diameter shaft (16 mm)
12 volt heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
Retail version includes 5 amp fuse and holder (on/off switch not included)
RF shielded circuitry
Weight: 1.75 lbs
Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
Measures approximately 6.625" L x 3.375"W x 2" D
Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall current: 9.8-10.0 amps
No load current: 0.8-1.2 amps
Frequently Asked Questions
- What is the AFI 1000 Wiper Kit - 80 Degree Sweep Set used for? The AFI 1000 Wiper Kit - 80 Degree Sweep Set is a 12-volt marine wiper motor system designed to power 18-inch Deluxe arm and blade combinations at an 80-degree or smaller sweep. It can also operate 16-inch Deluxe arm and blade combinations with a 110-degree sweep.
- What sweep angles can the AFI 1000 Wiper Motor use? The AFI 1000 Wiper Motor comes factory preset for an 80-degree or 110-degree sweep and can be adjusted to 50, 65, 80, or 110 degrees. The 80-degree configuration is designed for an 18-inch Deluxe arm and blade combination, while the 110-degree setting supports a 16-inch combination.
- What are the electrical specifications of the AFI 1000 Wiper Kit? The AFI 1000 Wiper Motor operates on 12 volts and has a stall torque of 55 in-lbs, stall current of 9.8 to 10.0 amps, and no-load current of 0.8 to 1.2 amps. The retail version also includes a 5-amp fuse and holder, but an on/off switch is not included.
- Does the AFI 1000 Wiper Motor have adjustable parking? Yes. The AFI 1000 Wiper Motor features coast-to-park operation with adjustable right- or left-side self-parking. This allows the motor's parking position to be configured for the desired side.
- What shaft lengths are available for the AFI 1000 Wiper Kit? The AFI 1000 Wiper Kit is available with either a 1.5-inch or 2.5-inch shaft length. The listed shaft length includes 0.5 inch of knurled arm fitting. The motor has a 0.625-inch (16 mm) diameter shaft and measures approximately 6.625 inches long by 3.375 inches wide by 2 inches deep.
$302.99
AFI 1000 Waterproof Wiper Motor w/ 1.5" Shaft
The AFI 1000 Waterproof Wiper Motor is a heavy-duty wiper motor capable of powering 18" deluxe arm and 18" deluxe combination at sweep sets of 80 degrees or less, or 16" deluxe arm and 16" deluxe blade combinations at a swwp set of 110 degrees. This motor features a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic.
Specifications:
12V
.625" diameter shaft
1.5" Shaft length
Stall torque: 55 in-lbs
Stall current: 9.8-10.0 amps
No load current: 0.8-1.2 amps
6.625" L x 3.375" W x 2" D
Features:
Heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
RF shielded circuitry
Options Available:
80° Sweep
110° Sweep
$390.69
AFI MRV Wiper Motor w/ 2.5" Shaft
The AFI MRV Wiper Motor is a heavy-duty wiper motor featuring a corrosion-resistant casing and stainless steel fasteners and mounting bracket. This motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degrees or less. Although this is a two speed motor, it can be operated as a one speed.
Specifications:
12V
Factory pre-set sweep of 80°
.625" diameter shaft
2.5" shaft length
Stall torque: 109 in-lbs
Stall current: 11.5-13.0 amps
No load current: 0.5-1.2 amps
Features:
Corrosion-resistant casing
Heavy-duty motor with right angle drive
Solid brass knurled drive nut with brass and stainless steel drive shaft
Adjustable right or left self parking, coast to park
Stainless steel fasteners and mounting bracket
Options Available:
80° Sweep
110° Sweep
From $104.49
AFI Deluxe Pantographic Wiper Arm
AFI Deluxe Pantographic Wiper Arms are ideal for use with standard and heavy duty wiper motors. This Pantographic Wiper Arm has a complete stainless steel construction, and features an articulating/bend-back feature. The motor shaft mounting has additional set screw clamping. This is a dry wiper arm.
Features:
For use with 2.5, 1.5 and MRV motors
Stainless Steel
Articulating/Bend-back feature
Lengths Available (Adjustable):
12"-17"
17"-22"
Frequently Asked Questions
- What is the AFI Deluxe Pantographic Wiper Arm used for? The AFI Deluxe Pantographic Wiper Arm is designed for use with standard and heavy duty wiper motors. It has a complete stainless steel construction and features an articulating or bend-back design. The arm is intended for dry wiping applications.
- Which wiper motors are compatible with the AFI Deluxe Pantographic Wiper Arm? The AFI Deluxe Pantographic Wiper Arm is designed for use with 2.5, 1.5, and MRV motors. Verify that your existing wiper motor is one of these specified types before purchasing the arm.
- What is the AFI Deluxe Pantographic Wiper Arm made from? The AFI Deluxe Pantographic Wiper Arm features complete stainless steel construction. It also includes additional set screw clamping at the motor shaft mounting for the specified wiper motor applications.
- What lengths are available for the AFI Deluxe Pantographic Wiper Arm? The AFI Deluxe Pantographic Wiper Arm is available in two adjustable length ranges: 12"-17" and 17"-22". Select the length range that matches your wiper installation requirements.
- Does the AFI Deluxe Pantographic Wiper Arm have an articulating feature? Yes. The AFI Deluxe Pantographic Wiper Arm features an articulating or bend-back design. This feature is part of the arm's construction and is available on both adjustable length options.
From $59.99

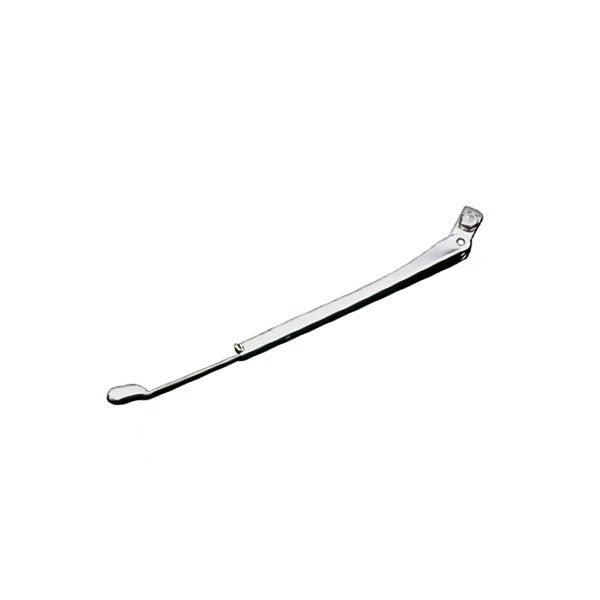

AFI Deluxe Adjustable Stainless Steel Wiper Arm
AFI Deluxe Wiper Arms are ideal for use with standard and heavy duty wiper motors. This Deluxe Wiper Arm has a complete stainless steel construction, and features an articulating/bend-back feature. The motor shaft mounting has additional set screw clamping. This is a dry wiper arm.
Features:
Stainless Steel
Articulaing/Bend-Back Feature
Lengths Available (Adjustable):
10-14"
14-20"
$314.19
Product Features: AFI Standard Wiper Motor with 11.5" Deluxe stainless steel curved blade and Deluxe adjustable (6.75" to 10.5") stainless steel arm Deck Mount version includes deck mount adapter kit Maximum Current Draw: 2 amps
$314.19
Kit includes STD wiper motor (part number 35040), 7-1/2' adjustable stainless steel arm (part number 33002), and 11" stainless steel straight blade (part number 33001)
Motor is not waterproof or water-resistant, and should only be mounted in interior locations
Corrosion-proof aluminum alloy case with black crackle finish
Motor has 2-1/2 shaft length and 3/8" shaft diameter
Designed for windshield frame mount installation
80 degree sweep set (can be adjusted to 110 degree sweep)
Adjustable right or left self-parking
12 volt motor with heavy-duty gear train
Maximum current draw: 2 amps
$348.79
AFI 500 Wiper Kit - 80 Degree Sweep Set
The AFI 500 Wiper Motor Kit consists of a waterproof standard wiper motor, a stainless steel curved wiper blade and an adjustable stainless steel arm. AFI's 500 Wiper Motor is enclosed in a waterproof, thermoplastic housing, and is designed for exterior installation. Draws 2 AMPs max power, and features self-parking wipers that return to the off position automatically. This motor is a standard motor, and is designed for light duty use. Runs on 12V power.
The 11.5" deluxe stainless steel curved wiper blade works well on curved or flat windshields and features a marine-grade silicone squeegee.
The deluxe adjustable stainless steel arm has an articulating/bend-back feature, and is designed for use on standard and heavy-duty motors.
Kit Includes:
500 Waterproof Wiper Motor
11.5" Deluxe Stainless Steel Curved Wiper Blade
Deluxe Adjustable (6.75" - 10.5") Stainless Steel Arm
Features:
12V
80 Degree Sweep
Self-parking
Windshield Mount 0.5" shadt diameter
