Steering

Lewmar Power Grip Steering Wheel w/ 5/8" Welded Nut

This Lewmar Power Grip Wheel w/ 5/8" Welded Nut features a highly polished 316 stainless steel construction with a ball-raced power-grip knob. It provides extra room and added comfort with its ergonomic design with finger grips and includes a welded nut to fit 5/8" threads. With cast spokes and an integrated hub, this power grip wheel offers exceptional satisfaction.

Features:

Highly Polished 316 Stainless Steel Construction

Ball-Raced Power-Grip Knob

Ergonomically Designed With Finger Grips

Cast Spokes With Integrated Hub

Provides Extra Room and Comfort

Non-Magnetic

Includes Wheel Nut To Fit 5/8" Threads

Specifications:

Hub: 3/4" Tapered Shaft

Spokes: 3

Dish: 19 Degrees

Welded Nut: 5/8"

Frequently Asked Questions

• What is the Lewmar Power Grip Steering Wheel w/ 5/8" Welded Nut designed for? The Lewmar Power Grip Steering Wheel w/ 5/8" Welded Nut is a steering wheel constructed from highly polished 316 stainless steel. It features an ergonomic design with finger grips, a ball-raced power-grip knob, cast spokes, and an integrated hub for added room and comfort.
• What type of steering shaft does the Lewmar Power Grip Wheel fit? The Lewmar Power Grip Wheel features a 3/4" tapered shaft hub. It also includes a welded wheel nut designed to fit 5/8" threads, as specified for this steering wheel.
• What is the Lewmar Power Grip Steering Wheel made from? The wheel is constructed from highly polished 316 stainless steel. It also features cast spokes with an integrated hub and a non-magnetic design.
• What features does the power-grip knob provide on the Lewmar steering wheel? The Lewmar Power Grip Steering Wheel includes a ball-raced power-grip knob. Combined with the ergonomic finger grips, the design provides extra room and added comfort while using the steering wheel.
• How many spokes does the Lewmar Power Grip Steering Wheel have? The Lewmar Power Grip Steering Wheel has three cast spokes with an integrated hub. The wheel has a 19-degree dish and a 3/4" tapered shaft hub.
• What are the key specifications of the Lewmar Power Grip Steering Wheel? The wheel has a 3/4" tapered shaft hub, three spokes, and a 19-degree dish. The included welded nut is designed for 5/8" threads. The wheel is constructed from highly polished 316 stainless steel and features a ball-raced power-grip knob.

EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit

The Ezy-Stik III has incorporated many of the outstanding and time proven features of the Model 840. These great features include a one piece stainless steel drive spool, and reinforced composite housing. The Model 870 has been developed due to the increased demand for a system with quicker response and shorter lock-to-lock travel distance. The quicker turning ratio provides a faster response and a shorter travel distance from lock to lock.

Due to the fact that 4-stroke engines transfer more negative torque feedback to the operator, if the engine is a 4-stroke over 40 HP, the Ezy-Stik II Model 840 should be considered over the Model 870. Although the 870 has a horsepower rating of 70HP/90HP Jet, it is not recommended for 4-stroke engines over 40 HP.

This system is rated for:

Outboard engines not to exceed 70 HP

Jet drives not to exceed 90 HP

Specifications:

Total lever movement: 44.8 inches/161 degrees

Steering ratio: 5.0/1

Housing dimensions: Approx. 7-1/2" x 7-1/2"

Lever length: 16"

How to Measure a New System or Replacement Cable Length from EZY-Glide

Measure from the center of the helm position to the center of the engine.

Add 8" to this measurement.

Round up your system length measurement to the nearest 1/2 foot. (For example, a 12'2" measurement would order a 12-1/2' cable)

Click to Download EZY-Stik III Model 870 Installation Instructions

Frequently Asked Questions

• What is the EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit used for? The EZY-Glide EZY-Stik III Model 870 is a mechanical steering system designed for outboard engines up to 70 HP and jet drives up to 90 HP. Its quicker steering ratio provides faster response and shorter lock-to-lock travel compared with systems designed with a slower turning ratio.
• What horsepower engines are compatible with the EZY-Glide EZY-Stik III Model 870? The Model 870 is rated for outboard engines not exceeding 70 HP and jet drives not exceeding 90 HP. However, it is not recommended for 4-stroke engines over 40 HP because these engines transfer more negative torque feedback to the operator.
• Why does the EZY-Glide Model 870 provide quicker steering response? The Model 870 was developed with a quicker turning ratio to provide faster steering response and a shorter travel distance from lock to lock. Its steering ratio is 5.0:1, with total lever movement of 44.8 inches and 161 degrees.
• What are the main construction features of the EZY-Glide EZY-Stik III Model 870? The EZY-Stik III Model 870 incorporates a one-piece stainless steel drive spool and reinforced composite housing. The housing measures approximately 7-1/2 inches by 7-1/2 inches, and the lever length is 16 inches.
• How do I determine the correct cable length for the EZY-Glide Model 870? Measure from the center of the helm position to the center of the engine, then add 8 inches. Round the resulting system length up to the nearest 1/2 foot. For example, a measurement of 12 feet 2 inches would require ordering a 12-1/2-foot cable.
• What should I consider before choosing the EZY-Glide Model 870 for a 4-stroke engine? If the outboard is a 4-stroke engine over 40 HP, the Model 870 is not recommended even though its overall rating reaches 70 HP. The product description recommends considering the Ezy-Stik II Model 840 instead for 4-stroke engines over 40 HP.

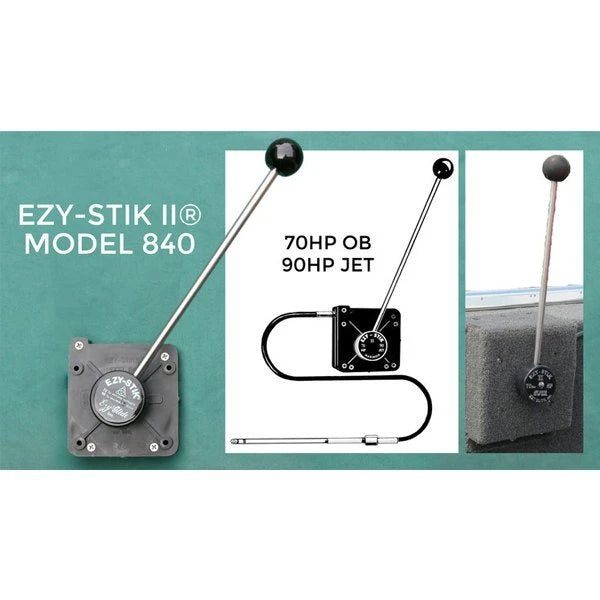

EZY-Glide EZY-Stik II Model 840 Mechanical Steering Kit

The EZY-Glide EZY-Stick is designed by EZY-Glide who has been in the marine industry since 1981. They are an industry leader in mechanical steering kits. Mechanical technology uses push pull cables to connect the steering wheel with the outboard motor and are generally safest for smaller boats with outboard engines not exceeding 70 HP and jet drives not exceeding 90 HP.

The EZY-Stick II Model 840 Mechanical Steering Kit is a system designed to be positioned in the front of the boat. This allows for better visibility and convenience for the boat operator. Made with a one piece stainless steel drive spool it is encased in a composite high impact housing which provides a single lever steering platform for easier control for today’s fisherman. The interlocking feature makes sure a lock between the shaft and the lever.

The mechanical steering kit includes everything you need for installation with the helm, lever, mounting hardware, cable, and dress cover. It also has a 1 year manufacturer warranty.

This system is rated for:

Outboard engines not to exceed 70 HP

Jet drives not to exceed 90 HP

Specifications:

Total lever movement: 58 inches/206 degrees

Steering ratio: 6.4/1

Housing dimensions: Approx. 6" x 6"

Lever length: 6"

How to Measure a New System or Replacement Cable Length from EZY-Glide

Measure from the center of the helm position to the center of the engine.

Add 8" to this measurement.

Round up your system length measurement to the nearest 1/2 foot. (For example, a 12'2" measurement would order a 12-1/2' cable)

Click to Download EZY-Stik II Model 840 Installation Instructions

Frequently Asked Questions

• What is the EZY-Glide EZY-Stik II Model 840 Mechanical Steering Kit designed for? The EZY-Glide EZY-Stik II Model 840 is a front-mounted mechanical steering system designed for smaller boats. It uses push-pull cable steering and is rated for outboard engines up to 70 HP and jet drives up to 90 HP.
• What is included with the EZY-Glide EZY-Stik II Model 840? The EZY-Stik II Model 840 Mechanical Steering Kit includes the helm, steering lever, mounting hardware, cable, and dress cover. The kit is designed to provide the components needed for installation as a complete mechanical steering system.
• Where is the EZY-Glide EZY-Stik II Model 840 mounted? The EZY-Stik II Model 840 is designed to be positioned at the front of the boat. This front-mounted configuration provides the boat operator with better visibility and convenience while steering.
• What are the steering specifications of the EZY-Glide EZY-Stik II Model 840? The EZY-Stik II Model 840 has a steering ratio of 6.4:1 and a total lever movement of 58 inches or 206 degrees. The housing measures approximately 6" x 6", and the steering lever is 6" long.
• How do I determine the correct cable length for the EZY-Glide EZY-Stik II Model 840? Measure from the center of the helm position to the center of the engine, then add 8 inches. Round the resulting measurement up to the nearest half-foot to determine the system length. For example, a 12'2" measurement would require a 12-1/2' cable.
• Does the EZY-Glide EZY-Stik II Model 840 have a warranty? Yes. The EZY-Glide EZY-Stik II Model 840 Mechanical Steering Kit includes a 1-year manufacturer warranty. The system also features a one-piece stainless steel drive spool housed in a composite high-impact housing.

Bob's Machine Jack Plate Steering Wheel Switch

Keep your hands on the wheel with the Bob's Machine Steering Wheel Switch for jack plates and tilt & trims. This switch is used like a blinker switch in a car to allow you to safely control your jack plates while keeping your hands on the steering wheel. The switch is available in both single and dual configurations and comes as a complete kit.

Features:

Single and dual options available

Comes as complete kit including wiring, connectors, and instructions

Can be used for jack plates and tilt & trims

Frequently Asked Questions

• What is the Bob's Machine Jack Plate Steering Wheel Switch designed to do? The Bob's Machine Jack Plate Steering Wheel Switch allows you to control compatible jack plates and tilt & trims while keeping your hands on the steering wheel. It operates similarly to a car's blinker switch for convenient control while driving the boat.
• Can the Bob's Machine Steering Wheel Switch be used with tilt and trim systems? Yes. The Bob's Machine Steering Wheel Switch can be used to control jack plates as well as tilt & trim systems. The product description does not specify particular jack plate or tilt and trim models, so compatibility should be verified before installation.
• Are single and dual versions of the Bob's Machine Steering Wheel Switch available? Yes. The Bob's Machine Steering Wheel Switch is available in both single and dual configurations. The available configuration depends on the control setup you need for your jack plate or tilt & trim system.
• What is included with the Bob's Machine Jack Plate Steering Wheel Switch? The Bob's Machine Steering Wheel Switch comes as a complete kit that includes the switch, wiring, connectors, and instructions. The included components provide the parts and installation information supplied with the kit.
