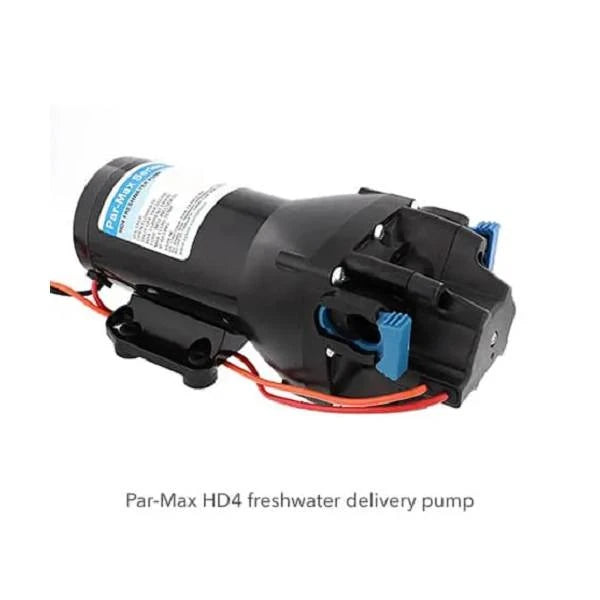

Jabsco PARMAX HD4 12V 4GPM 60PSI

$306.59

Low in stock

Jabsco

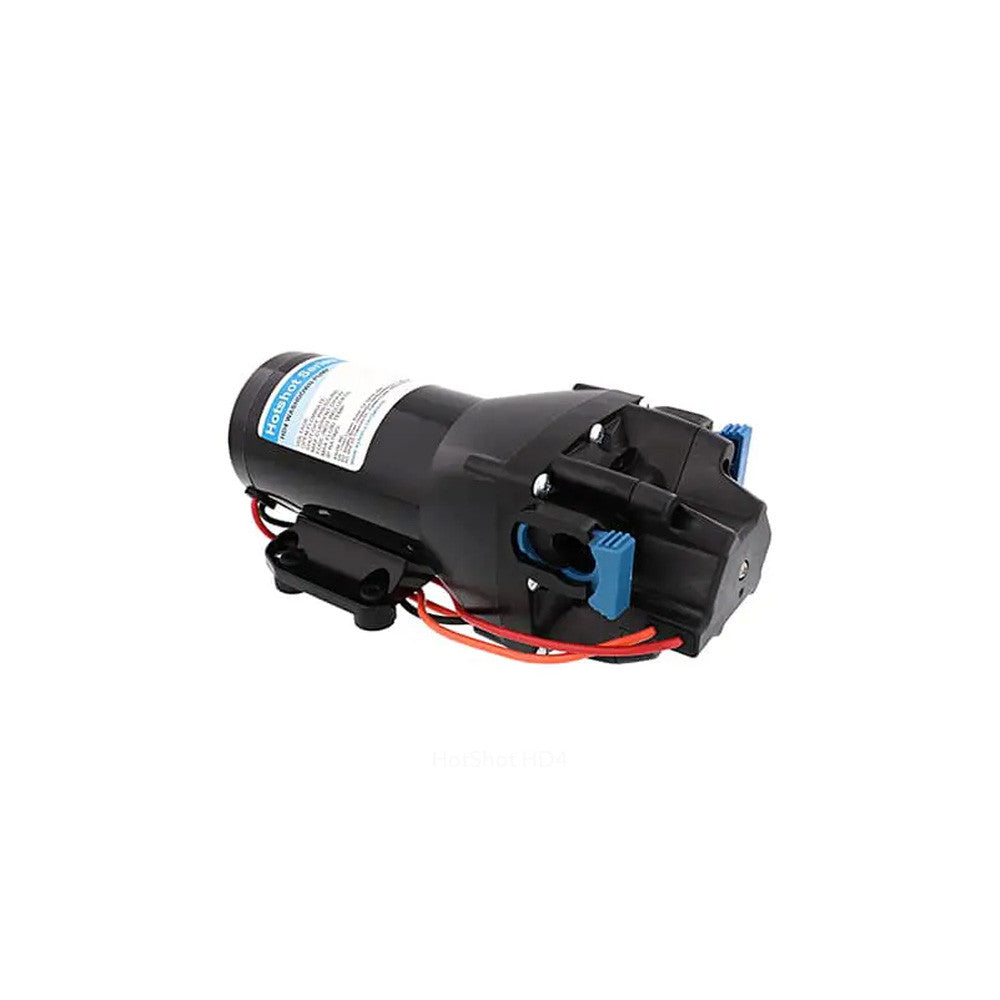

Jabsco HotShot HD4 Heavy Duty Washdown Pump w-25' HoseCoil

$307.49

Out of stock

Jabsco

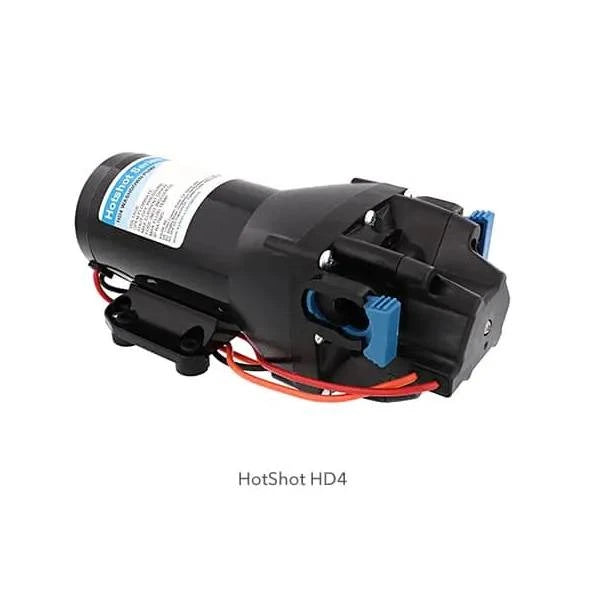

Jabsco HOTSHOT HD4 12V 4GPM 60PSI

$298.79

Jabsco HD4 HotShot 4GPM Washdown Pump

This Jabsco Washdown kit puts out is designed for use on yachts on all sizes. The Hotshot washdown kit harnesses 4GPM with 60PSI to make cleaning your decks, cockpits, and anchors with ease. These HotShot kits come with a wide diameter heavy duty motor that sits in a cast aluminum lower housing for unmatched durability with a long working life. For efficient and quiet operation this washdown kit utilizes dampening mounting feet for lessened vibration. This self-priming motor allows for a versatile installation and is able to run dry without damage to the system. The integrated, sealed pressure switch allows for on demand operation. This kit comes with all you need to get your boat spick and span.

The HotShot HD4 Washdown kit replaces the following Jabsco washdown kits: 32605-0092, 32605-0392, 31700-0092, 31700-0392, 82405-0092

Product Features:

Efficient & Quiet Operation

Versatile Installation

Quick-Connect Ports

4GPM / 60PSI

Heavy Duty Motor

Can Run Dry

Self-Priming Capability

Integrated, Sealed Pressure Switch.

Kit Includes:

2 - 1/2" Straight Hosebarb

2 - 3/4" Straight Hosebarb

1 - 3/4" US GHT

1 - 90° Quick Connect 20 Mesh Strainer

1 - Standard Trigger Nozzle

1 - 1/2" Crimp Style Quick Connect Trigger ADapter

1 3/4" US GHT Quick Connect Trigger Adapter

Specifications:

Nominal Voltage: 12VDC

Flowrate: 4GPM (15.1 LPM)

Max Amp Draw: 11.5A

Recommended Fuse Size: 15

Pressure Switch Off Setting: 60PSI (4.1 BAR)

Fluid Temperature Range: 32° F - 140° F

Dry Self-Priming Height: 8'

Length: 9.4"

Width: 4.1"

Height: 3.8"

Motor Height: 3.5"

Mounting Length: 2"

Mounting Width: 3.6"

Pump Weight: 5.6 lbs

Click here for Jabsco HotShot HD4 Washdown Kit Technical Data Sheet

Frequently Asked Questions

What is the Jabsco HD4 HotShot 4GPM Washdown Pump used for? The Jabsco HD4 HotShot 4GPM Washdown Pump is designed for marine washdown applications such as cleaning boat decks, cockpits, and anchors. It delivers 4 GPM at a pressure switch off setting of 60 PSI and features a heavy-duty motor in a cast aluminum lower housing.
What are the flow rate and pressure specifications of the Jabsco HD4 HotShot washdown pump? The Jabsco HD4 HotShot provides a 4 GPM (15.1 LPM) flow rate with a pressure switch off setting of 60 PSI (4.1 BAR). The pump operates on 12VDC and has a maximum amp draw of 11.5A.
Can the Jabsco HD4 HotShot washdown pump run dry? Yes. The Jabsco HD4 HotShot has dry-running capability and a dry self-priming height of 8 feet. Its self-priming design also allows for versatile installation.
What connections and accessories are included with the Jabsco HD4 HotShot Washdown Pump? The kit includes 1/2-inch and 3/4-inch straight hose barbs, a 3/4-inch US GHT fitting, a 90-degree quick-connect 20-mesh strainer, a standard trigger nozzle, and quick-connect trigger adapters for 1/2-inch and 3/4-inch connections.
What is the operating temperature range of the Jabsco HD4 HotShot Washdown Pump? The Jabsco HD4 HotShot Washdown Pump is specified for a fluid temperature range of 32°F to 140°F. The pump weighs 5.6 pounds and measures 9.4 inches long, 4.1 inches wide, and 3.8 inches high.
Which Jabsco washdown kits does the HotShot HD4 replace? The Jabsco HotShot HD4 Washdown kit replaces Jabsco washdown kits 32605-0092, 32605-0392, 31700-0092, 31700-0392, and 82405-0092. Verify the replacement part number and application before installation.

Low in stock

Jabsco

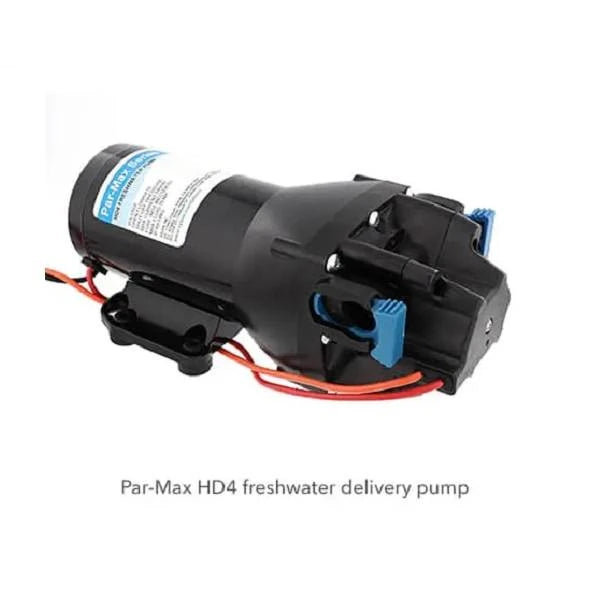

Jabsco PARMAX HD4 12V 4GPM 40PSI

$306.59

In stock

Jabsco

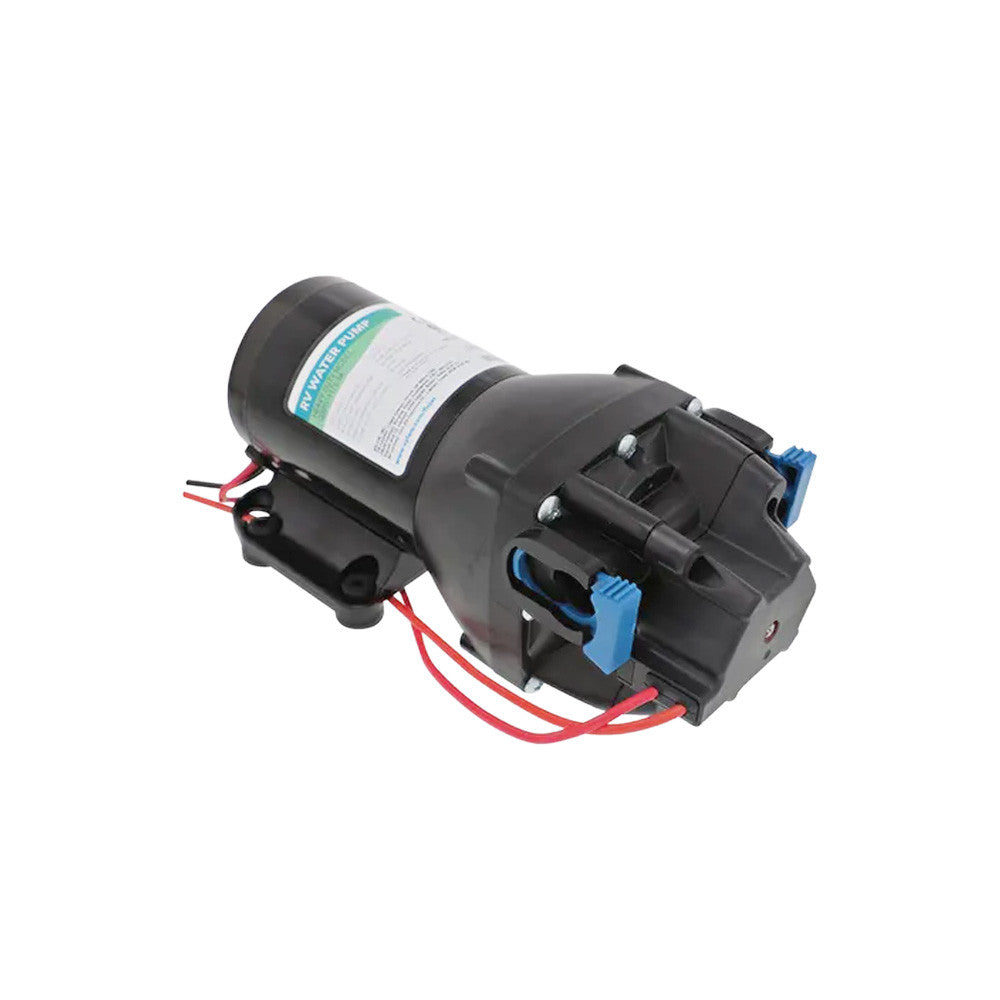

Jabsco HEAVY DUTY RV WATER PMP 12V 3GPM 50PSI

$295.49

Flojet Heavy Duty RV Water Pump - 12V, 3 GPM, 50 PSI

Flojet Q301V-117S-3A Heavy Duty RV Water System Pump provides dependable on-demand water delivery for RV water systems and potable water applications. This 12 VDC pump delivers 3 GPM (11 LPM) with a 50 PSI (3.4 BAR) shut-off pressure, making it well suited for reliable RV water service.

Built for demanding use, the Heavy Duty model features a larger motor and cast aluminum lower housing designed to support long service life and operation at higher pressures. The integrated, sealed pressure switch provides automatic on-demand operation, while the internal bypass helps reduce pump cycling and operating noise.

The pump features co-molded diaphragm technology, self-priming capability up to 8 ft. (2.4 m), and the ability to run dry without damage. Quick-connect ports simplify installation, servicing, and maintenance, while vibration-dampening mounting feet help reduce operating vibration. A built-in backflow prevention valve and thermal motor protection provide additional operating protection.

With IPX6 ingress protection and CE, RCM, and CSA certifications, the Flojet Q301V-117S-3A is designed for dependable performance in RV water system applications.

Product Features

Heavy Duty design for demanding RV water system applications

12 VDC operation

Delivers 3 GPM (11 LPM) flow rate

50 PSI (3.4 BAR) shut-off pressure

30 PSI (2.1 BAR) maximum inlet pressure

Larger Heavy Duty motor supports long service life

Cast aluminum lower housing improves durability and pressure capability

Integrated, sealed pressure switch provides automatic on-demand operation

Internal bypass helps reduce pump cycling and operating noise

Co-molded diaphragm technology supports durability and long service life

Can run dry without damage

Self-primes up to 8 ft. (2.4 m)

Quick-connect ports simplify installation, servicing, and maintenance

Vibration-dampening mounting feet help reduce operating vibration

Built-in backflow prevention valve

Thermal motor protection helps prevent overheating

IPX6 ingress protection

CE, RCM, and CSA certified

Low in stock

Jabsco

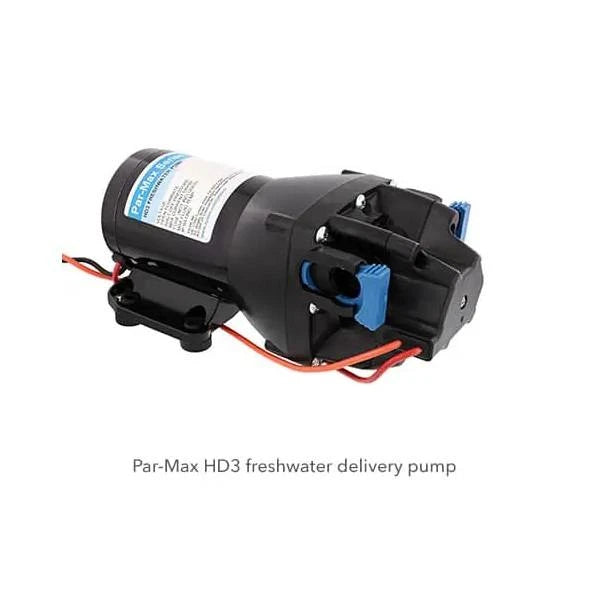

Jabsco PARMAX HD3 12V 3GPM 40PSI

$259.49

Low in stock

Jabsco

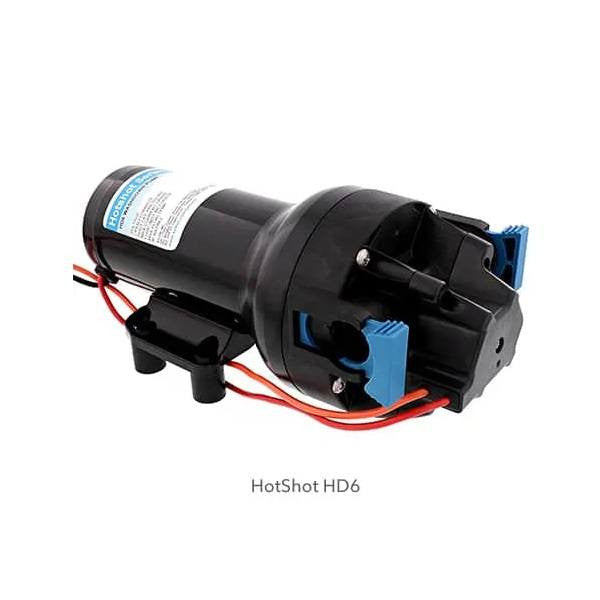

Jabsco HOTSHOT HD6 12V 6GPM 70PSI

$416.69

In stock

Jabsco

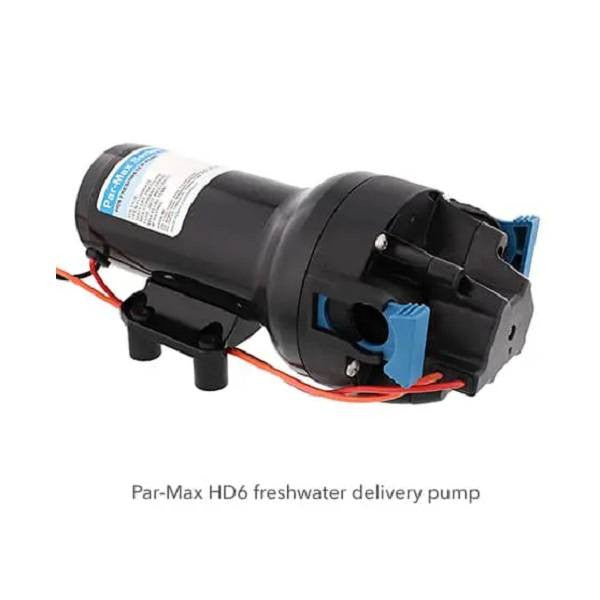

Jabsco PARMAX HD6 12V 6GPM 60PSI

$408.79

Out of stock

Jabsco

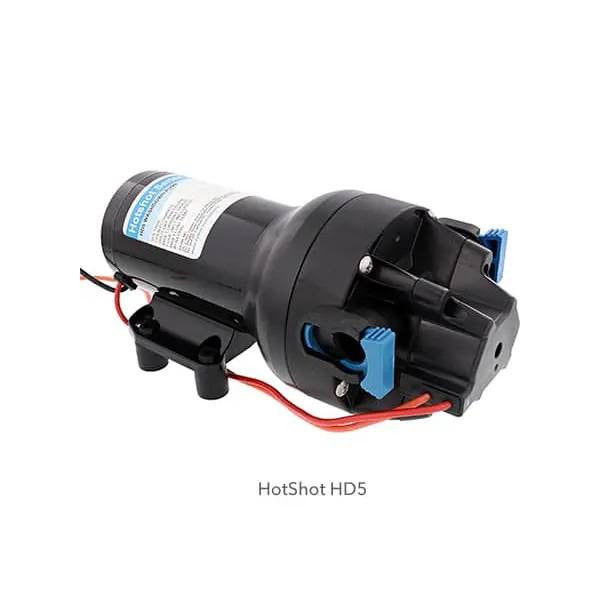

Jabsco HOTSHOT HD5 12V 5GPM 70PSI

$377.39

Low in stock

Jabsco

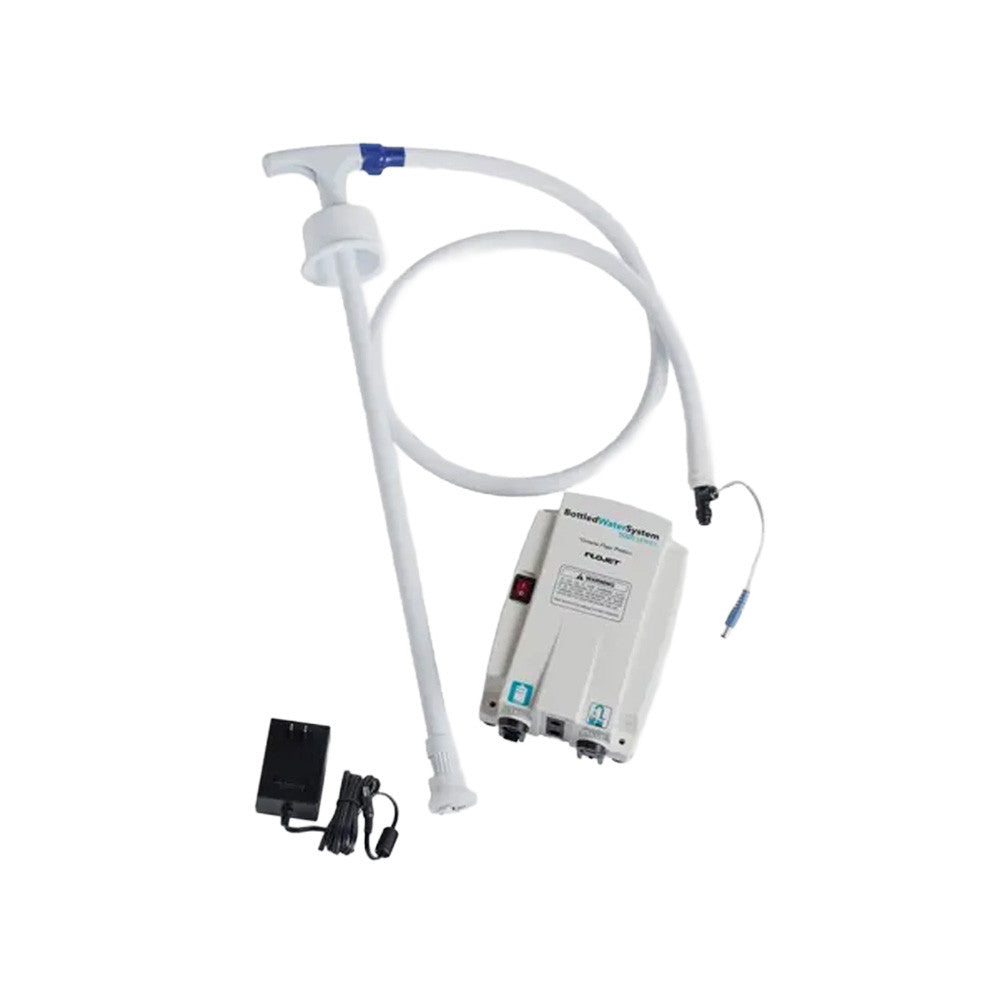

Jabsco Single Inlet Bottled Water Dispensing System 0.5 GPM 115V

$340.99

Flojet BW5000-000A Single Inlet Bottled Water Dispensing System – 0.5 GPM, 115V

Flojet BW5000 Bottled Water Dispensing Pump System provides a convenient and portable way to supply potable water when a standard water connection is unavailable. Designed to draw water from standard five-gallon (18.9-liter) water bottles, this compact system delivers water at up to 0.6 GPM (2.3 LPM) to coffee makers, espresso machines, refrigerators, ice machines, water dispensers, portable sinks, and other compatible equipment.

The long-life diaphragm pump can run dry without damage and automatically shuts off when the water source is depleted, then restarts when water becomes available. Thermal overload protection helps prevent overheating, while noise-dampening rubber feet provide quieter operation.

Installation and replacement are simplified with quick-connect ports for suction and discharge tubing. A built-in check valve helps prevent backflow, while the sealed vacuum design helps keep the water fresh. The illuminated on/off switch provides convenient operation in dark or hard-to-reach areas.

The BW5000-000A Single Inlet model is an ideal portable water solution for remote locations, mobile beverage equipment, and applications where a conventional water supply is not readily available.

Product Features

Portable system dispenses potable water from standard water bottles

Delivers up to 0.6 GPM (2.3 LPM)

Single-inlet configuration draws water from one water line

Compatible with most standard five-gallon (18.9-liter) water bottles

Suitable for coffee makers, tea makers, espresso machines, refrigerators, ice machines, water dispensers, and portable sinks

Illuminated on/off switch provides visibility in dark or difficult-to-reach locations

Long-life motor provides reliable operation

Diaphragm pump can run dry without damage

Quick-connect ports simplify installation and tubing replacement

Noise-dampening rubber feet help reduce operating noise

Thermal overload protection helps prevent overheating

Automatically shuts off when the water source is depleted

Automatically restarts when water is restored

Sealed vacuum helps keep water fresh

Built-in check valve helps prevent backflow

Compact design supports flexible installation and mounting

Designed for portable applications where a standard water supply is unavailable

In stock

Jabsco

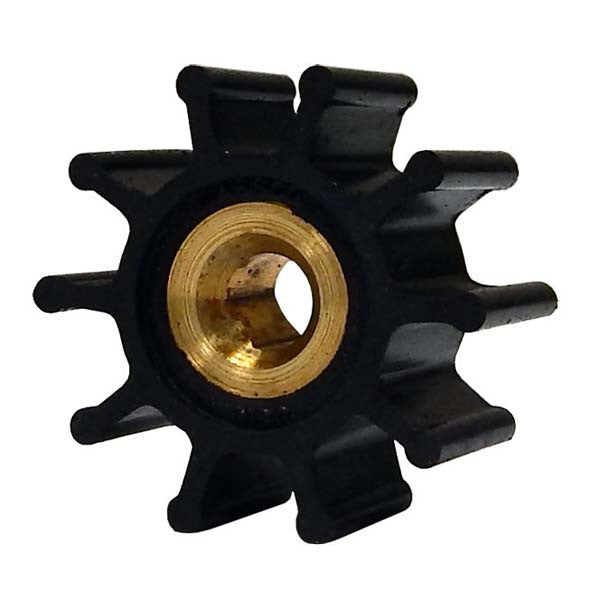

Jabsco Impeller Kit 9200-0023-P

$79.59

Low in stock

Jabsco

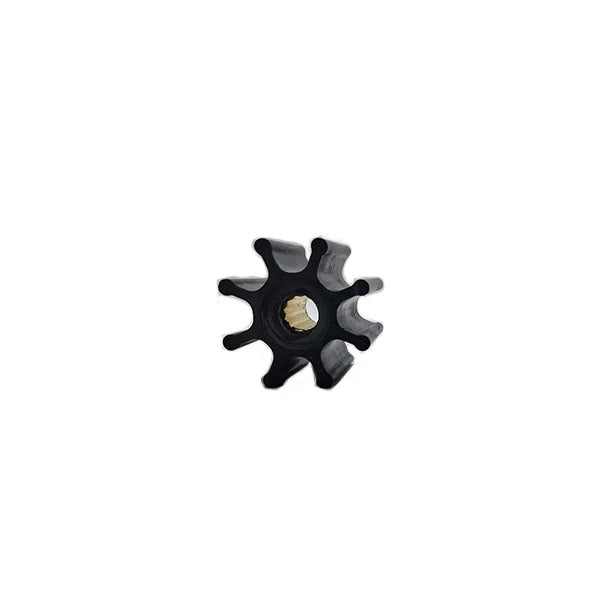

Jabsco Impeller Kit 920-0001-P

$61.89

In stock

Jabsco

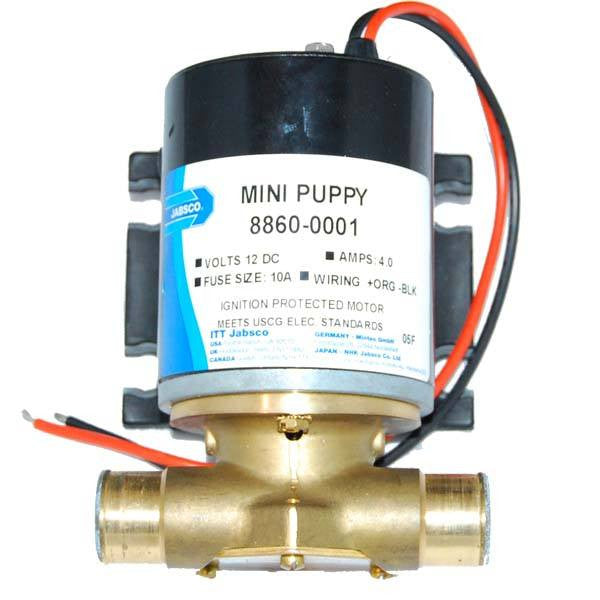

Jabsco Pump Mini-Puppy 12V

$433.79

Out of stock

Jabsco

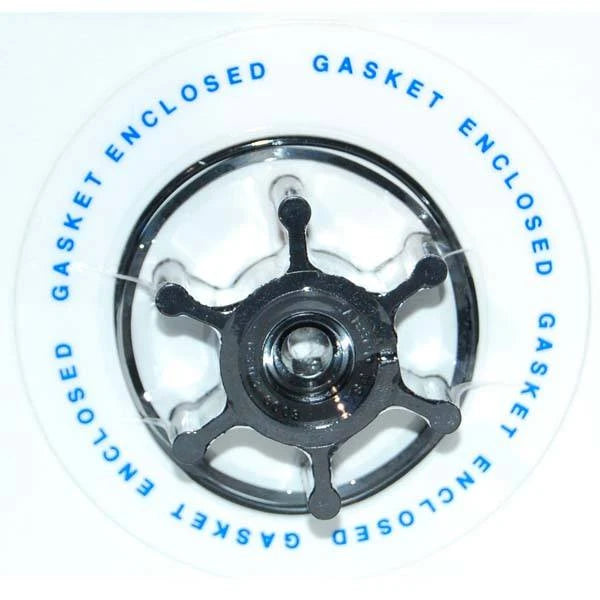

Jabsco Impeller

$46.99

In stock

Jabsco

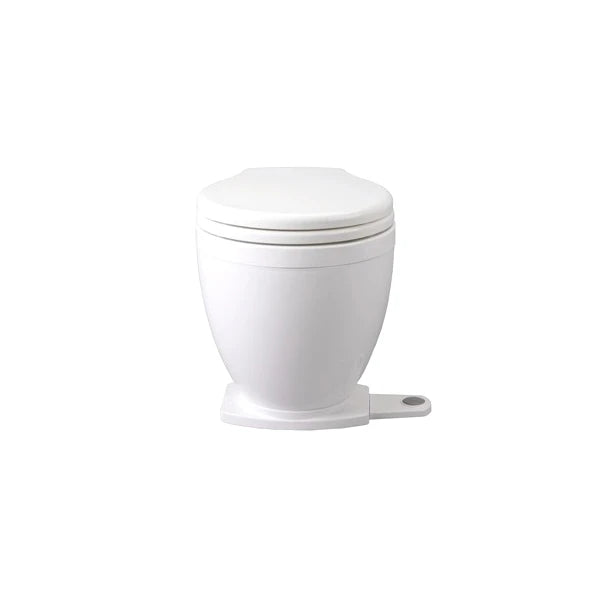

Jabsco Lite Flush Toilet 12V- Foot Switch

$1,252.29

Jabsco Lite Flush Electric Toilet w/ Foot Switch 12V

The Jabsco Lite Flush Toilet is designed with the same footprint as a Jabsco manual toilet. Features a single touch fully automatic foot switch.

Space saving stylish design

Compact size, rotatable seat

Virtually silent operation

Choice of leaving bowl wet or dry after use

Non-clogging large bore flush pump macerates waste

Uses less than 1/0 amp/hour per day

Raw water only

Complies with ISO 8846 MARINE [Ignition protection].

Flush pump is internally mounted, high-speed, non-clogging, centrifugal, waste macerating pump driven by powerful 240 watt, 12V permanent magnet motor with ball bearings and robust ceramic seal. Discharges up to 5ft above the base of the toilet.

Rinse pump is a Jabsco, self-priming up to 3ft, dry running diaphragm water pump. Driven by 12V permanent magnet, ball bearing motor.

Foot switch is integral one touch 'Press and Release' switch pad, sealed for life.

Port(s): Raw water rinse pump inlet - 3/4" hose tails. Flush pump discharge - 1-1/2" hose tail.

Frequently Asked Questions

What is the Jabsco Lite Flush Electric Toilet with Foot Switch 12V used for? The Jabsco Lite Flush Electric Toilet with Foot Switch 12V is a compact electric marine toilet designed with the same footprint as a Jabsco manual toilet. It features a one-touch automatic foot switch, space-saving design, virtually silent operation, and a rotatable seat.
How does the foot switch work on the Jabsco Lite Flush Electric Toilet? The integral foot switch uses a one-touch "Press and Release" switch pad for operation. The switch is sealed for life and provides a simple way to operate the toilet.
Does the Jabsco Lite Flush Electric Toilet use raw water or freshwater? The Jabsco Lite Flush Electric Toilet is specified for raw water only. Its rinse pump is a self-priming, dry-running diaphragm water pump that can self-prime up to 3 feet. The raw water rinse pump inlet uses 3/4-inch hose tails.
What type of flush pump does the Jabsco Lite Flush Electric Toilet have? The toilet has an internally mounted, high-speed centrifugal flush pump with a non-clogging, waste-macerating design. It is driven by a 240-watt, 12V permanent magnet motor with ball bearings and a ceramic seal. The flush pump can discharge up to 5 feet above the toilet base.
What are the plumbing connections on the Jabsco Lite Flush Electric Toilet? The raw water rinse pump inlet uses 3/4-inch hose tails, while the flush pump discharge uses a 1-1/2-inch hose tail. Verify that the plumbing connections in the installation match these specified sizes before installation.
Is the Jabsco Lite Flush Electric Toilet ignition protected? Yes. The Jabsco Lite Flush Electric Toilet complies with ISO 8846 MARINE for ignition protection. The toilet also features virtually silent operation and allows the bowl to be left either wet or dry after use.

Low in stock

Jabsco

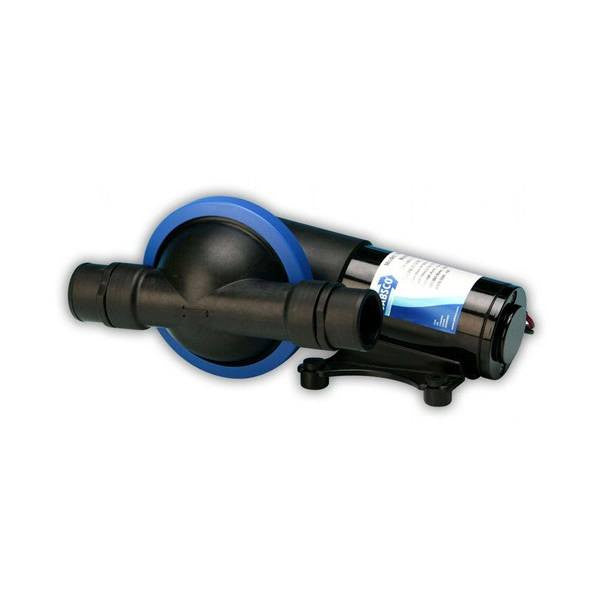

Jabsco Diaphragm Fish Box Pump

$597.59

Jabsco Diaphragm Fish Box Evacuation Pump

The Jabsco Fish Box Pump is perfect for emptying a fishbox or livewell after a day's fishing. There can be all manner of debris left in the bottom of the fish box after use - this self-priming pump is designed for passing typical debris, such as bait residue, particles of ice, fish scales, ect. Its dry-running capabilities and the 360 degree rotatable head allow this pump to be mounted in almost any position in the boat.

Flexible installation

No filter required

Compact and simple design

12v and 24v variants

Dry running capability

Connections for 38mm (11/2") ports

Up to 19 lpm (5 US gpm) flow

Relevant Standards: ISO 8846 MARINE and USCG Regulations for Ignition Protection

Meets BSEN 50081 (Electro Magnetic Compatibility)

Specifications:

Voltage: 12V

Amp Draw: 10A

Fuse Size: 15A

Frequently Asked Questions

What is the Jabsco Diaphragm Fish Box Evacuation Pump used for? The Jabsco Diaphragm Fish Box Evacuation Pump is designed for emptying fish boxes and livewells. Its self-priming design can pass typical debris left after fishing, including bait residue, ice particles, and fish scales. The pump has a compact design and does not require a filter.
Can the Jabsco Diaphragm Fish Box Evacuation Pump run dry? Yes. The Jabsco Diaphragm Fish Box Evacuation Pump has dry-running capability. This feature is part of the pump's design and allows it to operate in applications where dry running may occur during fish box or livewell evacuation.
Can the Jabsco Diaphragm Fish Box Evacuation Pump be mounted in different positions? Yes. The pump has a 360-degree rotatable head that provides flexible installation options. This allows the pump to be mounted in almost any position in the boat, subject to the requirements of the installation.
What size connections does the Jabsco Diaphragm Fish Box Evacuation Pump use? The Jabsco Diaphragm Fish Box Evacuation Pump has connections for 38 mm (1-1/2-inch) ports. Verify that the plumbing in your fish box or livewell system matches the specified connection size before installation.
What is the flow rate and electrical specification of the Jabsco Diaphragm Fish Box Evacuation Pump? The pump provides flow of up to 19 liters per minute (5 US gallons per minute). This 12V version has a 10-amp draw and requires a 15-amp fuse. The product is also available in 12V and 24V variants.
Is the Jabsco Diaphragm Fish Box Evacuation Pump ignition protected? Yes. The Jabsco Diaphragm Fish Box Evacuation Pump meets ISO 8846 MARINE and USCG regulations for ignition protection. It also meets BSEN 50081 for electromagnetic compatibility, according to the supplied product description.

Low in stock

Jabsco

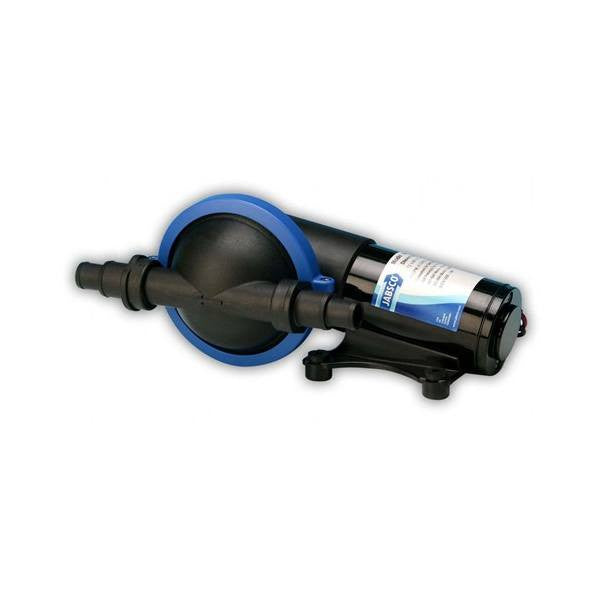

Jabsco Diaphragm Shower Drain Pump

$460.69

Jabsco Single Diaphragm Shower & Bilge Pump

The Jabsco Diaphragm Shower & Bilge Pump features a compact and simple design, allowing for flexible installation. This pump has dry running capability and is self-priming from dry up to 10 feet.

Flexible installation

No filter required

Compact and simple design

Dry running capability

Relevant Standards: ISO 8846 MARINE and USCG Regulations for Ignition Protection ISO 8849 MARINE Bilge Pump Standard

Built to ISO 15083 Specification

Specifications:

Flow Rate: Nominal 4.2 gallons/minute

Body Material: Plastic

Port Type: 3/4" Hose barb

Motor Type: Permanent magnet

Voltage: 12V

Amp Draw: 8A

Fuse Size: 10A

Frequently Asked Questions

What is the Jabsco Single Diaphragm Shower & Bilge Pump designed for? The Jabsco Single Diaphragm Shower & Bilge Pump is a compact pump designed for shower and bilge applications. It features a simple design for flexible installation, dry-running capability, and self-priming from dry up to 10 feet.
Can the Jabsco Single Diaphragm Shower & Bilge Pump run dry? Yes. The Jabsco Single Diaphragm Shower & Bilge Pump has dry-running capability. It is also self-priming from dry up to 10 feet, providing flexibility when installing the pump for its intended shower and bilge applications.
What type of hose connection does the Jabsco Single Diaphragm Shower & Bilge Pump use? The Jabsco Single Diaphragm Shower & Bilge Pump uses a 3/4" hose barb port. Its compact and simple design allows for flexible installation, and the product description specifies that no filter is required.
What are the electrical specifications of the Jabsco Single Diaphragm Shower & Bilge Pump? The Jabsco Single Diaphragm Shower & Bilge Pump operates at 12V and uses a permanent magnet motor. It has an amp draw of 8A and requires a 10A fuse. The pump has a nominal flow rate of 4.2 gallons per minute.
What standards does the Jabsco Single Diaphragm Shower & Bilge Pump meet? The Jabsco Single Diaphragm Shower & Bilge Pump is built to ISO 15083 specification and is listed as meeting ISO 8846 MARINE and USCG regulations for ignition protection, as well as the ISO 8849 MARINE Bilge Pump Standard.
What materials and components are used in the Jabsco Single Diaphragm Shower & Bilge Pump? The pump has a plastic body and a permanent magnet motor. It uses a 3/4" hose barb port and has a nominal flow rate of 4.2 gallons per minute. The compact design does not require a filter according to the product description.
