Blue Seas

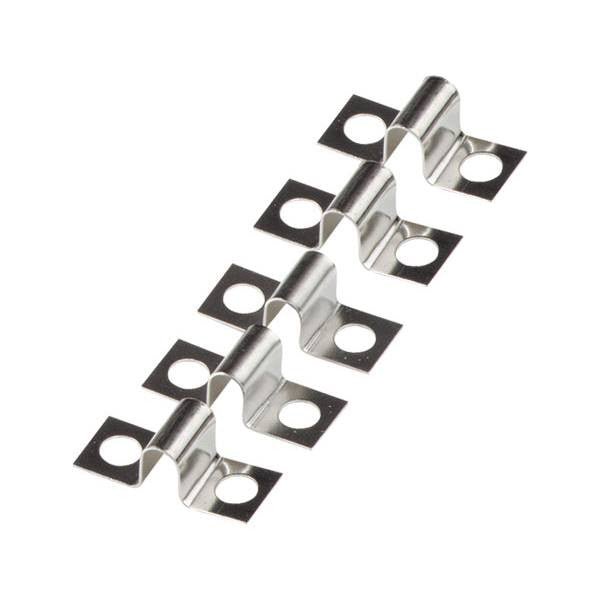

Blue Sea 2500 Series Terminal Block Jumper

The Blue Sea 2500 Series Terminal Block Jumper allows the creation of common circuits on independent connectors. Fits 30 Amp terminal blocks (2500 series).

Features:

Fits 2500 series terminal blocks

Nickle-plated brass construction

5 per pack

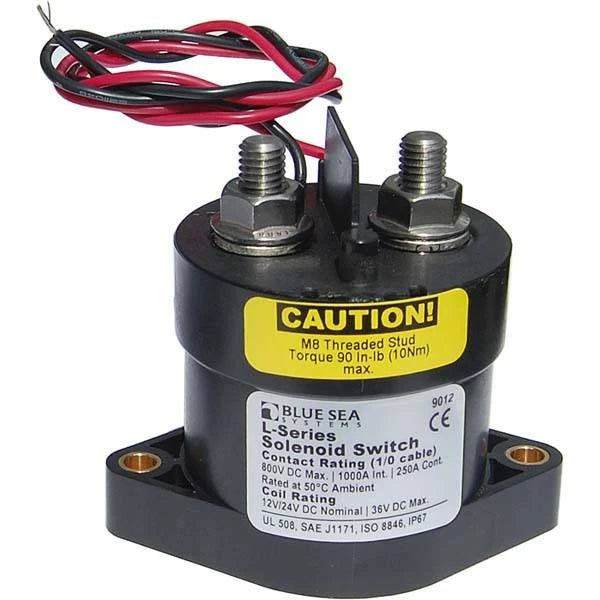

Blue Sea Systems L-Series Solenoid Switch 12-24V

Features:

Hermetically sealed contacts / vaporproof

Ignition protected - safe for installation aboard gasoline powered boats

Can function as a remote battery switch

Activated by an ON-OFF switch mounted anywhere

Integrated coil control minimizes heating and amperage draw

CE Marked

450 Amp Class

Designed for 12 or 24 Volt systems

Ignition protected -- safe for installation aboard gasoline-powered boats

Can function as a remote battery switch

Activated by a low amperage ON-OFF switch mounted anywhere

Specifications

Control Circuit Connection

Tinned Wire

Nominal Voltage

12V DC24V DC

Coil Function

Normally Open

Mounting

#10

Operating Amperage Current

3.6A when changing state

Amperage Operating Current continuous

0.13A @ 12 V0.07A @ 24 V

Continuous Rating

250A 300A 400A 450A

Intermittent Rating

275A (5 min) 400A (5 min) 500A (5 min) 600A (5 min)

Contact Form

SPST-NO

Cranking Rating 30 sec

1,000A

Input Voltage

8.5-36V DC

Inrush Rating: 0.25 sec (10 repeats)

2000A

Switching Cycles

1,000,000

Terminal Stud

Serrated Flange Nut

Terminal Stud Length

0.66in (16.76 mm)

Terminal Stud Size

5/16" (M8)

Terminal Stud Torque

80 in-lb (9.04 Nm)

Wire Leads

20 AWG

Weight

1.00lb (0.45 kg)

Frequently Asked Questions

• What is the Blue Sea Systems L-Series Solenoid Switch 12-24V used for? The Blue Sea Systems L-Series Solenoid Switch 12-24V can function as a remote battery switch. It is activated by a low-amperage ON-OFF switch mounted anywhere and is designed for 12V or 24V systems.
• Is the Blue Sea Systems L-Series Solenoid Switch suitable for gasoline-powered boats? Yes. The Blue Sea Systems L-Series Solenoid Switch has ignition-protected, hermetically sealed contacts and is vaporproof. It is designed to be safe for installation aboard gasoline-powered boats.
• What voltage and current specifications does the Blue Sea Systems L-Series Solenoid Switch have? The solenoid switch accepts an input voltage of 8.5-36V DC and is designed for 12V or 24V systems. Its continuous operating current is 0.13A at 12V and 0.07A at 24V, with 3.6A drawn when changing state.
• What are the current ratings of the Blue Sea Systems L-Series Solenoid Switch? The Blue Sea Systems L-Series Solenoid Switch is available in continuous ratings of 250A, 300A, 400A, and 450A. Its listed intermittent ratings range from 275A to 600A for 5 minutes, depending on the rating.
• How is the Blue Sea Systems L-Series Solenoid Switch controlled? The Blue Sea Systems L-Series Solenoid Switch uses a normally open SPST contact form and can be activated by a low-amperage ON-OFF switch. Its integrated coil control helps minimize heating and amperage draw during operation.
• What are the terminal and mounting specifications for the Blue Sea Systems L-Series Solenoid Switch? The solenoid uses a 5/16-inch (M8) terminal stud with a serrated flange nut and a maximum terminal stud torque of 80 in-lb (9.04 Nm). The terminal stud is 0.66 inches (16.76 mm) long, and mounting uses #10 hardware.

Blue Sea Systems e-Series Single Circuit ON-OFF Switch

Features:

Ignition protected - safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Cranking Rating: 10 sec. 2,000 Amps

Intermittent Rating: 5 min. 600 Amps

Continuous Rating 350 Amps

Maximum Voltage Rating 48 Volts DC

Terminal Stud Size 3/8"-16 (M10)

Terminal Stud Torque 140 in-lb (15.82 Nm) max.

Mounting Holes Accept 1/4" (M6) Screw

Cable Size to Meet Ratings 4/0 AWG (95mm2)

Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)

Weight 0.95lb (0.43)

UL Listed - UL 1107 electric power switches

Meets American Boat and Yacht Council (ABYC) requirements

Meets UL 1500 and SAE J1171 external ignition protection requirements

Single Circuit ON/OFF

Click to Download Blue Sea's Battery Management Wiring Schematics

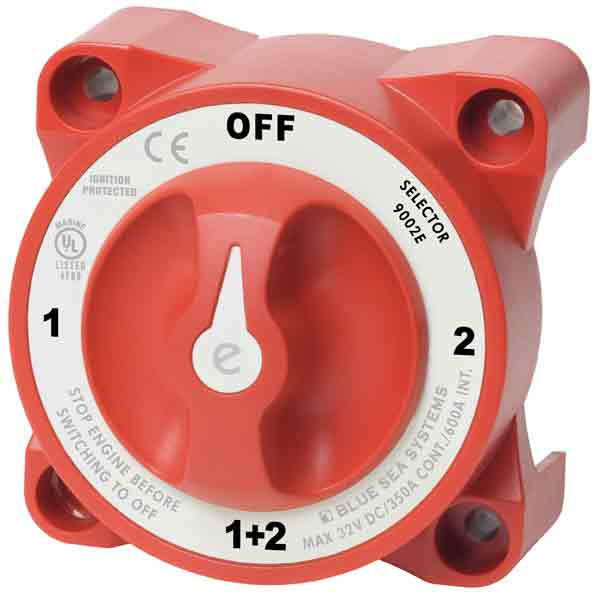

Blue Sea Systems e-Series Selector Battery Switch w/ AFD

Switches isolated battery banks to all loads or combines battery banks to all loads

Includes AFD (Alternator Field Disconnect)

Make-before-break contact design allows switching between battery banks without power interruption

Ignition protected—safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Specifications:

Switch Type: Selector 4 Position

Color: Red

Switch Positions: 4

Battery Combine: Yes

Alternator Field Disconnect : Yes

Maximum Voltage: 32V DC

Continuous Rating:  350A

Intermittent Rating: 600A (5 min)

Cranking Rating 10 sec: 2000A

Cranking Rating 1 min: 1000A

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4" (M6) Screw

Terminal Stud Size: 3/8"-16 (M10)

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Weight: 1.30lb (0.59 kg)

Click here to download Blue Sea Systems E-Series Selevtor Battery Switch Manual

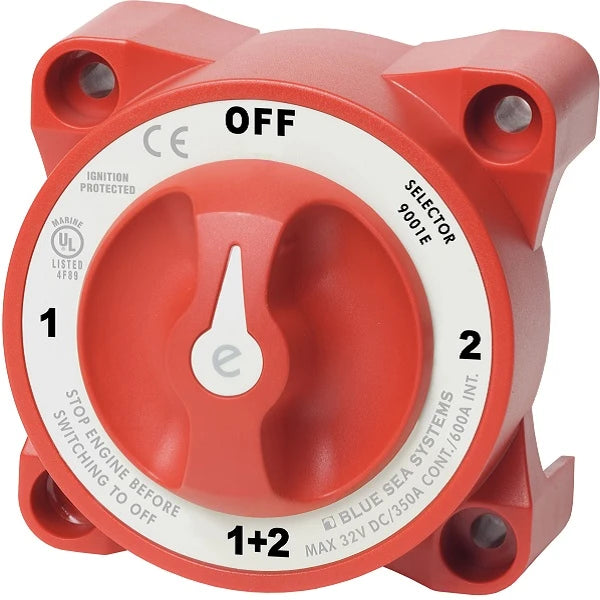

Blue Sea Systems e-Series Battery Switch Selector- 4 Position

Features:

Make-before-break contact design allows switching between battery banks without power interruption

Ignition protected - safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Cranking Rating: 10 sec. 2,000 Amps

Intermittent Rating: 5 min. 600 Amps

Continuous Rating 350 Amps

Maximum Voltage Rating 32 Volts DC

Terminal Stud Size 3/8"-16 (M10)

Terminal Stud Torque 140 in-lb (15.82 Nm) max.

Mounting Holes Accept 1/4" (M6) Screw

Cable Size to Meet Ratings 4/0 AWG (95mm2)

Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)

Weight 1.15lb (0.52)

UL Listed - UL 1107 electric power switches

Meets American Boat and Yacht Council (ABYC) requirements

Meets UL 1500 and SAE J1171 external ignition protection requirements

4 Position with battery combine

Click to Download Blue Sea's Battery Management Wiring Schematics

Frequently Asked Questions

• What is the Blue Sea Systems e-Series Battery Switch Selector - 4 Position used for? The Blue Sea Systems e-Series Battery Switch Selector - 4 Position is designed for switching between battery banks and includes a battery combine position. Its make-before-break contact design allows switching between battery banks without power interruption.
• Is the Blue Sea Systems e-Series Battery Switch Selector suitable for gasoline-powered boats? Yes. The Blue Sea Systems e-Series Battery Switch Selector is ignition protected for installation aboard gasoline-powered boats. It meets UL 1500 and SAE J1171 external ignition protection requirements.
• What are the amperage and voltage ratings of the Blue Sea Systems e-Series Battery Switch Selector? The switch has a 350-amp continuous rating, a 600-amp intermittent rating for 5 minutes, and a 2,000-amp cranking rating for 10 seconds. Its maximum voltage rating is 32 volts DC.
• How can the Blue Sea Systems e-Series Battery Switch Selector be mounted? The Blue Sea Systems e-Series Battery Switch Selector can be surface mounted or mounted on a rear panel. The mounting holes accept 1/4-inch (M6) screws.
• What cable and terminal specifications does the Blue Sea Systems e-Series Battery Switch Selector have? The switch uses 3/8"-16 (M10) terminal studs with a maximum terminal stud torque of 140 in-lb (15.82 Nm). A 4/0 AWG (95mm²) cable is specified to meet the ratings, with 1.10 inches (27.9mm) of clearance for 4/0 AWG cables.
• Does the Blue Sea Systems e-Series Battery Switch Selector meet marine standards? Yes. The Blue Sea Systems e-Series Battery Switch Selector meets American Boat and Yacht Council (ABYC) requirements for battery switches and is UL Listed under UL 1107 for electric power switches. It also meets UL 1500 and SAE J1171 external ignition protection requirements.

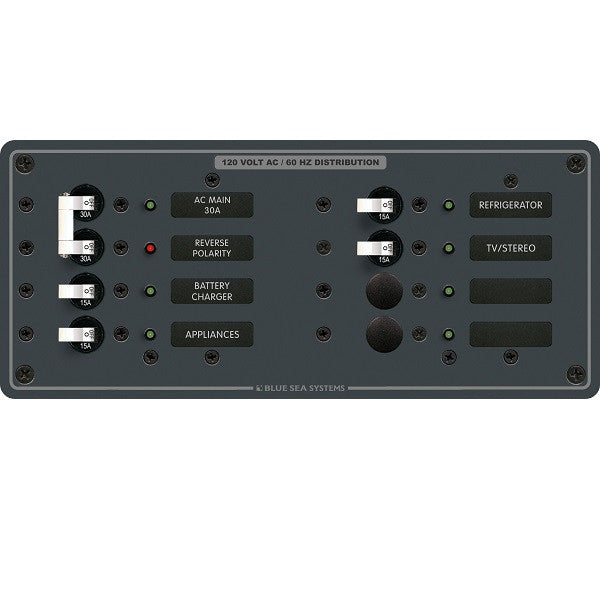

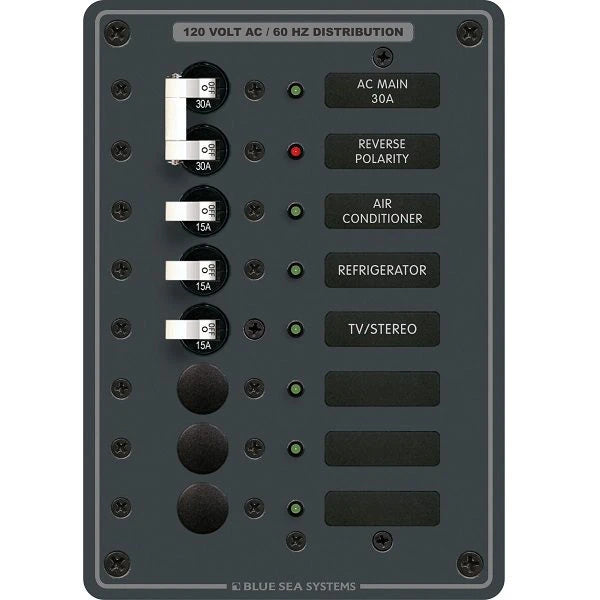

Blue Sea AC Main + 6 Positions

Features:

Red reverse polarity indicating LED

All hot, neutral and safety ground buses installed, fully pre-wired

All circuit label positions are backlit on standard panels - No kit required

"ON" indicating LEDs installed in all circuit positions

Specifications:

Positions: 6

Height: 4.50" (114.3 mm)

Width: 10.50" (266.7 mm)

Weight: 1.96 lbs. (0.86 kg)

Click to Download Blue Sea AC Main Installation Instructions

Frequently Asked Questions

• What is the Blue Sea AC Main + 6 Positions panel used for? The Blue Sea AC Main + 6 Positions panel is an AC electrical distribution panel with six circuit positions. It includes pre-wired hot, neutral, and safety ground buses, along with circuit label backlighting and "ON" indicating LEDs for the circuit positions.
• Does the Blue Sea AC Main + 6 Positions panel come pre-wired? Yes. The panel has all hot, neutral, and safety ground buses installed and is fully pre-wired. The standard panel also includes backlit circuit label positions without requiring a separate kit.
• Does the Blue Sea AC Main + 6 Positions panel have circuit status indicators? Yes. The Blue Sea AC Main + 6 Positions panel includes "ON" indicating LEDs installed in all circuit positions. It also has a red LED that indicates reverse polarity.
• How many circuit positions does the Blue Sea AC Main + 6 Positions panel have? This Blue Sea AC panel has six circuit positions. Its listed dimensions are 4.50 inches high by 10.50 inches wide, and it weighs 1.96 pounds.

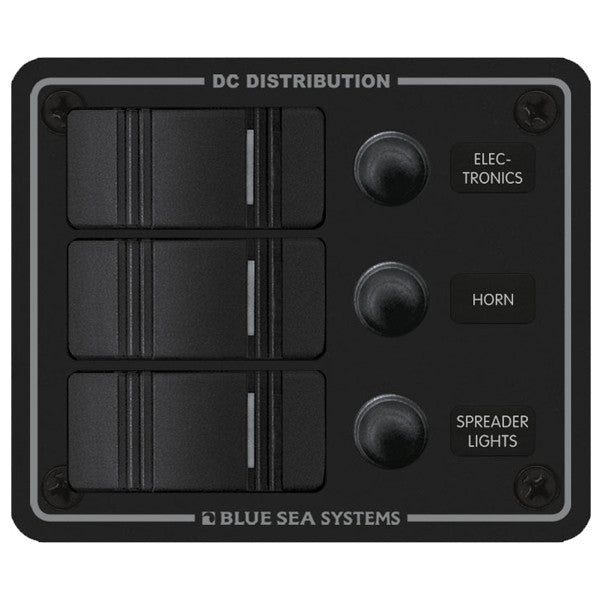

Blue Sea 8374 Water Resistant Circuit Breaker Panel - 3 Position

The Blue Sea 8374 Circuit Breaker Panel is designed for flybridge and open cockpit applications. The panel front is rated IP66 and is protected against powerful water jets. This circuit breaker panel is ignition protected, so it is safe for installation aboard gasoline powered boats.

Features:

ON-OFF Contura Switches

ON indicating LEDs embedded in switch

Watertight mounting gasket

Push Button Reset - only circuit breakers with waterproof boots

Specifications:

Positions: 3

Nominal Voltage: 12V DC | 24V DC

Panel Cumulative Rating: 45A

Switch Rating: 20A @ 12V DC | 15A @ 24V DC

Dimensions: 3.75" Height x 4.50" Width x 3.25" Depth

Click to Download Blue Sea 8374 Circuit Breaker Panel Instructions

Click to Download Blue Sea 8374 Circuit Breaker Panel Cutout Template

Blue Sea Water Resistant Circuit Breaker Panel - 6 Position

This Blue Sea Circuit Breaker Panel is designed for flybridge and open cockpit applications. This water resistant panel will withstand water exposure normally encountered in above deck applications such as salt spray, rain, hose washdowns and momentary immersions. The Panel front is rated IP66 and is protected against powerful water jets.

Features:

Ignition protected - safe for installation aboard gasoline powered boats

ON-OFF Contura switches

ON Indicating LEDs embedded in switch

Watertight mounting gasket

Push button reset - only circuit breakers with waterproof boots

Specifications:

Positions: 6

Nominal Voltage: 12V DC | 24V DC

Panel Cumulative Rating: 45A

Switch Rating: 20A @ 12V DC | 15A @ 24V DC

Dimensions: 7.5" Height x 4.5" Width x 3.25" Depth

Click to Download Blue Sea 8373 Circuit Breaker Panel Installation Instructions

Click to Download Blue Sea 8373 Circuit Breaker Panel Cutout Template

Frequently Asked Questions

• What is the Blue Sea Water Resistant Circuit Breaker Panel - 6 Position used for? The Blue Sea Water Resistant Circuit Breaker Panel - 6 Position is designed for flybridge and open cockpit applications. Its water-resistant construction is intended to withstand salt spray, rain, hose washdowns, and momentary immersions, with an IP66-rated front that protects against powerful water jets.
• Is the Blue Sea 6 Position Circuit Breaker Panel suitable for gasoline-powered boats? Yes. This circuit breaker panel is ignition protected and is specified as safe for installation aboard gasoline-powered boats.
• What voltage does the Blue Sea Water Resistant Circuit Breaker Panel support? The panel supports 12V DC and 24V DC systems. Its panel cumulative rating is 45A, while the switch rating is 20A at 12V DC and 15A at 24V DC.
• What features help protect the Blue Sea 6 Position Circuit Breaker Panel from water exposure? The panel has a watertight mounting gasket and circuit breakers with waterproof boots. Its front is rated IP66 and is designed to withstand powerful water jets, making it suitable for above-deck applications exposed to rain, spray, and hose washdowns.
• How many positions does the Blue Sea Water Resistant Circuit Breaker Panel have? This Blue Sea circuit breaker panel has six positions. It uses ON-OFF Contura switches with embedded ON-indicating LEDs and push-button circuit breaker resets.
• What are the dimensions of the Blue Sea Water Resistant Circuit Breaker Panel? The panel measures 7.5" high, 4.5" wide, and 3.25" deep. Verify the available mounting space before installation to ensure the panel fits the intended location.

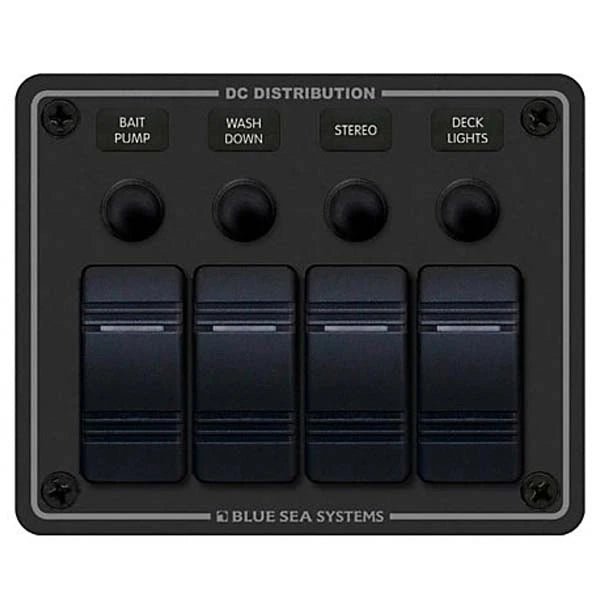

Blue Sea Water Resistant Circuit Breaker Panel - 4 Position

This Blue Sea Circuit Breaker Panel is designed for flybridge and open cockpit applications. Panel will withstand the water exposures normally encountered in above deck applications such as salt spray, rain, hose washdowns, momentary immersions.

Features:

Panel front is rated IP66-protected against powerful water jets

Ignition protected - safe for installation aboard gasoline powered boats

ON-OFF Contura switches

ON indicating LEDs embedded in switch

Watertight mounting gasket

Push Button Reset - only circuits breakers with waterproof boots

Specifications:

Positions: 4

Nominal Voltage: 12V DC | 24V DC

Panel Cumulative Rating: 45A

Switch Rating: 20A @ 12V DC | 15A @ 24V DC

Dimensions: 4.25" Height x 5.25" Width x 3.25"

Click to Download Blue Sea 8372 Circuit Breaker Panel Instructions

Click to Download Blue Sea 8372 Circuit Breaker Cutout Templates

Blue Sea Water Resistant Circuit Breaker Panel - 8 Position

This Blue Sea Circuit Breaker Panel is designed for flybridge and open cockpit applications. Panel front is rated IP66 and is protected against powerful water jets; the panel is also ignition protected, so it is safe for installation aboard gasoline powered boats.

Features:

ON-OFF Contura Switches

ON indicating LEDs embedded in switch

Watertight mounting gasket

Push button reset-only circuit breakers with waterproof boots

Specifications:

Positions: 8

Nominal Voltage: 12V DC | 24V DC

Panel Cumulative Rating: 90A

Switch Rating: 20A @ 12V DC | 15A @ 24V DC

Dimensions: 4.25" Height x 9.37" Width x 3.25" Depth

Click to Download Blue Sea 8371 Circuit Breaker Panel Instructions

Click Here to Download Blue Sea 8371 Circuit Breaker Panel Cutout Template

Frequently Asked Questions

• What is the Blue Sea Water Resistant Circuit Breaker Panel - 8 Position used for? The Blue Sea Water Resistant Circuit Breaker Panel - 8 Position is designed for flybridge and open cockpit applications. It provides eight circuit positions and is suitable for 12V DC or 24V DC electrical systems.
• Is the Blue Sea 8 Position Circuit Breaker Panel waterproof? The panel front is rated IP66 and protected against powerful water jets. It also includes a watertight mounting gasket and circuit breakers with waterproof boots for water-resistant installation.
• Is the Blue Sea Water Resistant Circuit Breaker Panel ignition protected? Yes. The panel is ignition protected, making it specified as safe for installation aboard gasoline-powered boats. The product description specifically identifies ignition protection as one of the panel's features.
• What voltage and amperage is the Blue Sea 8 Position Circuit Breaker Panel rated for? The panel is designed for nominal 12V DC or 24V DC systems. Its cumulative panel rating is 90A, while the ON-OFF Contura switches are rated at 20A at 12V DC or 15A at 24V DC.
• What type of switches and circuit breakers does the Blue Sea 8 Position Panel use? The panel uses ON-OFF Contura switches with embedded ON-indicating LEDs. It also features push-button reset-only circuit breakers fitted with waterproof boots.
• What are the dimensions of the Blue Sea Water Resistant Circuit Breaker Panel? The Blue Sea Water Resistant Circuit Breaker Panel measures 4.25 inches in height, 9.37 inches in width, and 3.25 inches in depth. It provides eight circuit positions within this overall panel size.

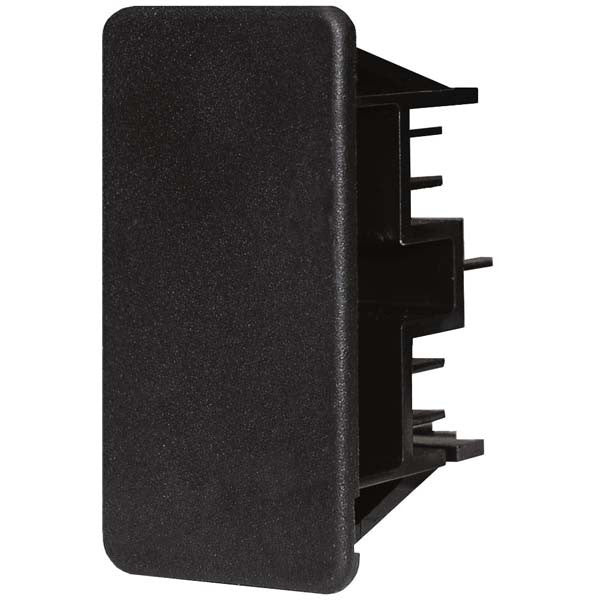

Blue Sea Contura Mounting Panel Plug

Features:

Suitable for use with Contura Switch Mounting Panel

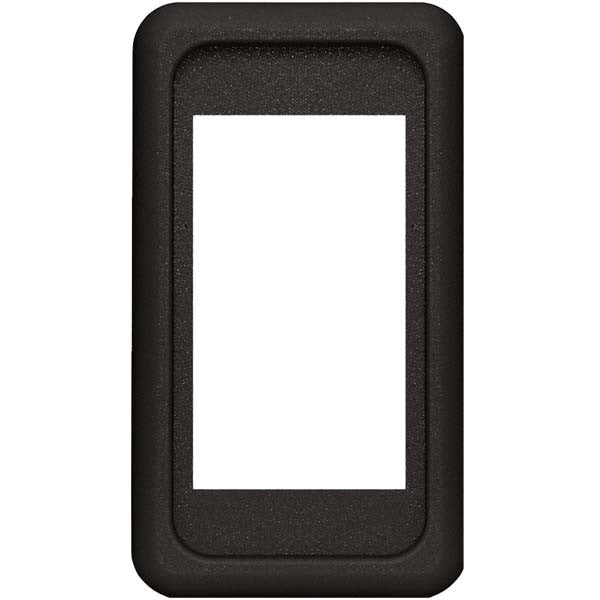

Blue Sea Contura Mounting Bracket - Single

Features:

Modular design permits easy assembly in groups of varying sizes

Mounting panels available in 1, 3, and 6 fixed position models

Designed for mounting in 6 different panel thicknesses: 0.06" (1.57mm) 0.09" (2.36mm) 0.13" (3.17mm) 0.19" (4.75mm) 0.25" (6.35mm) 0.38" (9.52mm)

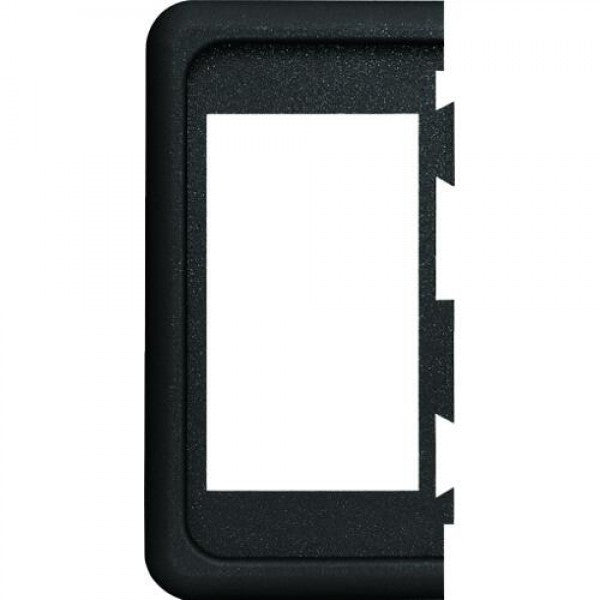

Blue Sea Contura End Mounting Bracket

Features:

Modular design permits easy assembly in groups of varying sizes

Mounting panels available in 1, 3, and 6 fixed position models

Designed for mounting in 6 different panel thicknesses:

0.06" (1.57mm)

0.09" (2.36mm)

0.13" (3.17mm)

0.19" (4.75mm)

0.25" (6.35mm)

0.38" (9.52mm)

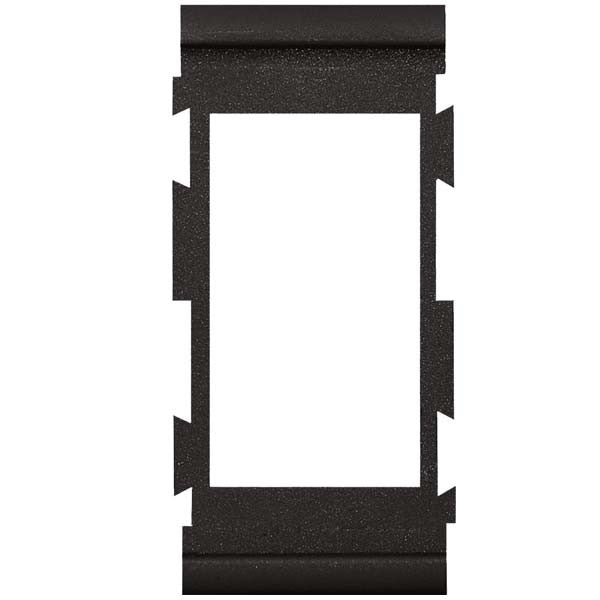

Blue Seas Systems Contura Mounting Bracket - Center

Features:

Modular design permits easy assembly in groups of varying sizes

Mounting panels available in 1, 3, and 6 fixed position models

Designed for mounting in 6 different panel thicknesses: 0.06" (1.57mm) 0.09" (2.36mm) 0.13" (3.17mm) 0.19" (4.75mm) 0.25" (6.35mm) 0.38" (9.52mm)

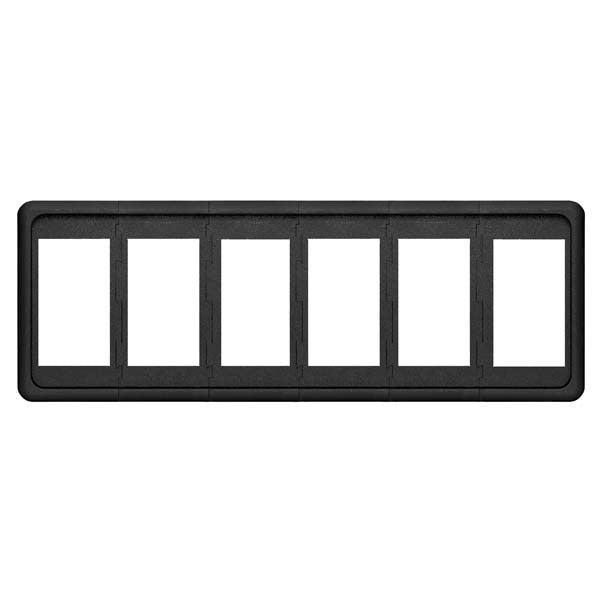

Blue Seas Systems Contura Switch Mounting Panel - 6 Position

Features:

Modular design permits easy assembly in groups of varying sizes

Mounting panels available in 1, 3, and 6 fixed position models

Designed for mounting in 6 different panel thicknesses: 0.06" (1.57mm) 0.09" (2.36mm) 0.13" (3.17mm) 0.19" (4.75mm) 0.25" (6.35mm) 0.38" (9.52mm)

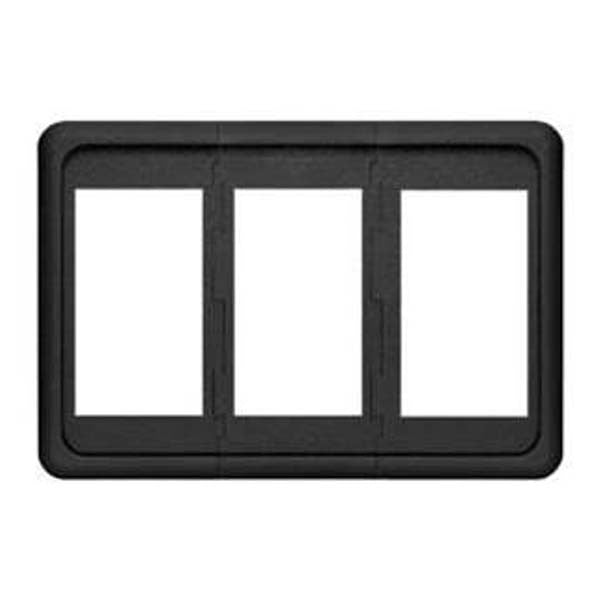

Blue Seas Systems Contura Switch Mounting Panel - 3 Position

Features:

Modular design permits easy assembly in groups of varying sizes

Mounting panels available in 1, 3, and 6 fixed position models

Designed for mounting in 6 different panel thicknesses: 0.06" (1.57mm) 0.09" (2.36mm) 0.13" (3.17mm) 0.19" (4.75mm) 0.25" (6.35mm) 0.38" (9.52mm)

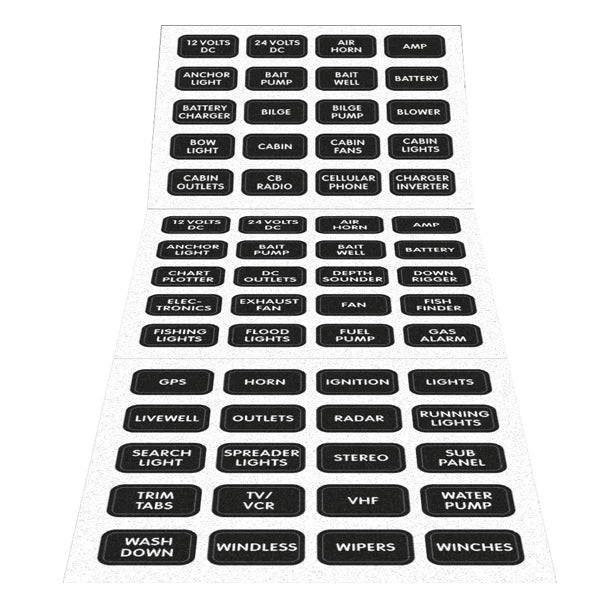

Blue Sea Black DC Label Set

60 labels

The Blue Sea Black DC Label Set contains 60 common DC labels. These labels are made with a reinforced, waterproof material.

Uses:

On all Contura Waterproof Circuit Breaker Panels

On Contura Waterproof Fuse Panels

On ST Blade Fuse Blocks

Label Dimensions: 0.625" x 0.375"

Click to Download Blue Sea Black DC Complete Label List

Blue Sea Systems AC Main and 6 Position Panel

Features:

Red reverse polarity indicating LED

All hot, neutral and safety ground buses installed, fully pre-wired

All circuit label positions are backlit on standard panels - No kit required

"ON" indicating LEDs installed in all circuit positions

Maximum panel amperage - 50 Amperes

Positions AC Main + 6

Installed Single Pole Circuit Breakers 3 (15A)

Width 5.25in (133.35)

Height 7.50in (190.50)

Weight 1.87lb (0.85kg)

Installed Double Pole Circuit Breakers - 1 (30A)

1 installed 30A Double Pole circuit breakers

3 installed 15A Single Pole circuit breakers

Frequently Asked Questions

• What is the Blue Sea Systems AC Main and 6 Position Panel used for? The Blue Sea Systems AC Main and 6 Position Panel provides an AC main plus six circuit positions for a boat's electrical system. It includes installed circuit breakers, pre-wired hot, neutral, and safety ground buses, and LED indicators for circuit status and reverse polarity.
• What circuit breakers are included with the Blue Sea Systems AC Main and 6 Position Panel? The panel includes one installed 30-amp double-pole circuit breaker and three installed 15-amp single-pole circuit breakers. These breakers are installed as part of the AC Main and 6 Position Panel.
• What electrical features are included with the Blue Sea Systems AC Main and 6 Position Panel? The panel has a red reverse polarity indicating LED, ON-indicating LEDs in all circuit positions, and backlit circuit label positions. The hot, neutral, and safety ground buses are installed and fully pre-wired, with no additional kit required for the standard panel.
• What is the maximum amperage of the Blue Sea Systems AC Main and 6 Position Panel? The Blue Sea Systems AC Main and 6 Position Panel has a maximum panel amperage of 50 amperes. The panel configuration is AC Main plus six positions.
• What are the dimensions and weight of the Blue Sea Systems AC Main and 6 Position Panel? The Blue Sea Systems AC Main and 6 Position Panel measures 5.25 inches wide by 7.50 inches high and weighs 1.87 pounds (0.85 kg).

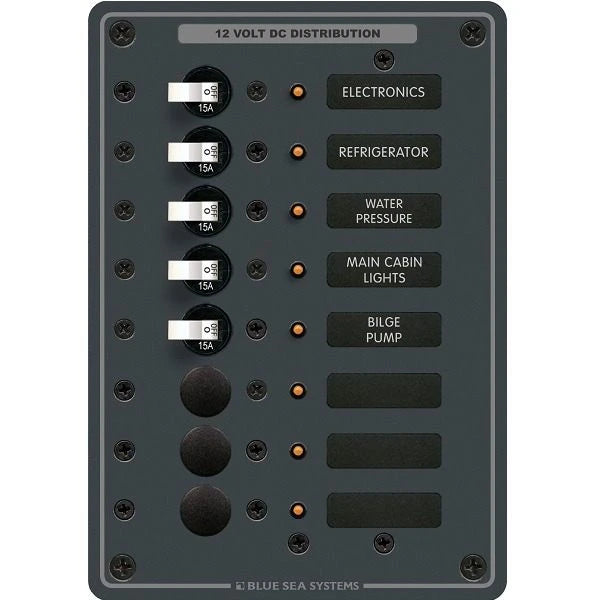

Blue Sea Systems DC 8 Position Circuit Panel

Features:

All positive, negative and grounding buses installed, fully pre-wired

Panels with meters include toggle switch for mounting up to 3 battery banks

All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

All circuit label positions are backlit on standard panels - No kit required

"ON" indicating LEDs installed in all circuit positions

Positions 8

Installed Single Pole Circuit Breakers 5 (15A)

Voltage 12 or 24 Volts DC

Width in" (mm) 5.25 (133.35)

Height in" (mm) 7.50 (190.50)

Weight Lb (Kg) 1.95 (0.88)

100 Amp

5 Installed 15A Single Pole Circuit Breakers

Included:

• 5  #7210 A-Series White Toggle Circuit Breakers - Single Pole 15A
• 1  #8030 Basic DC Panel Label Set - 30 Labels

Frequently Asked Questions

• What is the Blue Sea Systems DC 8 Position Circuit Panel used for? The Blue Sea Systems DC 8 Position Circuit Panel is a pre-wired DC electrical panel with installed positive, negative, and grounding buses. It provides eight circuit positions and is designed for 12 or 24 volt DC electrical systems.
• How many circuit positions does the Blue Sea Systems DC 8 Position Circuit Panel have? The panel has eight circuit positions and includes five installed 15A single-pole circuit breakers. The included breakers are Blue Sea Systems #7210 A-Series White Toggle Circuit Breakers.
• What voltage is the Blue Sea Systems DC 8 Position Circuit Panel designed for? The Blue Sea Systems DC 8 Position Circuit Panel is specified for 12 or 24 volts DC. Panels with analog meters can be upgraded to 24 volts using compatible 18-32V DC meters, as specified by the product description.
• What electrical components are pre-wired on the Blue Sea Systems DC 8 Position Circuit Panel? The panel comes fully pre-wired with positive, negative, and grounding buses installed. Standard panels also have backlit circuit label positions and ON-indicating LEDs installed in all circuit positions.
• What circuit breakers are included with the Blue Sea Systems DC 8 Position Circuit Panel? The panel includes five #7210 A-Series White Toggle Circuit Breakers. Each is a single-pole 15A circuit breaker, providing five installed 15-amp circuit breakers within the eight-position panel.
• What is included with the Blue Sea Systems DC 8 Position Circuit Panel? The panel includes five #7210 A-Series White Toggle Circuit Breakers - Single Pole 15A and one #8030 Basic DC Panel Label Set with 30 labels. The panel itself is fully pre-wired with positive, negative, and grounding buses.

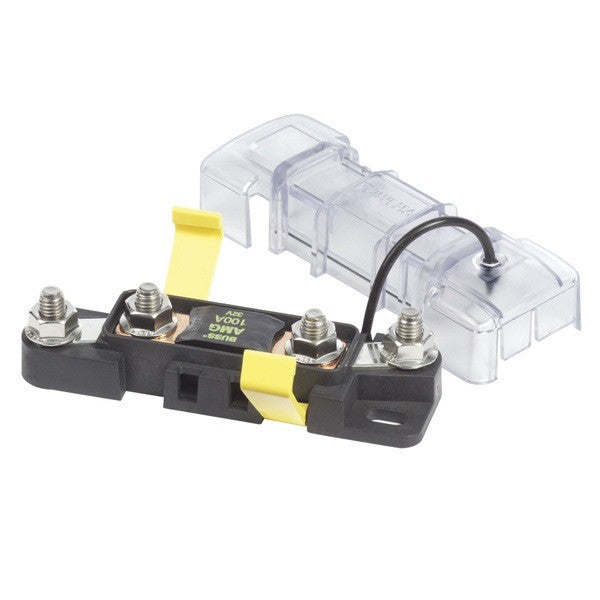

Blue Sea MEGA / AMG Safety Fuse Block

The Blue Sea MEGA/AMG Safety Fuse Block can be used on high amperage circuits on almost any boats, including gasoline and diesel powered boats. This fuse block is ignition protected and features a sealed cover to protect the fuses from harsh marine environments. The insulating cover satisfies ABYC and USCG insulation requirements. Accepts Blue Sea Systems square format standard or custom labels.

Features:

Ignition protected

Insulating cover meets ABYC/USCG insulation requirements

Cover breakouts allow wire access in any direction

Fuses sold separately

Specifications:

Maximum Amperage: 300 A

Maximum Voltage: 32V DC

Stud Size: M8 x 1.25

Recommended Stud Torque: 120 in-lb

Ring Terminal Size: M8

Weight: 0.15 lb.

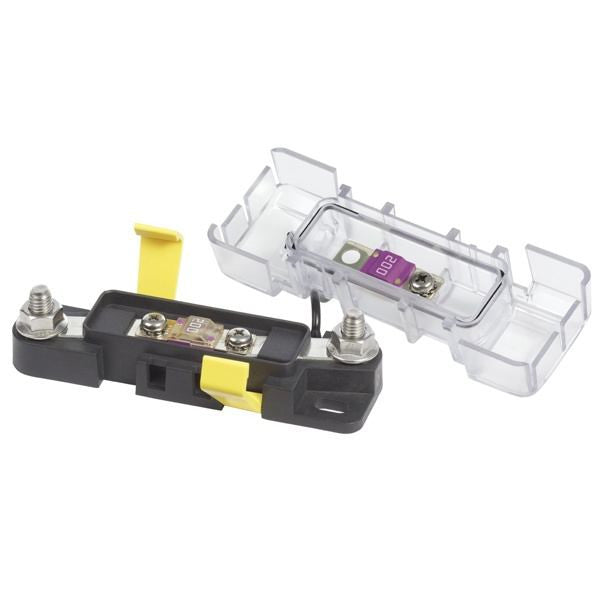

Blue Sea AMI / MIDI Safety Fuse Block

The Blue Sea AMI / MIDI Safety Fuse Block can be used with fuses from 30 to 200 amps. This fuse block is ignition protected for installation aboard gasoline or diesel powered boats. The sealed cover protects fuses from the harsh marine environment, and meets ABYC/USCG insulation requirements. Accepts Blue Sea Systems square format standard or custom label.

Features:

Ignition protected

Insulating cover satisfies ABYC/USCG insulation requirements

Cover breakouts allow wire access in any direction

Fuses sold separately

Specifications:

Maximum Amperage: 200 A

Maximum Voltage: 32V DC

Stud Size: M8 x 1.25

Fuse Screw: M5 x 0.8

Recommended Screw Torque: 27 in-lb

Recommended Stud Torque: 120 in-lb

Ring Terminal Size: M8

Weight: 0.15 lb.
