Lewmar Marine KIT V2 Gd FF 12V 002 KIT

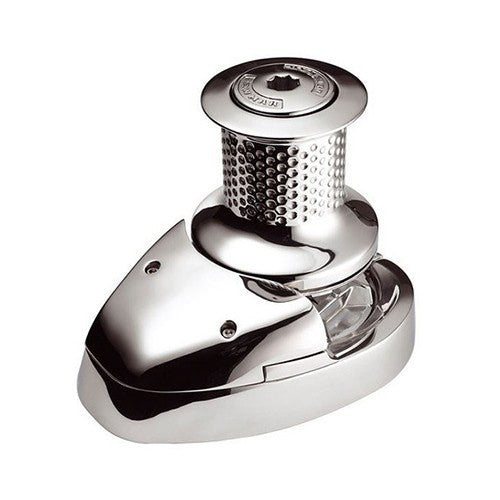

Lewmar V2 12V Vertical Windlass w/Capstan

The Lewmar V2 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.

Features:

FastFit

W.A.R.P drum

Rope-chain gypsy

Manual chain release (Free Fall)

Rope size: 1/2" - 5/8"

Fall safe anchor lock

Cone clutch

Robust worm gearbox

Specifications:

Motor Power: 700Watts

Max Pull: 1433 lbs

Working Load: 358 lbs

Max Line Speed: 69' per minute

Normal Current Draw: 80Amps

Circuit Breaker: 90Amps

Click here to download V2 Vertical Windlass w/Capstan Owner's Manual

Frequently Asked Questions

• What is the Lewmar V2 12V Vertical Windlass w/Capstan designed for? The Lewmar V2 12V Vertical Windlass w/Capstan is designed for boat anchoring applications requiring a rope-chain gypsy and W.A.R.P drum. Its stainless steel construction provides corrosion resistance, while the low-profile design helps keep the windlass out of the way on deck.
• What rope size does the Lewmar V2 Vertical Windlass w/Capstan use? The Lewmar V2 is specified for rope sizes from 1/2 inch to 5/8 inch. It features a rope-chain gypsy for handling the anchor rode and a W.A.R.P drum as part of its vertical windlass design.
• How does the FastFit system work on the Lewmar V2 Windlass? The FastFit motor gearbox is designed to simplify installation. After aligning the deck unit, the gearbox slides up the shaft, allowing the FastFit clamping system to be closed and tightened with the bronze nut for alignment between the deck unit and motor gearbox.
• Does the Lewmar V2 Vertical Windlass have a manual free-fall function? Yes. The Lewmar V2 features a manual chain release for free-fall anchoring. It also includes a fall-safe anchor lock and cone clutch as part of its anchoring and rode-control features.
• What are the pulling power and line speed of the Lewmar V2 Windlass? The Lewmar V2 has a maximum pull of 1,433 lbs. and a working load of 358 lbs. Its maximum line speed is 69 feet per minute. The 12V motor is rated at 700 watts with a normal current draw of 80 amps and a 90-amp circuit breaker.
