Johnson Pump

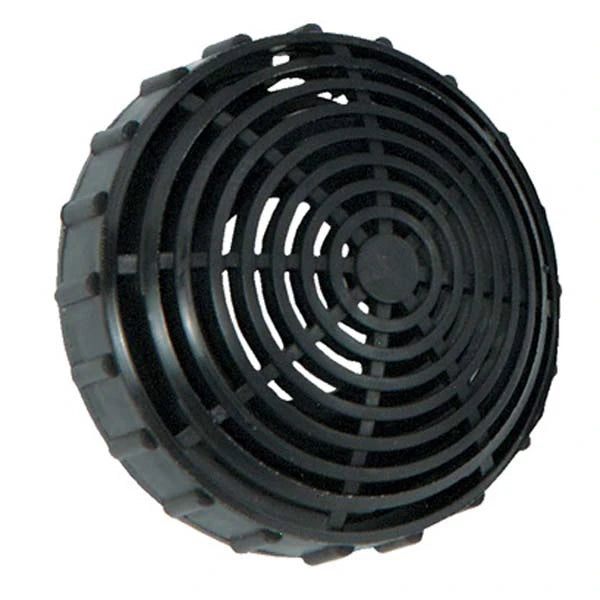

Johnson Pump Intake Filter for Aerator Pump

Intake Filter: Two-piece filter mounts onto pump fitting. Replaces old Mayfair model intake filters.

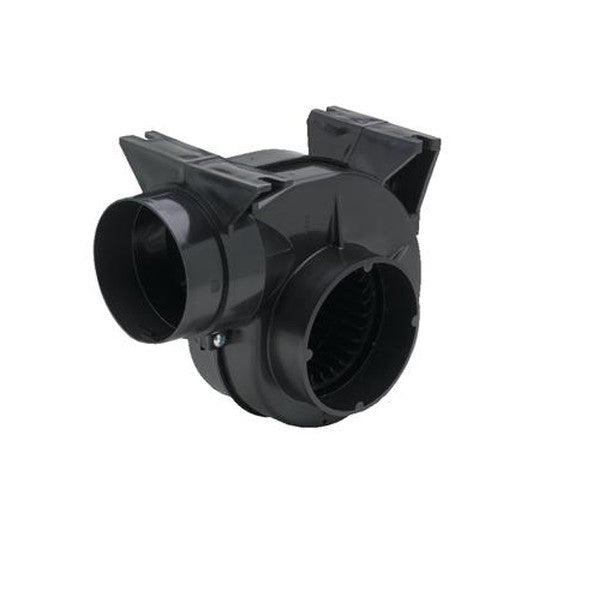

Johnson Pump Bilge Blower Remote Mount

Johnson Pump radial flow design uses a squirrel cage type blower wheel to produce a substantial output at relatively low RPM's. Low noise level make Johnson Pump blowers excellent for use in heads & galleys. Massive 3" diameter motor idles at 3100 RPM's assuring long life. Housings are molded of tough glass filled composite resin.

Remote Mount 3" ducts attach to both the inlet and the outlet and readily adapt to new or existing vents and collector boxes. Brackets are molded in.

Frequently Asked Questions

• What is the Johnson Pump Bilge Blower Remote Mount used for? The Johnson Pump Bilge Blower Remote Mount is a low-noise blower designed for marine applications, including use in heads and galleys. Its radial-flow design uses a squirrel cage blower wheel to produce substantial output at relatively low RPMs, while the molded glass-filled composite resin housing provides a durable construction.
• What size ducts does the Johnson Pump Bilge Blower Remote Mount use? The Remote Mount model uses 3-inch ducts that attach to both the inlet and outlet. These ducts can adapt to new or existing vents and collector boxes, providing flexibility when installing the blower into an existing marine ventilation setup.
• What type of blower wheel does the Johnson Pump Bilge Blower Remote Mount have? The blower uses a squirrel cage type blower wheel with a radial-flow design. This configuration is designed to produce substantial output while operating at relatively low RPMs. The motor idles at 3,100 RPMs and has a 3-inch diameter.
• Can the Johnson Pump Bilge Blower Remote Mount be used with existing vents or collector boxes? Yes. The 3-inch ducts on the Remote Mount model readily adapt to new or existing vents and collector boxes. This allows the blower to be incorporated into an existing marine ventilation arrangement without limiting the application to newly installed components.
• What is the Johnson Pump Bilge Blower Remote Mount housing made of? The blower housing is molded from tough glass-filled composite resin. The brackets are also molded in, providing an integrated mounting design for the Remote Mount configuration.

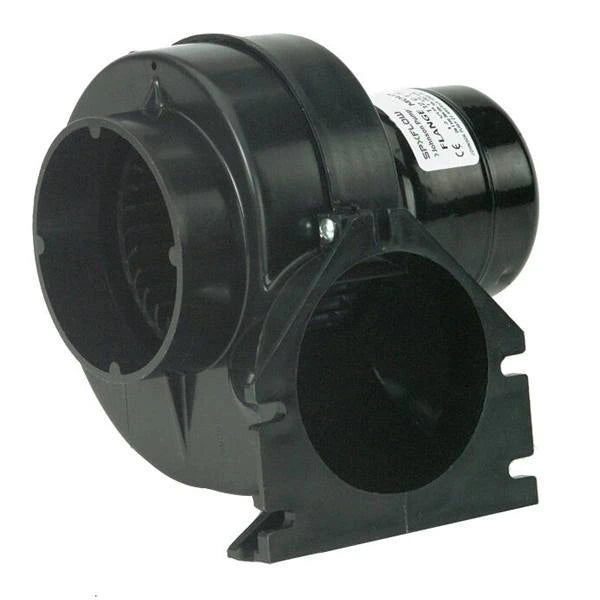

Johnson Pump Bilge Blower Flange Mount

Johnson Pump radial flow design uses a squirrel cage type blower wheel to produce a substantial output at relatively low RPM's. Low noise level make Johnson Pump blowers excellent for use in heads & galleys. Massive 3" diameter motor idles at 3100 RPM's assuring long life. Housings are molded of tough glass filled composite resin. Flange Mount #54124 - Conventional design outlet flange to mount directly to the exhaust opening in the hull.

Molded mounting brackets simplify installations

3" Diameter

112 CFM

Direct replacement for old Mayfair Flange Mount Bilge Blowers

Frequently Asked Questions

• What is the Johnson Pump Bilge Blower Flange Mount used for? The Johnson Pump Bilge Blower Flange Mount is a radial-flow bilge blower designed to provide ventilation on boats. Its conventional outlet flange mounts directly to the exhaust opening in the hull, making it suitable for applications where a flange-mounted blower is required.
• What are the specifications of the Johnson Pump Bilge Blower Flange Mount? This Johnson Pump bilge blower has a 3-inch diameter motor and delivers 112 CFM of airflow. The motor operates at 3,100 RPM, while the housing is molded from glass-filled composite resin for a durable construction.
• How does the flange mount design simplify installation? The flange mount uses a conventional outlet flange that mounts directly to the exhaust opening in the hull. Molded mounting brackets are also included in the blower design to simplify installation.
• Is this bilge blower a replacement for a Mayfair flange mount blower? Yes. Johnson Pump Bilge Blower Flange Mount #54124 is specified as a direct replacement for old Mayfair Flange Mount Bilge Blowers. Verify the existing blower and mounting arrangement before installation to ensure the replacement is appropriate for your application.
• Where can the Johnson Pump Bilge Blower Flange Mount be used on a boat? The blower's low-noise operation makes Johnson Pump blowers suitable for use in areas such as heads and galleys. The description specifically identifies the flange-mounted design for installation at the hull exhaust opening.

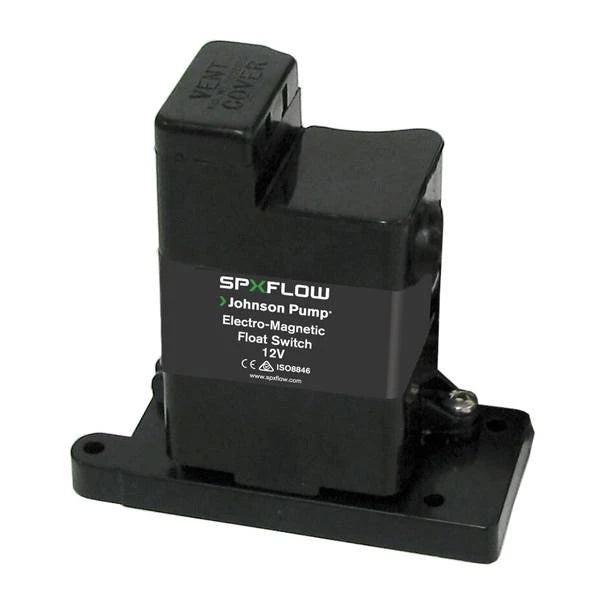

Johnson Pump Electro-Magnetic Bilge Pump Float Switch The Johnson Pump Electro-Magnetic Bilge Pump Float Switch offers a combination of reliable solid state electronics and a sealed float switch. It activates the bilge pump at 2" water level, and deactivates the pump at 3/4" water level. With high-impact plastic and false start-prevention, this bilge pump float switch is an ideal choice among many and will provide long lasting use and extreme durability. Direct replacement to older Mayfair Electro-Magnetic bilge pump float switches. Features: False Start Prevention High-Impact Plastic Encapsulated Electronics No Mercury Activates Pump at 2" Water Level Deactivates Pump At 3/4" Water Level Specifications: Voltage: 12V Max Amp: 15 AMPs Dimensions: 3"L x 1-1/2"W x 3-1/4"H Frequently Asked Questions

• What does the Johnson Pump Electro-Magnetic Bilge Pump Float Switch do? The Johnson Pump Electro-Magnetic Bilge Pump Float Switch is designed to automatically turn a bilge pump on and off based on water level. It combines solid state electronics with a sealed float switch for dependable bilge pump control.
• At what water levels does this float switch activate and deactivate the pump? This float switch activates the bilge pump at a 2" water level and deactivates it at a 3/4" water level.
• What features help make this float switch durable and reliable? This float switch features high-impact plastic construction, encapsulated electronics, and false start prevention. It also uses a sealed design and contains no mercury, which helps support long-lasting marine use.
• Is this float switch a replacement for older Mayfair models? Yes. This switch is a direct replacement for older Mayfair electro-magnetic bilge pump float switches.
• What are the voltage and amperage ratings for this float switch? This float switch is rated for 12V operation and a maximum load of 15 amps. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Johnson Pump Electro-Magnetic Bilge Pump Float Switch do?", "acceptedAnswer": { "@type": "Answer", "text": "The Johnson Pump Electro-Magnetic Bilge Pump Float Switch is designed to automatically turn a bilge pump on and off based on water level. It combines solid state electronics with a sealed float switch for dependable bilge pump control." } }, { "@type": "Question", "name": "At what water levels does this float switch activate and deactivate the pump?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch activates the bilge pump at a 2\" water level and deactivates it at a 3/4\" water level." } }, { "@type": "Question", "name": "What features help make this float switch durable and reliable?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch features high-impact plastic construction, encapsulated electronics, and false start prevention. It also uses a sealed design and contains no mercury, which helps support long-lasting marine use." } }, { "@type": "Question", "name": "Is this float switch a replacement for older Mayfair models?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. This switch is a direct replacement for older Mayfair electro-magnetic bilge pump float switches." } }, { "@type": "Question", "name": "What are the voltage and amperage ratings for this float switch?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch is rated for 12V operation and a maximum load of 15 amps." } } ] }

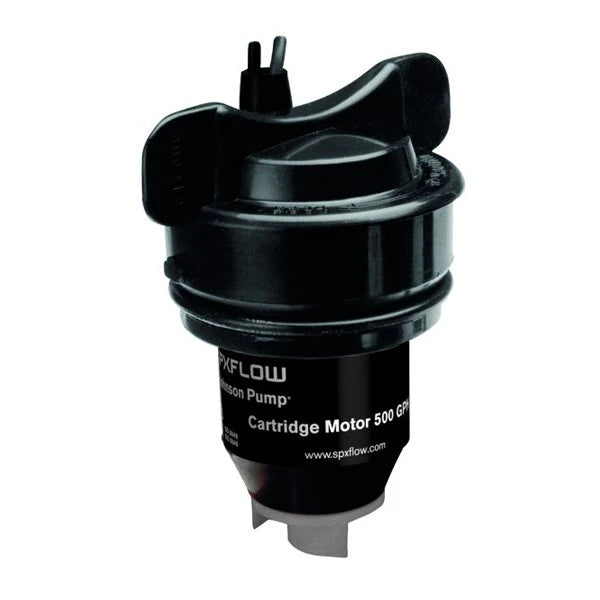

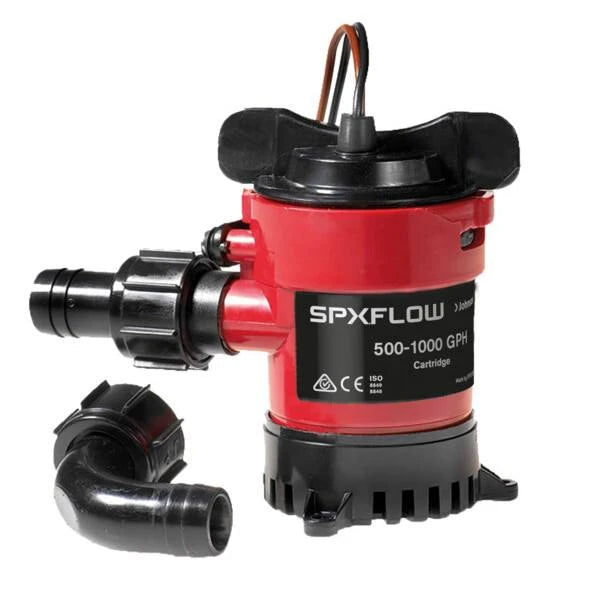

Mayfair Replacement Johnson Pump Cartridge Bilge Pump

Keep your bilge dry with this easy-to-service Johnson Pump Cartridge Bilge Pump, compatible with Mayfair models. The durable thermoplastic housing and stainless steel motor shaft resist corrosion, while the integrated motor/impeller design reduces loose parts. Cartridge removal is quick, just lift, twist, and pull. This water-cooled, energy-efficient pump runs quietly and supports float switches for automatic operation. Compliant with ISO 8849 marine standards, it’s a dependable choice for boaters looking for reliable bilge performance and minimal maintenance effort.

Johnson Pump Cartridge Bilge Pump Features:

12V cartridge bilge pump with high impact housing.

Easy installation and increased longevity.

Corrosion, chemical and fuel resistant.

Permanent magnet motor along with permanent lubrication.

T-Slot for easy float switch attachment

Includes both a straight and 90 degree smooth elbow Dura-Port

Specifications:

Outer diameter discharge port: 3/4"

Fuse Size: 5 Amp

Voltage: 12V DC

Wire Size: 16 GA

Part No.

Capacity 3 ft head

Capacity straight

Amperage

32503

33 l/min - 535 GPH

40 l/min - 630 GPH

2.5 A

32507

44 l/min - 700 GPH

50 l/min - 800 GPH

3 A

32903

50 l/min - 800 GPH

63 l/min - 1000 GPH

3.2 A

Click to Download the Johnson Pump Cartridge Bilge Pump User Manual

Frequently Asked Questions

• What is the Mayfair Replacement Johnson Pump Cartridge Bilge Pump designed for? This Johnson Pump Cartridge Bilge Pump is designed to keep bilge areas dry while serving as a replacement option for compatible Mayfair models. Its cartridge-style design makes servicing easier and helps reduce maintenance time.
• What pump capacities are available for this bilge pump? This pump is available in three options: Part 32503 rated at 535 GPH at 3 ft head and 630 GPH straight, Part 32507 rated at 700 GPH at 3 ft head and 800 GPH straight, and Part 32903 rated at 800 GPH at 3 ft head and 1000 GPH straight.
• What features make this bilge pump easy to service? This bilge pump features a cartridge design with integrated motor and impeller components, so there are fewer loose parts to manage. The cartridge can be removed quickly by lifting, twisting, and pulling, which makes cleaning and service easier.
• Is this bilge pump durable enough for marine use? Yes. The pump uses a high-impact thermoplastic housing and a stainless steel motor shaft that resist corrosion, chemicals, and fuel exposure. It is also water-cooled and compliant with ISO 8849 marine standards.
• Can this bilge pump be used with a float switch? Yes. This pump includes a T-slot that makes it easier to attach a float switch for automatic operation.

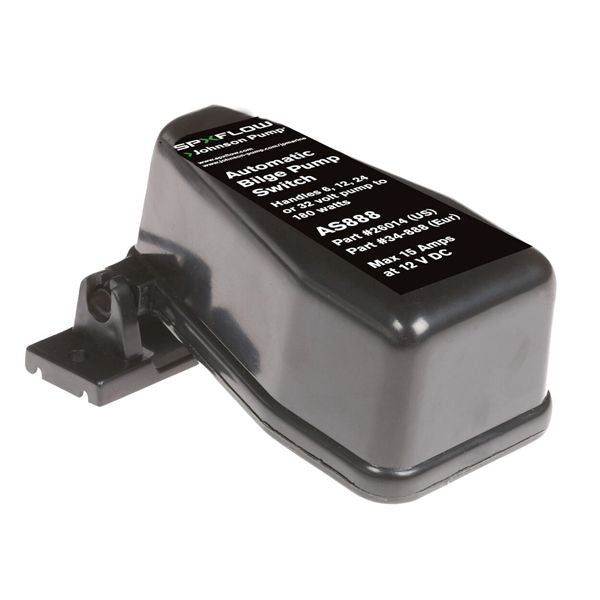

Mayfair Replacement Automatic Bilge Pump Float Switch by Johnson Pump The Johnson Pump Automatic Bilge Pump Float Switch is constructed of ultrasonically sealed thermo-plastic housing. An anti-spike feature prevents rapid on-off cycling and turns on with an audible click before water can reach unacceptable levels. This bilge pump float switch turns on when the rolling steel ball changes the pressure on the micro-switch. This automatic bilge pump float switch is a direct replacement to older Mayfair float switch models. Features: Constructed Of Ultrasonically Sealed Thermo-Plastic Housing Anti-Spike Feature That Prevents Rapid On-Off Cycling Turns On When The Rolling Steel Ball Changes The Pressure On The Micro-Switch Sealed Ceramic Switch Attaches To Any Mayfair/Johnson Pump Bilge Pump Through The Clip On "T-Slot" Can Be Used With 6, 12, 24, or 32V Systems Specifications: Max Amp: 15 A Voltage: 12V Size: 3''L x 1-1/2''W x 3-1/4''H   Click to Download the Johnson Pump Automatic Bilge Pump Float Switch User Manual  Frequently Asked Questions

• What does the Mayfair Replacement Automatic Bilge Pump Float Switch do? The Mayfair Replacement Automatic Bilge Pump Float Switch is designed to automatically turn a bilge pump on and off based on water level. It serves as a direct replacement for older Mayfair float switch models and helps manage bilge water without constant manual operation.
• What features help make this float switch reliable? This float switch features ultrasonically sealed thermo-plastic housing, a sealed ceramic switch, and an anti-spike feature that helps prevent rapid on-off cycling. It also activates when a rolling steel ball changes pressure on the micro-switch.
• Is this float switch compatible with older Mayfair pumps? Yes. This float switch is a direct replacement for older Mayfair float switch models and attaches to Mayfair and Johnson Pump bilge pumps through the clip-on T-slot.
• What voltage systems can this float switch be used with? This float switch can be used with 6V, 12V, 24V, or 32V systems. The listed maximum amperage is 15 amps.
• What are the dimensions of this bilge pump float switch? This float switch measures 3" long by 1-1/2" wide by 3-1/4" high. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Mayfair Replacement Automatic Bilge Pump Float Switch do?", "acceptedAnswer": { "@type": "Answer", "text": "The Mayfair Replacement Automatic Bilge Pump Float Switch is designed to automatically turn a bilge pump on and off based on water level. It serves as a direct replacement for older Mayfair float switch models and helps manage bilge water without constant manual operation." } }, { "@type": "Question", "name": "What features help make this float switch reliable?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch features ultrasonically sealed thermo-plastic housing, a sealed ceramic switch, and an anti-spike feature that helps prevent rapid on-off cycling. It also activates when a rolling steel ball changes pressure on the micro-switch." } }, { "@type": "Question", "name": "Is this float switch compatible with older Mayfair pumps?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. This float switch is a direct replacement for older Mayfair float switch models and attaches to Mayfair and Johnson Pump bilge pumps through the clip-on T-slot." } }, { "@type": "Question", "name": "What voltage systems can this float switch be used with?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch can be used with 6V, 12V, 24V, or 32V systems. The listed maximum amperage is 15 amps." } }, { "@type": "Question", "name": "What are the dimensions of this bilge pump f…

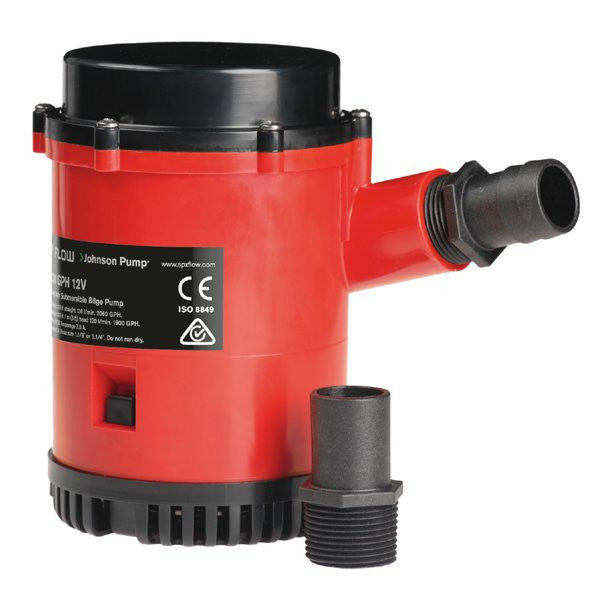

Mayfair Replacement Magnum Heavy Duty Bilge Pump by Johnson Pump

The Johnson Pump Magnum Heavy Duty Bilge Pump is a submersible pump designed to meet and exceed the tough demands of commercial and recreational duty. This 2200 GPH pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. Like other Johnson pumps, this pump has an impeller that is carefully designed and tested to maximize head and flow. The universal base plate and choice of two different ports makes installation easy. This pump can be used with an electronic float switch for automatic operation.

This pump is a direct replacement for older model Mayfair Magnum 2200 GPH Bilge Pumps.

Features:

Submersible

Liquid-cooled motor for extended service life

Motor is sealed off by mechanical seal design

Removable check valve included

Universal base plate

Specifications:

GPH: 2200

Voltage: 12 V

Amperage: 7.5 A

Fuse Size: 12 A

Connection: 1-1/8" & 1-1/4"

Capacity 1.0m head: 120 l/min - 1900 GPH

Capacity straight: 130 l/min - 2060 GPH

Click to Download the Johnson Pump Magnum Heavy Duty Bilge Pump User Manual

Frequently Asked Questions

• What is the Mayfair Replacement Magnum Heavy Duty Bilge Pump by Johnson Pump used for? The Mayfair Replacement Magnum Heavy Duty Bilge Pump by Johnson Pump is a submersible bilge pump designed for commercial and recreational duty. It has a 2200 GPH rated capacity and can be used with an electronic float switch for automatic operation.
• Is the Johnson Pump Magnum Heavy Duty Bilge Pump a replacement for Mayfair Magnum pumps? Yes. This pump is a direct replacement for older model Mayfair Magnum 2200 GPH Bilge Pumps. Before selecting the replacement, verify that the existing installation matches the pump's listed electrical specifications, connection sizes, and mounting requirements.
• What are the electrical specifications of the Johnson Pump Magnum Heavy Duty Bilge Pump? The Johnson Pump Magnum Heavy Duty Bilge Pump operates at 12 V, draws 7.5 A, and uses a 12 A fuse. Its rated capacity is 2200 GPH. The listed capacity is 1900 GPH at a 1.0 m head and 2060 GPH with a straight discharge.
• What connection sizes does the Johnson Pump Magnum Heavy Duty Bilge Pump use? The Johnson Pump Magnum Heavy Duty Bilge Pump has 1-1/8" and 1-1/4" connection options. It also features a universal base plate and two different port choices to make installation easier. Confirm the required connection size for the existing bilge system before installation.
• What motor features are included in the Johnson Pump Magnum Heavy Duty Bilge Pump? The pump features a liquid-cooled, 12-pole motor with double ball bearings designed for extended service life. The motor is sealed using a mechanical seal design, and the pump uses an impeller designed and tested to maximize head and flow.
• Does the Johnson Pump Magnum Heavy Duty Bilge Pump include a check valve? Yes. The Johnson Pump Magnum Heavy Duty Bilge Pump includes a removable check valve. The pump also has a universal base plate and is designed to work with an electronic float switch when automatic bilge pump operation is desired.

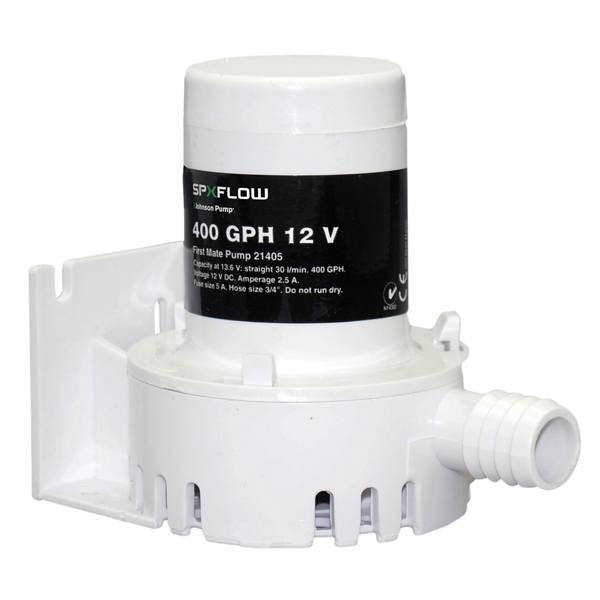

Johnson Pump First Mate Bilge Pump 400 GPH

The Johnson Pump First Mate Bilge Pump was designed specifically for Pontoon livewell and PWC bilge applications. This pump is ideal for situations where space is limited and ease of maintenance is desired. The easy to plumb 90 degree Dura Port makes short work of challenging hose routing.

This bilge pump is a direct replacement for older model Mayfair First Mate bilge pumps.

Features:

Electric motor can be locked into 3 different positions for more direct wiring routing

Extremely tolerant to low battery voltage situations due to its low power consumption (DC motor amp draw increases)

Integrated side mounting bracket

Specifications:

Capacity: 400 GPH

Voltage: 12 V

Amperage: 2.5 A

Fuse size: 5 A

Connection: 3/4"

Max Height: 4" (100mm)

Click to Download the Johnson Pump First Mate Bilge Pump User Manual

Frequently Asked Questions

• What is the Johnson Pump First Mate Bilge Pump 400 GPH designed for? The Johnson Pump First Mate Bilge Pump 400 GPH was designed specifically for pontoon livewell and personal watercraft (PWC) bilge applications. Its compact design is intended for situations where installation space is limited, while the integrated side mounting bracket supports installation in these applications.
• What are the electrical specifications of the Johnson Pump First Mate Bilge Pump 400 GPH? The Johnson Pump First Mate Bilge Pump operates at 12 V and has a 2.5 A amp draw. It uses a 5 A fuse and has a 3/4" connection. Its rated capacity is 400 GPH, with a maximum height of 4 inches (100 mm).
• Does the Johnson Pump First Mate Bilge Pump 400 GPH replace an older Mayfair pump? Yes. The Johnson Pump First Mate Bilge Pump 400 GPH is a direct replacement for older model Mayfair First Mate bilge pumps. Before replacing an existing pump, verify that the application, connection, electrical specifications, and available mounting space match the pump's listed specifications.
• How does the 90 degree Dura Port help with installation? The Johnson Pump First Mate Bilge Pump features an easy-to-plumb 90 degree Dura Port designed to simplify hose routing. This can be particularly useful when working in the limited space associated with pontoon livewell and PWC bilge applications.
• What features make the Johnson Pump First Mate Bilge Pump easier to install and maintain? The First Mate Bilge Pump includes an integrated side mounting bracket and an electric motor that can be locked into three different positions. The adjustable motor positions can provide more direct wiring routes, while the pump's design is intended for applications where ease of maintenance is desired.

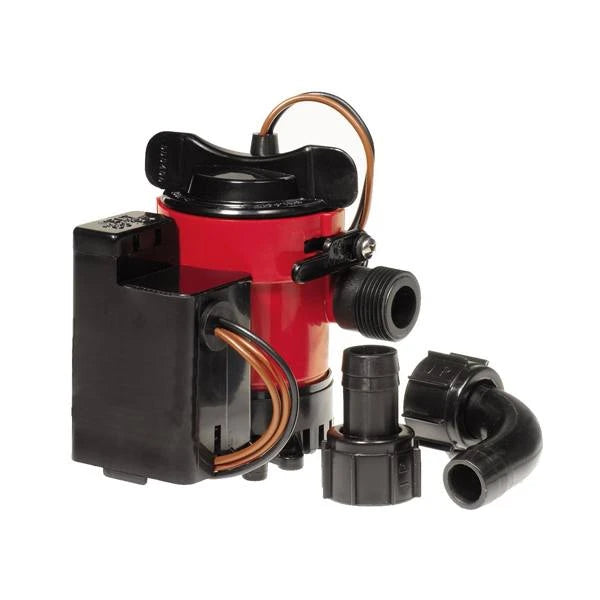

Mayfair Replacement Automatic Bilge Pump by Johnson Pump

Stay ahead of bilge buildup with this automatic Johnson blige pump, available in 500, 750, or 1000 GPH models. Smart sensors activate the pump when water levels rise, and a manual test button lets you check functionality on the spot. The twist-lock cartridge design makes cleaning or replacement quick and tool-free. Ready to handle saltwater and tough marine conditions, it installs easily and runs quietly to maintain onboard stability. With a 3-year warranty and self-regulating performance, it’s a reliable choice for keeping your bilge dry and your boat safe.

Direct replacement for older models of Mayfair Automatic Bilge Pumps with an Ultima Switch.

Features:

Pre-configured with an electric Ultima Switch for automatic operation

Extremely energy-efficient

Water-cooled motor for long service intervals

Compact, all-in-one motor/impeller unit with stainless steel shaft

Easy-to-install Dura-Port discharge ports

Includes both straight and 90° smooth elbow Dura-Port

Meets international standard, ISO 8849 marine

Specifications:

Dimensions: 4.41" Height x 4.25" Width x 3.35" Depth

Part No.

Description

Capacity 3ft. Head

Capacity Straight

Voltage

Amperage

Fuse Size

Connection

Wire Size

07503-00

Ultima Combo 500 GPH

33 l/min - 525 GPH

40 l/min - 630 GPH

12 V

2.5 A

5 A

3/4"

16 GA

07703-00

Ultima Combo 750 GPH

44 l/min - 700 GPH

50 l/min - 800 GPH

12 V

3 A

5 A

3/4"

16 GA

07903-00

Ultima Combo 1000 GPH

50 l/min - 800 GPH

63 l/min - 1000 GPH

12 V

3.2 A

5 A

3/4"

16 GA

Click to Download Johnson Pump Automatic Bilge Pump User Manual

Frequently Asked Questions

• What is the Mayfair Replacement Automatic Bilge Pump by Johnson Pump used for? The Mayfair Replacement Automatic Bilge Pump by Johnson Pump is designed to automatically remove water from a boat's bilge. Its electric Ultima Switch activates the pump when water levels rise, while a manual test button allows functionality to be checked. It is available in 500, 750, and 1000 GPH configurations and is designed for marine conditions, including saltwater use.
• Which Mayfair Automatic Bilge Pumps does this Johnson Pump replace? This pump is a direct replacement for older Mayfair Automatic Bilge Pump models equipped with an Ultima Switch. Before purchasing, verify that your existing pump uses the Ultima Switch and that the selected model's voltage, connection size, and capacity match your boat's requirements.
• What are the available capacity and electrical specifications for the Mayfair Replacement Automatic Bilge Pump? The pump is offered in 500, 750, and 1000 GPH models, all operating at 12 V. The 500 GPH model draws 2.5 A, the 750 GPH model draws 3 A, and the 1000 GPH model draws 3.2 A. Each uses a 5 A fuse, 3/4" connection, and 16 GA wire size.
• What discharge ports are included with the Johnson Pump Mayfair Replacement Automatic Bilge Pump? The pump includes Dura-Port discharge ports along with both a straight and 90° smooth elbow Dura-Port. These options provide flexibility when connecting the bilge pump to the appropriate discharge setup. The pump has a 3/4" connection and measures 4.41" high x 4.25" wide x 3.35" deep.
• How is the Mayfair Replacement Automatic Bilge Pump designed for marine use? The Johnson Pump Mayfair replacement pump features a water-cooled motor, stainless steel shaft, and compact motor/impeller design. It is designed for saltwater and tough marine conditions and meets the international ISO 8849 marine standard. Follow the applicable equipment owner's manual and product instructions for installation and operation.

Johnson Bilge Pump Switch Control Panel

This Johnson Bilge Pump Switch Control Panel allows for full control of your equipment. With a three-position switch panel (Manual-Off-Automatic), it offers exceptional satisfaction and provides long lasting use and extreme durability. Constructed with a matte black finish, this bilge pump switch includes an integrated fuse holder and operating light.

Features:

3-Way Switch (Manual-Off-Automatic) With Panel

Fuses Included

Matte Black Finish

Integrated Fuse Holder

Operating Light

Specifications:

Voltage: 12V

Size: 73 mm/2.99" x 60 mm/2.17", 40 mm/1.57" Depth

Box Dimensions: 1"H x 5"W x 7"L

Weight: 0.2 lbs

UPC: 729321820448

Johnson Bilge Pump Control

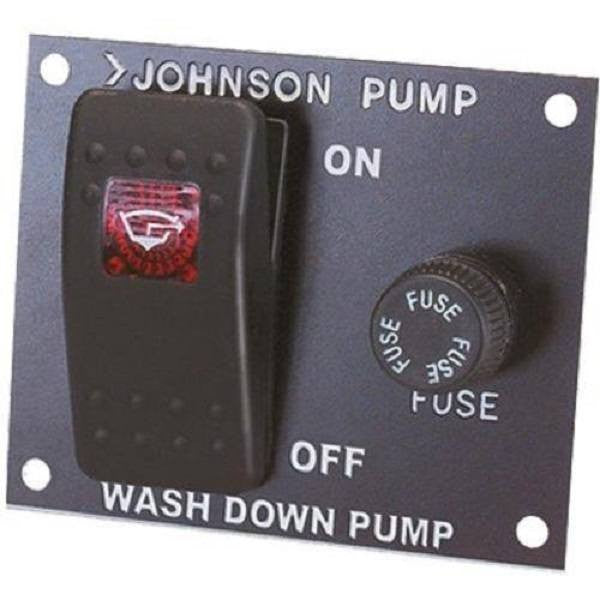

Johnson Pump 2-Way Washdown Control Panel

This Johnson Pump 2-Way Washdown Control Panel allows the user to control the boat's washdown pump. With a fuse and an indicator light that shows when the pump is active, this control panel provides exceptional satisfaction. Featuring a matte black panel and a 2-way function, it offers long lasting use and extreme durability.

Features:

Allows The User To Control The Boat's Washdown Pump

Equipped With Fuse

Indicator Light Shows When Pump Is Active

Washdown Switch Includes Panel

Matte Black Panel

Specifications:

Power: 12 Volt DC

Function: 2-Way (ON/OFF)

Panel Dimensions: 73 mm x 60 mm

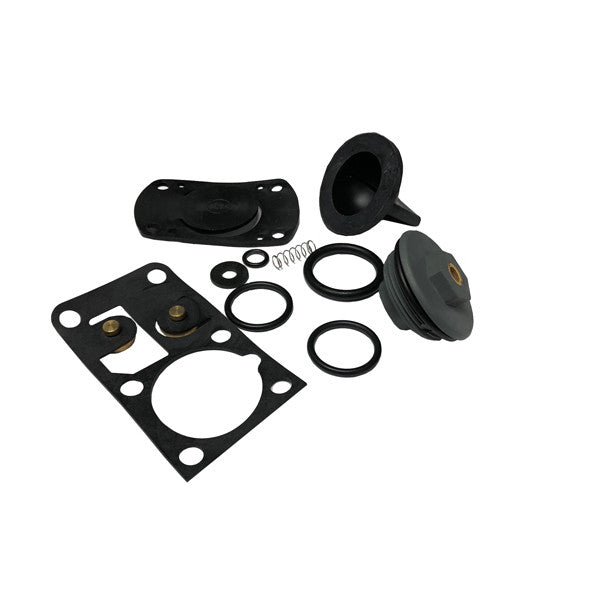

Johnson Pump 81-47242-01 AquaT Toilet Gasket Kit

The Johnson Pump 81-47242-01 AquaT Toilet Gasket Kit contains all gaskets needed for manual AquaT toilets.

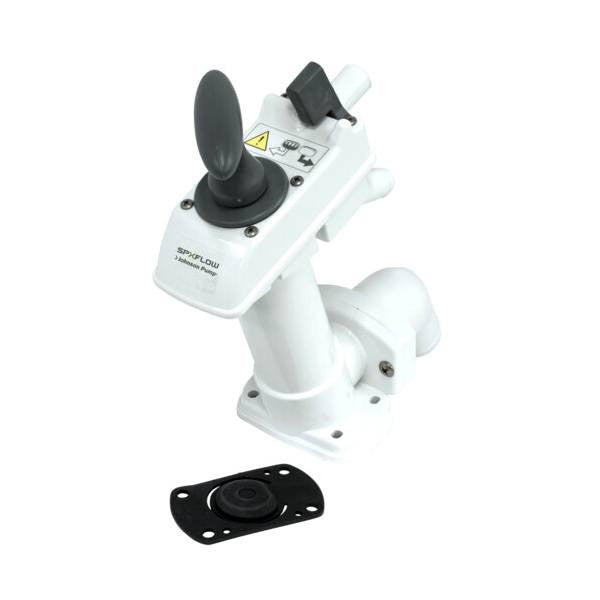

Johnson Pump Manual Toilet Pump Assembly

The Johnson Pump manual toilet pump assembly can be paired with any Johnson Pump AquaT manual marine toilet. It incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left handed or right handed use.

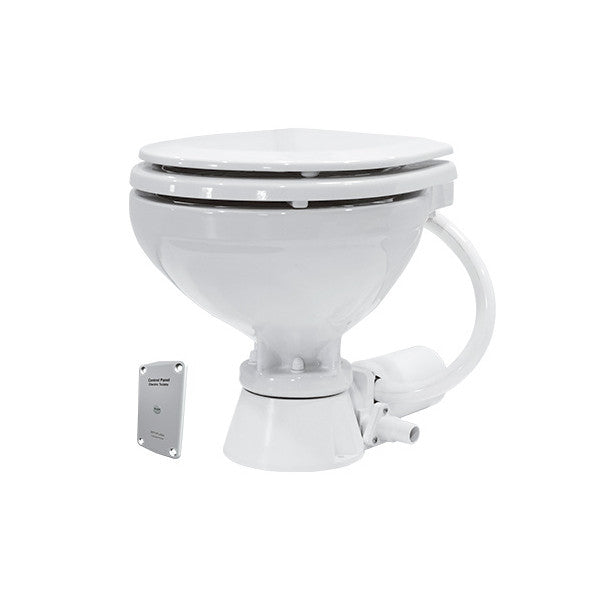

Johnson AquaT Compact Electric Marine Toilet 12V

Johnson's AquaT Electric Marine Toilets are equipped with a 12V pump unit for disposal and flushing. Features a centrifugal pump with macerator function for disposal and an impeller pump for filling water. AquaT toilets provide the comfort and convenience of a land-based lavatory at sea. This economical toilet is made from white vitreous porcelain, and with corrosion resistant parts throughout. Quiet, robust, and easy to clean, AquaT is the perfect choice for both sailboats and powerboats.

Compact bowl with a round seat is ideal for when installation space is limited.

Features:

Self-priming pump

Clean lines – pleasing to the eye

Hygienic, easy-to-clean vitreous china bowl and exterior surfaces

Plastic seat made of polypropylene

Low water consumption (2-2.5 l/flush) makes the most of holding tank capacity

Versatile plumbing connection options

Automatic back-flow prevention

Available in comfort or compact bowl sizes

Designed for virtually any onboard mounting position

May be installed above or below the waterline

Suitable for OEM or replacement installation

Corrosion resistant materials throughout

Long service life

Includes one touch control panel

Complies with ISO 8846, ignition protection, and EN 55014 EMC

Click to Download Johnson AquaT Compact Electric Marine Toilet Manual

Frequently Asked Questions

• What is the Johnson AquaT Compact Electric Marine Toilet 12V designed for? The Johnson AquaT Compact Electric Marine Toilet 12V is a compact electric marine toilet designed for boats where installation space is limited. Its round-seat compact bowl is made from white vitreous china, with corrosion-resistant materials throughout, and it is suitable for both sailboats and powerboats.
• How does the Johnson AquaT Compact Electric Marine Toilet flush and dispose of waste? The Johnson AquaT uses a 12V pump unit for flushing and waste disposal. It features a centrifugal pump with a macerator function for disposal and an impeller pump for filling water. The toilet also includes automatic back-flow prevention.
• How much water does the Johnson AquaT Compact Electric Marine Toilet use per flush? The Johnson AquaT Compact Electric Marine Toilet uses approximately 2-2.5 liters of water per flush. Its low water consumption is designed to make efficient use of holding tank capacity.
• Can the Johnson AquaT Compact Electric Marine Toilet be installed above or below the waterline? Yes. The Johnson AquaT Compact Electric Marine Toilet may be installed above or below the waterline. It is designed for virtually any onboard mounting position and offers versatile plumbing connection options.
• What type of bowl and seat does the Johnson AquaT Compact Electric Marine Toilet have? The compact AquaT features a hygienic, easy-to-clean white vitreous china bowl with a round seat. The seat is made from polypropylene. The compact bowl configuration is intended for installations where available space is limited.
• What controls are included with the Johnson AquaT Compact Electric Marine Toilet? The Johnson AquaT Compact Electric Marine Toilet includes a one-touch control panel. The toilet is also equipped with a self-priming pump and automatic back-flow prevention for its marine plumbing system.
• Is the Johnson AquaT Compact Electric Marine Toilet suitable for replacement installation? Yes. The Johnson AquaT Compact Electric Marine Toilet is designed for both OEM and replacement installations. The product description identifies it as suitable for virtually any onboard mounting position and for use on sailboats and powerboats.

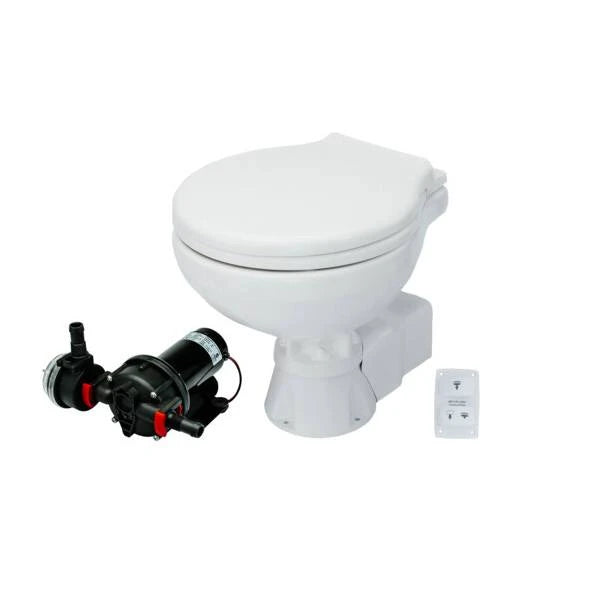

Johnson Pump Compact AquaT Silent Electric Marine Toilet 12V

The Johnson Pump AquaT Silent Marine Toilet is an electric boat toilet designed for a silent flush. Priced competitively, AquaT toilets are quiet, robust, and easy to clean. This toilet is made from white vitreous porcelain with corrosion resistant parts. Its compact, hygienic, white ceramic bowl makes this AquaT toilet perfect for installation where space is limited. Includes a centrifugal pump with macerator function and a well-proven Aqua Jet diaphragm pump. Additionally, the AquaT comes with a three-way control panel to control the rinse and discharge.

Constructed of white vitreous porcelain with a hygienic white ceramic bowl. Soft closing, durable, and hygienic plastic seats are made of polypropylene. The pump and base are molded in ABS or polypropylene with stainless steel fastenings, brass weights, and neoprene seals and gaskets.

AquaT Silent Electric Marine Toilets can be installed in both power and sailing craft. They can be installed either above or below the waterline  and can be used on the sea, river, lake, or canal. The waste can be discharged either overboard (please note national or local restrictions), or into a treatment system, or into an on-board holding tank.

Features:

Compact bowl

Silent flush and discharge operation

Included 3-way panel controls rinse and discharge

Smooth design for easy cleaning

Multi-angle outlet for various installations

Accessible mounting points for fast installation

Standard fastenings, logic located, no need for special tools

High capacity discharge pump

Included rinse pump with filter.

Flexible hole pattern on base makes for easy substitution with most common toilets on the market

Specifications

12V

Self priming, dry, height 6.5 ft

Discharge height 9 ft

Click Here to Download Johnson Pump AquaT Silent Marine Toilet Installation Instructions

Frequently Asked Questions

• What is the Johnson Pump Compact AquaT Silent Electric Marine Toilet 12V designed for? The Johnson Pump Compact AquaT Silent Electric Marine Toilet 12V is a compact electric boat toilet designed for quiet flushing and discharge. Its space-saving vitreous porcelain bowl makes it suitable for installations where space is limited, and it can be installed on power and sailing craft.
• Where can the Johnson Pump Compact AquaT Silent Electric Marine Toilet be installed? The AquaT Silent Electric Marine Toilet can be installed either above or below the waterline on power and sailing craft. It is described for use on the sea, rivers, lakes, or canals. Waste can be discharged overboard, into a treatment system, or into an onboard holding tank, subject to applicable restrictions.
• How does the Johnson Pump Compact AquaT Silent Electric Marine Toilet flush and discharge waste? The AquaT Silent uses a centrifugal pump with a macerator function for discharge and an Aqua Jet diaphragm pump for rinsing. A three-way control panel operates the rinse and discharge functions. The system is designed for silent flush and discharge operation.
• What materials are used in the Johnson Pump Compact AquaT Silent Electric Marine Toilet? The toilet has a white vitreous porcelain bowl, while the soft-closing plastic seat is made from polypropylene. The pump and base are molded in ABS or polypropylene and use stainless steel fastenings, brass weights, and neoprene seals and gaskets.
• What are the self-priming and discharge specifications for the AquaT Silent Electric Marine Toilet? The Johnson Pump Compact AquaT Silent Electric Marine Toilet operates on 12V power. Its pump is self-priming and has a dry height specification of 6.5 feet, while the discharge height is rated at 9 feet.
• What features make the Johnson Pump Compact AquaT Silent Electric Marine Toilet suitable for tight installations? The AquaT Silent features a compact bowl, accessible mounting points, a multi-angle outlet, and a flexible hole pattern on the base. These f…

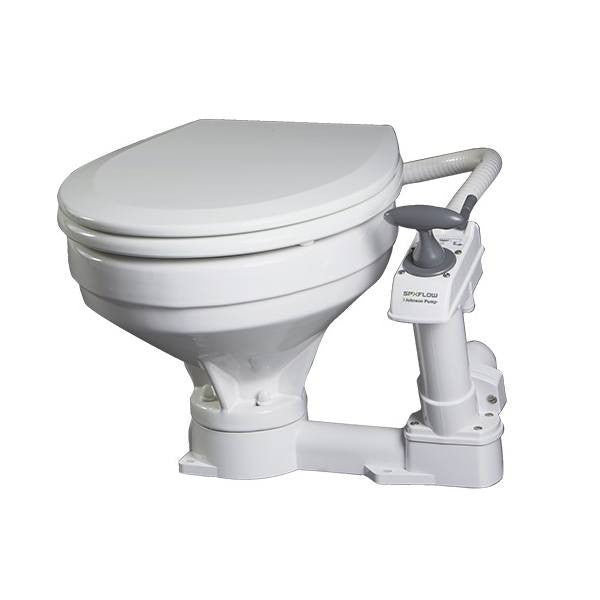

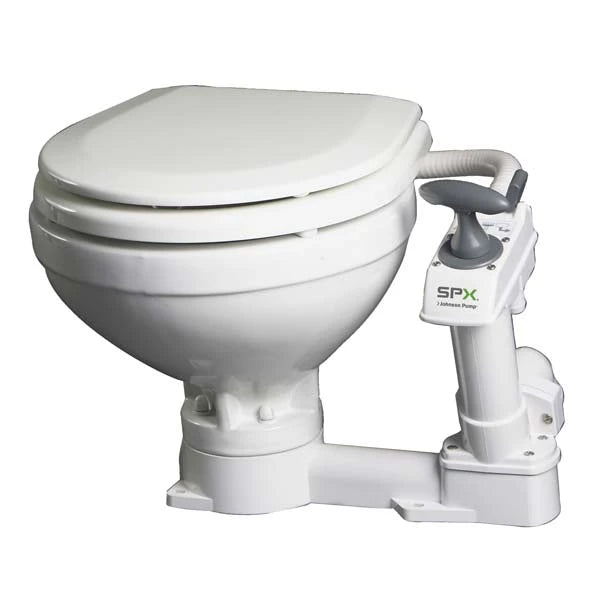

Johnson AquaT Manual Comfort Marine Toilet

A great choice for both sailing and power crafts, Johnson AquaT manual toilets are quiet, robust, and easy to clean. These toilets are made from vitreous porcelain with corrosion resistant parts throughout. This manual toilet incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left-hand or right-hand operation. Comfort model toilets feature a larger, more comfortable oval seat.

This toilet can be installed in both sailing and power craft, either above or below the waterline, and is for use on sea, river, lake or canal.

Features:

Large, comfortable oval seat

Whisper quiet operation

Self-priming pump

Clean lines – pleasing to the eye

Hygienic, easy-to-clean vitreous china bowl and exterior surfaces

Plastic seat made of polypropylene

Low water consumption (2-2.5 l/flush) makes the most of holding tank capacity

Versatile plumbing connection options

Automatic back-flow prevention

Designed for virtually any onboard mounting position

May be installed above or below the waterline

Suitable for OEM or replacement installation

Corrosion resistant materials throughout

Long service life

Ergonomic pump handle for ease of use

Pump can be mounted left or right of the toilet bowl

Innovative brake bushing prevents annoying leakage at the handle

Click to Download Johnson AquaT Comfort Marine Toilet Manual

Frequently Asked Questions

• What is the Johnson AquaT Manual Comfort Marine Toilet used for? The Johnson AquaT Manual Comfort Marine Toilet is designed for sailing and power craft. It can be installed above or below the waterline and is specified for use on sea, river, lake, or canal. The Comfort model features a larger oval seat and a hand-powered piston pump.
• What type of seat does the Johnson AquaT Manual Comfort Marine Toilet have? The Comfort model features a large, comfortable oval seat made from polypropylene. This larger seat distinguishes the Comfort model and is designed to provide added seating comfort compared with the standard bowl design.
• How does the pump work on the Johnson AquaT Manual Comfort Marine Toilet? The Johnson AquaT Manual Comfort Marine Toilet uses an ergonomically designed, hand-powered piston pump. The pump is self-priming and can be mounted on either the left or right side of the toilet bowl, allowing flexibility when configuring the installation.
• How much water does the Johnson AquaT Manual Comfort Marine Toilet use per flush? The Johnson AquaT Manual Comfort Marine Toilet uses approximately 2–2.5 liters of water per flush. Its low water consumption helps make efficient use of holding tank capacity during onboard use.
• What materials are used in the Johnson AquaT Manual Comfort Marine Toilet? The toilet has a hygienic, easy-to-clean vitreous china bowl and exterior surfaces. Corrosion-resistant materials are used throughout, while the seat is made from polypropylene. The toilet is designed for reliable use in marine environments.
• Where can the Johnson AquaT Manual Comfort Marine Toilet be installed? The Johnson AquaT Manual Comfort Marine Toilet is designed for virtually any onboard mounting position and may be installed either above or below the waterline. It is suitable for OEM or replacement installation, with versatile plumbing connection options and a pump that can be mounted on either side of the bowl.

Johnson Pump AquaT Compact Manual Marine Toilet 80-47229-01

The fine finish and well thought-out design of these toilets is remarkable. Made from white vitreous porcelain, and with corrosion-resistant parts throughout, the Johnson Pump AquaT' marine toilet is quiet, robust, and easy to clean. The AquaT' toilet will give you years of trouble-free operation. The manual version incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left-hand or right-hand use. When spare parts such as a new seat or valve are needed, you'll find Johnson Pump's global network of distributors at your service.

It's probably fair to think of most toilets as commonplace products, but look at the features and you're sure to see that the AquaT' is far from ordinary. Quiet, hygienic, and reliable, the Johnson Pump AquaT' marine toilet is perfect for almost any marine toilet room.

CE-approved

Features:

Whisper quiet operation

Self-priming pump

Clean lines - pleasing to the eye

Hygienic, easy-to-clean vitreous china bowl and exterior surfaces

Robust wooden seat with durable baked enamel finish

Low water consumption (2-2.5 l/flush) makes the most of holding tank capacity

Versatile plumbing connection options

Automatic back-flow prevention

Available in comfort or compact bowl sizes

Designed for virtually any onboard mounting position

May be installed above or below the waterline

Suitable for OEM or replacement installation

Corrosion-resistant materials throughout

Long service life

Ergonomic pump handle for ease of use

Pump can be mounted left or right of the toilet bowl

Innovative brake bushing prevents annoying leakage at the handle

Toilet bowl is circular in shape, not oval

Johnson AquaT Compact Manual Marine Toilet

Frequently Asked Questions

• What is the Johnson Pump AquaT Compact Manual Marine Toilet 80-47229-01 used for? The Johnson Pump AquaT Compact Manual Marine Toilet 80-47229-01 is a manual marine toilet designed for onboard use. It features a white vitreous porcelain bowl, corrosion-resistant materials, a self-priming hand-powered piston pump, and an ergonomic handle. Its compact circular bowl and versatile mounting design make it suitable for virtually any onboard mounting position.
• Can the Johnson Pump AquaT Compact Manual Marine Toilet be installed above or below the waterline? Yes. The AquaT Compact Manual Marine Toilet is designed for installation either above or below the waterline. It also supports versatile plumbing connection options and can be used for OEM or replacement installations, giving it flexibility for different onboard marine toilet applications.
• How much water does the Johnson Pump AquaT Compact Manual Marine Toilet use per flush? The AquaT Compact Manual Marine Toilet uses approximately 2–2.5 liters of water per flush. Its low water consumption helps make efficient use of holding tank capacity while providing manual flushing through the self-priming piston pump.
• Can the pump handle on the AquaT Compact Manual Marine Toilet be installed on either side? Yes. The ergonomically designed hand-powered piston pump can be mounted on either the left or right side of the toilet bowl. This provides installation flexibility and allows the pump handle position to be adapted to the onboard mounting arrangement.
• What materials and features make the AquaT Compact Manual Marine Toilet suitable for marine use? The toilet has a white vitreous porcelain bowl and exterior surfaces designed to be hygienic and easy to clean. Corrosion-resistant materials are used throughout, while the robust wooden seat has a durable baked enamel finish. The toilet also includes automatic back-flow prevention and a brake bushing designed to prevent leakage at the handle.
• Is the Johnson Pump AquaT Compact Manual Marine Toilet suitable for replacement installations? Yes. The AquaT Compact Manual Marine Toilet is suitable for both OEM and replacement installations. It is des…

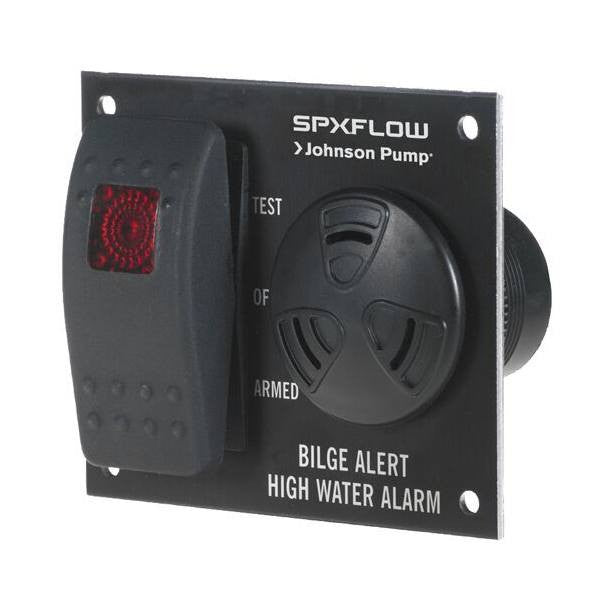

Johnson Boat Bilge Water Alarm

The Bilge Alert high water detection alarm by Johnson uses a field effect technology to detect the presence of liquid. It is able to detect liquids with no moving parts. Highly reliable and durable this Boat Bilge Alert uses advanced sensor technology. After 8 seconds of being exposed to water the detector activates a 100 db alarm

Specifications:

12V DC Power

Voltage rating: 10.5-14.4 V DC

BILGEALERT 12V

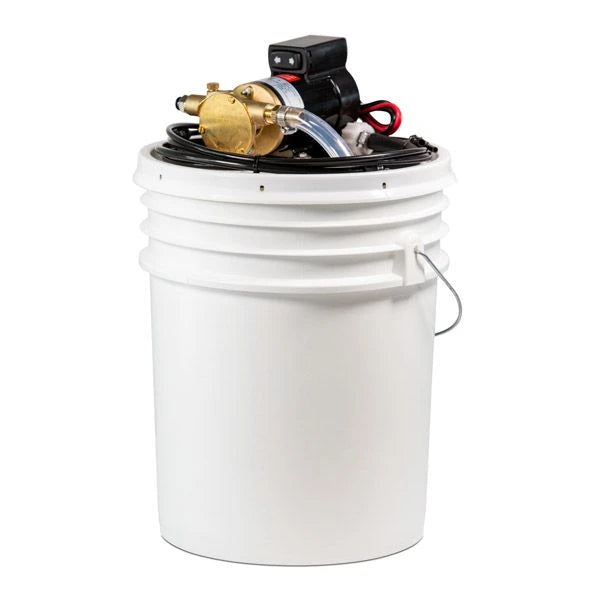

Johnson Pump 65F3B Oil Change Kit w/ Flexible Impeller Pump

The Johnson Pump 65F3B Oil Change Kit is an all-in-one complete oil change package that makes oil changes hassle-free. This oil change kit is for marine or industrial applications and features reliable, well-designed F3B-19 flexible impeller pump technology. The F3B-19 impeller pump has a 5.5 GPM capacity and features a Nitrile impeller that is both serviceable and replaceable. A reversing switch is conveniently built into the pump, allowing for fast fill, transfer, and drain. Also included in this oil change kit is a high temperature-resistant dipstick tube. This dipstick tube allows for immediate, no wait oil change after engine use.

Johnson Pump's Oil Change Kit has a 12 volt pump that can be securely connected to a power source using the included heavy-duty alligator battery clips. Once you're done changing your oil, the easy pour spout allows you to empty used oil into a recycling container without spilling. This complete oil change package is sure to make your oil changes easier, quicker, and less messy.

Key Features:

F3B-19 Flexible impeller pump has a serviceable and replaceable impeller (09-843S-9)

Quick drain and fill 5.5 GPM capacity

Convenient integrated flow reversing switch included

High temperature-resistant dipstick tube

Easy pour spout ensures no spills

Heavy-duty alligator battery clips allow for secure connection to power source

12 Volt

1 Year warranty

Oil Change Kit Includes:

Bucket

Sealed Lid

Pump Assembly

Dipstick Tube

Heavy-Duty Alligator Clips

Easy Pour Spout

Frequently Asked Questions

• What is the Johnson Pump 65F3B Oil Change Kit w/ Flexible Impeller Pump used for? The Johnson Pump 65F3B Oil Change Kit w/ Flexible Impeller Pump is designed for oil changes in marine or industrial applications. It uses a 12-volt F3B-19 flexible impeller pump with a 5.5 GPM capacity for quick draining, filling, and transferring of oil.
• What type of pump is included with the Johnson Pump 65F3B Oil Change Kit? The kit includes an F3B-19 flexible impeller pump with a 5.5 GPM capacity. The pump has a serviceable and replaceable Nitrile impeller, part number 09-843S-9, and includes an integrated reversing switch for changing the flow direction.
• Can the Johnson Pump 65F3B Oil Change Kit be used immediately after engine operation? Yes. The included high temperature-resistant dipstick tube is designed to allow an oil change immediately after engine use, eliminating the need to wait for the tube to cool before beginning the oil change.
• How does the Johnson Pump 65F3B Oil Change Kit connect to a power source? The oil change kit uses a 12-volt pump and includes heavy-duty alligator battery clips for securely connecting the pump to a power source.
• What is included in the Johnson Pump 65F3B Oil Change Kit? The kit includes a bucket, sealed lid, pump assembly, high temperature-resistant dipstick tube, heavy-duty alligator clips, and easy pour spout. The pour spout is designed to help transfer used oil into a recycling container with less mess.
• Does the Johnson Pump 65F3B Oil Change Kit have a reversing function? Yes. The pump has a conveniently integrated flow reversing switch that allows the pump to quickly change between draining, filling, and transferring oil.

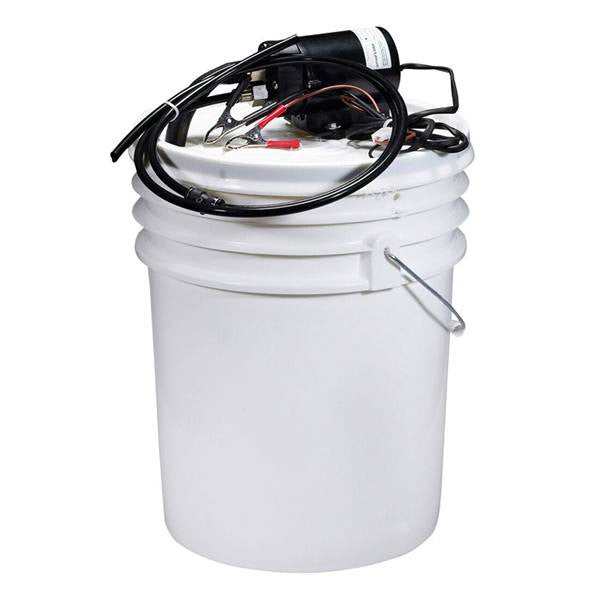

Johnson Pump 65000 Marine Oil Change Kit w/Bucket

This Johnson Pump Marine Oil Change Kit features an upgraded motor with a flange face design and new metal base plate. It is supplied with 6mm and 8mm diameter, 6 ft long suction tubes and has an improved flow rate of 2.6 GPM. This portable and convenient marine oil change kit is reliable, well designed and features proven gear pump technology and features an easy pour water spout to empty used oil into the recycling container without having to remove the lid.

Features:

Self-Priming To 1 Meter

Upgraded Motor With Flange Face Design and New Metal Base Plate

Supplied With 6mm and 8mm Diameter, 6 ft Long Suction Tubes

Reliable, Well Designed & Proven Gear Pump Technology

Pump Body and Gears Made of Lightweight, Strong PTFE

For Marine Or Industrial Applications

Improved Flow Rate of 2.6 GPM

Portable & Convenient

Use the Easy Pour Spout to Empty Used Oil Into Recycling Container Without Having To Remove the Lid

1 Year Warranty

Kit Contents:

Pump

Pail and Sealing Lid

2 Sizes of High Temperature Oil Dip Stick Extraction Tubes

6 ft Connection Wires

Alligator Battery Clips

Specifications:

Voltage: 12V

Max. Flow: 2.6 GPM

Self-Priming: 1m (3.3 ft)

Click to Download Johnson Oil Change Kit Instructions

Frequently Asked Questions

• What is the Johnson Pump 65000 Marine Oil Change Kit used for? The Johnson Pump 65000 Marine Oil Change Kit is designed for marine or industrial oil changes. Its portable gear pump uses suction tubes to extract oil through the dipstick and includes a pail with a sealing lid for collecting used oil.
• What is included with the Johnson Pump 65000 Marine Oil Change Kit? The kit includes the pump, pail with sealing lid, two high-temperature oil dipstick extraction tubes in 6mm and 8mm diameters, 6-foot connection wires, and alligator battery clips. An easy-pour spout is also provided for transferring used oil into a recycling container.
• What size suction tubes come with the Johnson Pump 65000? The Johnson Pump 65000 includes two 6-foot-long suction tubes. The tubes have different diameters of 6mm and 8mm, providing two options for oil extraction through the dipstick.
• What is the flow rate of the Johnson Pump 65000 Marine Oil Change Kit? The Johnson Pump 65000 has an improved maximum flow rate of 2.6 GPM. It operates at 12V and uses proven gear pump technology with pump body and gears made from lightweight, strong PTFE.
• Is the Johnson Pump 65000 self-priming? Yes. The Johnson Pump 65000 is self-priming to 1 meter, or approximately 3.3 feet. This self-priming capability is part of the pump's specifications and is designed for its marine and industrial oil change applications.
• How do you empty the used oil collected by the Johnson Pump 65000? The kit has an easy-pour spout that allows used oil to be emptied into a recycling container without removing the pail lid. This feature helps make transferring collected oil more convenient after an oil change.

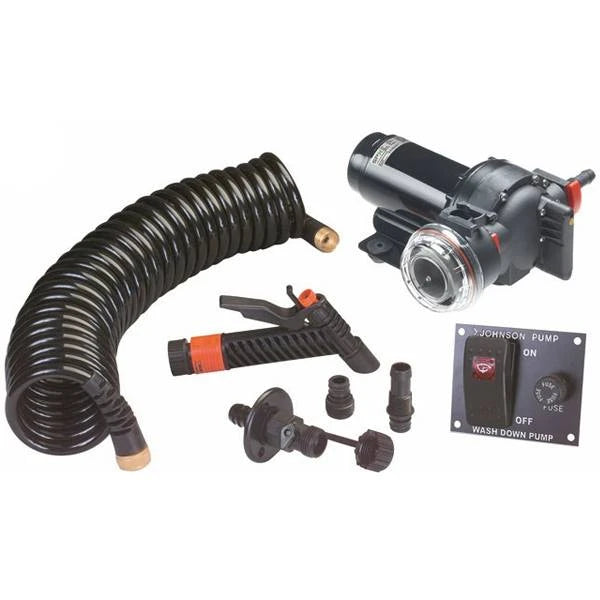

Johnson Pump Aqua Jet Wash Down Pump Kit

Johnson Pump brings a convenient way to add additional wash down pumps to any boat. The Aqua Jet Wash Down Pump Kit is designed to be easy and convenient to use with a smoother and quieter operation than other pumps. Johnson wash down pumps feature an inlet strainer that protects the pump from harmful intrusions.

Product Features:

Integrated pressure switch

Smooth flowing

Five chamber construction

Whisper quiet operation

Quick connect hose

Self priming

Long Service life

Easy to maintain

Wash Down Kit Includes:

Aqua Jet WD 5.2 GPM Pump

Inlet strainer

Spray pistol

Bulkhead fitting

Hose and connectors

Barb port fittings

Panel switch

Specifications:

Pump Dimensions: 9.31" L x 8.25" W x 4.58" H

1/2" NPT / hose 3/4"

3/4" GHT

Click here to download Johnson Pump Aqua Jet Wash Down Pump Kit Brochure
