Lenco Trim Tabs

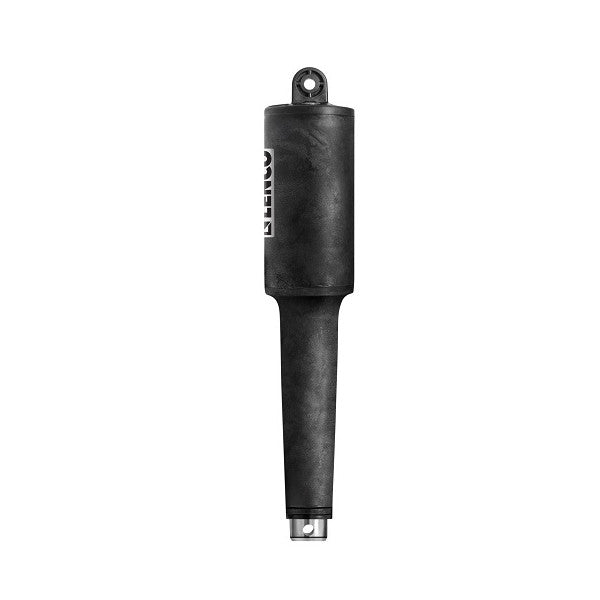

Lenco 102S Replacement Trim Tab Actuator

This replacement 4-1/4" Stroke trim tab Actuator for trolling tab systems sold prior to 2000 and other 20403-001 OEM applications. The ballscrew design is twice as powerful compared to typical hydraulics and more reliable. This high-torque trim tab actuator easily pushes 550 lbs. Easy to use, this plug and play actuator uses waterproof Deutsch connectors to eliminate any possible water intrusion. This Lenco actuator comes with a 6' cable for easy installation.

Lenco Part#: 15059-001

OEM Part#: 20403-001

Sierra Part#: STT3701R

Product Specifications:

Top Cap Hole: 5/16"

End Hole: 5/16"

Overall Length: 13 3/8"

Overall Width: 2.5"

Cable Length: 6'

12V Actuator

Lenco 102S Replacement Actuator FAQs

• Will the Lenco 15059-001 actuator fit my boat? The Lenco 15059-001 may be the correct replacement if your existing trim tab system uses a 12V 102S actuator with a 4.25-inch stroke, 5/16-inch top-cap hole, and 5/16-inch end hole. It replaces Lenco OEM part number 20403-001 and is intended for trolling tab systems sold prior to 2000 and other compatible 20403-001 OEM applications. Confirm the existing actuator type, voltage, stroke length, mounting-hole configuration, and part number before ordering.
• What OEM part number does the Lenco 15059-001 replace? The Lenco 15059-001 102S actuator replaces OEM part number 20403-001.
• What is the stroke length of the Lenco 15059-001 actuator? This Lenco 102S replacement actuator has a 4.25-inch stroke. The product has an overall length of 13.375 inches and an overall width of 2.5 inches.
• What mounting-hole sizes does this actuator use? The Lenco 15059-001 uses a 5/16-inch top-cap mounting hole and a 5/16-inch end mounting hole. Both mounting points should match the existing actuator installation.
• Is the Lenco 15059-001 a 12V or 24V actuator? The Lenco 15059-001 is a 12V trim tab actuator. It should be used only with a compatible 12V Lenco trim tab system.
• What is included with the Lenco 15059-001 actuator? This replacement actuator includes a six-foot cable for installation.
• Does the Lenco 15059-001 use a waterproof connector? Yes. The actuator uses waterproof Deutsch connectors designed to help prevent water intrusion and provide plug-and-play installation.
• How much force can the Lenco 15059-001 actuator produce? The high-torque Lenco 15059-001 actuator is designed to push up to 550 pounds.
• How do I identify my existing Lenco trim tab actuator? Locate the five-digit branding code on the face of the actuator near the Lenco label. Use the second digit to identify the actuator type and the fifth digit to identify the mounting-hole configuration. Compare the code, voltage, stroke length, mounting-hole sizes, and OEM part number before selecting a replacement. See our Lenco trim tab actuator identification guide for step-by-step help.
• Are Lenco 102S actuators interchangeable? Not all Lenco 102S actuators are interchangeable. Replacement models may differ in voltage, stroke length, mounting-hole sizes, cable configuration, and OEM part number. Verify all specifications rather than choosing an actuator based only on appearance.
• Can I replace only one Lenco trim tab actuator? A single actuator may be replaced when the new actuator matches the existing trim tab system and the actuator on the opposite side is still operating correctly. Inspect both actuators, the trim tabs, wiring, controls, connectors, and mounting hardware before completing the repair.

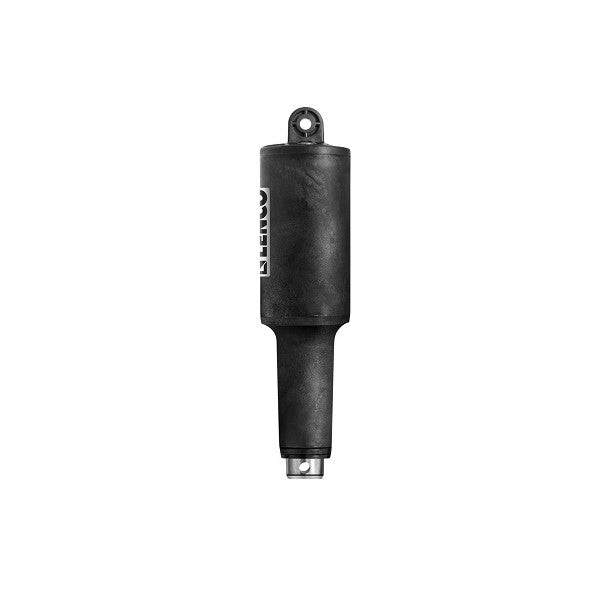

Lenco 15058-001 101XDS Short Replacement Trim Tab Actuator

Lenco Actuators are durable and maintenance-free. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance and high strength for long life. Lenco's ballscrew design creates a more reliable trim tab actuator that is twice as powerful compared to typical hydraulic actuators. This 12V actuator features a tough, high-torque motor that easily pushes 500lbs.

Built for marine environments, this actuator has an improved O-ring design and an integrated wiper seal. The waterproof Deutsch connector eliminates the possibility of water intrusion and makes for easy plug and play installation. This trim tab kit contains all necessary mounting hardware along with a 6' wire. This actuator has a 3/8" top and end hole.

Lenco Part#: 15058-001

OEM Part#: 20402-002

Trim Tab Actuator Construction Details:

Top Cap Design

Stronger top cap mounting clevis design.

Torx Screws

New & improved pressure-tight torx screws

Thrust Bearing

Molded-in thrust bearing design

Housing Wall

Thicker and stronger motor housing wall

Over-Molded Cable

Over-molded cable providing a stronger, tighter seal

Upper Bracket

Upper mounting bracket with gland seal

Specifications:

Top Cap Hole: 3/8"

End Hole: 3/8"

Stroke Length: 2-1/4"

Voltage: 12V

Wire Length: 6'

Overall Length Tip-to-Tip: 10-7/8"

Features:

Waterproof

Ball Screw Design.

Deutsch Connectors

Durable

Insant Response

High-Impact, ultraviolet resistant nylon

Lenco 101XDS Replacement Actuator FAQs

• Will the Lenco 15058-001 actuator fit my boat? The Lenco 15058-001 may be the correct replacement if your existing trim tab system uses a 12V 101XDS short actuator with a 2.25-inch stroke, 3/8-inch top-cap hole, and 3/8-inch end hole. It replaces Lenco OEM part number 20402-002. Confirm the existing actuator type, voltage, stroke length, mounting-hole configuration, and part number before ordering.
• What OEM part number does the Lenco 15058-001 replace? The Lenco 15058-001 101XDS short actuator replaces OEM part number 20402-002.
• What is the stroke length of the Lenco 15058-001 actuator? This Lenco 101XDS short replacement actuator has a 2.25-inch stroke and an overall tip-to-tip length of 10.875 inches.
• What mounting-hole sizes does this actuator use? The Lenco 15058-001 uses a 3/8-inch top-cap mounting hole and a 3/8-inch end mounting hole. Both mounting points should match the existing actuator installation.
• Is the Lenco 15058-001 a 12V or 24V actuator? The Lenco 15058-001 is a 12V trim tab actuator. It should be used only with a compatible 12V Lenco trim tab system.
• What is included with the Lenco 15058-001 actuator? This replacement actuator includes the necessary mounting hardware and a six-foot wire.
• Does the Lenco 15058-001 use a waterproof connector? Yes. The actuator uses a waterproof Deutsch connector designed to reduce the possibility of water intrusion and support plug-and-play installation.
• How do I identify my existing Lenco trim tab actuator? Locate the five-digit branding code on the face of the actuator near the Lenco label. Use the second digit to identify the actuator type and the fifth digit to identify the mounting-hole configuration. Compare the code, voltage, stroke length, mounting-hole sizes, and OEM part number before selecting a replacement. See our Lenco trim tab actuator identification guide for step-by-step help.
• Are Lenco 101XDS actuators interchangeable? Not all Lenco 101XDS actuators are interchangeable. Replacement models may differ in stroke length, voltage, mounting-hole sizes, wire configuration, and OEM part number. Verify all specifications rather than choosing an actuator based only on appearance.
• Can I replace only one Lenco trim tab actuator? A single actuator may be replaced when the new actuator matches the existing trim tab system and the actuator on the opposite side is still operating correct…

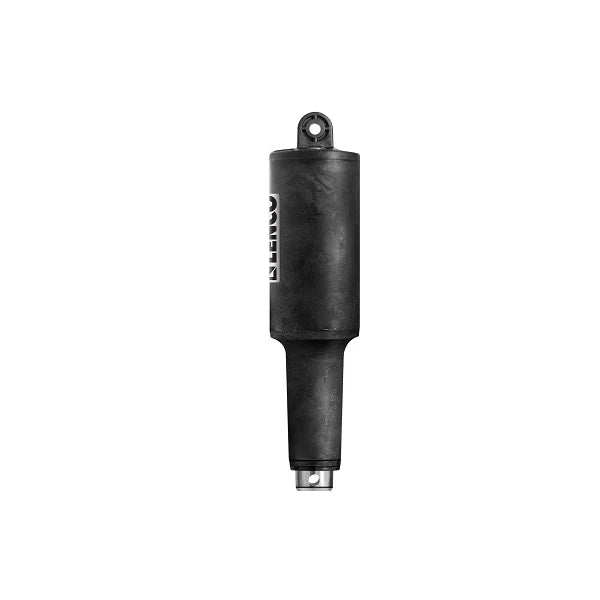

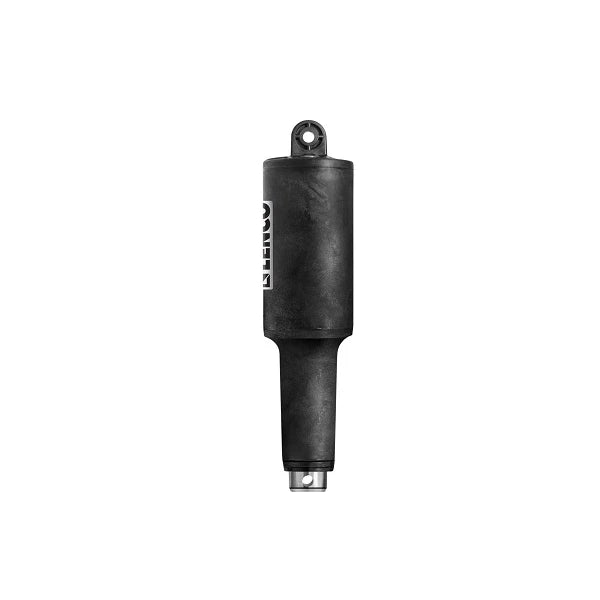

Lenco 15057-001 101XDS Short Replacement Trim Tab Actuator

Lenco Actuators are durable and maintenance-free. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance and high strength for long life. Lenco's ballscrew design creates a more reliable trim tab actuator that is twice as powerful compared to typical hydraulic actuators. This 12V actuator features a tough, high-torque motor that easily pushes 750lbs.

Built for marine environments, this actuator has an improved O-ring design and an integrated wiper seal. The waterproof Deutsch connector eliminates the possibility of water intrusion and makes for easy plug and play installation. This trim tab kit contains all necessary mounting hardware along with a 6' wire. This actuator has a 3/8" top and end hole.

Lenco Part#: 15057-001

OEM Part#: 200402-001

Trim Tab Actuator Construction Details:

Top Cap Design

Stronger top cap mounting clevis design.

Torx Screws

New & improved pressure-tight torx screws

Thrust Bearing

Molded-in thrust bearing design

Housing Wall

Thicker and stronger motor housing wall

Over-Molded Cable

Over-molded cable providing a stronger, tighter seal

Upper Bracket

Upper mounting bracket with gland seal

Specifications:

Top Cap Hole: 5/16"

End Hole: 5/16"

Stroke Length: 2-1/4"

Voltage: 12V

Wire Length: 6'

Overall Length Tip-to-Tip: 10-7/8"

Features:

Waterproof

Ball Screw Design.

Deutsch Connectors

Durable

Insant Response

High-Impact, ultraviolet resistant nylon

Click here for Lenco 101XDS Trim Tab Actuator Replacement Guide

Frequently Asked Questions

• What does the Lenco 101XDS Short Replacement Trim Tab Actuator do? The Lenco 101XDS Short Replacement Trim Tab Actuator controls trim tab movement to help adjust your boat’s running attitude, stability, and ride quality. It is designed as a replacement actuator for compatible Lenco trim tab systems.
• Is the Lenco 101XDS actuator built for marine environments? Yes. This actuator is built for marine use with a waterproof design, improved O-ring sealing, an integrated wiper seal, and a waterproof Deutsch connector to help prevent water intrusion.
• Does this replacement actuator include mounting hardware? Yes. This trim tab actuator includes the necessary mounting hardware along with a 6’ wire for installation.
• What are the key specifications of the Lenco 101XDS actuator? This 12V actuator has a 2-1/4" stroke length, a 10-7/8" overall tip-to-tip length, 5/16" top and end holes, and a 6’ wire length. Its high-torque motor is designed to deliver 750 lbs. of push force.
• What design features help improve the performance of this actuator? The Lenco 101XDS uses a ball screw design for reliable, high-strength trim tab operation. Additional features include precision molded high-alloy gears, a stronger top cap mounting clevis, thicker motor housing walls, pressure-tight Torx screws, and an over-molded cable for a tighter seal.

Lenco 15056-001 101XD Replacement Trim Tab Actuator

Lenco Actuators are durable and maintenance-free. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance and high strength for long life. Lenco's ballscrew design creates a more reliable trim tab actuator that is twice as powerful compared to typical hydraulic actuators. This 12V actuator features a tough, high-torque motor that easily pushes 500lbs.

Built for marine environments, this actuator has an improved O-ring design and an integrated wiper seal. The waterproof Deutsch connector eliminates the possibility of water intrusion and makes for easy plug and play installation. This trim tab kit contains all necessary mounting hardware along with a 6' wire. This actuator has a 3/8" top and end hole.

Lenco Part#: 15056-001

OEM Part#: 20401-002

Trim Tab Actuator Construction Details:

Top Cap Design

Stronger top cap mounting clevis design.

Torx Screws

New & improved pressure-tight torx screws

Thrust Bearing

Molded-in thrust bearing design

Housing Wall

Thicker and stronger motor housing wall

Over-Molded Cable

Over-molded cable providing a stronger, tighter seal

Upper Bracket

Upper mounting bracket with gland seal

Specifications:

Top Cap Hole: 3/8"

End Hole: 3/8"

Stroke Length: 2-1/4"

Voltage: 12V

Wire Length: 6'

Overall Length Tip-to-Tip: 11-3/8"

Features:

Waterproof

Ball Screw Design.

Deutsch Connectors

Durable

Insant Response

High-Impact, ultraviolet resistant nylon

Click here for Lenco 101XD Trim Tab Actuator Replacement Guide

Frequently Asked Questions

• What does the Lenco 101XD Replacement Trim Tab Actuator do? The Lenco 101XD Replacement Trim Tab Actuator controls trim tab movement to help adjust your boat’s running attitude, stability, and ride quality. It is designed as a replacement actuator for compatible Lenco trim tab systems.
• Is the Lenco 101XD actuator built for marine environments? Yes. This actuator is built for marine use with a waterproof design, improved O-ring sealing, an integrated wiper seal, and a waterproof Deutsch connector to help prevent water intrusion.
• Does this replacement actuator include mounting hardware? Yes. This trim tab actuator includes the necessary mounting hardware along with a 6’ wire for installation.
• What are the key specifications of the Lenco 101XD actuator? This 12V actuator has a 2-1/4" stroke length, an 11-3/8" overall tip-to-tip length, 3/8" top and end holes, and a 6’ wire length. Its high-torque motor is designed to deliver 500 lbs. of push force.
• What design features help improve the performance of this actuator? The Lenco 101XD uses a ball screw design for reliable, high-strength trim tab operation. Additional features include precision molded high-alloy gears, a stronger top cap mounting clevis, thicker motor housing walls, pressure-tight Torx screws, and an over-molded cable for a tighter seal.

Lenco 15055-001 101XD Replacement Trim Tab Actuator Lenco Actuators are durable and maintenance-free. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance and high strength for long life. Lenco's ballscrew design creates a more reliable trim tab actuator that is twice as powerful compared to typical hydraulic actuators. This 12V actuator features a tough, high-torque motor that easily pushes 500lbs. Built for marine environments, this actuator has an improved O-ring design and an integrated wiper seal. The waterproof Deutsch connector eliminates the possibility of water intrusion and makes for easy plug and play installation. This trim tab kit contains all necessary mounting hardware along with a 6' wire. This actuator has a 5/16" top and end hole. Lenco Part#: 15055-001 OEM Part#: 20401-001 Trim Tab Actuator Construction Details: Top Cap Design Stronger top cap mounting clevis design. Torx Screws New & improved pressure-tight torx screws Thrust Bearing Molded-in thrust bearing design Housing Wall Thicker and stronger motor housing wall Over-Molded Cable Over-molded cable providing a stronger, tighter seal Upper Bracket Upper mounting bracket with gland seal Specifications: Top Cap Hole: 5/16" End Hole: 5/16" Stroke Length: 2-1/4" Voltage: 12V Wire Length: 6' Overall Length Tip-to-Tip: 11-3/8" Features: Waterproof Ball Screw Design. Deutsch Connectors Durable Insant Response High-Impact, ultraviolet resistant nylon Click here for Lenco XD101Trim Tab Actuator Replacement GuideFrequently Asked Questions

• What does the Lenco 101XD Replacement Trim Tab Actuator do? The Lenco 101XD Replacement Trim Tab Actuator controls trim tab movement to help adjust your boat’s running attitude, stability, and ride quality. It is designed as a replacement actuator for compatible Lenco trim tab systems.
• Is the Lenco 101XD actuator built for marine environments? Yes. This actuator is built for marine use with a waterproof design, improved O-ring sealing, an integrated wiper seal, and a waterproof Deutsch connector to help prevent water intrusion.
• Does this replacement actuator include mounting hardware? Yes. This trim tab actuator includes the necessary mounting hardware along with a 6’ wire for installation.
• What are the key specifications of the Lenco 101XD actuator? This 12V actuator has a 2-1/4" stroke length, an 11-3/8" overall tip-to-tip length, 5/16" top and end holes, and a 6’ wire length. Its high-torque motor is designed to deliver 500 lbs. of push force.
• What design features help improve the performance of this actuator? The Lenco 101XD uses a ball screw design for reliable, high-strength trim tab operation. Additional features include precision molded high-alloy gears, a stronger top cap mounting clevis, thicker motor housing walls, pressure-tight Torx screws, and an over-molded cable for a tighter seal. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Lenco 101XD Replacement Trim Tab Actuator do?", "acceptedAnswer": { "@type": "Answer", "text": "The Lenco 101XD Replacement Trim Tab Actuator controls trim tab movement to help adjust your boat’s running attitude, stability, and ride quality. It is designed as a replacement actuator for compatible Lenco trim tab systems." } }, { "@type": "Question", "name": "Is the Lenco 101XD actuator built for marine environments?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. This actuator is built for marine use with a waterproof design, improved O-ring sealing, an integrated wiper seal, and a waterproof Deutsch connector to help prevent water intrusion." } }, { "@type": "Question", "name": "Does this replacement actuator include mounting hardware?", "acceptedAnswer": { "@type": "Answer", "te…

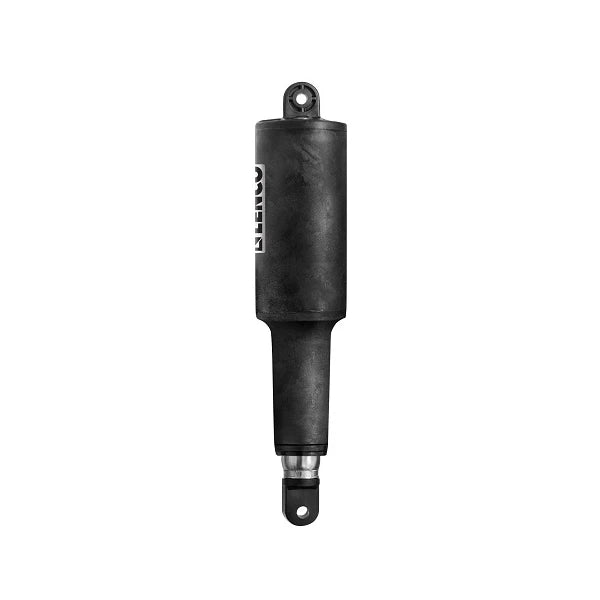

Lenco 15054-001 101 Standard Replacement Trim Tab Actuator

The Lenco 101 Standard Replacement Trim Tab Actuator delivers professional-grade performance for your boat's trim system. This fully submersible unit features a high-torque motor that generates 750 lbs of push force - twice that of hydraulic actuators. Built with a corrosion-resistant design, it includes a stainless steel ram, UV-resistant Nylon 66 housing, and waterproof Deutsch connectors for reliable operation in both fresh and saltwater environments. The self-locking stainless steel ball screw with 12 bearings ensures precise tab positioning without drift. Installation is straightforward with included mounting hardware and plug-and-play connections. With a 2-¼" stroke length and 12-â…›" overall length, this maintenance-free 12V actuator provides smooth, dependable trim control backed by a 5-year limited warranty. Its durable construction and powerful performance make it an ideal replacement for standard Lenco trim tab systems.

Lenco Part#: 15054-001

OEM Part#: 20400-001

Specifications

Stroke Length: 2-¼”

Overall Length (Tip-to-Tip): 12-â…›”

Voltage: 12V

Wire Length: 6’

Top Cap Hole: 5/16”

End Hole: 5/16”

Push Load: 750 lbs (340.18 kg)

Material: High-impact Nylon 66 housing with stainless steel components

Features

Fully Submersible and Maintenance-Free: Lenco actuators are designed to operate underwater without maintenance, ensuring hassle-free performance in demanding marine environments. It is sealed for life, eliminating the need for lubrication or upkeep.

High-Torque Motor for Maximum Performance: This actuator is powered by a rugged high-torque motor that delivers an impressive 750 lbs of push force, making it twice as strong as hydraulic actuators. It ensures quick, precise, and reliable trim tab adjustments for enhanced boat stability.

Self-Locking Stainless Steel Ball Screw: The self-locking ball screw mechanism prevents tab drift and ensures precise positioning without the need for limit switches or clutches. With 12 ball bearings, the Lenco trim tab actuator delivers smooth and accurate movement with minimal power consumption.

Corrosion-Resistant Construction: Built with marine-grade materials, including a stainless steel ram, corrosion-proof Vandar top cap, and UV-resistant Nylon 66 housing, the Lenco 101 actuator is engineered for long-lasting performance in saltwater and freshwater environments.

Waterproof Plug-and-Play Deutsch Connectors: The Deutsch connectors provide a watertight seal, preventing water intrusion and ensuring quick, secure, and easy installation.

High-Strength, Precision-Molded Gears: The powdered metal, high-alloy gears are designed for exceptional wear resistance, accuracy, and durability. With this, you can expect your Lenco marine actuator to deliver consistent performance over years of use.

Lenco 101 Standard Replacement Actuator FAQs

• Will the Lenco 15054-001 actuator fit my boat? The Lenco 15054-001 may be the correct replacement if your existing trim tab system uses a 12V Lenco 101 Standard actuator with a 2.25-inch stroke, 5/16-inch top-cap hole, and 5/16-inch end hole. It replaces Lenco OEM part number 20400-001. Confirm the actuator type, voltage, stroke length, mounting-hole configuration, and existing part number before ordering.
• What OEM part number does the Lenco 15054-001 replace? The Lenco 15054-001 101 Standard actuator replaces OEM part number 20400-001.
• What is the stroke length of the Lenco 15054-001 actuator? This Lenco 101 Standard replacement actuator has a 2.25-inch stroke and an overall tip-to-tip length of 12.125 inches.
• What mounting-hole sizes does this actuator use? The Lenco 15054-001 uses a 5/16-inch top-cap mounting hole and a 5/16-inch end mounting hole. Both mounting points should match the existing actuator installation.
• Is the Lenco 15054-001 a 12V or 24V actuator? The Lenco …

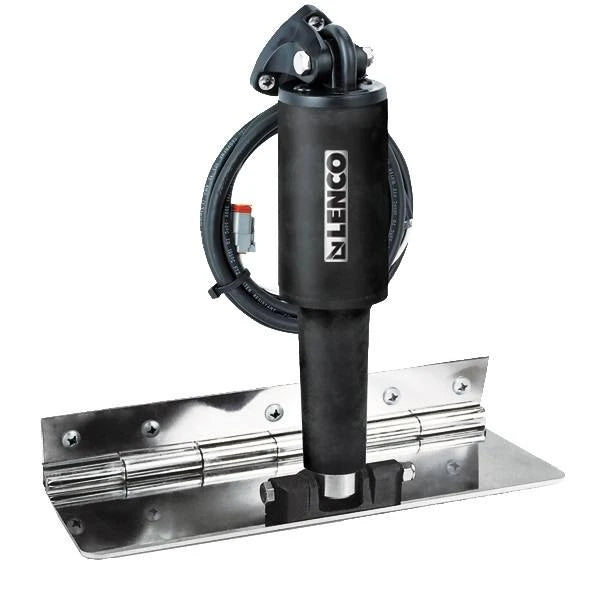

Lenco Limited Space Trim Tab Kit - 4" L x 12" W

Can be fitted to transoms that have a limited mounting area.

Blades are 12-gauge 304 stainless steel with front of blade folded to provide a smooth trailing edge and the hinges are 2" in height and have a 1/8" diameter stainless steel hinge pin.

Great for boats with a swim platform and/or ladder.

Boat length- 14' - 25'.

Standard finish trim tab kit.

Limited Space Trim Tab Kit

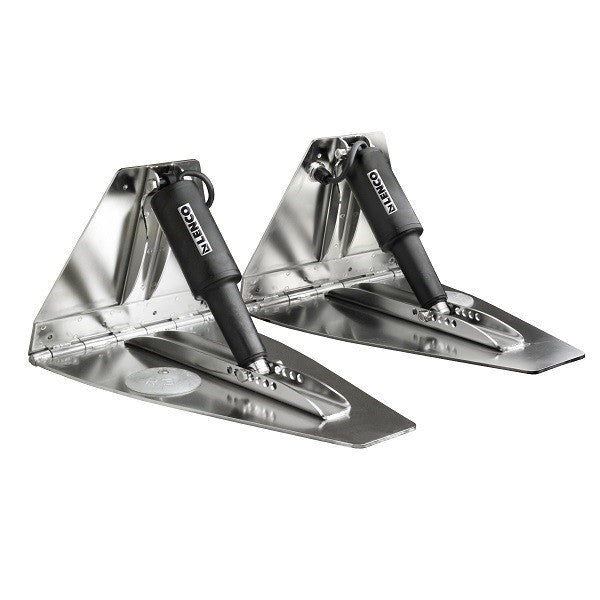

Lenco 15049-101 High Performance 18" x 12" Electric Trim Tab Kit without Switch

This trim tab kit is designed for boats with multiple engines and limited transom space. The contoured blades will help decrease cavitation for a smoother ride. The trim tabs are made from 12-gauge 304 stainless steel that has been electro-polished for extreme corrosion resistance. This kit is intended for boats between 16' - 40' in length.

These trim tabs are 18" deep by 12" wide.

Trim switch sold separately

Trim Tab Kit Contains:

2 - 18" x 12" Trim Tab Blades

2 - XD Extreme Duty Actuators

6' Actuator Lead & Deutsch Connectors

Boat Mounting Hardware & actuator extension harness not included

Click here for Lenco High Performance Trim Tab Kit Owner's Manual

Frequently Asked Questions

• What is the Lenco 15049-101 High Performance 18" x 12" Electric Trim Tab Kit designed for? The Lenco 15049-101 High Performance 18" x 12" Electric Trim Tab Kit is designed for boats with multiple engines and limited transom space. It is intended for boats 16 to 40 feet long and uses contoured blades designed to help decrease cavitation for a smoother ride.
• What size trim tab blades are included with the Lenco 15049-101 kit? The Lenco 15049-101 kit includes two trim tab blades measuring 18 inches deep by 12 inches wide. The blades are made from 12-gauge 304 stainless steel and are electro-polished for corrosion resistance.
• What is included with the Lenco 15049-101 Electric Trim Tab Kit? The kit includes two 18" x 12" trim tab blades, two XD Extreme Duty actuators, and 6 feet of actuator lead with Deutsch connectors. Boat mounting hardware and an actuator extension harness are not included.
• What type of material are the Lenco 15049-101 trim tab blades made from? The Lenco 15049-101 trim tab blades are made from 12-gauge 304 stainless steel. The blades are electro-polished to provide extreme corrosion resistance.
• Does the Lenco 15049-101 kit include a trim tab switch? No. The trim switch is sold separately. The Lenco 15049-101 kit includes the trim tab blades, XD Extreme Duty actuators, and actuator leads with Deutsch connectors, but does not include the trim switch.
• Does the Lenco 15049-101 kit include boat mounting hardware? No. Boat mounting hardware and the actuator extension harness are not included with the Lenco 15049-101 High Performance Electric Trim Tab Kit. These items should be accounted for separately when planning the installation.

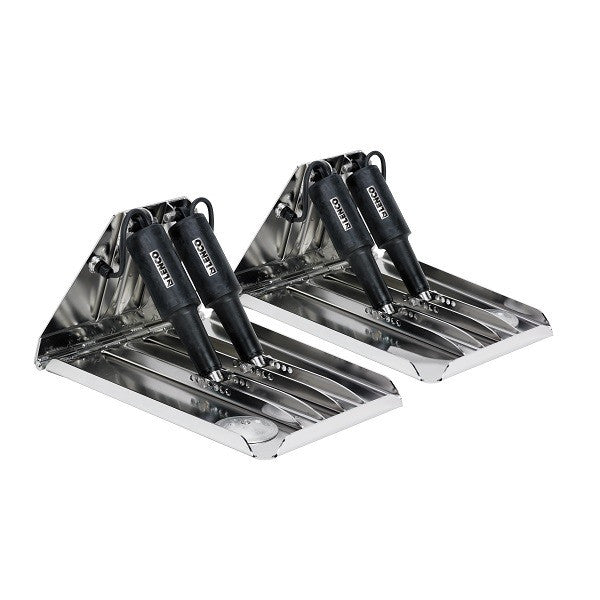

Lenco Extreme Duty Performance 24" x 14" Electric Trim Tab Kit without Switch Lenco's XD series trim tabs are designed with thicker and stronger blades for outstanding performance. The actuators are deigned for larger, faster boats that operate in rough waters. The trim tabs are made from 12-gauge 304 stainless steel that has been electro-polished for extreme corrosion resistance. This kit is intended for boats between 24' - 52' in length. These trim tabs are 24" deep by 14" wide. Trim switch sold separately Trim Tab Kit Contains: 2 - 21" x 14" Trim Tab Blades 4 - XD Extreme Duty Actuators 6' Actuator Lead & Deutsch Connectors Boat Mounting Hardware & actuator extension harness not included Click here for Lenco Extreme Duty Performance Trim Tab Kit Owner's ManualFrequently Asked Questions

• What is the Lenco Extreme Duty Performance Electric Trim Tab Kit designed for? This trim tab kit is designed for larger, faster boats that operate in rough water conditions. It is intended for boats from 24 to 52 feet in length and built for heavy-duty trim tab performance.
• What is included with this trim tab kit? This kit includes two trim tab blades, four XD Extreme Duty actuators, and 6’ actuator leads with Deutsch connectors. Review the product details to confirm any additional components needed for installation.
• Is a trim tab switch included with this kit? No. This electric trim tab kit is sold without a switch, and the trim switch is sold separately.
• What material are the trim tab blades made from? The trim tab blades are made from 12-gauge 304 stainless steel with an electro-polished finish for excellent corrosion resistance in marine environments.
• What additional parts may be needed for installation? Boat mounting hardware and the actuator extension harness are not included with this kit. Review your boat setup and installation requirements before ordering. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Lenco Extreme Duty Performance Electric Trim Tab Kit designed for?", "acceptedAnswer": { "@type": "Answer", "text": "This trim tab kit is designed for larger, faster boats that operate in rough water conditions. It is intended for boats from 24 to 52 feet in length and built for heavy-duty trim tab performance." } }, { "@type": "Question", "name": "What is included with this trim tab kit?", "acceptedAnswer": { "@type": "Answer", "text": "This kit includes two trim tab blades, four XD Extreme Duty actuators, and 6’ actuator leads with Deutsch connectors. Review the product details to confirm any additional components needed for installation." } }, { "@type": "Question", "name": "Is a trim tab switch included with this kit?", "acceptedAnswer": { "@type": "Answer", "text": "No. This electric trim tab kit is sold without a switch, and the trim switch is sold separately." } }, { "@type": "Question", "name": "What material are the trim tab blades made from?", "acceptedAnswer": { "@type": "Answer", "text": "The trim tab blades are made from 12-gauge 304 stainless steel with an electro-polished finish for excellent corrosion resistance in marine environments." } }, { "@type": "Question", "name": "What additional parts may be needed for installation?", "acceptedAnswer": { "@type": "Answer", "text": "Boat mounting hardware and the actuator extension harness are not included with this kit. Review your boat setup and installation requirements before ordering." } } ] }

Lenco Extreme Duty Performance 19" x 14" Electric Trim Tab Kit without Switch

Lenco's XD series trim tabs are designed with thicker and stronger blades for outstanding performance. The actuators are deigned for larger, faster boats that operate in rough waters. The trim tabs are made from 12-gauge 304 stainless steel that has been electro-polished for extreme corrosion resistance. This kit is intended for boats between 24' - 52' in length.

These trim tabs are 19" deep by 14" wide.

Trim switch sold separately

Trim Tab Kit Contains:

2 - 21" x 14" Trim Tab Blades

4 - XD Extreme Duty Actuators

6' Actuator Lead & Deutsch Connectors

Boat Mounting Hardware & actuator extension harness not included

Click here for Lenco Extreme Duty Performance Trim Tab Kit Owner's Manual

Frequently Asked Questions

• What is the Lenco Extreme Duty Performance 19" x 14" Electric Trim Tab Kit designed for? The Lenco Extreme Duty Performance Electric Trim Tab Kit is designed for larger, faster boats operating in rough waters. The XD series uses thicker and stronger blades for performance, while the trim tabs are made from 12-gauge 304 stainless steel with an electro-polished finish for corrosion resistance.
• What size trim tabs are included in this Lenco electric trim tab kit? The supplied product description identifies the trim tabs as 19 inches deep by 14 inches wide, while the kit contents list two 21" x 14" trim tab blades. Because these dimensions differ, verify the exact blade dimensions before installation.
• What does the Lenco Extreme Duty Performance trim tab kit include? The kit includes two 21" x 14" trim tab blades, four XD Extreme Duty actuators, and a 6-foot actuator lead with Deutsch connectors. Boat mounting hardware and the actuator extension harness are not included.
• What boats is the Lenco Extreme Duty Performance trim tab kit intended for? This Lenco XD trim tab kit is intended for boats between 24 and 52 feet in length. The product description also states that the actuators are designed for larger, faster boats that operate in rough waters.
• Is the trim switch included with this Lenco electric trim tab kit? No. The trim switch is sold separately. The kit includes the XD Extreme Duty actuators and actuator lead with Deutsch connectors, but the product description does not list a trim switch among the included components.
• Does this Lenco trim tab kit include boat mounting hardware? No. Boat mounting hardware and the actuator extension harness are specifically excluded from the kit. Verify that the required mounting hardware and extension harness are available separately before beginning installation.

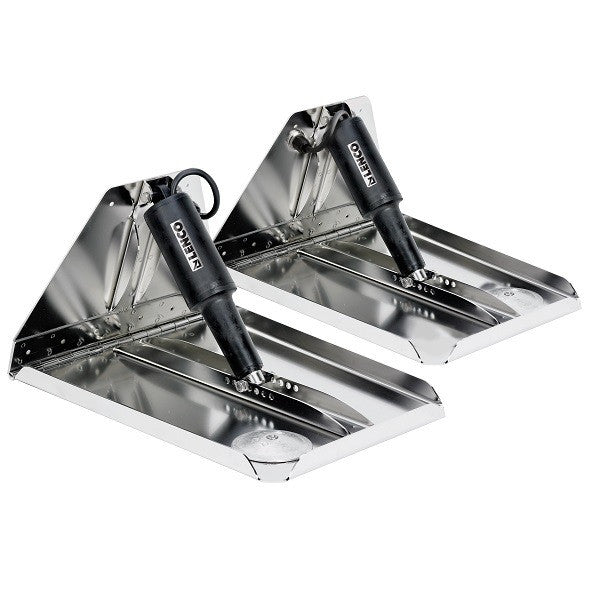

Lenco 15041-101 Heavy Duty Performance 12" x 12" Electric Trim Tab Kit without Switch

These heavy duty trim tabs are designed for boats that need extra strength. This trim tab kit is designed to provide all you need to support your boat in adverse conditions at higher speeds. The trim tabs are made from 12-gauge 304 stainless steel that has been electro-polished for extreme corrosion resistance.

Trim Tab Blades are 12" deep by 12" wide

Switch sold separately

Trim Tab Kit Includes:

2 - 12" x 12" Trim Tab Blades

2 - XD Extreme Duty Actuators

6' Leads with Deutsch Connectros

2- 20' Actuator Extension Wiring Harness

Boat mounting hardware not included

Click here for Lenco Heavy Duty Electric Trim Tab Kit Owner's Manual

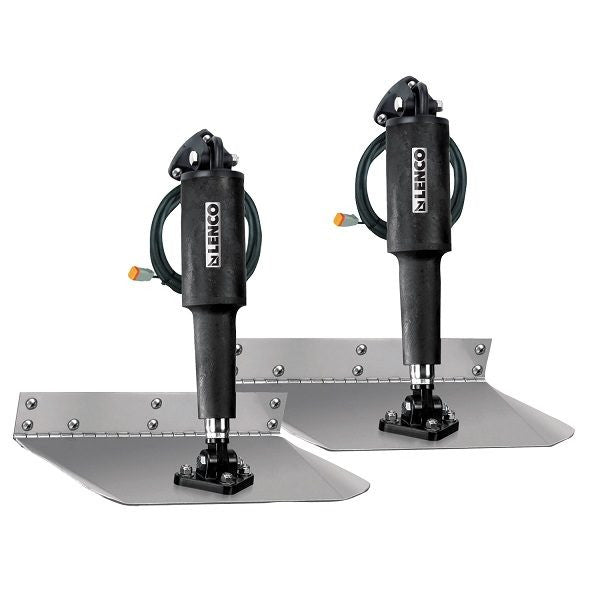

Lenco 15017-101 Edge Mount 12" x 18" Electric Trim Tab Kit without Switch

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.These edge mount trim tabs are designed for boat applications where a lower actuator mounting height is needed. Constructed form 12 gauge 304 stainless steel with turned up edges for outstanding corrosion resistance and strength in marine environments.

The included Lenco trim tab planes are 12" Deep by 18" Wide.

Trim Tab Kit Includes:

(2) 12 Gauge 304 Stainless Steel 12" x 18" Trim Tab Planes

(2) 15054-001 Actuators with 6' Lead & Deutsch Plugs

(2) 30133-103 Actuator Extension Wiring Harnesses - 20'

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001 Lower Mounting Brackets

Switch Sold Separately

Trim Tab Features:

Lenco's Original Design

Ideal for Center Console Boats & Cuddy Cabin Cruisers

304 Stainless Steel Construction

Instant Response Electric Trim Tab Actuators

Ideal for Boats 26' - 36'

Click here for Lenco Electric Trim Tab Kit Owner's Manual

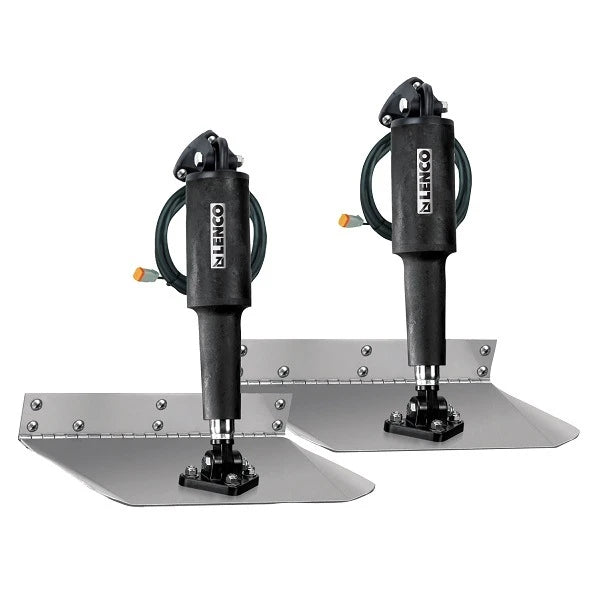

Lenco 15016-101 Edge Mount 12" x 12" Electric Trim Tab Kit without Switch

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.These edge mount trim tabs are designed for boat applications where a lower actuator mounting height is needed. Constructed form 12 gauge 304 stainless steel with turned up edges for outstanding corrosion resistance and strength in marine environments.

The included Lenco trim tab planes are 12" Deep by 12" Wide.

Trim Tab Kit Includes:

(2) 12 Gauge 304 Stainless Steel 12" x 12" Trim Tab Planes

(2) 15054-001 Actuators with 6' Lead & Deutsch Plugs

(2) 30133-103 Actuator Extension Wiring Harnesses - 20'

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001 Lower Mounting Brackets

Switch Sold Separately

Trim Tab Features:

Lenco's Original Design

Ideal for Center Console Boats & Cuddy Cabin Cruisers

304 Stainless Steel Construction

Instant Response Electric Trim Tab Actuators

Ideal for Boats 17' - 30'

Click here for Lenco Electric Trim Tab Kit Owner's Manual

Frequently Asked Questions

• What is the Lenco Edge Mount 12" x 12" Electric Trim Tab Kit designed for? This electric trim tab kit is designed to help improve boat ride quality, handling, and performance on boats where a lower actuator mounting height is needed. It is ideal for center console boats and cuddy cabin cruisers and is recommended for boats from 17 to 30 feet in length.
• What is included with this trim tab kit? This kit includes two 12" x 12" 12-gauge 304 stainless steel trim tab planes, two actuators with 6’ leads and Deutsch plugs, two 20’ actuator extension harnesses, two upper mounting brackets, and two lower mounting brackets.
• Is a trim tab switch included with this kit? No. This electric trim tab kit is sold without a switch, and the switch is sold separately.
• What makes this an edge mount trim tab kit? This edge mount trim tab kit is designed for applications where a lower actuator mounting height is needed. The trim tab planes also feature turned up edges for added strength and durability in marine environments.
• What material are the trim tab planes made from? The trim tab planes are made from 12-gauge 304 stainless steel for strength and corrosion resistance in marine environments.

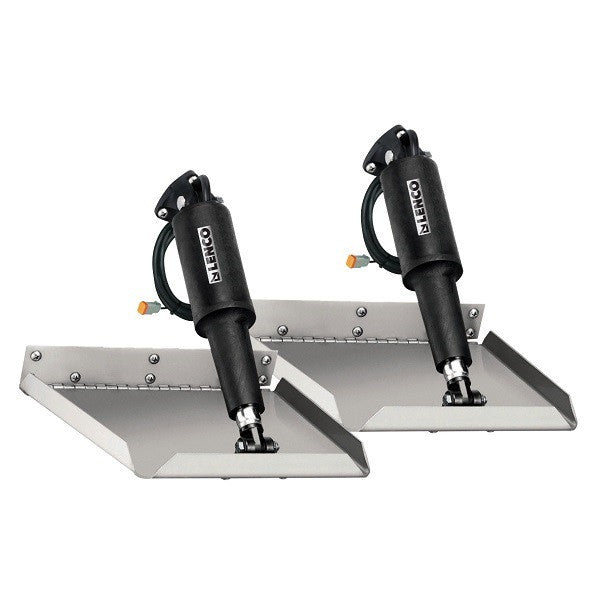

Lenco 15015-101 Edge Mount 12" x 9" Electric Trim Tab Kit without Switch

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.These edge mount trim tabs are designed for boat applications where a lower actuator mounting height is needed. Constructed form 12 gauge 304 stainless steel with turned up edges for outstanding corrosion resistance and strength in marine environments.

The included Lenco trim tab planes are 12" Deep by 9" Wide.

Trim Tab Kit Includes:

(2) 12 Gauge 304 Stainless Steel 12" x 9" Trim Tab Planes

(2) 15054-001 Actuators with 6' Lead & Deutsch Plugs

(2) 30133-103 Actuator Extension Wiring Harnesses - 20'

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001 Lower Mounting Brackets

Switch Sold Separately

Trim Tab Features:

Lenco's Original Design

Ideal for Center Console Boats & Cuddy Cabin Cruisers

304 Stainless Steel Construction

Instant Response Electric Trim Tab Actuators

Ideal for Boats 14' - 18'

Click here for Lenco Electric Trim Tab Kit Owner's Manual

Frequently Asked Questions

• What is the Lenco Edge Mount 12" x 9" Electric Trim Tab Kit designed for? This electric trim tab kit is designed to help improve boat ride quality, handling, and performance on boats where a lower actuator mounting height is needed. It is ideal for center console boats and cuddy cabin cruisers and is recommended for boats from 14 to 18 feet in length.
• What is included with this trim tab kit? This kit includes two 12" x 9" 12-gauge 304 stainless steel trim tab planes, two actuators with 6’ leads and Deutsch plugs, two 20’ actuator extension harnesses, two upper mounting brackets, and two lower mounting brackets.
• Is a trim tab switch included with this kit? No. This electric trim tab kit is sold without a switch, and the switch is sold separately.
• What makes this an edge mount trim tab kit? This edge mount trim tab kit is designed for applications where a lower actuator mounting height is needed. The trim tab planes also feature turned up edges for added strength and durability in marine environments.
• What material are the trim tab planes made from? The trim tab planes are made from 12-gauge 304 stainless steel for strength and corrosion resistance in marine environments.

Lenco 15008-101 12V 12" x 18" Trim Tab Kit - Standard Mount

This is Lenco's original trim tab design and the one that started the electric trim tab revolution. This trim tab system is ideal for most common style boats from center consoles to fishing boats, even cuddy cabin cruisers. These trim tabs are idea for boats 14' to 69' in length. The trim blades are constructed from 12 gauge laser cut 304 stainless steel to hold up in harsh marine environments.  They feature a 5/8" flared trailing edge and 1/8" hinge pin.

Trim Tab Kit Includes:

(2) 12-Gauge Stainless Steel Blades

(2) 15054-001 Trim Tab Actuators

6' Leads and Deutsch Connectors

(2) 30133-103  20' Actuator Extension Wiring Harness

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001D Lower Mounting Brackets

Stainless Steel Mounting Hardware

Trim Tab Specifications:

Length: 12"

Width: 18"

Hinge Height: 2"

Min. Transom Height: 14"

Click here for Lenco Electric Trim Tab Owner's Manual

Frequently Asked Questions

• What is the Lenco 15008-101 12V 12" x 18" Trim Tab Kit designed for? The Lenco 15008-101 is a standard-mount electric trim tab system designed for common boat styles, including center consoles, fishing boats, and cuddy cabin cruisers. The trim tabs are intended for boats from 14 to 69 feet in length.
• What size trim tabs are included in the Lenco 15008-101 kit? The kit includes two stainless steel trim tab blades measuring 12 inches long by 18 inches wide. The blades are made from 12-gauge laser-cut 304 stainless steel and feature a 5/8-inch flared trailing edge and 1/8-inch hinge pin.
• What components are included with the Lenco 15008-101 Trim Tab Kit? The kit includes two 12-gauge stainless steel blades, two 15054-001 trim tab actuators, 6-foot leads with Deutsch connectors, two 20-foot actuator extension wiring harnesses, two upper mounting brackets with gland seals, two lower mounting brackets, and stainless steel mounting hardware.
• What are the Lenco 15008-101 Trim Tab Kit specifications? The Lenco 15008-101 features 12-inch-long by 18-inch-wide trim tab blades, a 2-inch hinge height, and a minimum transom height of 14 inches. The blades are constructed from 12-gauge 304 stainless steel for use in marine environments.
• What boats are compatible with the Lenco 15008-101 Trim Tab Kit? The Lenco 15008-101 is designed for boats 14 to 69 feet in length and is suitable for common styles such as center consoles, fishing boats, and cuddy cabin cruisers. Before installation, verify that your boat meets the listed 14-inch minimum transom height and other product specifications.

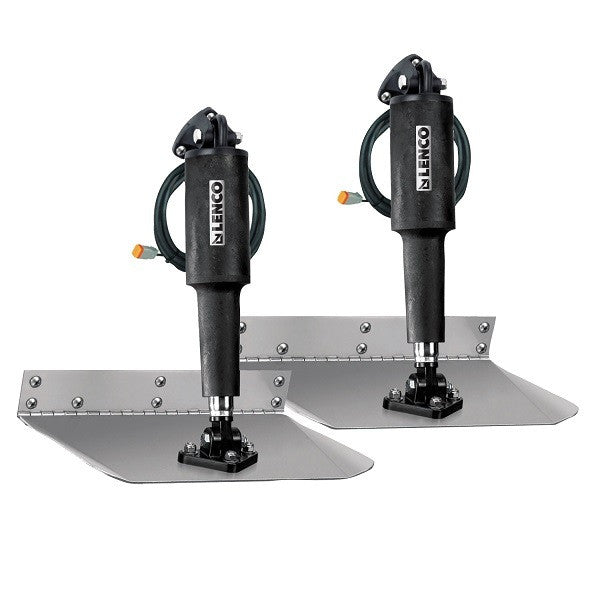

Lenco 15002-101 9" x 18" Electric Trim Tab Kit without Switch

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

The included Lenco trim tab planes are 9" Deep by 18" Wide.

Trim Tab Kit Includes:

(2) 12 Gauge 304 Stainless Steel 9" x 18" Trim Tab Planes

(2) 15054-001 Actuators with 6' Lead & Deutsch Plugs

(2) 30133-103 Actuator Extension Wiring Harnesses - 20'

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001 Lower Mounting Brackets

1 Lenco Owner's Manual/Installation Manual

Stainless Steel Mounting Hardware

Switch Sold Separately

Trim Tab Features:

Lenco's Original Design

Ballscrew Design

Ideal for Center Console Boats & Cuddy Cabin Cruisers

304 Stainless Steel Construction

Instant Response Electric Trim Tab Actuators

Ideal for Boats 20' - 30'

Click here for Lenco Electric Trim Tab Kit Owner's Manual

Frequently Asked Questions

• What is the Lenco 15002-101 9" x 18" Electric Trim Tab Kit designed for? The Lenco 15002-101 Electric Trim Tab Kit is designed to improve boat ride and performance, providing a smoother, drier, faster ride with increased safety. It is ideal for center console boats and cuddy cabin cruisers between 20 and 30 feet in length.
• What size trim tab planes are included with the Lenco 15002-101 kit? The kit includes two 12-gauge 304 stainless steel trim tab planes measuring 9 inches deep by 18 inches wide. The stainless steel construction provides the trim planes used as part of the Lenco electric trim tab system.
• What components are included in the Lenco 15002-101 Electric Trim Tab Kit? The kit includes two 15054-001 actuators with 6-foot leads and Deutsch plugs, two 20-foot actuator extension wiring harnesses, upper and lower mounting brackets, stainless steel mounting hardware, and a Lenco owner's/installation manual. The trim tab switch is sold separately.
• How do the Lenco trim tab actuators operate? The Lenco system uses a ballscrew design for its electric trim tab actuators. According to the supplied product description, this design provides instant response and is three times more powerful than typical hydraulic systems. The actuators are also oil-free.
• Is a trim tab switch included with the Lenco 15002-101 kit? No. The trim tab switch is sold separately. The kit does include the actuators, extension wiring harnesses, upper and lower mounting brackets, stainless steel mounting hardware, and the owner's/installation manual needed for the listed components.

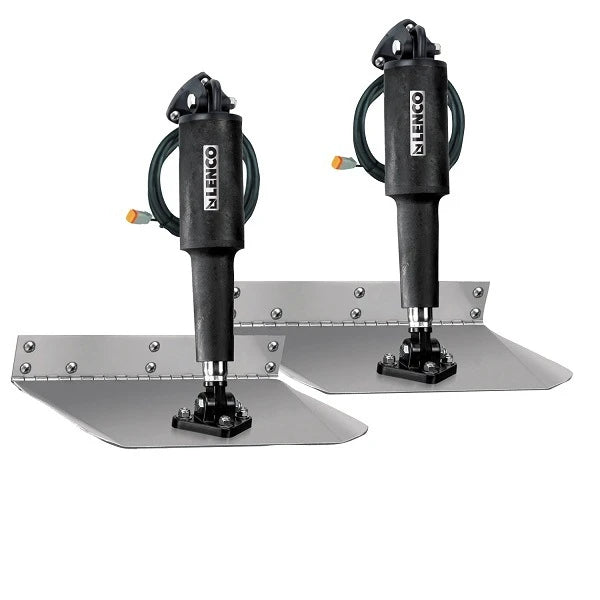

Lenco 15001-101 9" x 12" Electric Trim Tab Kit without Switch

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

The included Lenco trim tab planes are 9" Deep by 12" Wide.

Trim Tab Kit Includes:

(2) 12 Gauge 304 Stainless Steel 9" x 12" Trim Tab Planes

(2) 15054-001 Actuators with 6' Lead & Deutsch Plugs

(2) 30133-103 Actuator Extension Wiring Harnesses - 20'

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001 Lower Mounting Brackets

1 Lenco Owner's Manual/Installation Manual

Stainless Steel Mounting Hardware

Switch Sold Separately

Trim Tab Features:

Lenco's Original Design

Ballscrew Design

Ideal for Center Console Boats & Cuddy Cabin Cruisers

304 Stainless Steel Construction

Instant Response Electric Trim Tab Actuators

Ideal for Boats 16' - 25'

Click here for Lenco Electric Trim Tab Kit Owner's Manual

Frequently Asked Questions

• What is the Lenco 9" x 12" Electric Trim Tab Kit designed for? This electric trim tab kit is designed to help improve boat ride quality, performance, and handling. It is ideal for center console boats and cuddy cabin cruisers and is recommended for boats from 16 to 25 feet in length.
• What is included with this trim tab kit? This kit includes two 9" x 12" 12-gauge 304 stainless steel trim tab planes, two actuators with 6’ leads and Deutsch plugs, two 20’ actuator extension harnesses, two upper mounting brackets, two lower mounting brackets, an owner’s and installation manual, and stainless steel mounting hardware.
• Is a trim tab switch included with this kit? No. This electric trim tab kit is sold without a switch, and the switch is sold separately.
• What material are the trim tab planes made from? The trim tab planes are made from 12-gauge 304 stainless steel for strength and corrosion resistance in marine environments.
• What features help this Lenco trim tab kit perform reliably? This kit uses Lenco’s original ball screw design for reliable, instant-response electric trim tab operation. The oil-free electric actuator design is built to provide strong performance while helping improve ride comfort, safety, and control.

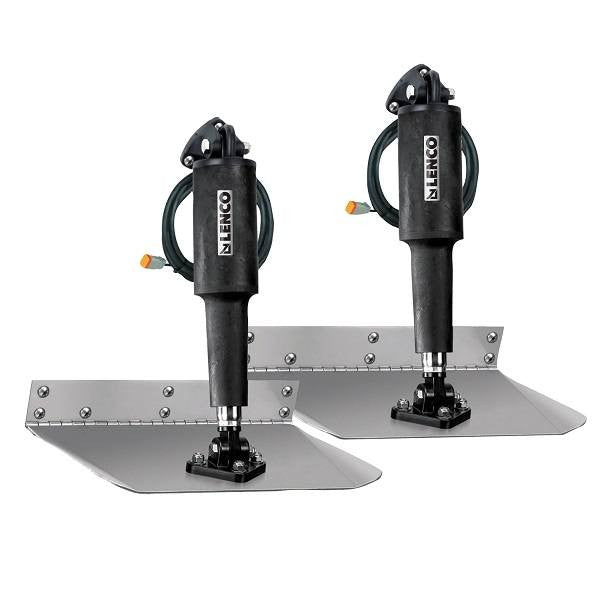

Lenco 15000-101 9" x 9" Electric Trim Tab Kit without Switch

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

The included Lenco trim tab planes are 9" Deep by 9" Wide.

Trim Tab Kit Includes:

(2) 12 Gauge 304 Stainless Steel 9" x 9" Trim Tab Planes

(2) 15054-001 Actuators with 6' Lead & Deutsch Plugs

(2) 30133-103 Actuator Extension Wiring Harnesses - 20'

(2) 15085-001 Upper Mounting Brackets with Gland Seal

(2) 50014-001 Lower Mounting Brackets

1 Lenco Owner's Manual/Installation Manual

Stainless Steel Mounting Hardware

Switch Sold Separately

Trim Tab Features:

Lenco's Original Design

Ballscrew Design

Ideal for Center Console Boats & Cuddy Cabin Cruisers

304 Stainless Steel Construction

Instant Response Electric Trim Tab Actuators

Ideal for Boats 14' - 18'

Click here for Lenco Electric Trim Tab Kit Owner's Manual

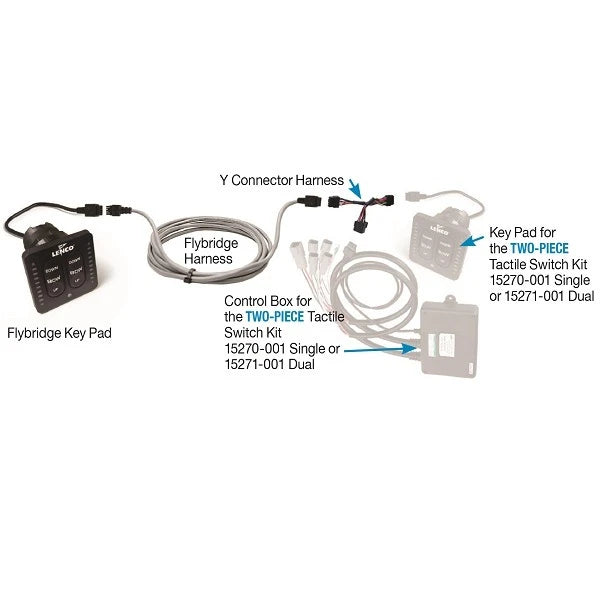

Lenco 20' Flybridge Second Station LED Trim Tab Switch Kit

This kit is designed to allow you to install a second trim tab switch in your vessels flybridge. The Second station LED Key Pad connecs to the LED Indicator Integrated Tactile Switch Kit (part# 15270-001 and/or 15271-001) Add this second station key pad to your NEW Integrated Tactile Switch by plugging into the existing harness

12 & 24-Volt for Single & Dual Actuator Systems

Kit Includes:

20' Shielded Harness

Y-Connector

Second station key pad

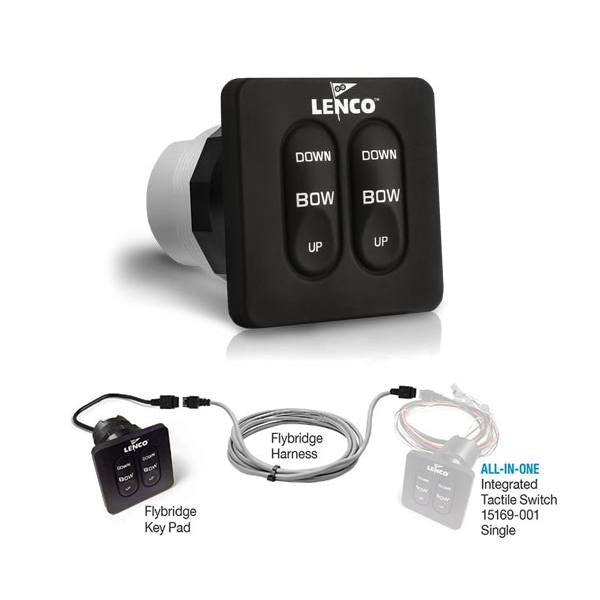

Lenco 20' Flybridge Second Station Kit for 15169 Standard Switch Kit

Second station Standard Key Pad connecting to the NEW (ALL-IN-ONE) Integrated Tactile Switch Kit (part# 15169-001). Add a second station key pad to your NEW Integrated Tactile Switch by plugging into the existing harness.

12 & 24-Volt for Single Actuator Systems

Kit Includes:

20' Harness

Second station key pad

Use with:

Lenco 15169-001

Frequently Asked Questions

• What is the Lenco 20' Flybridge Second Station Kit for 15169 Standard Switch Kit? The Lenco 20' Flybridge Second Station Kit adds a second station key pad to the Lenco 15169-001 Integrated Tactile Switch Kit. The second station key pad connects by plugging into the existing harness.
• What is included with the Lenco 20' Flybridge Second Station Kit? The kit includes one 20-foot harness and one second station key pad for connecting to the existing harness of the 15169-001 Integrated Tactile Switch Kit.
• What voltage systems is the Lenco 20' Flybridge Second Station Kit compatible with? The Lenco 20' Flybridge Second Station Kit is designed for both 12-volt and 24-volt systems with single actuator systems.
• How does the Lenco second station key pad connect to the existing switch kit? The second station key pad connects to the NEW 15169-001 Integrated Tactile Switch Kit by plugging into the existing harness. The kit includes a 20-foot harness for the second station connection.

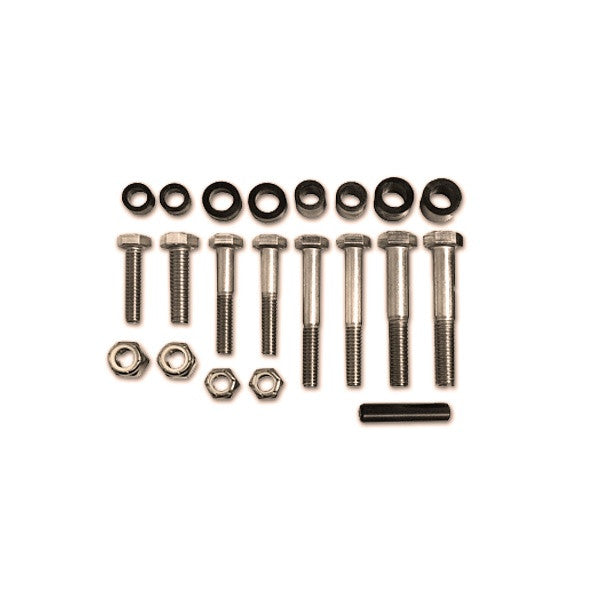

Lenco 10250-410D Universal Replacement Trim Tab Actuator Hardware Kit

Universal Actuator replacement Hardware Kit for use with Lenco Actuators. Includes all hardware needed for use with (1) Actuator.

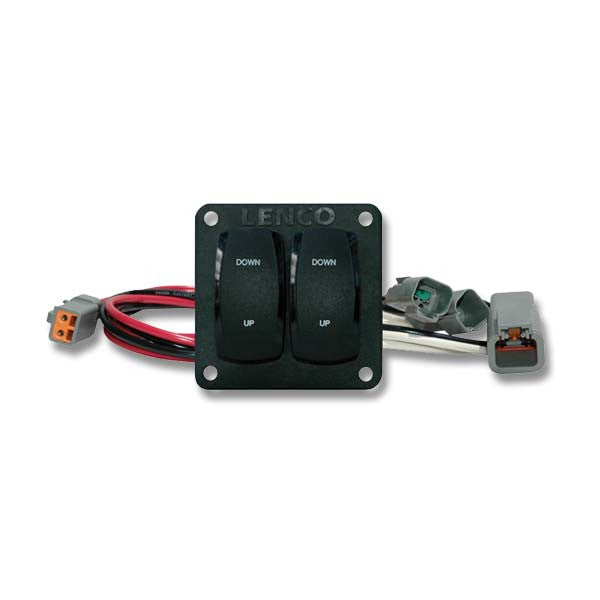

Lenco 10222-211 Complete Double Rocker Trim Tab Switch Kit

This Lenco double rocker switch is designed for use with standard trim tab systems.

Trim Tab Switch Features:

#122 Carling Double Rocker Trim Tab Switch

Installation Hardware included

Deutsch Connectors

Trim Switch Specifications

36" Power Pigtail

Overall Key Pad Size: 2.75" x 2.75"

Key Pad Hole Cut-Out Size: 2.25"

Frequently Asked Questions

• What is the Lenco 10222-211 Complete Double Rocker Trim Tab Switch Kit designed for? The Lenco 10222-211 Complete Double Rocker Trim Tab Switch Kit is designed for use with standard trim tab systems. It features a #122 Carling double rocker trim tab switch for controlling the trim tab system.
• What is included with the Lenco 10222-211 Trim Tab Switch Kit? The kit includes a #122 Carling double rocker trim tab switch, installation hardware, and Deutsch connectors. It also includes a 36-inch power pigtail as part of the switch assembly.
• What are the dimensions of the Lenco 10222-211 switch key pad? The overall key pad size is 2.75 inches by 2.75 inches. The required key pad hole cut-out size is 2.25 inches.
• Does the Lenco 10222-211 include installation hardware? Yes. The Lenco 10222-211 Complete Double Rocker Trim Tab Switch Kit includes installation hardware and Deutsch connectors.
• How long is the power pigtail on the Lenco 10222-211 Trim Tab Switch? The Lenco 10222-211 Trim Tab Switch features a 36-inch power pigtail. The switch also has an overall key pad size of 2.75 inches by 2.75 inches and a 2.25-inch key pad hole cut-out size.

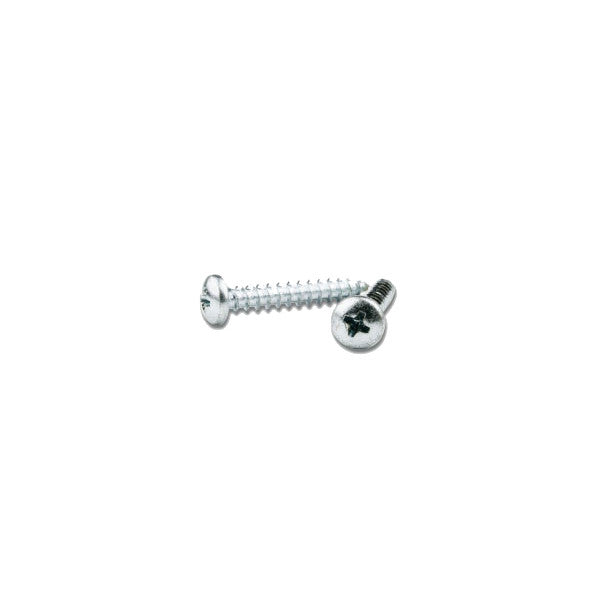

Lenco 10030-001D Trim Tab Hinge and Upper Bracket Mounting Screws - 44 Pk

Replacement Hinge and Upper Bracket Mounting Screws. Sold as a pack of 44 screws.
