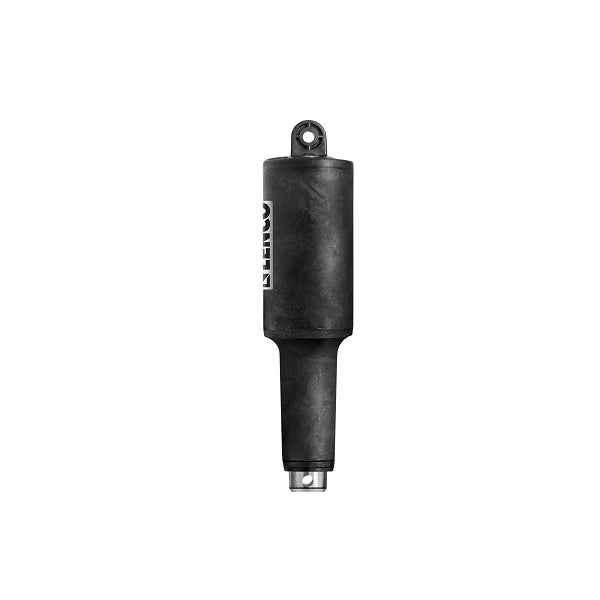

Lenco Trim Tabs Xds Actuator 2 1/4"-5/16 X 3/8"

Lenco 15057-001 101XDS Short Replacement Trim Tab Actuator

Lenco Actuators are durable and maintenance-free. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance and high strength for long life. Lenco's ballscrew design creates a more reliable trim tab actuator that is twice as powerful compared to typical hydraulic actuators. This 12V actuator features a tough, high-torque motor that easily pushes 750lbs.

Built for marine environments, this actuator has an improved O-ring design and an integrated wiper seal. The waterproof Deutsch connector eliminates the possibility of water intrusion and makes for easy plug and play installation. This trim tab kit contains all necessary mounting hardware along with a 6' wire. This actuator has a 3/8" top and end hole.

Lenco Part#: 15057-001

OEM Part#: 200402-001

Trim Tab Actuator Construction Details:

Top Cap Design

Stronger top cap mounting clevis design.

Torx Screws

New & improved pressure-tight torx screws

Thrust Bearing

Molded-in thrust bearing design

Housing Wall

Thicker and stronger motor housing wall

Over-Molded Cable

Over-molded cable providing a stronger, tighter seal

Upper Bracket

Upper mounting bracket with gland seal

Specifications:

Top Cap Hole: 5/16"

End Hole: 5/16"

Stroke Length: 2-1/4"

Voltage: 12V

Wire Length: 6'

Overall Length Tip-to-Tip: 10-7/8"

Features:

Waterproof

Ball Screw Design.

Deutsch Connectors

Durable

Insant Response

High-Impact, ultraviolet resistant nylon

Click here for Lenco 101XDS Trim Tab Actuator Replacement Guide

Frequently Asked Questions

• What does the Lenco 101XDS Short Replacement Trim Tab Actuator do? The Lenco 101XDS Short Replacement Trim Tab Actuator controls trim tab movement to help adjust your boat’s running attitude, stability, and ride quality. It is designed as a replacement actuator for compatible Lenco trim tab systems.
• Is the Lenco 101XDS actuator built for marine environments? Yes. This actuator is built for marine use with a waterproof design, improved O-ring sealing, an integrated wiper seal, and a waterproof Deutsch connector to help prevent water intrusion.
• Does this replacement actuator include mounting hardware? Yes. This trim tab actuator includes the necessary mounting hardware along with a 6’ wire for installation.
• What are the key specifications of the Lenco 101XDS actuator? This 12V actuator has a 2-1/4" stroke length, a 10-7/8" overall tip-to-tip length, 5/16" top and end holes, and a 6’ wire length. Its high-torque motor is designed to deliver 750 lbs. of push force.
• What design features help improve the performance of this actuator? The Lenco 101XDS uses a ball screw design for reliable, high-strength trim tab operation. Additional features include precision molded high-alloy gears, a stronger top cap mounting clevis, thicker motor housing walls, pressure-tight Torx screws, and an over-molded cable for a tighter seal.
