Interlux Paint

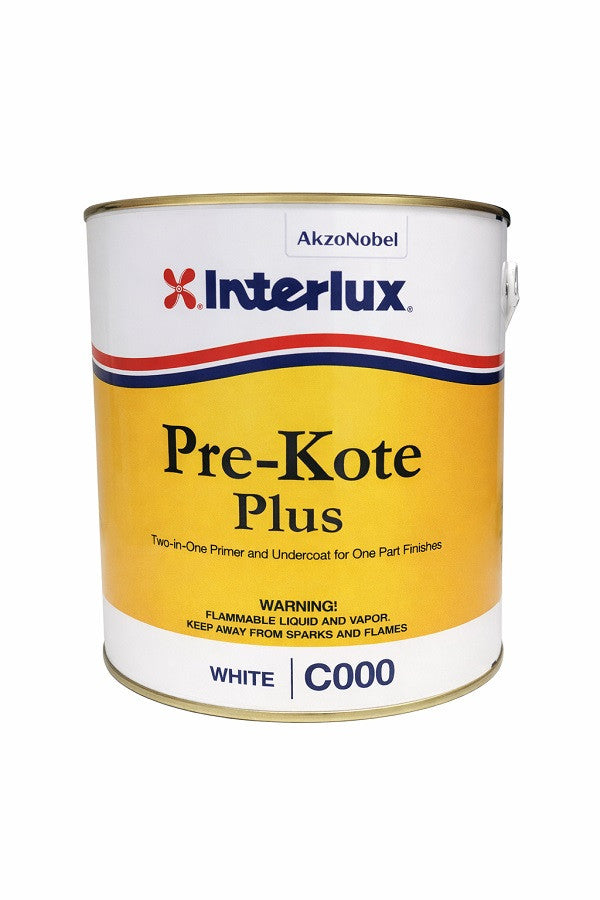

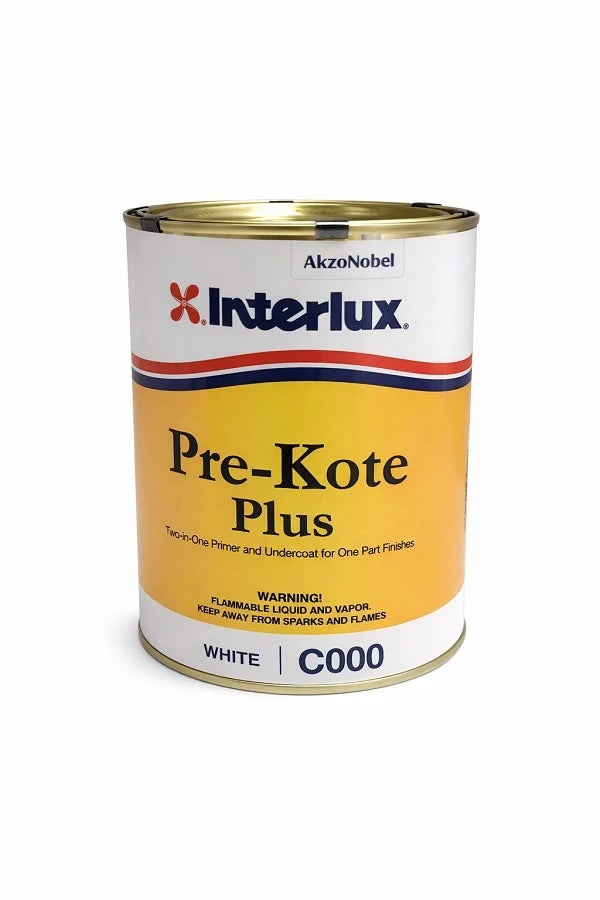

Interlux Pre-Kote Plus Boat Primer

As one of the largest manufacturers of marine paints and primers, Interlux is a name you can trust for high-quality products that provide long-lasting protection for your boat finishes. The innovative technology has been leading the way for over a century in boat primers and paints, including the Interlux Pre-Kote Plus boat primer. Interlux’s commitment to research and development has helped to create a high-performance boat primer that has stood the test of time.

Pre-Kote Plus is a one part primer and undercoat that offers substrate protection with an ultra-smooth finish. Designed for use above the waterline Pre-Kote plus can be directly applied to most substrates including properly prepared metal. The lower VOC formula allows for easier application with improved flow. DIY customers will find Pre-Kote Plus to offer excellent flow, leveling, and easy to sand. Pre-Kote Plus is easy to use and the perfect foundation for your topcoat.

For an extra smooth  application should be done with a brush or roller, with a conventional sprayer being acceptable too. Interlux primer has a reduced working time with great substrate protection. It is recommended to apply 2-4 coats, depending on desired thickness. Make sure to correct surface imperfections before application. Sanding between each application is recommended for optimal application. Interlux Pre-Kote Plus is available in quarts and gallons. Each gallon covers ~440 sq/ft.

Specifications:

Finish: Matte

Application Method: Brush, roller or spray

Number of Coats: 2-4

Coverage: 440 sq. ft/gal per coat

Associated Products:

Thinner/Cleaner

2333N Reducing Solvent

333 Brushing Thinner

216 Special Thinner

Do not use this product on aluminum outdrives

How To Apply Pre-Kote Plus Primer

Interlux Pre-Kote is compatible with the following Interlux finishes: Bilgekote, Interdeck, Pre-Kote Plus, Toplac Plus, and Watertite.

Application Method:  Brush, Roller, Conventional Spray - Pressure Pot or Siphon Cup

Number of Coats: 2-4 As Needed

Dry Film Thickness per Coat: 1.9 mils (4 wet mils)

Coverage: 440 sq. ft/gal.

Application Temp: 41°F Min. / 95°F Max.

Thinning: Not usually required. Pre-Kote Plus can be thinned up to 10%. If thinned an additional coat may be required to achieve film thickness required to protect substrate

Brush: Solvent resistant standard brush

Roller: 4mm nap velour roller (If foam rollers are used a lower film build/opacity may be achieved and an additional coat required)

DRY TIMES:

Temp

Hard Dry

Touch Dry

Sandable

95°F

2.5 Hours

1 Hour

8 Hours

77°F

3 Hours

2 Hours

12 Hours

59°F

5 Hours

3 Hours

18 Hours

41°F

12 Hours

6 Hours

36 Hours

Note: Pre-Kote Plus must be sanded between coats.

Surface Preparation & Application

Previously Painted Surfaces

If in poor condition remove all previous coatings

Wash Down with a suitable detergent, rinse with fresh water and allow to dry

Sand with 220-280 grit paper

Remove all sanding residue

Wipe with 333 Brushing Thinner and allow to dry

Barewood

Sand with 80 - 180 grit paper

Remove sanding dust by brushing dusting and wiping

Wipe with 2333N Reducing Solvent

Plywood

Follow directions above for bare wood

Apply Inter-Prime Wood Sealer Clear 1026

Steel

Degrease with solvent or suitable detergent cleaner

Gritblast to Sa 2-1/2 - near white metal surface

If gritblasting is not possible, grind the metal surface with 24-36 grit abrasive discs

Grind to a uniform clean bright metals surface 50-75 micron anchor pattern

Use an angle grinder on small areas

Clean thoroughly and allow to dry completely

Aluminum

Degrease with solvent or suitable detergent cleaner

San well using 24 - 120 grit alum…

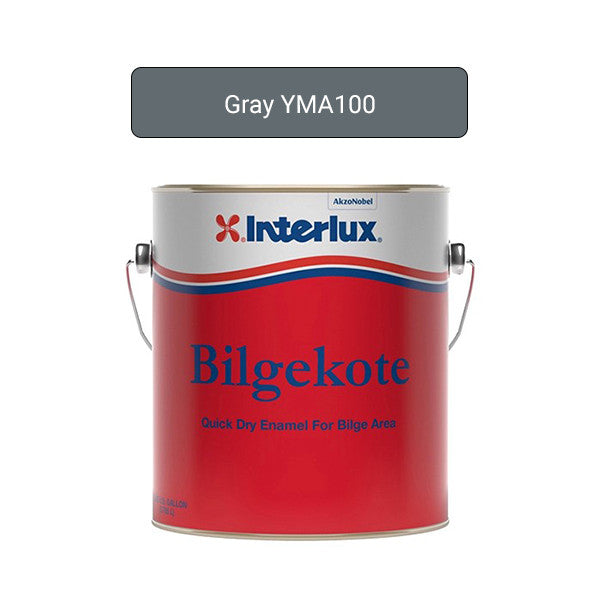

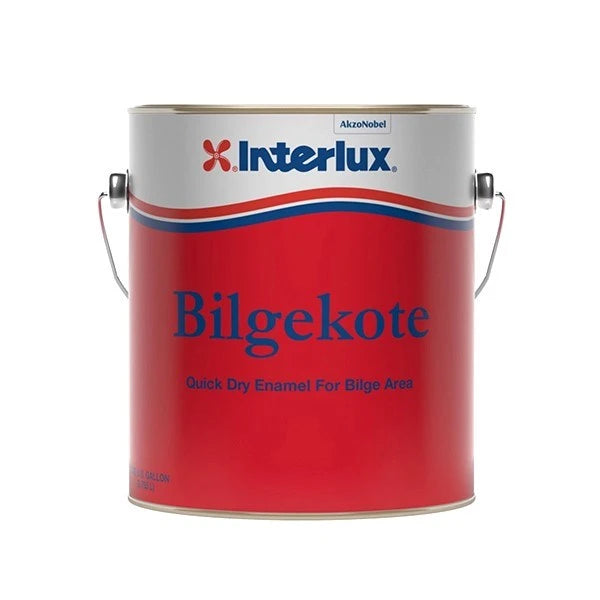

Interlux Bilgekote Bilge Enamel Marine Paint

Interlux Bilgekote is a fast drying, durable coating formulated for application to bilge areas. This paint helps prevent absorption of oil, gasoline or sludge into wood and fiberglass. Features a semi gloss finish and is available in white or gray.

Features:

Hard wearing coating for bilges and bulkheads.

Chemical resistance to fumes, fuel and oil.

High opacity for thorough coverage.

Cleans easily for reduced upkeep.

Sold in quarts

How to Apply Interlux Bilgekote Marine Paint

Application Method: Brush, roller, or spray

Number of Coats: Two coats minimum

Coverage: 450 sq. ft./gal.

Thinner: Brushing Liquid 333 or Special Thinner 216

Dry Times

59°F

73°F

95°F

Touch Dry

3 hours

2 hours

1 hour

Overcoated By (min)

16 hours

12 hours

8 hours

Surface Preparation

Bare Fiberglass In Good Condition:

Begin by scrubbing well using soap and water and a stiff brush.

Rinse with fresh water and allow to dry.

Degrease with YMA601V Fiberglass Surface Prep.

Sand with 180 grade paper. Remove sanding residue.

Bare Fiberglass In Poor Condition:

Clean as above.

Sand with 80 grade paper then remove sanding residue.

Apply 1-2 coats of Pre-Kote primer.

Sand each coat with 120 grit sandpaper then remove sanding residue.

Bare Wood

Sand surface then wipe clean.

Apply Pre-Kote, sand surface and wipe clean.

Bare Metal

Sandblast or grind, remove sanding residue.

Within 1 hour of abrasion, apply 1 coat of Interprotect 2000E thinned 15-20%.

Following the overcoating guidelines for Interprotect 2000E. Apply 1-2 coats of Pre-Kote.

Clear Epoxy

Begin by scrubbing well using soap and water and a stiff brush.

Rinse with fresh water and allow to dry.

Degrease with YMA601V Fiberglass Surface Prep.

Sand with 80 grit paper then remove sanding residue.

Apply one coat of Epoxy Primekote or Interprotect 2000E.

Previously Painted Surfaces

The surface must be clean and dry.

Sand using 180-220 grit paper, then remove sanding residue.

Application

Apply 2-3 coats of Bilgekote following the proper dry times.

Sand between coats using 220-230 grit paper, then remove sanding residue.

Bilgekote may be applied by roller and brush using the roll and tip method.

Bilgekote may also be applied by spray.

Click to Download Interlux Bilgekote Application Instructions

Frequently Asked Questions

• What is Interlux Bilgekote Bilge Enamel Marine Paint used for? Interlux Bilgekote Bilge Enamel Marine Paint is a fast-drying, durable coating formulated for bilge areas and bulkheads. It helps prevent oil, gasoline, and sludge from being absorbed into wood and fiberglass while providing a hard-wearing surface that can be cleaned easily.
• What surfaces can Interlux Bilgekote be applied to? Interlux Bilgekote can be applied to properly prepared fiberglass, wood, metal, clear epoxy, and previously painted surfaces. Surface preparation varies by substrate and may include cleaning, sanding, or applying the appropriate primer before the Bilgekote coating.
• How many coats of Interlux Bilgekote should I apply? Apply a minimum of two coats of Interlux Bilgekote, with the application instructions allowing two to three coats. Sand between coats using 220-230 grit sandpaper and remove sanding residue before applying the next coat.
• How can Interlux Bilgekote be applied? Interlux Bilgekote can be applied by brush, roller, or spray. When using a brush or roller, the product may be applied with the roll-and-tip method. The appropriate thinner for application is Brushing Liquid 333 or Special Thinner 216.
• How long does Interlux Bilgekote take to dry? Drying time depends on temperature. At 73°F, Interlux Bilgekote is touch dry in approximately 2 hours and can be overcoated after a minimum of 12 hours. At 59°F, the minimum overcoat t…

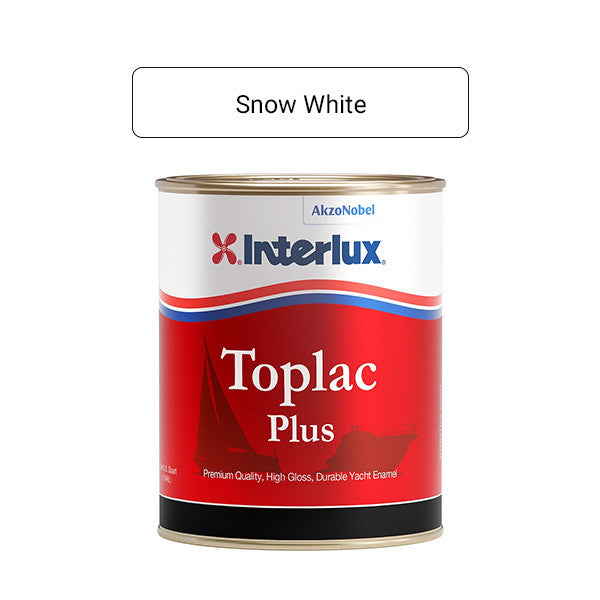

Interlux Toplac Plus Marine Paint

Interlux Toplac Plus delivers a hard, high-gloss polyurethane finish designed for topside applications above the waterline. This one-part marine paint features superior flow and leveling characteristics that produce smooth roller finishes without tipping. Apply it to hulls, decks, cabins, and trim using brush, roller, or spray methods. With coverage of 587 square feet per gallon, you'll need 2-3 coats for optimal protection. The formula works with single-part primers, enamels, and polyurethanes while offering excellent UV resistance. Available in bright, crisp colors that maintain their appearance in harsh marine environments.

Product Features:

Hard, high gloss, one-part polyurethane finish

Excellent flow and leveling characteristics

Smooth Roller Finish with no Tipping required

Topside paint - Recommended for use above true waterline

For use with single-part primers, enamels, or polyurethanes

Available in a range of bright, crisp colors

Specifications:

Finish: High Gloss

Application Method: Brush, roller or spray

Number of Coats: 2 Minimum (only 1 may be needed for touch-up/repair)

Coverage: 587 sq. ft/gal per coat

Associated Products:

Thinner/Cleaner

2333N Reducing Solvent

333 Brushing Thinner

216 Special Thinner

How To Apply Toplac Plus

Application Method:  Brush, Roller, Spray

Number of Coats: 2-3

Dry Film Thickness per Coat: 1-1.5 mils (2-3 wet mils)

Coverage: 587 sq. ft/gal.

Application Temp: 41°F Min. / 95°F Max.

Thinning: Add 10% 2333N reducing solvent for brushes and 216 Special Thinner for spray

Cleaner: 333 Brushing Liquid

DRY TIMES:

Temp

Touch Dry

Overcoating Substrate

95°F

1 Hour

6 Hour Min / 24 Hour Max

77°F

2 Hours

8 Hour Min / 2 Day Max

59°F

3 Hours

16 Hour Min / 3 Day Max

41°F

6 Hours

24 Hour Min / 4 Day Max

Note: Avoid applying late in the evening as condensation can cause a loss of gloss during overnight cure. Do not use in temperatures below 41° F

Surface Preparation & Application

Previously Painted Surface:

In poor condition remove all previous coatings and prime the substrate, referring to the primer/undercoat technical datasheet for further preparation instructions.

In good condition wash down with a suitable detergent, rinse with fresh water and allow to dry

Abrade with 280 - 320 grit paper and remove sanding residue

Wipe with Brushing LIquid 333 and allow to dry completely.

All Substrates:

Prime with a suitable primer or primer/undercoat

Application Methods:

Sand the undercoat smooth with 120 - 400 grit wet or dry paper

Remove dust with a dust wipe

Apply 2-3 coats of Toplac Plus with 8-16 hours depending on ambient temperature (refer to the table above)

Ambient temperatures should be between 41° F and 95° F

Do not exceed 10% thinner by volume

Click here for Interlux Toplac Plus Topside Boat Paint Application Information

Frequently Asked Questions

• What is Toplac Plus used for, and where on the boat can it be applied? Toplac Plus is a topside paint for use above the waterline. It's suitable for hulls, decks, cabins, and trim. It's not an antifouling paint and should not be used below the waterline.
• Do I need to thin Toplac Plus, and which thinner should I use? Thinning depends on your application method. For brush or roller application, add up to 10% of Interlux 2333N Reducing Solvent. For spray application, use Interlux 216 Special Thinner instead. Do not exceed 10% thinner by volume regardless of method. For cleanup, use Interlux 333 Brushing Liquid.
• Does this paint require tipping after rolling, or will it self-level? One of Toplac Plus's key advantages is that it doesn't require tipping. Its flow and leveling characteristics produce a smooth finish straight off the roller, which is a me…

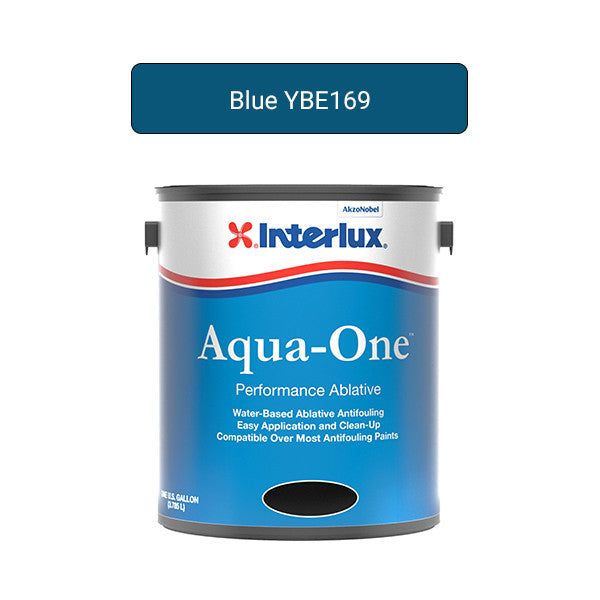

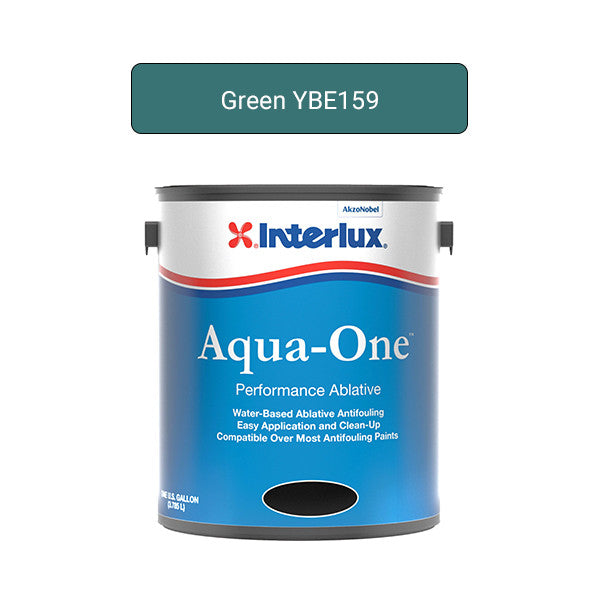

Interlux Aqua One Ablative Antifouling Paint

Interlux is a leading manufacturer of antifouling paint and has been protecting boats with their complete line of protective paints for over a century. Their name is synonymous with unmatched quality and protection.

Interlux Aqua One is a cost-effective ablative antifouling paint and is known for its self-polishing attributes. It can easily be applied with a roller or brush. Aqua One is manufactured with the latest technology in ablative paints to provide comprehensive coverage in all water types. It is designed to limit build-up to avoid sanding between applications.

Interlux Aqua One Ablative Antifouling Paint is a water-based paint that is environmentally safe. It contains a low VOC which produces less odor, making it safe to use indoors and improves drying time. Application is suggested for below the waterline. Interlux Aqua One is not suitable for Aluminum/alloy or zinc spray materials. Applying over soft antifouling paints is not recommended. It is safe to use on GRP, wood, steel, iron, lead, and over most soft antifouling paints.

Features:

Excellent Protection: The latest in enhanced technology that combines powerful antifouling performance with outstanding protection in all waters.

Easy to Apply: Easy to use with brush or roller, indoors or outdoors, and has low odor and VOC emissions. Fast drying times for year-around use and launch. Ablative action wears away with use, minimizing build up and avoiding heavy sanding between applications.

Environmentally Responsible: The solution for boat owners looking for protection, performance and fuel efficiency.

Specifications:

Area: Below the waterline

Finish/Sheen: Matte

Suitable for Aluminum: No

Coverage: 375 sq. ft/gal

VOC: 138 g/l average

Application Method: Airless spray, Airmix, Brush, or Roller

Number of Coats: 2-3 by brush/roller. Bare wood: 3 coats (first thinned).

Coverage: 375 ft2/gl

Recommended DFT per Coat: 1.5

Recommended WFT per Coat: 3.3

Thinner: Water. Thin no more than 10%

How to Apply Interlux Aqua One Ablative Antifouling Paint

Drying/Overcoating Times

Touch Dry

Immersion

Overcoat by (min)

41°F

3 hours

48 hours

24 hours

59°F

1.5 hours

8 hours

5 hours

73°F

1.5 hours

6 hours

4 hours

95°F

30 minutes

6 hours

2 hours

Surface Preparation

Painted Surfaces in Good Condition

Remove all traces of loose paint and contamination by sanding the entire surface with 80 grit sandpaper.

Remove sanding residue.

Painted Surfaces in Poor Condition

Completely remove all old antifouling paint using Interstrip 299E for fiberglass and wood.

Sandblast to near white metal for steel.

Bare Fiberglass

Remove mold release wax using Fiberglass Surface Prep YMA601V.

Fill any surface imperfections with Interlux Watertite.

Follow one of the application systems below.

Bare Fiberglass - No Sanding System

Clean the surface using the preparation procedure above.

Apply one coat of Interlux Interprotect 2000E.

Following overcoating guidelines for the primer, apply at least two coats of Interlux Aqua One allowing appropriate drying times.

Bare Fiberglass - Sanding System

Clean the surface using the preparation procedure above.

Sand with 80 grade paper then remove sanding residue.

Apply at least two coats of Interlux Aqua One allowing appropriate drying times.

Bare Fiberglass - Blister Prevention System

Clean the surface following the preparation procedure above.

Sand with 80 grade paper and remove sanding residue.

Apply Interprotect 2000E to a thickness of 10 mils.

Bare Wood

Sand with 80 grit paper then remove sanding residue.

Apply the first coat of Interlux Aqua One thinned by 10% with water.

Fill seams, if necessary, with Sea Compound Brown 30.

Apply 2 more coats of Aqua-One unreduced, allowing the appropriate dry times between coats.

Can be applied over GRP, Wood, Steel/…

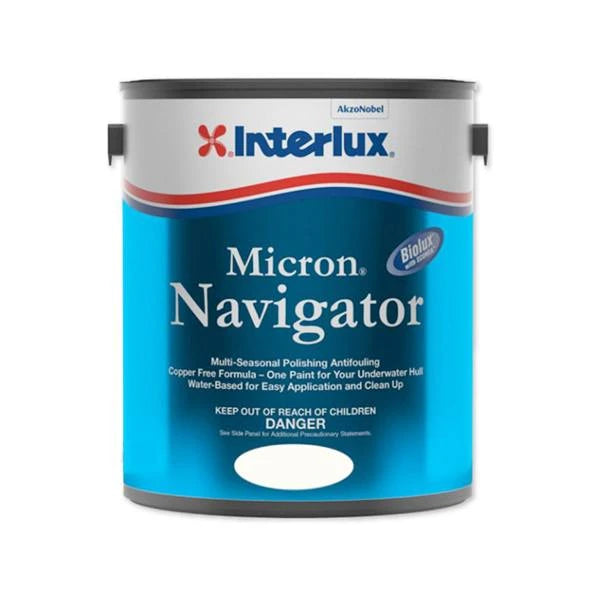

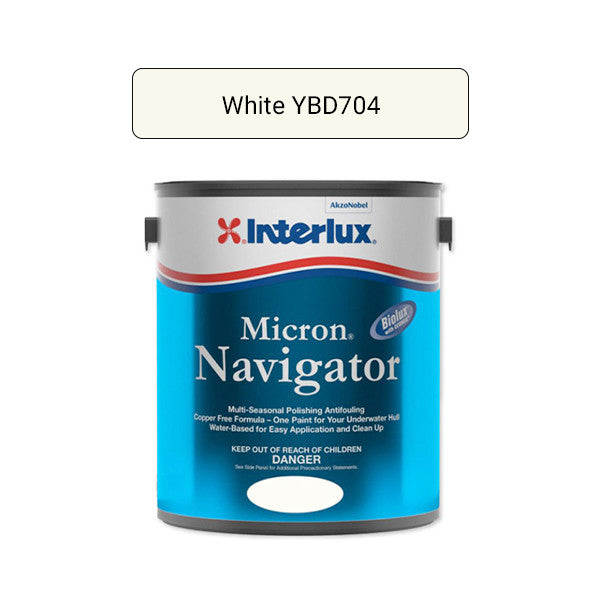

Interlux Micron Navigator w/Biolux Antifouling Water Based Bottom Paint

Interlux Micron Navigator is a copper free antifouling paint with a water based formula. The Micron antifouling formula offers multi-season long lasting polishing protection. Dual utilization of Biolux and Econea boosts anitfouling performance in any conditions and salt water, fresh water, and brackish water. The fast drying formula has been engineered for application in  temperatures as low as 41° F. Micron Navigator is easily applied over most antifouling paints and can be sed on any substrate including primed underwater metals.

Features:

Water based Copper Free formula

Use on Fiberglass, Wood, Aluminum

Multi-Season

Fast Dry Tech

Low Temperature application

Polishing Protection

Specifications:

Pack Size: US Gallon or Quart

Recommended usage: All fouling waters

Colors Available: Black (YBD779), Blue (YBD769), Green (YBD759), Red (YBD749), White (YBD704)

Drying time: 30 minutes Touch Dry; 2 hours Overcoat; 6 hours immersion @ 77°F

Number of Coats: 2 coats for multi-season performance when the recommended DFT is applied

Recommended DFT per coat: 1.5 mils dry per coat

Recommended WFT per coat: 4 mils wet per coat

Coverage: 408 ft²/gal - Brush/Roller

VOC: 8.89 g/lt (average)

How to Apply Interlux Micron Navigator w/Biolux Antifouling Bottom Paint

Application Tips

Mixing: Shake or Stir throughly before use. Use a wooden or plastic stirring stick. Leave to stand for 10 minutes after stirring for air bubbles to disperse.

Thinner: thinning NOT recommended unless for Bare Wood (see preparation section)

Other: Antifouling coatings should only be vacuum sanded or wet sanded. Never burn off old antifouling coatings. True color will develop after immersion. To prevent premature failure, ensure correct amount of paint is applied using the coverage as a guide.

Application Methods: Brush, Roller

Surface Preparation:

Good Condition:

Remove all traces of loose paint and contamination by sanding

Sand the entire surface well with 80 grit sandpaper.

Remove sanding residue

Poor Condition:

Completely remove all old antifouling paint with paint stripper and proceed

Proceed with the application system for bare work as described below

Bare Fiberglass (Polyester or Vinylester) Epoxy

Scrub the surface with soap and water using a stiff brush

Apply Fiberglass Surface Prep YMA601V with a 3/8" nap roller

Dewax the surface working in 10x10 foot areas. Ensure the YMA601V is removed before drying. Scrub the Surface Prep with a 3M Doodlebug or brown Scotch-Brite pad.

Once all areas have been scrubbed use wet rags or high pressure rinse to remove all traces of the Fiberglass Surface Prep. *change rags frequently*

Wipe down with clean cloths, repeating the process until water no longer beads.

The surface must be clean and dry prior to application

Application:

• *Refer to the surface preparation instructions above before application*

Bare Fiberglass - Simple No Sand System

Follow the above Surface Preparation instructions

Apply the Micron Navigator within 4 hours of cleaning

If this time is exceeded rinse with fresh water and allow to dry

If exceeding 2 months between de-waxing and painting, repeat cleaning instructions

Bare Fiberglass - Blister Prevention System

Follow the above Surface Preparation instructions

Sand with 80 grade (grit) paper

Remove sanding residue

Apply Interprotect 2000E to a thickness of 10 mils

Barewood:

Sand with 80 grade (grit) paper

Remove sanding residue

Apply the first coat of Micron Navigator thinned 10% with water

Fill seams, if necessary, with Seam Comppound Brown 30

Apply 2 more coats of Micron Navigator unreduced

Aluminum/Underwater Metals:

Gritblast or sand with medium grade (grit) emery cloth to a bright metal finish and wipe clean

Apply one coat of Interprotect 2000E that has been thinned 15-20% with reducing solvent 2316N

Apply the int…

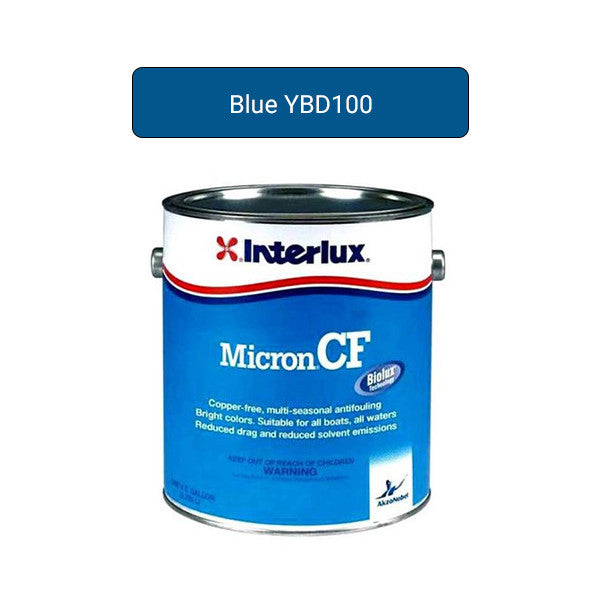

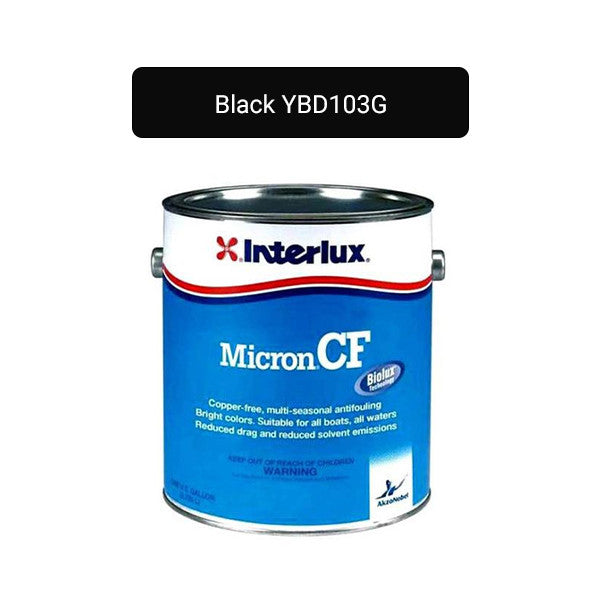

Interlux Micron CF Bottom Paint

Antifouling Copper-Free Paint with Econea

Micron® CF features all the fantastic benefits of Micron technology-without copper. Micron CF is your multi season antifouling solution with its Biolux® Slime Blocking Technology to combat slime and Econea™ to ward off barnacles and zebra mussels. Micron CF features self polishing that reduces paint build- up and the self-smoothing paint reduces friction and improves fuel efficiency. Micron CF is available in 4 bright colors including Shell White as well as a crisp black. A high solids formulation, Micron CF offers reduced solvent emissions and is VOC compliant. Safe on all hull materials.

FEATURES:

No sanding or prep work required.

Copper free formula

Haul & Relaunch without repainting

Reduced solvent emissions

Touch dry – 1 hour; Dry to overcoat – 2 hours; Dry to launch – 6 hours minimum

VOC compliant

• Why Micron technology? Micron Technology is the basis of all Micron bottom paints and the formulations are second to none. Micron Technology was first introduced to the industry in the early 80's and has evolved into the class leading antifouling paints. - Longest lasting, multi-season ability to haul and re-launch without repainting - Controlled polishing like a bar of soap reduces paint build up, eliminating the need for sanding - Micron Technology polishes to a smoother surface than hard antifoulings - maximizing fuel savings - Unlike old fashion high copper bottom paints, Micron uses less copper more efficiently for longest lasting antifouling protection Micron Technology vs old fashioned hard antifoulingsAfter many years of using old fashioned hard high copper bottom paints, the paint film continues to build up, become brittle, and starts to crack and flake off. Micron Technology antifoulings polish at a controlled rate and therefore will never build up. It is this controlled polishing that enables Micron to be used on all boats, in all waters, and at all times! No paint build up means that you will never have to remove old layers of Micron and spend precious hours or money each time you want to repaint. Micron Technology and fuel savingsThere's another added benefit to controlled polishing: fuel savings! The roughness caused by old fashioned hard high copper bottom paints creates extra drag on boat bottoms requiring the use of more horsepower. With extra horsepower comes extra fuel consumption, extra fuel consumption means more money at the fuel pump. There is only one way to ensure that the bottom is smooth and that is to choose Micron Technology. Micron Technology antifouling polishes at a controlled rate leaving your bottom smooth - remember the smoother the bottom paint, the lower the resistance; the lower the surface resistance the better the fuel economy. ------------------------------------------------------------------------------------------------

How To Apply Micron CF

APPLICATION DATA METHOD: Airless Spray, Brush, Conventional Spray, Roller  DO NOT SPRAY without following proper safety procedures for spray application.

NUMBER OF COATS: 2

DRY FILM THICKNESS PER COAT: 2 mils (3 wet mils)

COVERAGE: 518 sq. ft/gal.

APPLICATION TEMP: 41°F Min. / 95°F Max.

THINNER: Special Thinner 216

DRY TIMES:

Temp

To Touch

To Recoat

To Launch

95°F

1 HR

2 HR

4 HR

73°F

2 HR

4 HR

6 HR

50°F

3 HR

6 HR

9 HR

PREVIOUSLY PAINTED SURFACES: In Good Condition with Pacifica or Trilux 33: Sand with 80 grade (grit) paper. Remove sanding residue. TBT Copolymers: If these coatings are more than a year old, wet sand the surface with 80 (grit) grade paper to a clean, firmly attached surface. Remove sanding residue. Apply 1-2 coats of TBT Sealer. Sand surface with 80 grade (grit) paper to a clean firmly attached surface. Remove sanding residue. Non-TBT Copolymers: Apply 1 coat of Primocon. Har…

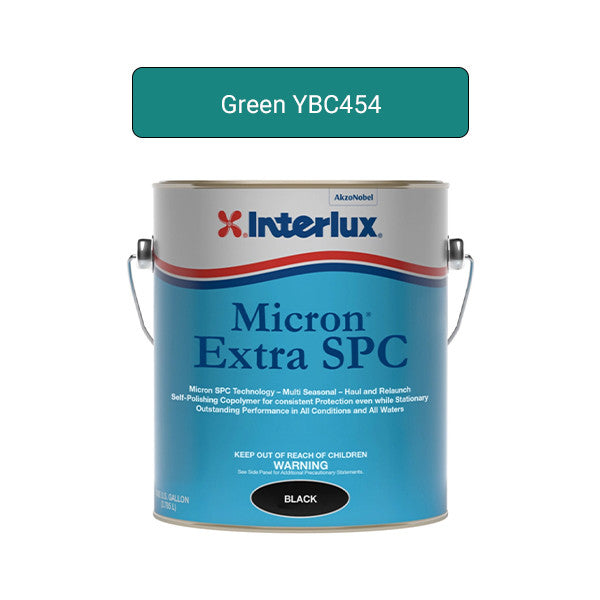

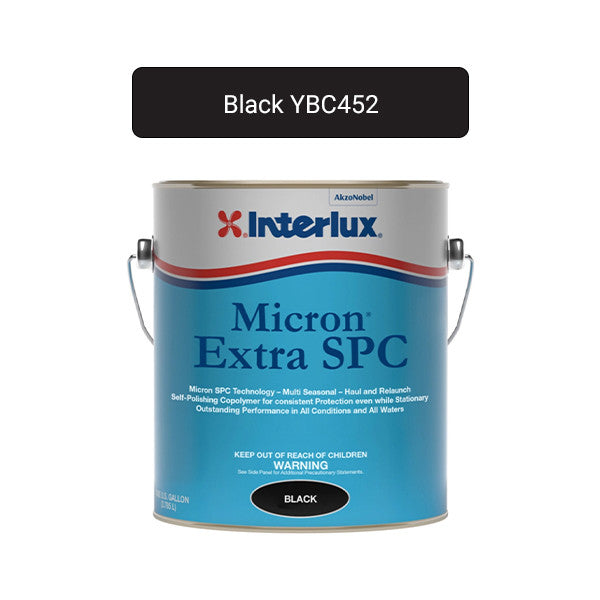

Interlux Micron Extra SPC Antifouling Paint

Interlux is known for its high-quality antifouling paints that have been manufactured using only superior ingredients and developed for long-lasting results in all types of waters. Interlux Micron Extra Self Polishing Copolymer (SPC) antifouling paint is designed to provide premium multi-seasonal performance in every climate, from frigid to tropical. The paint’s SPC technology provides remarkable protection by slowly polishing away its laminated surface, whether docked or out on the water, to provide a smoother, more efficient hull while minimizing paint build up.

Interlux Micron Extra SPC is suitable for all types of boats. It can be applied to fiberglass, wood, and previously antifouled surfaces, but is not recommended for aluminum boat bottoms. It is available in five popular colors. Two coats are recommended for complete coverage. When applied, Interlux Micron Extra SPC antifouling paint will dry with a matte finish.

Features:

For use on fiberglass, wood, and previously painted surfaces. NOTE: Do not use on aluminum.

Antifouling paint offers multi-season protection 24/7/365

Micron Extra SPC can be launched and relaunched without repainting

The Self Polishing Copolymer works at a constant rate for a smoother hull finish that offers greater efficiency

Ideal for use in Brackish, Fresh, and Saltwater in both cold and tropical climates

Specifications:

Finish: Matte

Number of Coats: 2 Coats minimum

Sizing: 1 US Gallon, 1 US Quart

Theoretical Coverage: Brush/Roller: 414ft2/gal | Spray: 276ft2/gal

Colors Available:450 Red, 451 Blue, 452 Black, 453 Dark Blue, 454 Green

VOC: 328 g/lt average

Associated Products:

Special thinner 216 - For wiping down previously painted surfaces and thinning

Fiberglass Solvent Wash 202 - To clean bare fiberglass prior to application

Interprotect - Epoxy barrier for blister protection, prevention, and priming

Temperature F° (C°)*

Touch Dry

Overcoating

Immersion Time Minimum

41°F (5° C)

1 Hour

16 Hours

24 Hours

59°F (15° C)

45 Minutes

10 Hours

18 Hours

73°F (23° C)

30 Minutes

6 Hours

12 Hours

95­°F (35° C)

20 Minutes

4 Hours

8 Hours

*If air temperature falls below 41°F (5°C) during the dry time prior to immersion, extend the dry times 12 hours minimum

How to Apply Interlux Micron Extra SPC Ablative Antifouling Pain

Application Methods: Air atomized, Brush, Roller

Recommended DFT per coat

Brush/Roller: 2.4mils dry per coat

Spray: 3.6 mils dry per coat

Recommended WFT per coat

Brush/Roller: 3.9 mils wet per coat

Spray: 5.8 mils wet per coat

Minimum Ambient Temperature: 41°F (5° C)

Maximum Ambient temperature: 95°F (35°C)

Surface Preparation

Previously Antifouled Surfaces:

In Good condition: Remove loose paint by sanding with 80 grit paper. Remove sanding residue

In Poor condition: Remove old antifouling paint completely before refinishing

Bare Fiberglass

It is very important that bare fiberglass is properly prepared to prevent delamination of the antifouling paint. Begin by scrubbing the surface thoroughly with a stiff brush using soap and water to remove loose dirt and contamination.

Flush with fresh water to remove the soap residue and allow it to dry.

Remove mold release wax using one of the following Interlux products: Fiberglass Surface Prep or Fiberglass Solvent Wash 202.

After the surface has been properly cleaned, follow one of the application systems below.

Fiberglass No Sand System

Clean the surface following the preparation procedure above.

Apply one coat of InterProtect 2000E or Fiberglass No-Sand Primer following the label instructions for applying the primer and overcoating with antifouling paint.

Fiberglass Sanding System

Clean the surface following the preparation procedure above.

Sand the entire surface well with 80 grade paper until flat matte fin…

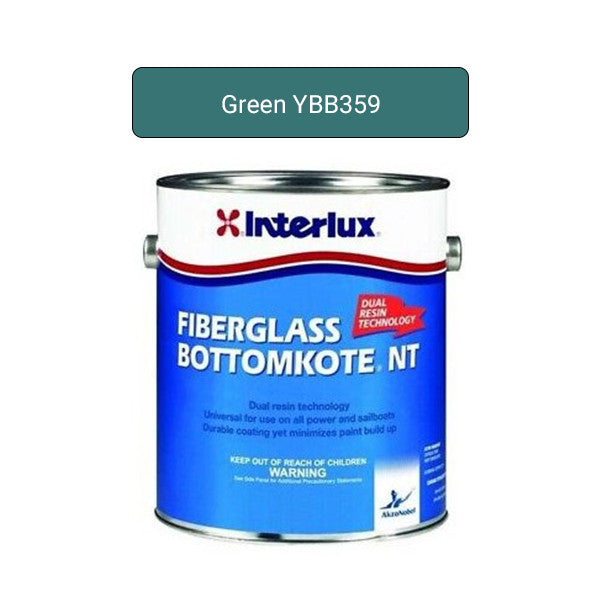

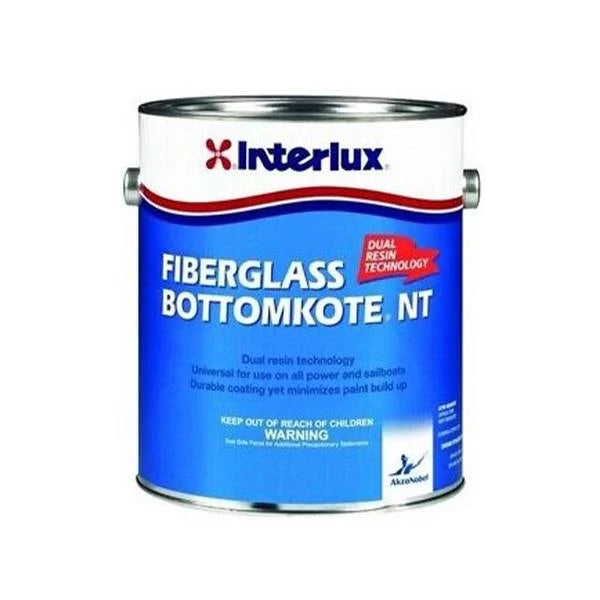

Interlux Fiberglass Bottomkote NT Antifouling Bottom Paint

Interlux Fiberglass Bottomkote NT is a hybrid hard/ablative antifouling bottom paint that gives you the best of both worlds. Its dual-resin formula combines the durability of a hard coating with the self-polishing benefits of an ablative paint, so the film gradually smooths with use instead of building up heavy layers year after year. The result is a cleaner, more efficient hull and easier maintenance at haul-out.

Designed for both powerboats and sailboats, Bottomkote NT is an excellent choice for boats kept in fresh, salt, or brackish water. It delivers reliable, single-season fouling protection on fiberglass, wood, and properly primed metals hulls (not for aluminum) and can be burnished or scrubbed where extra smoothness is desired.

Available in red, green, blue, and black, it provides a classic antifouling look with modern hybrid performance.

Best Uses

Fiberglass powerboats and sailboats that are used regularly during the season

Boats kept in marinas or on a mooring in fresh, salt, and brackish water

Owners who want durable, scrubbable finish without excessive bottom paint build-up

DIYers looking for a fast-dry system that allows multiple coats and same-day launch in suitable conditions.

Key features & benefits

Hybrid hard/ablative technology - Combines hard-coat durability with a controlled polishing action to help prevent premature wear-through while still shedding light growth.

Smooth, efficient finish - As the surface slowly smooths with use, it helps reduce drag for better speed and fuel efficiency.

Fast-dry formula - Under normal conditions you can apply multiple coats and launch the same day, making it ideal for tight haul-out schedules.

Versatile application - Suitable for fiberglass, wood, and properly primed steel or lead underwater areas (not for aluminum hulls or outdrives).

Universal use - Works for most power and sailboats in fresh, salt, and brackish waters, making it a flexible choice for mixed cruising areas.

How to apply Interlux Fiberglass Bottomkote NT

Interlux Fiberglass Bottomkote NT can be applied with a brush, roller, or spray equipment over most existing antifouling paints that are in good, sound condition. Always make sure the old coating is firmly adhered, clean, and free of loose or flaking material before overcoating.

Substrates: Fiberglass, wood, and properly primed steel/lead underwater surfaces

Existing bottom paint: Check the Interlux antifouling compatibility chart to confirm suitability, then clean and sand as required

Coats: Apply at least two full coats; use an extra coat on bare wood or high-wear areas such as leading edges and the waterline

Thinning: Thin only if necessary, using the appropriate Interlux thinner, and do note exceed label recommendations

For best results, always stir or shake the paint thoroughly before and during use to keep the copper and resins evenly mixed.

Surface preparation overview

Proper prep is critical to long-term performance. Follow the detailed instructions on the product label and technical datasheet, but in general:

Previously painted surfaced - good condition

Wash to remove slime, salts, and contaminants.

Lightly sand if recommended to provide a clean, dull surface.

Removes sanding residue and apply the recommended coats of Fiberglass Bottomkote NT

Previously Painted Surfaces - poor condition

Strip loose, flaking, or heavily built-up antifouling using appropriate methods (chemical stripper for fiberglass/wood or sandblasting for steel).

Once the substrate is clean and sound, follow the bare fiberglass, bare wood, or primed metal system as directed.

Bare Fiberglass

Remove mold release wax and contaminants with the recommended Interlux fiberglass prep products.

Fair any imperfections as needed.

Follow either the no-sand or sanding system detailed in the Interlux datasheet, typically involving a suitable primer or barrier coat followed b…

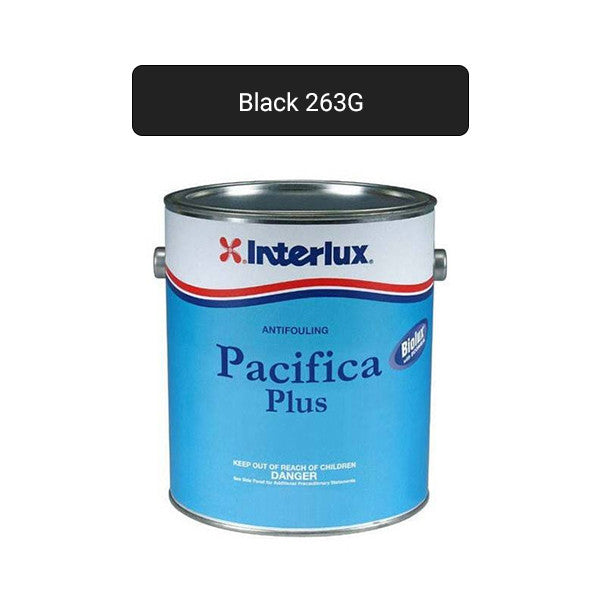

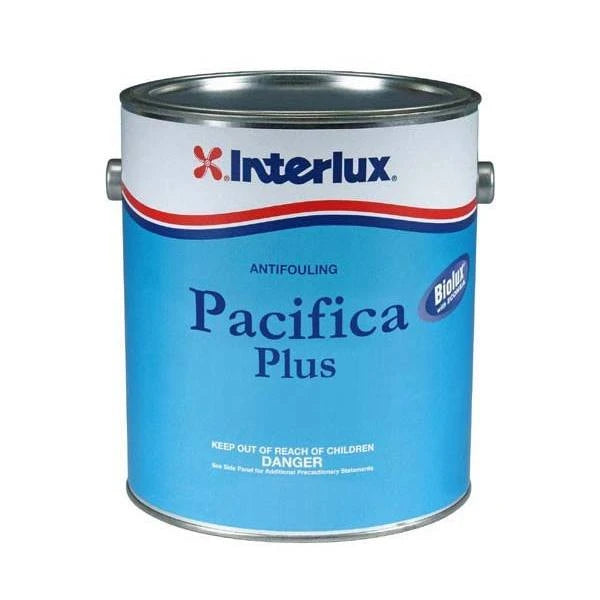

Interlux Pacifica Plus Antifouling Marine Paint with Biolux

Interlux Pacifica antifouling paint is specially designed to battle slime and contains Econea to help ward off barnacles, algae, and other underwater organisms. It is formulated with a dual biocide antifouling that uses Biolux Slime Blocking technology.

Interlux Pacifica is easy to apply with a roller or brush. The overall performance and protection provided by Interlux Pacifica are directly related to the amount of antifouling paint applied. A thin layer may lead to premature fouling. A thicker layer will protect your boat much longer.  Interlux Pacifica is safe to use for both fresh and saltwater applications and is safe for all boats including aluminum, wood, fiberglass, and steel.

Interlux Pacifica uses Econea technology, which is a copper-replacement technology. It allows antifouling performance to work at very low concentrations.  It is safer for use on aluminum, unlike its Copper Oxide counterparts. Once emitted from paint film, it breaks down quickly. It is formulated to protect against more severe organisms.

Features:

Copper-free bottom paint

Contains Econea™ to control shell growth and Biolux® Slime-Blocking technology

Clean, crisp, bright colors

High solids, reduced solvent emissions

Fast dry, low odor

Polishing action for improved fuel efficiencies, which equals reduced Carbon Dioxide and Sulfur Dioxide into the air

Suitable for all substrates, including aluminum

Specifications:

Finish: Low Sheen

Application Area: Below the waterline

Number of Coats: 2-3

VOC: 330 g/lt

Unit Size: 1 US Gallon

Colors Available: YBB260-Blue, YBB262-Red, YBB263-Black

Associated Products:

• Interlux Special Thinner: For thinning - do not exceed 10% per volume
• ***WILL SHIP GROUND ONLY TO THE CONTIGUOUS 48 STATES ONLY***

How To Apply Interlux Pacifica Plus

Interlux Pacifica Plus is suitable for use on all boats including fiberglass, aluminum, wood, and steel. This antifouling paint can be applied by airless spray, brush, conventional spray, or roller. Only apply Pacifica Plus to clean, dry, and properly prepared surfaces only. All metal surfaces must be primed before applying Pacifica Plus.

Application Method: Airless Spray, Brush, Conventional Spray, Roller

Number of Coats: 2

Dry Film Thickness per Coat: 2 mils (3 mils wet)

Coverage: 528 sq. ft/gal.

Application Temp: 41°F Min. / 95°F Max.

Thinner: Special Thinner 216

DRY TIMES:

Temp

To Touch

To Recoat

To Launch

95°F

1 HR

2 HR

4 HR

73°F

2 HR

4 HR

6 HR

50°F

3 HR

6 HR

9 HR

PREVIOUSLY PAINTED SURFACES:

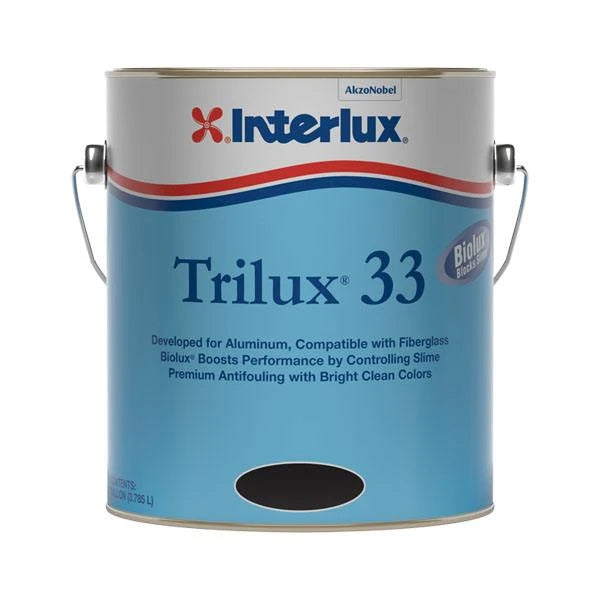

• In Good Condition with Pacifica or Trilux 33

Sand with 80 (grit) grade paper. Wipe with Special Thinner 216.

If these coatings are more than a year old, wet sand the surface with 80 (grit) grade paper to a clean, firmly attached surface. Wipe down with Special Thinner 216.

Apply 1-2 coats of TBT Sealer.

Non-TBT Copolymers: Apply 1 coat of Primocon.

Hard Antifoulings: Sand surface with 80 grade (grit) paper to a clean firmly attached surface, wipe with Special Thinner 216.

Apply Pacifica Plus.

In Poor Condition

Remove antifouling paint in poor condition with Interstrip Semi-Paste 299E.

Sand and wipe clean with Fiberglass Solvent Wash 202.

BARE FIBERGLASS:

Begin by scrubbing the surface thoroughly with a stiff brush using soap and water to remove loose dirt and contamination. Flush with fresh water to remove the soap residue.

Remove mold release wax using one of the following methods:

Apply Fiberglass Surface Prep YMA601 or Low VOC Fiberglass Solvent Wash 202V with a maroon, 3M Scotch-Brite®  pad and scrub well.

Flush with fresh water or wipe off with a clean, wet cloth ensuring that no traces of Fiberglass Surface Prep or Low VOC Fiberglass Solvent Wash remain.

An alternate method would be to dampen cheesecloth with Fiberglass S…

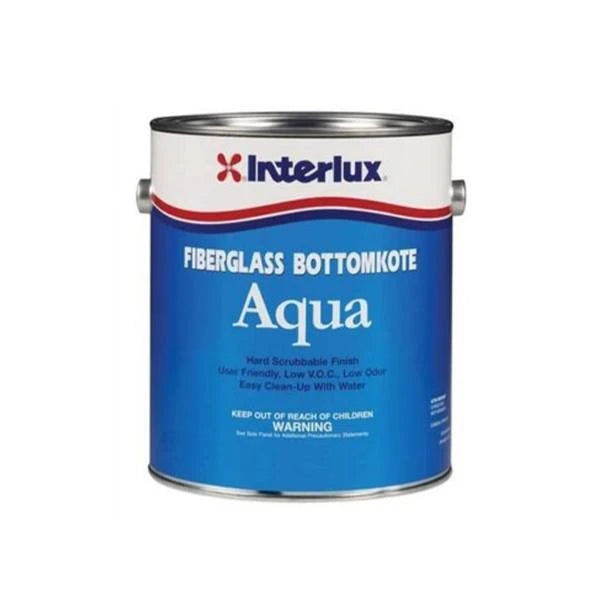

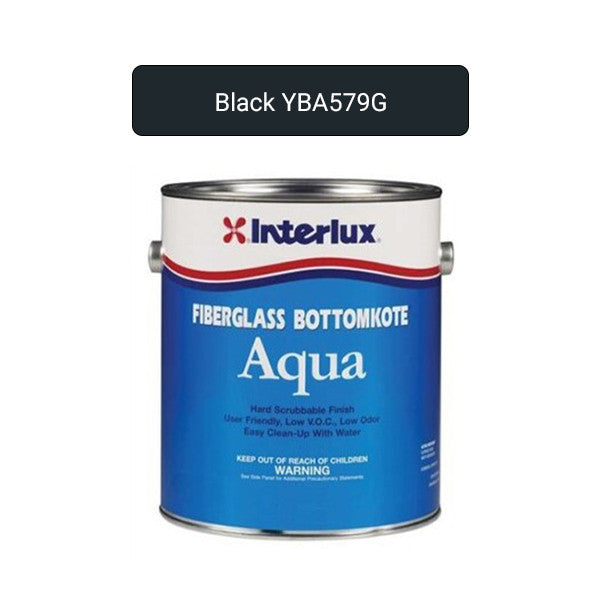

Interlux Fiberglass Bottomkote Aqua Antifouling Boat Bottom Paint

For a tough, eco-friendly antifouling solution, you can't beat Interlux Fiberglass Bottomkote – it delivers excellent protection with a smooth, durable finish. This water-based formula resists barnacles and algae while providing fast-drying, low-odor application – perfect for DIY boaters. It's easy to clean up with soap and water and adheres well to fiberglass hulls, ensuring long-lasting performance in both saltwater and freshwater. Interlux Fiberglass Bottomkote has a hard, fast-drying finish that minimizes paint buildup, making future maintenance a breeze. Available in blue or black, it's an ideal choice for boaters looking for reliable antifouling without the harsh solvents.

Solid protection against all types of fouling, including zebra muscles

Colorfast durable finish

Reduced emissions, low odor

Easy clean up with soap and water

Thinner film, less paint build-up

Only thin if necessary, and if so, do not thin more than 10% by volume. Thin with water.

Specifications:

Finish: Matte

Number of Coats: 2-3

Associated Products

Interlux Fiberglass Solvent Wash 202-To clean bare fiberglass prior to application.

Interlux Fiberglass Surface Prep YMA601-Water Base cleaner for bare fiberglass.

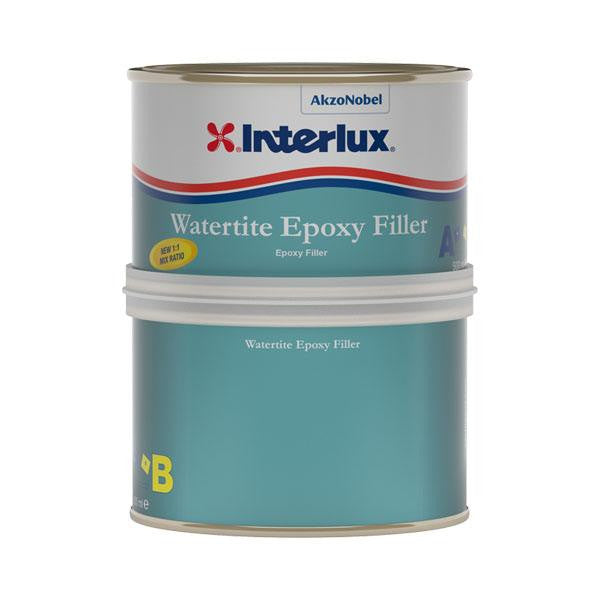

Interlux Watertite YAV135-Epoxy Filler for filling and fairing.

***WILL SHIP GROUND ONLY TO THE CONTIGUOUS 48 STATES ONLY***

------------------------------------------------------------------------------------------------------------------

How To Apply

APPLICATION DATA METHOD: Brush, Conventional Spray, Roller

NUMBER OF COATS: 2-3

DRY FILM THICKNESS PER COAT: 2 mils (5.4 wet mils)

COVERAGE: 400 sq. ft/gal.

APPLICATION TEMP: 40°F Min. / 95°F Max.

THINNER: Water

DRY TIMES:

Temp

To Touch

To Recoat

To Launch

95°F

1/2 HR

2 HR

6 HR

73°F

2 HR

4 HR

6 HR

59°F

2 HR

5 HR

8 HR

PREVIOUSLY PAINTED SURFACES: In Good Condition Remove old flaking paint. Wet sand with 80 grade (grit) paper. Rinse with fresh water and allow to dry. In Poor Condition Remove antifouling paint in poor condition with Interstrip 299E.

BARE FIBERGLASS: Scrub the surface thoroughly with soap and water using a stiff brush. Apply Fiberglass Surface Prep YMA601V with a 3/8"" nap roller on surface to be de-waxed, work in 10x10 foot areas. Ensure YMA601V is removed before drying. Scrub Fiberglass Surface Prep YMA601V using a 3M Doodlebug™ and a brown Scotch-Brite® pad. Once all areas have been thoroughly scrubbed, use wet rags or spray down with high pressure rinse to remove all traces of Fiberglass Surface Prep YMA601V. Change rags frequently. Wipe down with clean cloths. Repeat the cleaning process until water no longer beads. Surface must be clean and dry prior to application of Fiberglass Bottomkote® Aqua.

BARE FIBERGLASS - NO SAND: Prepare surface as described above. Apply the Fiberglass Bottomkote®  Aqua within 4 hours of cleaning. If this time is exceeded, rinse with fresh water and allow to dry. If exceeding 2 months between de-waxing and painting, repeat cleaning prior to application of Fiberglass Bottomkote® Aqua.

BARE WOOD: Clean with Special Thinner 216. Sand with 80 grade (grit) paper. Clean with Special Thinner 216. Repair any defects with Watertite Epoxy Filler. Lightly sand and wipe clean. Surface must be free from all contamination. Fill seams, if necessary, with Seam Compound Brown 30. Apply first coat of Fiberglass Bottomkote® Aqua thinned with clean water (do not add more than 10% by volume).

UNDERWATER METALS: All substrates must be primed, clean and dry. All preparation for bare substrates is covered on the appropriate primer labels. Contact Interlux® for further details.

DO NOT USE THIS PRODUCT ON ALUMINUM HULLS AND OUTDRIVES.

APPLICATION INFO…

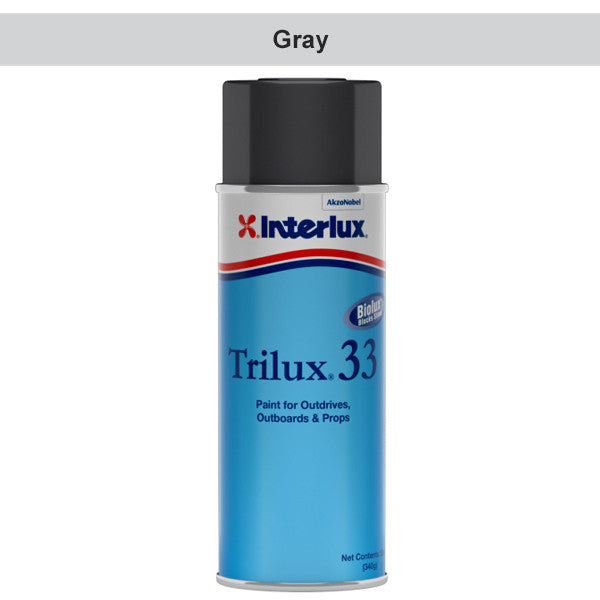

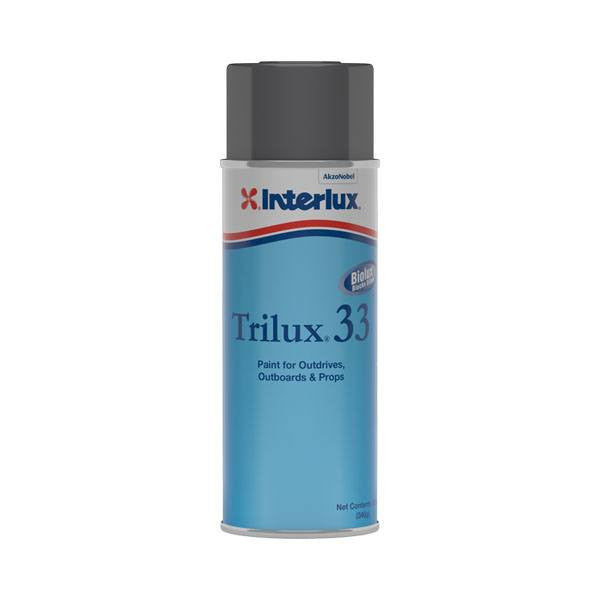

Interlux Trilux Boat Prop & Drive Antifouling Spray Paint

Shield metal components from marine growth and corrosion with Interlux Trilux Prop & Drive Antifouling Paint. This easy-to-apply spray is formulated for underwater metals like propellers, outdrives, and lower units. It creates a tough barrier that resists fouling and slows down corrosion, helping your propulsion system perform at its best season after season. Designed for continuous submersion, it’s ideal for boats in saltwater or freshwater environments. For boaters who want fewer maintenance headaches and longer equipment life, Trilux provides targeted protection where it matters most.

Features:

Convenient aerosol can provide effective antifouling

Interlux’ exclusive Biolux technology reduces slime and increases antifouling performance

Safe for all out drive and underwater metals

Can be used in fresh, salt, and brackish water

Only available in 12 oz. aerosol can

Specifications:

Size: 12 fl. oz.

Finish: Matte

Coverage (approx): 21.2 ft² per spray can

Number of Coats: 1-2 as needed

Colors Available: YBA063A Black, YBA064A Gray, YBA068A White

VOC: 470 g/lt

It is important that you shake can well before use. If can is not shaken properly, clogging of the tip may occur.

How To Apply Interlux Trilux 33 Aerosol Paint

Prior to application, shake can well. Listen for mixing-ball and continue shaking vigorously for at least two minutes. Shake in an up and down motion. If not shaken properly, tip may clog.

Application Method: Aerosol can

Number of Coats: 1-2 as needed. Use an entire can per lower unit.

Dry film thickness: 2 mils

Coverage: 21.2 ft² per spray can

Application Temp: 50°F Min. / 95°F Max.

Dry Times:

Temp

To Touch

To Recoat

To Launch

95°F

1/2 HR

4 HR

8 HR

73°F

1/2 HR

6 HR

12 HR

50°F

1/2 HR

12 HR

16 HR

Surface Preparation

Bare Aluminum:

Grind or blast the bare aluminum to a bright metal finish.

For best results, pre-prime using an etch primer.

Remove sanding residue or any dust.

Immediately apply at least 3 coats of Interprotect 2000E (first coat thinned 10-15%) or one full can of Primocon Aerosol Primer YPA985

Previously Painted Surfaces

If previously painted with Trilux 33, sand with 80 grit sandpaper.

If factory finish or antifouling paint, sand with 80 grit sandpaper then clean with special thinner 216. Resand any areas where bare aluminum is exposed with medium grit emery cloth and wipe clean. Follow the procedure for bare aluminum above.

Epoxy:

Remove all surface contamination using Fiberglass Surface Prep YMA601.

Flush with fresh water and allow to dry.

Sand with 80 grit paper, then remove sanding residue.

Wipe with Fiberglass Solvent Wash 202.

Apply Interprotect 2000E as primer.

Application

At least 2 coats should be applied.

Hold can 12-16" from the unit when applying the paint.

Wait for minimum overcoating time between coats.

Continue until entire can has been used per outdrive.

Allow minimum immersion time.

Click to Download Interlux Trilux 33 Application Instructions

Frequently Asked Questions

• What is Interlux Trilux Boat Prop & Drive Antifouling Spray Paint used for? Interlux Trilux Boat Prop & Drive Antifouling Spray Paint is designed for underwater metal components such as propellers, outdrives, and lower units. It provides antifouling protection for equipment used in fresh, salt, and brackish water. The aerosol formula uses Interlux Biolux technology to reduce slime and improve antifouling performance.
• How many coats of Interlux Trilux Boat Prop & Drive Antifouling Spray Paint should be applied? Apply 1-2 coats as needed, with the application instructions recommending at least tw…

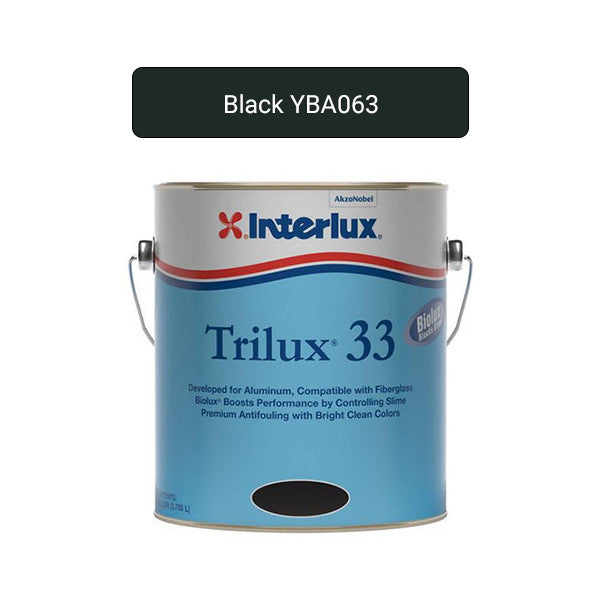

Interlux Trilux 33 Antifouling Bottom Paint

Interlux Trilux 33 is a bright colored, tin-free ablative antifouling paint that provides safe, effective protection for fiberglass, wood, steel, and aluminum boats. Specially formulated for aluminum hulls, outboards, sterndrives, and other underwater metals, it delivers dependable multi-season protection in fresh, salt, and brackish waters when applied at the recommended film thickness.

Trilux 33 uses Biolux® technology to help control slime and algae growth while its slow-polishing resin system minimizes paint build-up and helps maintain a smoother, more efficient hull. Available in a range of bright colors including white, it’s an ideal choice for boaters who need strong antifouling performance on aluminum and mixed-metal applications without sacrificing appearance.

Best Uses

Aluminum boats, including trailers, fishing boats, and small craft

Outdrives, outboards, and underwater metal components when properly primed

Fiberglass and wood hulls below the waterline

Boats kept in fresh, salt, or brackish water for extended periods

Owners looking for a slow-polishing ablative paint that reduces seasonal build-up

Key Features & Benefits

Safe for aluminum: Specially formulated for use on properly primed aluminum hulls, outboards, and sterndrives, as well as other underwater metals.

Bright, durable colors: Available in a range of clean, bright colors including white, designed for long-lasting color stability.

Biolux® slime blocking technology: Helps control slime and algae for a cleaner hull throughout the season.

Slow-polishing ablative system: Coating gradually wears in a controlled way, helping prevent heavy paint build-up and reducing sanding at recoat time.

Multi-season performance: Provides reliable protection in fresh, salt, and brackish water when applied at the recommended number of coats and film thickness.

Versatile application: Can be applied by brush or roller over properly prepared fiberglass, wood, steel, and primed aluminum, as well as most existing antifouling paints in good condition.

Where Trilux 33 Can Be Used

Substrates: Fiberglass, wood, steel, and properly primed aluminum and underwater metals.

Water types: Fresh, salt, and brackish water.

Typical applications: Trailerable aluminum boats, coastal cruisers, runabouts, sailboats, and boats with outdrives or outboards that need compatible antifouling protection.

Coverage & Recommended Film Build

Theoretical coverage: Approximately 400 sq. ft/gal (roller applied), depending on surface condition and application method.

Number of coats: A minimum of 2 full coats for most substrates; 3 coats recommended on bare wood (first coat thinned).

Dry film thickness: About 2 mils DFT per coat (approximately 3.6 mils wet).

Finish: Low sheen.

Application Overview

Always read and follow the Interlux Trilux 33 product label and technical datasheet before starting. The surface must be clean, dry, and free of contaminants, loose coatings, and sanding residue.

Previously painted surfaces (in good condition)

Scrub to remove slime and contaminants, then rinse and allow to dry.

Sand the existing antifouling with the recommended grit to create a smooth, dull surface.

Remove sanding residue and apply the recommended number of coats of Trilux 33.

Bare aluminum and other underwater metals

Clean thoroughly to remove grease, oil, and oxidation, then sand or blast to a bright metal finish as specified by Interlux.

Prime bare aluminum and metal surfaces with the recommended Interlux primers (such as InterProtect® 2000E/2001E or Primocon®), observing all dry and recoat times.

Apply the specified number of coats of Trilux 33 over the primed surface.

Bare fiberglass

Remove mold-release agents and wax with Fiberglass Solvent Wash 202 or equivalent fiberglass prep.

Follow either the no-sand primer system or the sanding system recommended by Interlux before applying …

Interlux Watertite 2-Part Epoxy Marine Filler Compound

Interlux Watertite is a quick drying 2-part epoxy filler suitable for use on Fiberglass, Metals, Epoxy and rigid Wood constructions. The formulation does not shrink and is extremely water resistant, making it suitable for osmosis damage repairs. It has a long easy-to-sand window and can be applied to a thickness of 3/4" without sagging. Its superior spreadability makes it an ideal glazing compound for filling small nicks and scratches.

Features:

Very fast drying

Simple 1:1 mixing ratio

High strength and adhesion properties

Use above and below the waterline

Fill up to 3/4" without sagging

Specifications:

Application Area: Above and below water

Finish: Matte

Number of Coats: As required

Pack sizes: 500 ml / 1 Lt

***WILL SHIP GROUND ONLY TO THE CONTIGUOUS 48 STATES ONLY***

How To Apply Interlux Watertite Epoxy Marine Filler

Application Data Method: Spatula / Putty Knife

Dry Film Thickness per Coat: 63.5 mils

Coverage: 25 sq. ft/gal.

Application Temp: 45°F Min. / 95°F Max.

Thinner: Do Not Thin

DRY TIMES:

Temp

To Touch

Sandable

To Launch

Pot Life

To Recoat

95°F

20 MIN

3 HR

36 HR

10 MIN

10 HR

73°F

35 MIN

5 HR

2 DAY

15 MIN

5 HR

50°F

50 MIN

8 HR

5 DAY

25 MIN

4 HR

Note: At 7°C/45°F the pot life is 30 mins and the product is sandable after 24 hrs, immersion after 6 days.

METAL: Above water: Pre-prime with Viny-Lux Primewash 353/354. Apply one coat of Epoxy Primekote. Sand surface with 80-120 grade (grit) paper, wipe clean. Apply Watertite*. Below water: Prime with Interprotect 2000E or Interprotect 3000.

BARE FIBERGLASS: Clean with Fiberglass Surface Prep YMA601 or Fiberglass Solvent Wash 202. Sand with 80 grade (grit) paper. Remove sanding residue.

APPLICATION INFORMATION: Mix in a 1:1 ratio by volume it is important to ensure the correct volume mix ratio is used. Mix the two components thoroughly to an even colour. Do not use below 7°C. Do not apply more than ¾" thickness at any one time. Product temperature should be minimum 10° C/50°F and maximum 35°C/95°F. Ambient temperature should be minimum 7°C/45°F and maximum 35°C/95°F. Substrate temperature should be minimum 7°C/45°F and maximum 35°C/95°F. Apply using a trowel, spatula or putty knife. When the product has cured, wash with fresh water and sand with 80 grade (grit) paper. Apply to clean, dry, properly prepared surfaces only. Watertite* must be overcoated with VC Tar, VC Performance Epoxy, Interprotect 2000E/2001E or Interprotect 3000/3001. Do not apply topside finishes, polyester or vinylester materials over Watertite*.

Click to Download Interlux Watertite Epoxy Filler Application Instructions

Frequently Asked Questions

• What is Interlux Watertite 2-Part Epoxy Marine Filler Compound used for? Interlux Watertite 2-Part Epoxy Marine Filler Compound is a quick-drying, water-resistant epoxy filler for repairing fiberglass, metals, epoxy, and rigid wood constructions. It can be used above or below the waterline and is suitable for filling small nicks and scratches as well as osmosis damage repairs.
• How do I mix Interlux Watertite Epoxy Marine Filler? Mix the two components in a precise 1:1 ratio by volume. Thoroughly combine both components until the mixture reaches an even color. Watertite should not be thinned, and the product should not be applied below 45°F.
• How thick can Interlux Watertite be applied? Interlux Watertite can be applied up to 3/4 inch thick at one time without sagging. Apply it with a trowel, spatula, or putty knife to clean, dry, properly prepared surfaces. Do not exceed the 3/4-inch maximum application thickness in a single application.
• Can Interlux Watertite be used above and below the waterline? Yes. Interlux Watertite is formulated for use …

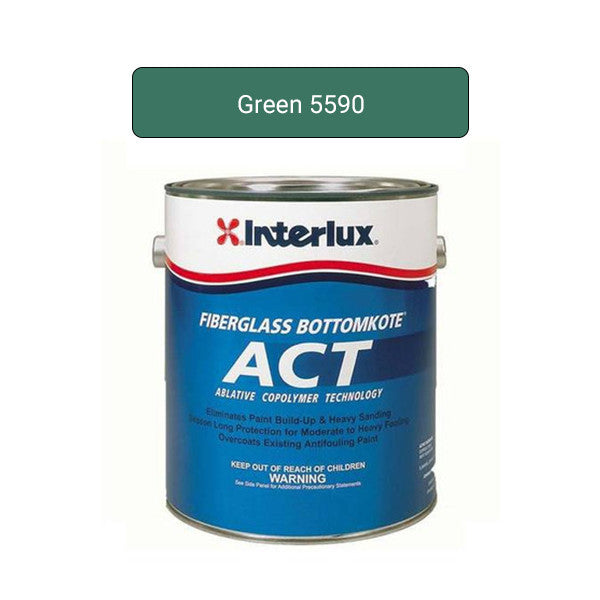

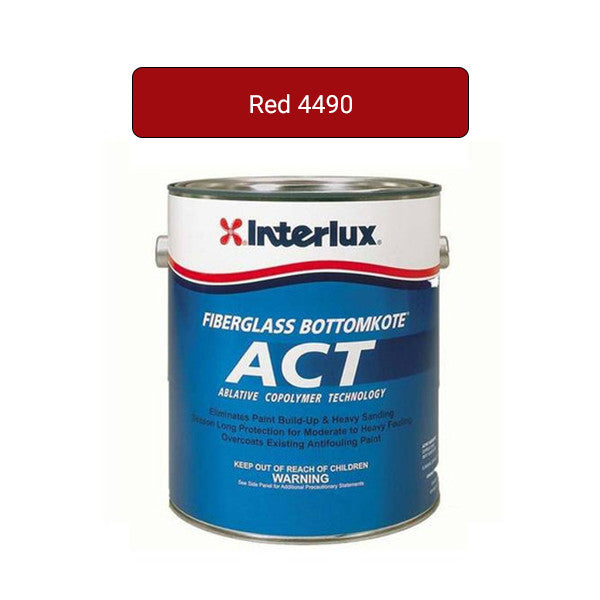

Interlux ACT Ablative Antifouling Bottom Paint

Interlux ACT is a trusted single-season ablative bottom paint that delivers excellent season-to-season protection in moderate to heavy fouling waters. Using Ablative Copolymer Technology, the coating slowly wears away with use, continually exposing fresh biocide at the surface. This controlled erosion helps prevent marine growth while eliminating the heavy paint build-up and aggressive sanding associated with many hard bottom paints.

With a higher copper content and a built-in Slime Fighter additive, ACT is very effective at controlling shell fouling such as barnacles and zebra mussels, as well as weed, slime and algae. It can be used on fiberglass, wood and properly primed metal hulls (not aluminum) in fresh, salt and brackish water, making it a versatile choice for a wide range of powerboats and sailboats.

Available in popular colors including black, blue, red, green and brown, ACT is a go-to ablative paint for boaters and boatyards looking for reliable performance and easier maintenance between haul-outs.

Best Uses

Single-season antifouling protection for powerboats and sailboats

Boats kept in moderate to heavy fouling waters (algae, slime, barnacles, zebra mussels)

Fresh, salt, and brackish water marinas and moorings

Owners who want an ablative coating that minimizes paint build-up and sanding at recoat time

Fiberglass, wood, and properly primed steel or lead hulls below the waterline (not suitable for aluminum)

Key Features & Benefits

Ablative Copolymer Technology: Coating wears away in a controlled manner during use, continuously exposing fresh biocide and helping prevent premature wear-through.

High copper content with Slime Fighter: Formulated to control hard growth such as barnacles and zebra mussels and soft growth like weed, slime and algae, keeping the hull cleaner for longer.

Reduced paint build-up: Because the film gradually erodes, there is less old paint to sand off at recoat time compared to many hard bottom paints.

Season-to-season protection: Provides dependable single-season protection when applied at the recommended film thickness and coverage.

All-water versatility: Can be used in fresh, salt, and brackish waters, ideal for boats that move between different environments.

Flexible application: Can be applied by brush, roller, or airless spray over most existing antifouling coatings that are in sound condition, following Interlux compatibility guidance.

Application & System Overview

Interlux ACT can be applied over most well-adhered antifouling paints or as part of an Interlux system over properly prepared bare substrates. Always read the product label and technical datasheet before starting your bottom paint project.

Substrates: Fiberglass, wood, and properly primed steel or lead below the waterline (not for aluminum hulls or drives).

Existing antifouling: Confirm compatibility using the Interlux antifouling compatibility chart. The existing coating must be aged, firmly adhered, and in good condition.

Coats: Apply a minimum of two full coats, with an extra stripe coat on high-wear areas such as the waterline, chines, leading edges and rudders. Three coats are recommended on bare wood.

Methods: Apply by brush, 3/8" nap solvent-resistant roller, or airless spray using equipment suitable for solvent-based marine coatings.

Stir or shake ACT thoroughly before and during application to keep the copper and resins evenly mixed. Thin only if necessary, and never more than the maximum amount specified on the label.

Surface Preparation Overview

Proper surface preparation is critical to adhesion and antifouling performance. The summary below should be used in conjunction with the full Interlux instructions.

Previously painted surfaces – good condition

Scrub the bottom to remove slime, salts and loose growth, then rinse and allow to dry.

Sand the existing coating with 80-grit wet-or-dry paper as recommended to create …

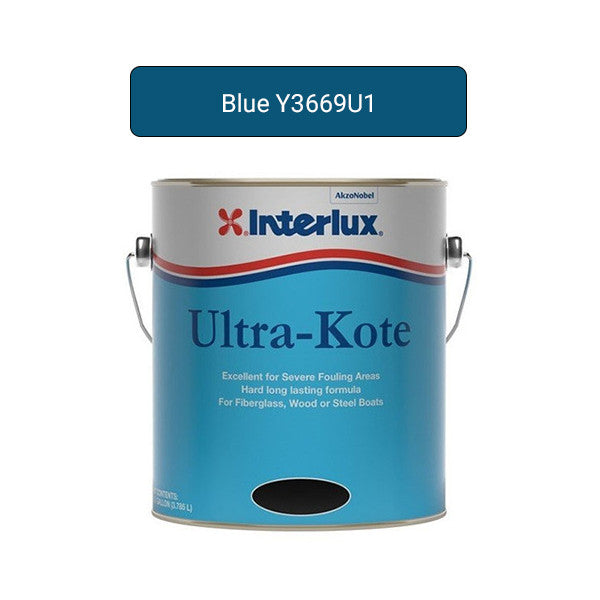

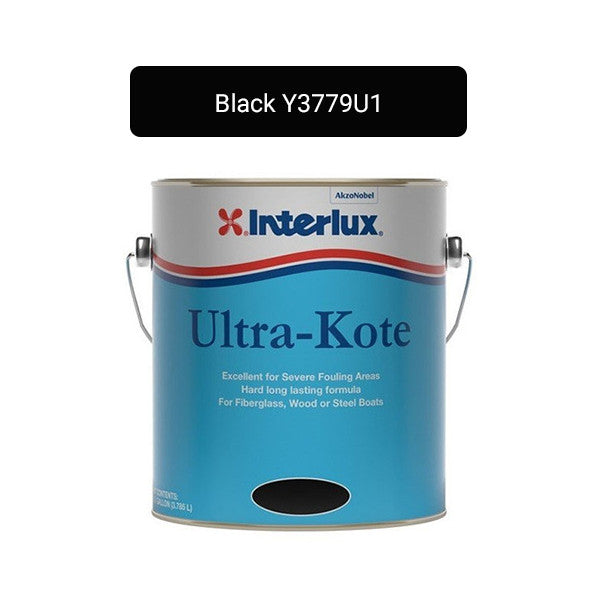

Interlux Ultra-Kote Hard Antifouling High Copper Bottom Paint

For tough, long-lasting protection, Interlux Ultra Kote delivers a durable, hard finish that resists fouling in high-growth waters. This high-performance Interlux Ultra bottom paint is made to withstand heavy use, making it ideal for powerboats and racing vessels that demand a smooth, efficient hull. Its advanced formula provides excellent adhesion and wear resistance, ensuring season-long antifouling protection. Ultra Kote offers reliable defense against barnacles and algae while maintaining a sleek, fuel-efficient surface. Available in blue, black, green or red.

Protect your vessel with Interlux Ultra-Kote Bottom Paint, formulated to keep your hull free from fouling and optimized for performance. This hard, durable coating provides excellent protection against all types of marine growth, ensuring your boat maintains its speed and efficiency. Ideal for boats in high-fouling areas, Ultra-Kote offers a strong defense, keeping your underwater surfaces clean and smooth season after season.

The Interlux Ultra-Kote is a high performance antifouling paint that is perfect for areas that experience moderate to severe fouling. Designed to provide maximum performance, the high copper hard coating provides excellent long term protection from shell fouling, such as barnacles. Thanks to the fast drying formula Ultra-Koat allows you to paint and launch in the same day. Can be used on Fiberglass, wood, or properly primed still with the addition of color stability for a uniform look. Able to be used in fresh water, salt water, & brackish water.

Note: Green Ultra-Kote (Part Number Y3559U1) is not available to ship to California

Features:

Works on Fiberglass, wood, and steel boats

For use in Fresh water, Salt water, & Brackish water

Fast dry formula

High Copper

Long term protection

Specifications:

Pack Size: US Gallon

Finish: Matte

Recommended usage: All fouling waters

Colors Available: Red (Y3449U), Green (Y3559U), Blue (Y3669U), Black Y3779U

Drying time: Touch dry 1hrs; To launch 8hrs. @73° F

Number of Coats: 2 coats, 3 on bare wood (first coat thinned)

Coverage: 506 ft²/gal

VOC: 327 g/lt

How to Apply Interlux Ultra-Kote Hard Antifouling Bottom Paint

Application Tips

Mixing: Stir or shake contents thoroughly before use

Thinner: Special Thinner 216 or Brush Ease 433

Thinning: Thin only if necessary. Thin no more than 10% (except conventional spray). Use Brush Ease 433 if roller or brush drags during application

Cleaner: Special Thinner 216 or Brush Ease 433

Applicators

Airless Sprayer

Pressure: 170-204 bar/2500-3000 psi

Tip Size: .53mm /21 thou.

Must be thinned 5-10% bu volume with Special Thinner 216

Conventional Spray

Pressure Pot: Pressure : 3.44-4.47 bar/50-65 psi (gun pressure); 10-15 psi (pot pressure)

Tip Size: 1.83-2.2 mm/70-85 thou.

Thin 10-15" with Special Thinner 216 for application by Pressure Pot

Roller

Use a 3/8" nap solvent resistant roller

Surface Preparation

Good Condition

Remove all traces of loose paint & contamination by sanding

Sand using an 80 grit wet-dry sandpaper

Remove sanding residue

Poor Condition

Completely remove all old antifouling paint

For Fiberglass & wood use Interstrip 299E

For Steel sandblast to a near white metal

Bare Fiberglass Preparation

Fiberglass must be properly prepared to prevent delamination

Remove mold release wax using Fiberglass Surface Prep YMA601V or Fiberglass Solvent Wash 202

Fill any surface imperfections with Interlux Watertite

Once surface is properly prepared follow the application system below

Bare Fiberglass - No Sanding System

Clean following the above preparation procedure

Apply one coat of Interprotect 2000E or Fiberglass No-Sand Primer

Following overcoating guidelines for the primer, apply 2 coats of Ultra-Kote allowing appropriate drying times

Bare Fiberglass - Sanding System

Clean fo…

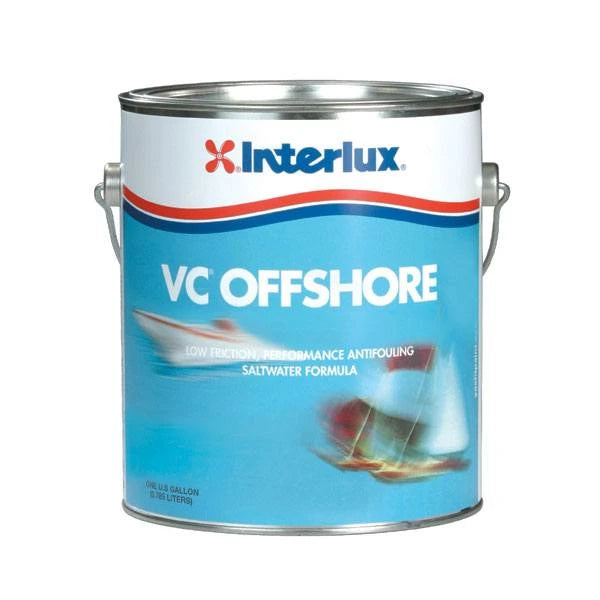

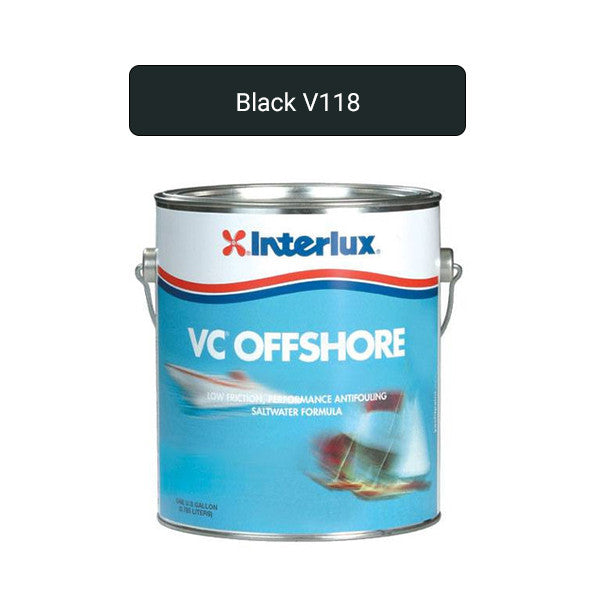

Interlux VC Offshore Antifouling Boat Bottom Paint

Formulated for high-performance boats, Interlux VC Offshore Antifouling Bottom Paint delivers a smooth, ultra-durable finish that resists fouling while reducing drag. This hard, low-friction VC Offshore paint is ideal for racing and powerboats, providing superior protection in saltwater and freshwater environments. Its fast-drying, solvent-based formula allows for easy sanding and burnishing, ensuring maximum speed and efficiency on the water. With no paint buildup over time, it's the perfect choice for boaters who demand top-tier performance and long-lasting antifouling protection. Available in blue, red, or black to complement your vessel.

Sold in Gallons

VC Offshore for racing, sailing and performance power boats is formulated with Fluoro microadditive for a hard, smooth low friction surface that can be burnished to a very low profile. When polished, VC Offshore yields a very hard finish for maximum durability and reduced friction for increased performance. VC Offshore is suitable for use in fresh and salt water.

For racing, sailing and power boats

Suitable for fresh and salt water

Hard, Smooth finsh

Low friction finish

Specifications:

Finish: Matte

Number of Coats: 3-4

Available in 3 colors:

Black (ILX-V118)

Blue (ILX-V116)

Red (ILX-V117)

Interlux Special Thinner: For thinning and clean-up

How to Apply

APPLICATION DATA METHOD: Brush, Conventional Spray, Roller(Pressure Pot)

NUMBER OF COATS: 3

DRY FILM THICKNESS PER COAT: 2 mils (5.1 wet mils)

COVERAGE: 300 sq. ft/gal.

APPLICATION TEMP: 50° F. Min. / 95°F. Max.

THINNER: Viny-Lux® Solvent 355 or Special Thinner 216

DRY TIMES:

Temp

To Touch

To Recoat

To Launch

95°F

1 HR

4 HR

8 HR

73°F

2 HR

6 HR

12 HR

50°F

3 HR

12 HR

16 HR

PREVIOUSLY PAINTED SURFACES: Remove, unless it is vinyl based. Scrape and sand old vinyl coatings which are not adhering, clean and dry surface. Remove antifouling paint in poor condition with Interstrip Semi-Paste 299E.

BARE FIBERGLASS: Begin by scrubbing well using soap and water and a stiff brush. Rinse with fresh water. Sand with 80 grade (grit) paper. Remove sanding residue. Wipe with Fiberglass Solvent Wash 202.

BARE WOOD: Sand with 80 grade (grit) paper. Clean with Special Thinner 216. Apply 1st coat thinned 10% with VinyLux® Solvent 355.

BARE METAL: Sandblast and apply 4-5 coats of Interprotect® 2000E/2001E. If blasting is not possible (or if more than 2 hours has passed since blasting) sand or grind with coarse emery cloth and apply a self-etching primer prior to Interprotect 2000E/2001E or Interprotect 3000/3001.

DO NOT USE THIS PRODUCT ON ALUMINUM HULLS AND OUTDRIVES.

APPLICATION INFORMATION: Apply 3 coats of VC Offshore*. BURNISHING: After the final coat of VC Offshore* has cured, wet sand with 400 grade (grit) paper, removing any imperfections in the coat. Burnish with fine bronze wool until a shiny, super smooth finish is obtained. Apply an extra coat if wet sanding or burnishing. Conventional Spray Pressure Pot: Pressure: 3.44-4.08 bar/50-60 psi (gun pressure), pot pressure 10-15 psi. Tip Size: 1.8-2.2 mm/70-85 thou. Spraying of antifouling paints is prohibited in Canada. Other Do not apply thin coats. Do not apply VC Offshore* in thin coats as this will lead to a rougher surface and additional sanding. It may also lead to premature fouling. Product temperature should be minimum 10°C/50°F and maximum 29°C/85°F. Ambient temperature should be minimum 10°C/50°F and maximum 29°C/85°F. Substrate temperature should be minimum 10°C/50°F and maximum 29°C/85°F. Apply to clean, dry, properly prepared surfaces only. Bare surfaces must be sanded. Do not apply VC Offshore* over non-vinyl antifouling paints. Do not apply VC Offshore* over aluminum. Do not use on aluminum boats, out…

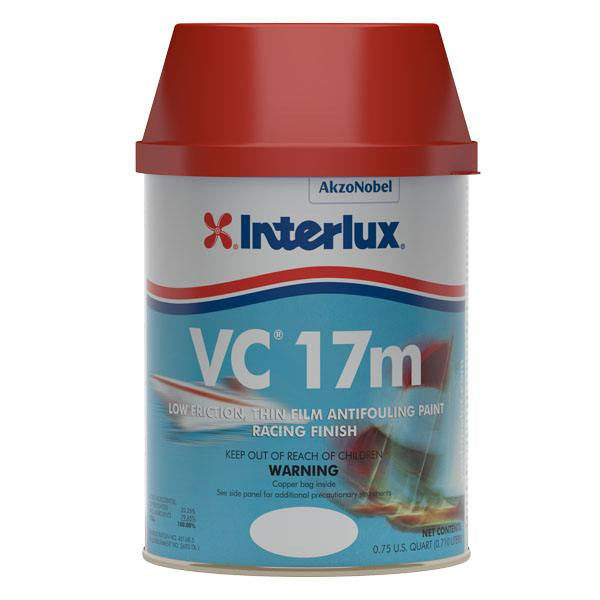

Interlux VC-17M Antifouling Boat Bottom Paint

New Formula as of April 2022 - Biolux is no longer included in the VC17m formula. This new formula is compatible with VC17m Extra and delivers similar performance.

Interlux VC17 Bottom Paint is Only Available for Sale in the following states: NY, PA, OH, MI, WI, MN, IL, IN, SC, MD, CT, ME, MA, RI, NJ, DE, NC, GA, TX, OR, VT, KY, KS, AZ, AL, MS, NH, WV, TN, AR, OK, NV, AK, NE<

Interlux VC-17M is a high-performance antifouling paint. Its specially formulated fluoro micro-additive provides a thin film finish. This additive also reduces both friction and drag. VC17M dries fast to a hard and very smooth surface that is ideal for racing. Interlux VC-17M bottom paint also dries to a smooth finish in far less time than competitor’s products which require days to sand and reapply their product. Additionally, VC17m provides antifouling protection in fresh water or low-fouling salt water, against zebra mussels and other marine organisms known to cause fouling.

Available in quart size and four popular colors, note that Interlux VC-17’s color may change after several weeks of immersion. (See chart below.) Applying VC-17M bottom paint is easy and drying time is minimal. This means less downtime and quicker re-launch of your boat. This product can also be used on inflatables to extend their service life.

Features:

Interlux VC-17m bottom paint provides thin film antifouling protection- ideal for racing sailboats and powerboats

Fluoro micro-additive produces low friction

Ideal for use in fresh and low-fouling saltwater

Also recommended for Inflatables

Pack Size:1 US Quart. Not Available in Gallons.

Colors Available: V105U Original, V106U Blue, V107U Red, V103U Black

Note: Interlux VC 17m changes color after several weeks of immersion.

V105U (Original): At application - copper bronze. Changes to brownish gray.

V106U (Blue): At application - dark copper bronze. Changes to dark blue.

V107U (Red): At application - reddish copper bronze. Changes to bright burnt red.

V103U (Black): At application - dark copper bronze. Changes to black.

Associated Products:

Special Thinner 216 - To ease the application

Fiberglass Solvent Wash 202 - To clean bare fiberglass prior to application

Fiberglass Surface Prep YMA601 - Water-based cleaner for bare fiberglass

Product Compatibility: Interlux VC 17m may be used in tandem with all antifouling paints. For best results from Interlux VC 17m antifouling bottom paint, first, remove all soft paints and any paint in poor condition from the surface to be treated. Hard paints that are in good condition may be overcoated with VC 17m bottom paint, but must be sanded thoroughly to a smooth surface prior to applying VC 17m. To prepare an optimal surface, sand first with 80-grit sandpaper and work successively up the grades to 320-grit sandpaper.

Interlux VC17m

Initially, in the first season and in low fouling, cold saltwater, three coats should be applied, then two coats every season after. For boats in freshwater, apply two coats initially, then one coat every season thereafter.

Application Method: Airless Spray or Roller

Number of Coats: 2 Coats Minimum

Coverage: 91 sq. ft. / quart (roller)

Application Temp: 45°F Min. / 95°F Max.

Thinner: Interlux 216 Special Thinner 10% by volume maximum

Apply VC17m bottom paint using a short nap roller or 4-6-inch airless spray gun (full pressure, 60-70 thou. tip). For ease of application using rollers, add up to 10% thinner to the paint tray. If rolling, use small amounts of paint poured into a steel roller tray. Roll quickly and in one direction only. If using a sprayer, keep the nozzle 6-8 inches from the hull. NOTE: Do not use conventional spray equipment as this may result in dry spray.

Dry Times

Temp

Touch Dry

Overcoating Time

Launch Time

60°F

5 mins

10 mins

20 mins

77°F

3 mins

10 mins

…

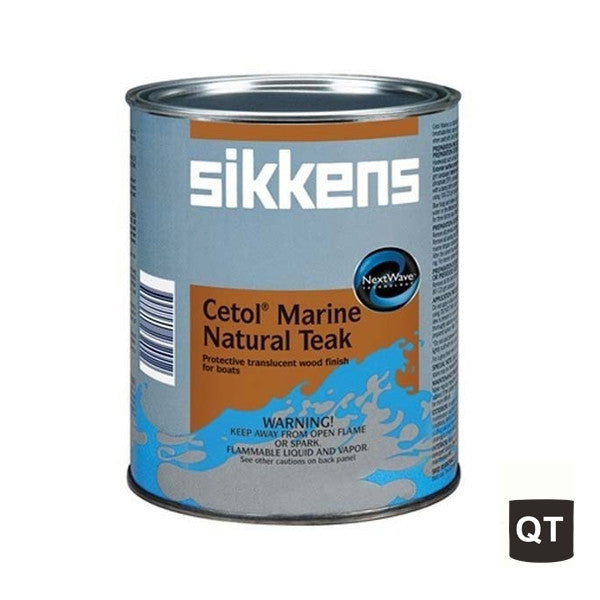

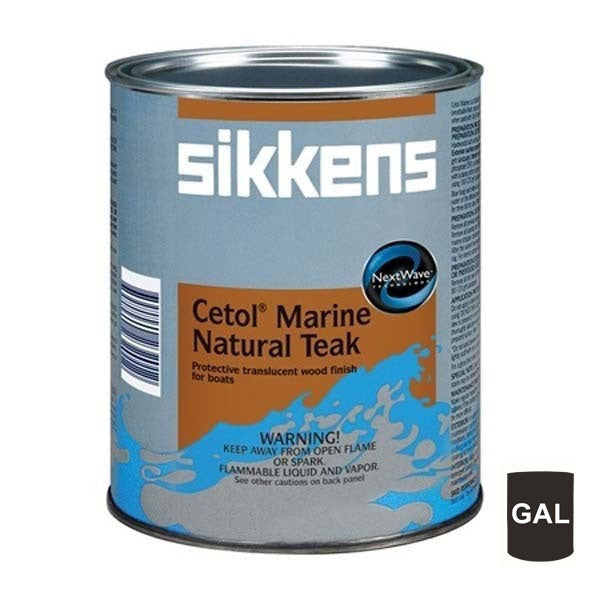

Interlux Sikkens Cetol Marine Natural Teak Finish

Over time, all the potential environmental hazards, such as saltwater, wind, and scorching sun rays, can have their way with teak furniture and decking. Protect your investment with Sikkens Cetol Marine Natural Teak Finish. Cetol Marine’s Natural Teak formula actually enhances the natural wood grain, while its specially formulated UV- absorbing technology provides added protection with a durable, translucent, and protective wood finish. Sikkens Cetol marine natural teak is designed for use above the waterline on all interior and exterior woods. Sikkens Cetol Marine’s proprietary Next Wave technology features a unique UV-absorbing package, made from specialty resins and advanced UV absorbers. These special alkyd resin compounds and high-quality synthetic UV-absorbing pigments combine to create a “sunscreen” for enhanced color retention and wood protection.

• What is Next Wave technology? Next Wave technology is a UV-absorbing formula that acts as a sunscreen, ro protect wood by deflecting the damaging effects of the sun's UV rays. Next Wave will extend the longevity of the wood’s finish and enhance its color retention. The unique UV-absorbing finish in Sikkens Cetol Marine products protects the natural finish of wood and extends the beauty of the finish and the service life of your teak deck or deck furniture. Cetol Marine Natural Teak Finish can be used on exterior and interior hardwoods such as teak, mahogany, and oak. Sikkens Cetol Marine products should only be applied above the waterline. Specifications:

Finish: Satin

Number of Coats:2-3

Coverage:Approx. 360 ft²/gal

How To Apply Sikkens Cetol Marine Natural Teak Finish

Follow preparation procedures

One coat Cetol Natural Teak

Allow 24 hours for drying

One coat Cetol Natural Teak

Allow 24 hours for drying

One coat Cetol Natural Teak

Application: Use a long haired natural bristle brush. Apply in the direction of the grain.

Number of Coats: 3

Application Dos: Apply when temperature is between 50°F and 95°F. Saturate all end grains. Apply liberal coats and maintain a wet edge. For best results, apply in the direction of grain with a long haired natural bristle brush.

Don't apply In direct sunlight or when the surface is hot to touch. Do not apply in wet weather or when moisture content is greater than 18%. Do not apply Sikkens Cetol Natural Teak Finish below the waterline.

Surface Preparation:

New Exterior/Interior Wood:

Wipe the wood with Interlux Special Thinner 216 to remove any natural surface oils and contaminants. Once dry, sand the surface with 180-220 grit sandpaper, always sand along the length of the grain. Remove all sanding dust by vacuuming the surface.

Wipe the surface with Interlux Special Thinner 216 and allow it to dry before applying Sikkens Cetol Marine products.

Note: If the wood is exposed for more than 24 hours, clean the surface again with Interlux Special Thinner 216 in order to remove any surface contaminants

Exterior/Interior - Previously Coated Wood (Non-Cetol Marine Products):

Remove all existing coatings before applying Cetol. To remove old coating, either sand with 120-180 grit sandpaper or use Interlux Inter strip 299E chemical stripper specifically designed for marine use.

Once the previous coating is removed, follow instructions for New Exterior/Interior Wood.

Exterior – Weathered Wood or Previously Oiled Wood:

To ensure proper adhesion of Cetol products on weathered or previously oiled wood, use Interlux Premium Teak Restorer with a nylon scuffing pad as per instructions on label.

Be sure to rinse the wood well with clean water to remove surface dirt and allow it to dry thoroughly. This should be followed by the preparation procedures for New Exterior/Interior Wood.

Blue Fungi and Mildew:

Persistent blue fungi or…

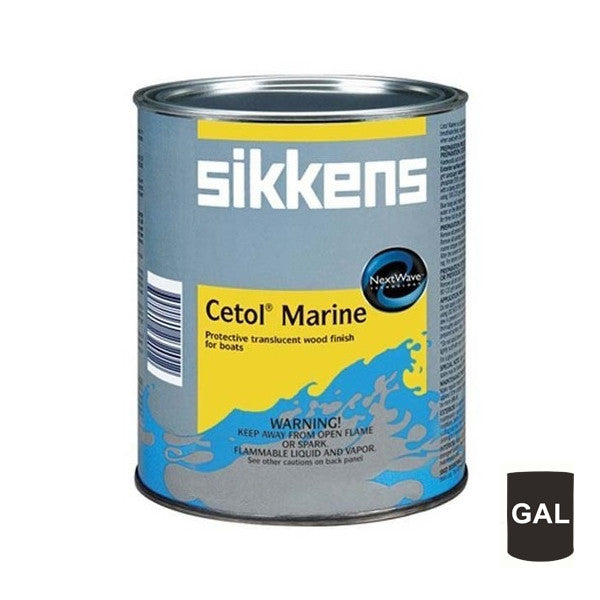

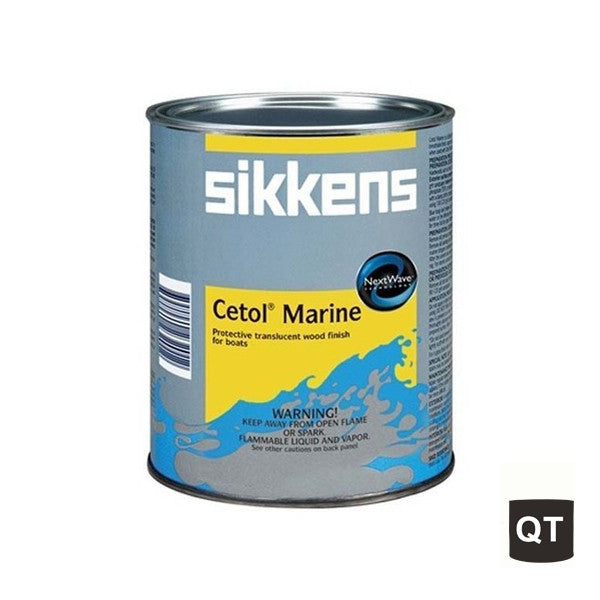

Interlux Sikkens Cetol Marine Wood Finish

Interlux Sikkens Cetol Marine Wood Finish produces an attractive dark amber appearance on wood. Sikkens Cetol Marine is a durable, translucent protective wood finish for use above the waterline on interior or exterior woods. Cetol Marine Finishes feature Next Wave Technology: the next generation of finishes with a unique UV package of advanced ultra violet absorbers that provide greater protection, durability, and longevity. Cetol Marine has excellent weathering properties and is flexible, allowing for the natural expansion and contraction of wood. This easy to apply finish has been specially formulated to protect wood and keep it looking beautiful.

Specifications:

Finish: Satin

Coverage: Approx. 360 ft²/gal.

Number of Coats: 2-3

Suitable for interior and exterior wood applications above the waterline

Produces dark amber appearance

Associated Products:

• Interlux Special Thinner: Clean-up on painted surfaces
• If Cetol Marine is spilled onto a painted surface, use Interlux Special Thinner to clean. Do not allow excess thinner to remain on painted surface.

How to Apply Interlux Sikkens Cetol Marine Wood Finish

Follow preparation procedures

One coat Cetol Marine Finish

Allow 24 hours for drying

One coat Cetol Marine Finish

Allow 24 hours for drying

One coat Cetol Marine Finish

Application: Use a long haired natural bristle brush. Apply in direction of grain.

Number of Coats: 3

Application Do's: Apply when temperature is between 50°F and 95°F. Saturate all end grains and apply liberal coats. Maintain a wet edge and apply in direction of grain.For application, use a long haired natural bristle brush. Don't apply in direct sunlight or when surface is hot to touch. Do not apply in wet weather or when the moisture content is greater than 18%. Sikkens Cetol Marine Finish should not be applied below the waterline.

Surface Preparation Procedures:

New Exterior/Interior Wood:

Wipe the wood with Interlux Special Thinner 216 to remove any natural surface oils and contaminants. Once dry, sand surface with 180-220 grit sandpaper, always sand along the length of the grain. Remove all sanding dust by vacuuming the surface.

Wipe the surface with Interlux Special Thinner 216 and allow to dry before applying Cetol products.

Note: If the wood is exposed for more than 24 hours, clean the surface again with Interlux Special Thinner 216 in order to remove any surface contaminants.

Exterior/Interior – Previously Coated Wood (Non-Cetol Marine Products):

Remove all existing coatings before applying Cetol. To remove old coating, either sand with 120-180 grit sandpaper or use Interlux Inter strip 299E chemical stripper specifically designed f or marine use.

Once previous coating is removed, follow instructions for New Exterior/Interior Wood.

Exterior – Weathered Wood or Previously Oiled Wood:

To ensure proper adhesion of Cetol products on weathered or previously oiled wood, use Interlux Premium Teak Restorer with a nylon scuffing pad as per instructions on label. Be sure to rinse the wood well with clean water to remove surface dirt and allow to dry thoroughly. This should be followed by the preparation procedures for New Exterior/Interior Wood.

Blue Fungi and Mildew:

Persistent blue fungi or mildew may be treated by using Teak Restorer with a nylon scuffing pad as per instructions on label. Be sure to rinse the wood well with clean water to remove surface dirt and allow to dry thoroughly for three full days before applying Cetol Marine products.

Application Procedure:

Follow preparation procedures

Apply one coat of Interlux Sikkens Cetol Marine Wood Finish

Wait 24 hours

Apply second coat of Interlux Sikkens Cetol Marine Wood Finish

Wait 24 hours

Apply third coat of Interlux Sikk…
