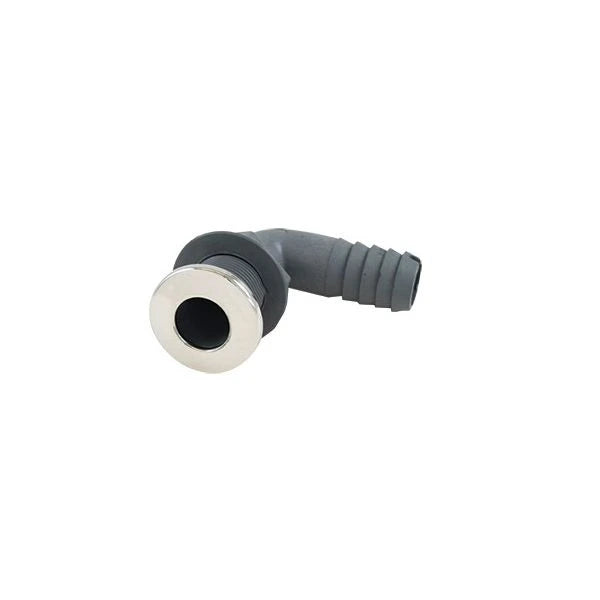

Whitecap Industries 90 Degree Thru-Hull Fitting w/ Barb

Whitecap 90 Degree Thru-Hull Fitting w/ Barb

Whitecap Nylon Thru-Hull Fittings are constructed of high quality nylon and 316 stainless steel. These thru-hulls have a 90 degree angle and include a barb. Whitecap Thru-Hulls are available in a wide range of sizes. See specifications below.

Part #

Hose Size

Flange O.D.

Thread Length

Barb Length

Overall Length

Cut-Out

Max Hull Thickness

S-3807C

5/8"

1-7/8"

1-5/8"

7/8"

3-1/8"

1-5/16"

1-1/4"

S-3808C

3/4"

1-7/8"

1-7/8"

15/16"

3-1/8"

1-5/16"

1-1/4"

S-3809C

1"

1-7/8"

1-5/8"

1-1/8"

3-1/2"

1-5/16"

1-1/4"

S-3810C

1-1/8"

1-7/8"

1-5/8"

1-1/2"

3-1/2"

1-5/16"

1-1/4"

S-3811C

1-1/4"

2-3/8"

1-5/8"

1-1/2"

4"

1-1/2"

1-1/4"

S-3812C

1-1/2"

2-3/8"

1-5/8"

1-1/2"

4"

1-1/2"

1"
