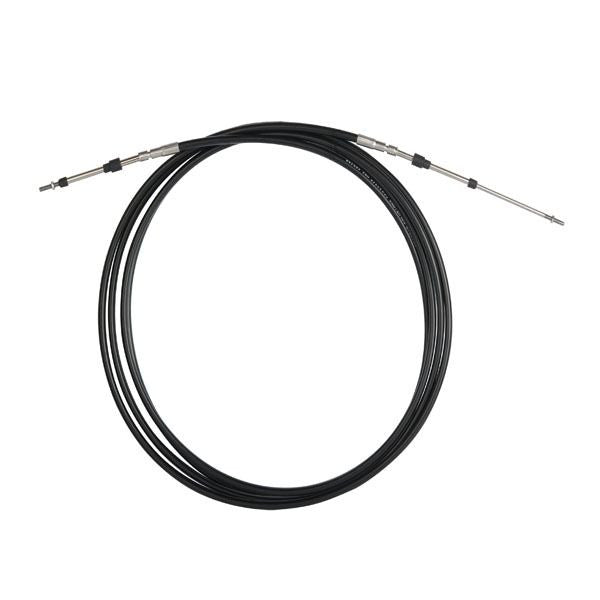

Teleflex Marine Universal Xtreme CCX633 Control Cable 3300/33C Series

SeaStar Universal Xtreme CCX633 Control Cable 3300/33C Series by Dometic

The SeaStar Xtreme CCX633 control cable works with 3300/33C steering systems featuring 10-32 threaded cable ends. Built as a direct Teleflex Marine replacement, these universal cables fit multiple manufacturers including BMW, Honda, Yamaha, and Volvo without requiring expensive adapter kits. The patent-pending splined core technology reduces lost motion and ensures smooth operation, even on complex or lengthy cable runs. Constructed with stainless steel and brass fittings, these cables maintain superior control feel while exceeding ABYC safety standards and meeting ISO/IMCI and NMMA requirements. With a 4-inch minimum bend radius and USA manufacturing, they're suitable for outboards, inboards, and sterndrives in both OEM and aftermarket applications.

Features:

xtreme control cables’ patent-pending splined core allows easy movement and decreased lost motion

Fittings are stainless steel and brass

Designed for a smoother performance and for complex and/or long cable runs

Available in several style options avoiding the need for expensive adaptor kits

SeaStar cables exceed ABYC safety standards & are type certified to ISO/IMCI and NMMA requirements

4" Minimum bend radius

10/32 threaded ends

Made in the U.S.A.

OEM Cross-Reference:

SeaStar Part Number

Johnson/Evinrude Part Number

CCX63320

0776830

CCX63322

0776831

CCX63324

0776832

CCX63326

0776833

CCX63328

0776834

CCX63330

0776835

CCX63332

0776836

CCX63334

0776837

CCX63336

0776838

CCX63338

0776839

CCX63340

0776840

How to Order a Xtreme 3300/33C Control Cable - Measure Twice, Order Once

For a New Installation: Measure the cable routing path from the control head attachment point to the engine connection as follows:

• Outboards

Measure from control along unobstructed cable routing to the center of your outboard.

Add four feet to allow for a loop, which provides unrestricted engine movement.

Round up to the next foot and order the required cable.

Inboards & Sterndrives

Measure from control along unobstructed cable routing to shift and/or throttle connection.

Round this dimension up to the next foot and order the required cable part.

SeaStar Xtreme control cables are universal replacement cables. For Replacement of Existing Cable: If you removed the old cable, measure for replacement cable as follows:

Measure from tip to tip and round up to the next foot if necessary (aftermarket cables are sold in foot increments up to 30 feet; after that, they are only sold in even foot increments).

The control cable part number contains its lengths. For example, SeaStar Solutions cables are usually listed as CCXX, where XX=length in feet.

Frequently Asked Questions

• What engines and control systems is this cable compatible with? The CCX633 is designed for 3300/33C series control systems with 10-32 threaded cable ends. It fits outboards, inboards, and sterndrives from a wide range of manufacturers including Honda, Yamaha, and Volvo, without requiring separate adapter kits. It also cross-references to a number of Johnson/Evinrude OEM part numbers. (See the cross-reference chart on the product page.)
• Is this cable a direct replacement for Teleflex Marine cables? Yes. This is a direct Teleflex Marine replacement. SeaStar Solutions acquired Teleflex Marine and has since been acquired by Dometic Group. The CCX633 supersedes the older Teleflex 3300/33C cables and is fully compatible with existing connection hardware.
• How do I determine what length cable I need? For outboards, measure from your control head along the cable routing path to the center of the outboard, then add 4 feet to allow for a loop that permits unrestricted engin…
