Uflex USA UC128TS VERSION 3 HYD CYL

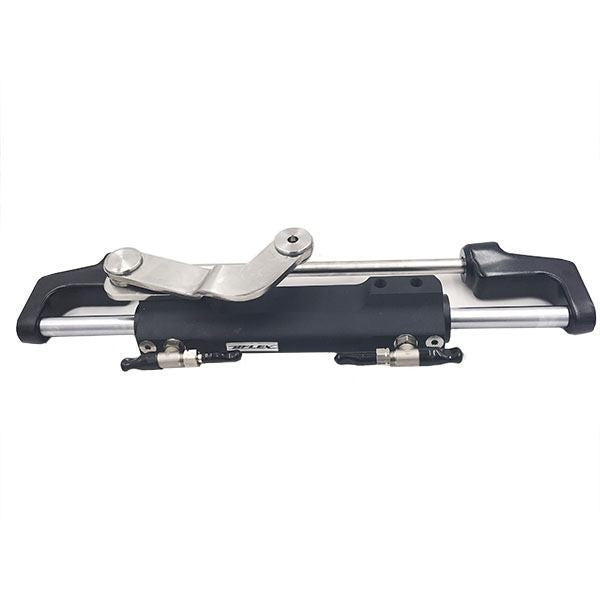

Uflex UC128TS-3 Front Mount Hydraulic Cylinder

This Uflex front mount hydraulic cylinder is designed for easy installation and fits most 2/4 stroke outboard engines on the market. Uflex's ULTRABOLT is a stainless steel connection bolt that boasts excellent resistance to corrosion from marine environments. This hydraulic cylinder is balanced so the number of wheel turns lock to lock is equal from port to starboard. The adjustable boss fittings help make this hydraulic cylinder easy to install. It is not recommended to use this hydraulic cylinder in applications where the boat speed exceeds 55MPH (48 knots), or 65MPH (56 knots) in dual engine/cylinder and counter rotation applications; nor is it intended for use in racing applications.

Product Features:

Replaceable End Caps

ULTRABOLT

Adjustable Boss Fittings

Easy Installation

Balanced

Specifications:

Volume: 120CC / 7.3 CU. IN.

Output Force: 992 lbs (450KG)

Internal Diameter: 1.37" (35mm)

Stroke: 7.28" (185mm)

Bleed Fittings: DN5 Quick COnnect

High Pressure Flex Hose Fittings: 3/8"

Application:

Mercury/Mariner

75/90/115 Optimax 2004 - 2018

Honda

BF115/130 4S 1998 - Present
