Uflex USA TILT MOUNT LOW HP STEERING SYS W/TUBE

Uflex Hytech Tilt Hydraulic Steering System

The Hytech hydraulic steering system offers an easy way to install a front mount outboard cylinder without having to remove the engine. This Uflex hydraulic steering system is designed for up to 175HP models. The included UP20T Helm offers 48° range of tilt and five locking positions. The Hytech system is applicable to most 2/4 stroke outboard engines out there. Uflex's Hytech Hydraulic Steering System is an affordable and easy way to replace or upgrade your current boat steering system.

Product Features:

Easy to Install

Boats 175HP and Under

5 turns lock to lock

48° Tilt Range

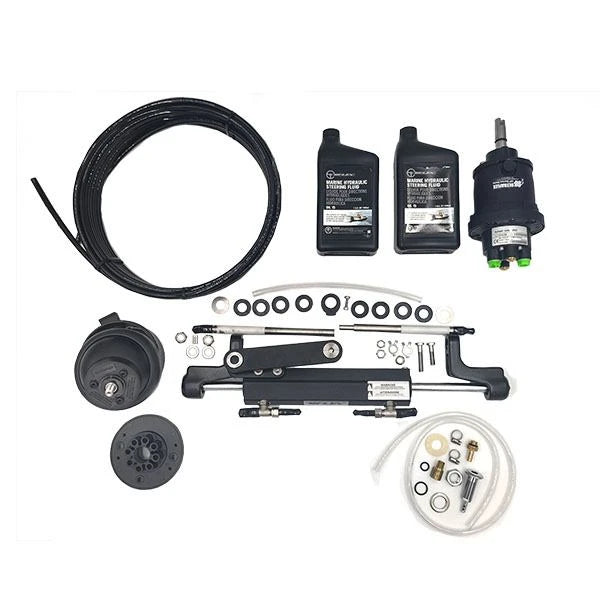

Includes:

UP20T Front Mount Helm Pump

UC95-OBF Front Mount Outboard Cylinder

2 Quarts Hydraulic Oil15

40' TU95 3/8" Nylon Tubing

Hydraulic Fluid Change Kit

Application:

Mercury/Mariner

100/115/150 EFI 2S 1991 - 2007

50/75/90 2S 1990 - 2008

40/50/60 EFI 4S 2004 - Present

75/80/90 EFI 2000 - Present

100/115/150 EFI 4S 2007 - Present

175 V6 4S 2018 - Present

Evinrude

E40/50/55/60 2S 2004 - 2020

E75/90 2S 2004 - 2020

E115/130/135 V4 2S 1995 - 2020

E150/175 V6 2S 1995 - 2020

Yamaha

60/70 S 1984 - 2008

75C/90 2S 1998 - 2008

115C/130B/150F 2S 1990 - 2008

150/175 HPDI VMAX 2S 2000 - 2007

F60/F75/F80 EFI 4S 1999 - 2007

F90/F100/F115/F150 EFI 4S 1999 - 2007

F115/F150/F175 L4 4S 2004 - Present

Honda

BF75/80/90/100 4S 1995 - Present

BF115A 4S 2009 - Present

BF135/150 4S 2005 - Present

BF175 4S 2001 - Present

Suzuki

DF70/80/90 4S 1998 - Present

DF100/115/140 4S 2008 - Present

DF150/175 4S 2006 - Present

Tohatsu/Nissan

115/120/140 2S 2004 - Present

70/90/115 TLDI 4S 2004 - Present

BFT60/75/90/100 4S 2015 - Present

BFT115/150 4S 201 - Present

MFS 50/60/75/90/100/115 4S 2018 - Present

Johnson

BJ90/115/140 4S 2001 - 2007

BJ70 4S 2001 - 2007

J90/115 BV4 2S 1995 - 2007

J150/175 V6 2S 1995 - 2007

Frequently Asked Questions

• What is the Uflex Hytech Tilt Hydraulic Steering System used for? The Uflex Hytech Tilt Hydraulic Steering System is designed to replace or upgrade a boat steering system with a front mount outboard cylinder. It provides an installation method that does not require removing the engine and is designed for outboard models rated up to 175HP.
• What is included with the Uflex Hytech Tilt Hydraulic Steering System? The system includes a UP20T Front Mount Helm Pump, UC95-OBF Front Mount Outboard Cylinder, 2 quarts of Hydraulic Oil15, 40 feet of TU95 3/8-inch nylon tubing, and a hydraulic fluid change kit.
• What are the steering and tilt specifications of the Uflex Hytech system? The Uflex Hytech system provides five turns lock to lock and a 48-degree tilt range. The included UP20T Helm has five locking positions, while the system is designed for boats with outboards rated at 175HP and under.
• Which outboard engines are compatible with the Uflex Hytech Hydraulic Steering System? The supplied application information lists compatible Mercury/Mariner, Evinrude, Yamaha, Honda, Suzuki, Tohatsu/Nissan, and Johnson outboard models. Applications vary by horsepower, engine type, and model year, so verify your specific engine against the listed application information before ordering.
• Can the Uflex Hytech system be used with 2-stroke and 4-stroke outboards? Yes. The supplied application information includes both 2-stroke and 4-stroke outboard applications across several manufacturers. Compatibility varies by engine manufacturer, model, horsepower, engine type, and model year, so confirm your specific outboard is included in the listed applications.
• What should I verify before purchasing the Uflex Hytech Tilt Hydraulic Steering System? Verify that your outboard is rated at 175HP or under and compare its manufacturer, model, horsepower, engine type, and model year with the supplied application list. Confirming the specific engine application before ordering helps ensure the Uflex Hytech system is appropriate for your boat…
