Uflex USA HELM PUMP 1.7CU IN.FRONT MOUNT

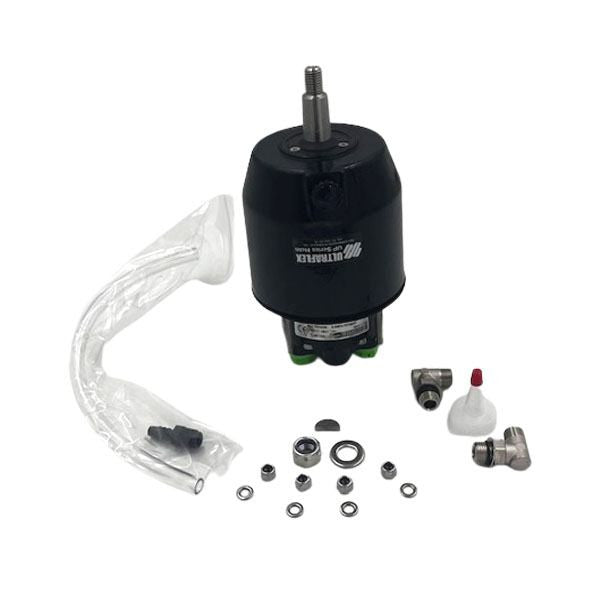

UFlex Front Mount Helm Pump - UP28

This front mount helm pump from UFlex has a built-in lock valve for positive rudder lock, and an integral relief valve for over pressure protection. It has an easily accessible lock valve and shaft seal for replacement. This helm features ball bearing piston race and cast iron rotor for greater durability and a longer life. It requires a X64 square flange or X57 round flange for installation of the pump wih intermediate dashboard position. It comes with 90° adjustable fittings for 3/8" hose. This helm has 3/4" tapered stainless steel shaft. The tilt mechanism is X72 tilt range of 60° and five locking positions.

Specifications:

Front Mount

Displacement/Revolution: 28 cc/1.7 cu in

# of Pistons: 5

Relief of Valve Setting: 70 Bar - 1000 PSI

Maximum Wheel Diameter: 710 MM (28")

Click here for UFlex Front Mount Helm Pump installation instructions.
