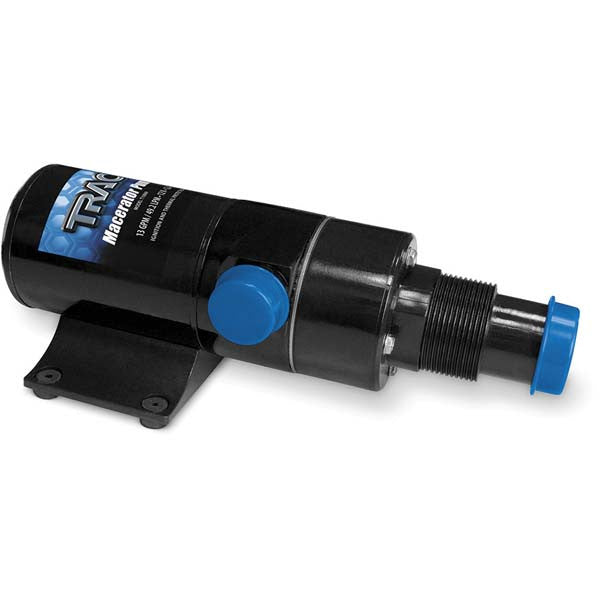

TRAC 69390 Macerator Pump

The TRAC 69390 Macerator Pump is designed specifically for sanitation waste and fish box evacuations. This high-powered pump incorporates a quality motor with a seamless motor tube and O-ring sealed motor end frames. The 13 gallons per minute flow rate conveniently empties any tank in minutes while the high-speed rotary cutter shreds waste efficiently, producing a higher discharge capacity. Additional features include an innovative internal housing design, premium impeller, and a heavy-duty armature shaft seal. The TRAC Macerator Pump is ignition protected and is self priming up to 5 feet.

Pump switch must be near pump and tank so operator can hear pump running. When tank is empty, pump will get louder with a high pitch sound. Immediately turn pump off, or damage to impeller and housing will occur.

Do not run pump dry for more than 15 – 20 seconds

Features:

O-ring sealed motor end frames

Heavy duty armature shaft seal

Manual turn key with rear O-ring seal

Innovative internal housing design

Seamless motor tube

Dual blade design

Premium impeller

Ignition protection

3 year warranty

Specifications:

13 GPM (49.2 LPM)

Self priming to 5'

1.5" Intake hose

12V DC

Replaces old TRAC part T10069
