Trac Outdoor Fisherman 25 F.W. Anchor Winch

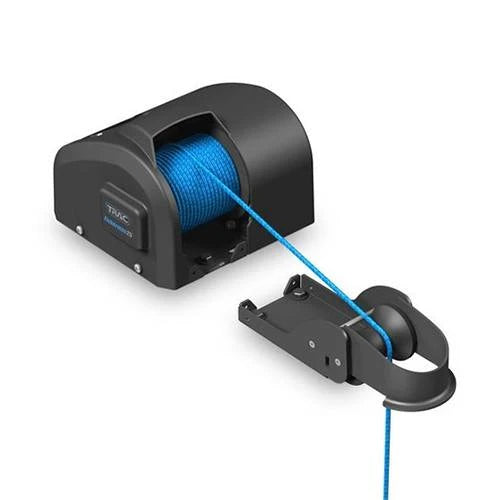

TRAC G3 Fisherman 25 Electric Anchor Winch

The TRAC Fisherman 25 Electric Anchor Winch is perfect for smaller fishing or deck boats to raise and lower your anchor with the press of a button. This winch will power up and down your anchor and has an anti-reverse internal clutch to prevent free-spooling. All TRAC Generation 3 anchor winches offer simple, smooth operation and provide excellent holding power. This winch features a high-efficiency 12-volt DC all-steel gear motor and uses less battery power than other makes. Additionally, the Fisherman 25 winch is designed with a sleek exterior case and has a new smaller footprint.

The TRAC Fisherman 25 Anchor Winch includes 100' of pre-wound double braid anchor rope, a circuit breaker, sealed membrane UP/DOWN switch, marine-grade battery wire, assembly hardware, and instructions. This winch is suitable for fishing boats up to 20'. The Fisherman 25 is backed by TRAC's 1 year manufacturers warranty.

Features:

Provides excellent holding power

Die-cast aluminum gearbox

68 mm heavy-duty DC motor

Smaller footprint than competitors

Sleek exterior case design

Separated davit/roller

1 Year warranty

Specifications:

Suggested Boat Size: Up to 20'

Rope Capacity: 5mm x 100 ft, 6mm x 90 ft

Anchor Deployment: Power Down

Max Rode Weight: 25 lbs.

Rope Speed Up: 70 FPM

Switch Functions: Power UP / DOWN

Amp Draw @ 12V: 8-10 Amps

Winch Dimensions: 9" L x 9" W x 6" H

Deck Space Used: 16" L x 9" W

Replaces old TRAC part number T10108-G3

Click here to download Trac Fisherman 25 Anchor Winch Manual

Tools Required for Installation

Electric Drill

5/16’’ (7.9mm) Drill Bit

9/16’’ (14mm) Socket and Driver

Adjustable (Crescent style) Wrench

Phillips Screw Driver

Materials Required for Installation:

Winch and Anchor Roller (included)

Seven 8mm bolts, washers and nuts (included) – Longer bolts may be required if your deck is very thick.

Shackle for anchor attachment (included)

River or Mushroom anchor (not included – 20 lbs. recommended with a short shank).

Battery Wire and Circuit Breaker (included)

Installing Anchor Winch on Boat Deck:

The anchor winch can be installed on the fore (front) or the aft (rear) of the boat.

Locate anchor roller on deck in desired location.

The anchor roller must be located at the edge of the deck and must be extended over the edge to allow the anchor to clear the deck when it is docked in the anchor roller.

Look below the deck and check for any obstructions underneath the desired anchor roller location.

Make sure there is enough space for the winch to be placed in-line with rope spool centered on the anchor roller.

Remove the 2 Phillips head screws in the rear of the davit assembly to expose the mounting holes. Using a marker, mark the anchor roller and winch mounting holes on the deck.

Remove anchor roller and drill the holes.

Secure the anchor roller to the deck using three 8mm bolts, nuts and washers.

Place winch on boat deck and align the center of the rope spool with the center of the anchor roller.

Look below the deck and check for any obstructions underneath the desired anchor winch mounting location.

To expose the mounting holes, remove the four Phillips head screws that hold the cover on the winch frame and disconnect the white connector for the switch.

Mark and drill the holes. There are four 8mm bolt mounting holes and a hole for the battery lead wires.

Place the anchor winch in position and bolt to the deck. Use fender washers and/or marine plywood under the deck to ensure the greatest strength and to spread the load.

Wiring:

Do not use wire sizes smaller than 14 AWG with 105 degree C rated insulation.

The wires and switch are all properly connected.

You will need to route the battery wires from the winch to battery and connect the RED positive (+) wire to the silver post on the circuit breaker.

The small hole on the buss bar (flat stamped metal part with t…
