Trac Outdoor 12V Digital Circuit Breaker w/ Display

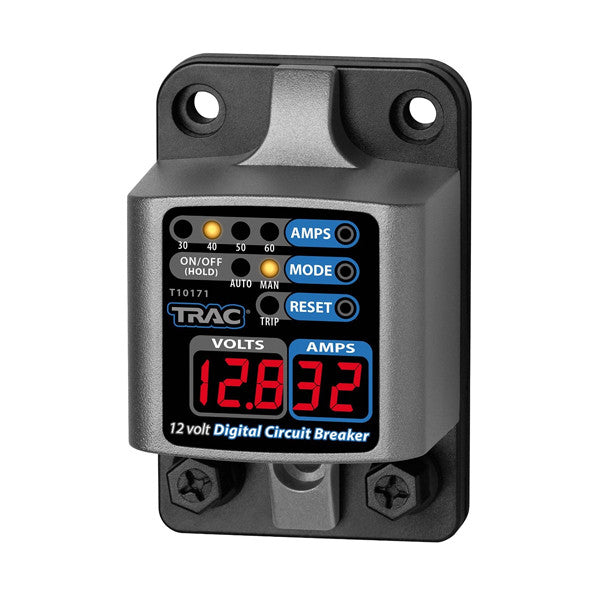

TRAC 12V Digital Circuit Breaker w/ Display Screen

The TRAC Digital Circuit Breaker features a LED numerical display screen that indicates Voltage and Current in real time. The digital capacity measures voltage and current in real time to break the circuit at the user-selected setting. The user-selected circuit break-point is illuminated with high-brightness LED. The circuit interrupt LED shows when the circuit is broken.

Features:

LED numerical display indicates Voltage and Current in real time

Digital capacity measures voltage and current in real time

User selectable circuit break-point is illuminated with high-brightness LED

User selectable auto-resetting or manual reset modes

Circuit interrupt LED to show when circuit is broken

Dedicated reset button

Includes OFF function

Completely sealed and waterproof

Specifications:

10-25 Amp Model:

Dimensions: 3.6" H x 2.3" W x 2.3" D

Circuit Protection in Range: 10/15/20/25 Amps

Wiring: 10 gauge wire (or larger)

Draw: Less than 25 amps

30-6 Amp Model:

Dimensions: 3.6" H x 2.3" W x 2.3" D

Circuit Protection in Range: 30/40/50/60 Amps

Wiring: 8 gauge wiring (or larger)

Draw: Less than 60 amps

Click to Download TRAC Digital Circuit Breaker Installation Instructions
