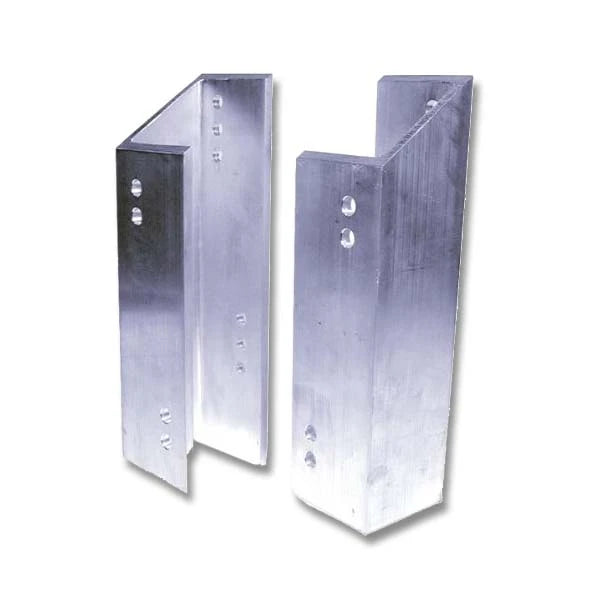

T-H Marine Hi-Jacker Fixed Jack Plate

T-H Marine Hi-Jacker Fixed Jack Plate

This tough 3/8" thick aluminum bracket provides an inexpensive solution to mounting a long shaft outboard to a short transom. Also great as a fixed jack plate for all V6 outboards. Handles all outboards up to 150 hp. Three engine mounting holes and two transom mounting holes combined with a 3" designed lift allows a total of 5 1/2" of lift with a full four (4) inches of setback.

Features:

Inexpensive Short Transom Fix

Solid 3/8" Aluminum Extrusion

3-Engine Mount Holes- 2 Transom Holes

Total Vertical of 5-1/2"- 4" Setback

Options Available:

JP-4FA-DP

150 HP

3/8" Thick

JP-4FAHD-DP

300 HP

1/2" Thick

Frequently Asked Questions

• What is the T-H Marine Hi-Jacker Fixed Jack Plate designed for? The T-H Marine Hi-Jacker Fixed Jack Plate provides a solution for mounting a long-shaft outboard to a short transom. It can also be used as a fixed jack plate for V6 outboards and handles outboard motors up to 150 HP in the JP-4FA-DP configuration.
• How much lift and setback does the T-H Marine Hi-Jacker provide? The Hi-Jacker provides a 3-inch designed lift through its mounting configuration, resulting in a total vertical lift of 5-1/2 inches. It also provides 4 inches of setback.
• What is the T-H Marine Hi-Jacker Fixed Jack Plate made from? The JP-4FA-DP Hi-Jacker is constructed from a solid 3/8-inch-thick aluminum extrusion. The available JP-4FAHD-DP version uses a 1/2-inch-thick construction and is rated for motors up to 300 HP.
• What outboard motors is the T-H Marine Hi-Jacker Fixed Jack Plate rated for? The JP-4FA-DP configuration is rated for outboard motors up to 150 HP. T-H Marine also offers the JP-4FAHD-DP option, which is rated for motors up to 300 HP and uses a 1/2-inch-thick construction.
• What mounting holes does the T-H Marine Hi-Jacker Fixed Jack Plate have? The Hi-Jacker features three engine mounting holes and two transom mounting holes. These mounting points are incorporated into the bracket's design to provide the specified lift and 4-inch setback.
• What T-H Marine Hi-Jacker options are available? Two configurations are listed: the JP-4FA-DP, which is 3/8 inch thick and rated for 150 HP, and the JP-4FAHD-DP, which is 1/2 inch thick and rated for 300 HP. Verify the appropriate configuration for your outboard before installation.
