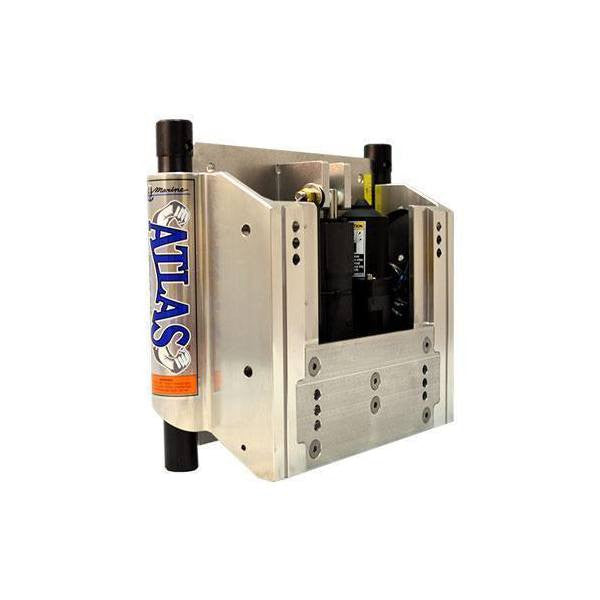

T-H Marine Atlas Hydraulic Jack Plates

T-H Marine Atlas Hydraulic Jack Plates - Standard Series (Up to 300 HP)

T-H Marine's Atlas Hydraulic Jack Plates deliver professional-grade performance for high-output outboards. Designed for V6/V8 engines up to 300 HP, the standard Atlas plate gives you precise engine height control for better hole shot, shallower running, and a smoother ride in a wide range of water conditions.

A self-contained hydraulic system is built directly into the plate, so there are no separate pumps or reservoirs to mount inside the boat. The result is a cleaner installation, fewer potential leak points, and fast operation - raising the engine from bottom to top in about eight seconds.

Atlas plates are a popular choice with boat builders and serious anglers because they combine speed, strength, and long-term reliability in one system.

Key Benefits

Faster hole shot and better lift - Raise or lower the engine to dial in bow attitude and get on plane more quickly.

Improved shallow-water performance - Run the motor higher when idling or easing through flats, stumps, or skinny water.

Smoother, more efficient ride - Fine-tune engine height at cruising speed to reduce drag, improve fuel economy, and tighten handling.

Cleaner, low maintenance setup - Self-contained hydraulics and engineered polymer lift rods are designed for long-term, trouble-free operation with minimal upkeep.

Features

Rated for outboards up to 300 HP or up to 625 lbs dry weight (standard Atlas series)

Self-contained electric-hydraulic system - All pumps and fluid are built into the plate itself, keeping the transom area uncluttered.

One-piece plate with rod-and-slot lifting design - Engineered to handle the demands of modern V6/V8 and four-stroke outboards.

High-tech polymer lift rods - Abrasion-resistant, self-lubricating material for smooth, reliable movement under load.

Multiple setback options - Available in popular setbacks (4" -14") to better match different hulls and engine setups

Pre-drilled for shallow-water anchors - Plates are pre-drilled to accept common shallow-water anchor brackets, simplifying rigging.

Low-maintenance design - Self-lubricating components and sealed hydraulics reduce the need for regular greasing.

Reinforced safety cable - Provides an extra layer of protection by helping secure the engine in the event of a component failure.

Made with U.S.-built hydraulic actuator from a leading name in marine hydraulic design

Compatible Boats & Applications

The standard Atlas Hydraulic Jack Plate is an excellent match for:

Bass boats

Bay and flats boats

Multi-species and walleye rigs

Many deep-V and performance fishing boats

It's ideal anywhere you need fast engine height adjustment, better shallow-water control, and the flexibility to fine-tune performance for different loads and conditions.

What's Included

Each Atlas Hydraulic Jack Plate package typically includes:

Atlas Hydraulic Jack Plate assembly

Pre-wired relay harness

Dash-mount rocker switch

Installation instructions and warranty information

Note: Transom mounting bolts and engine mounting bolts are usually not included. Use marine-grade stainless steel fasteners sized for your specific transom and engine combination.

Installation Notes

The Atlas jack plate is designed for straightforward installation on most outboard transoms. The self-contained hydraulic unit means there are no remote pumps or reservoirs to mount, and the included harness and switch simplify wiring.

Because installation requires lifting and securing the outboard engine and drilling or re-using transom mounting holes, many boaters choose to have the plate installed by a qualified marine technician. Always verify setback length and engine/boat compatibility before purchase.

Atlas Hydraulic Jack Plate FAQs

• What is the difference between the standard Atlas jack plate and the Heavy Duty version? The standard Atlas Hydraulic Jack Plate is designed for most V6/V8 outboards and is rate…
