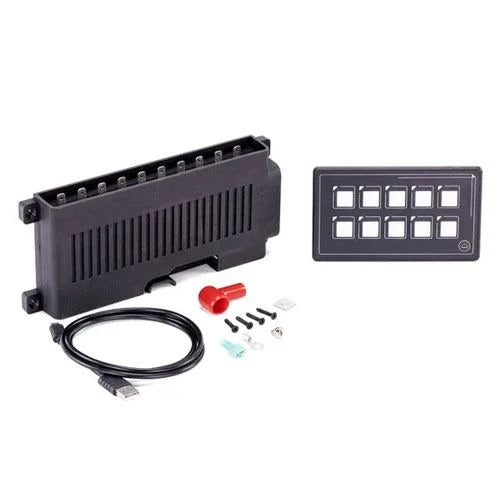

Sierra Panel, 10 Function Touch 12V/24V

Sierra 10 Function Touch Panel 12V/24V SP21030

The Sierra 10 Function Touch Panel is an ultra-compact panel featuring a PET membrane touch panel faceplate designed for harsh marine environments. This panel has programmable buttons that allow each function to be programmed as a latching or momentary circuit. A 60 piece assortment of graphic and text labels is included for easily labeling each button. The Sierra SP21020 is designed to be easy to install. It uses a micro-USB cable instead of bigger, bulkier cables, and requires almost no mounting depth. Its flexible wiring allows the control relay box to remote mount up to 1 meter away from the touch panel.

Features:

Easy to install; almost no mounting depth required

Backlit push buttons allow for easy readability in the dark

LED- ON indication

10A Self-resettable fuse for each function

Uses very low standby current

Faceplate PET membrane touch panel

CE Certified; and Panel is IP 67 Rated

Includes 60 piece assortment of graphic and text labels

Specifications:

Panel Dimensions: 91mm x 75mm

Control Box Dimensions: 136 x 90 x 32mm

Panel Cut-Out: 15mm hole

Circuit Protection: Built-in Resettable Fuse (PPTC)

Switch Ratings: 10A per function at 12VDC

Panel Rating: Max Cumulative Amp: 35A

Voltage Rating: 11-30VDC
