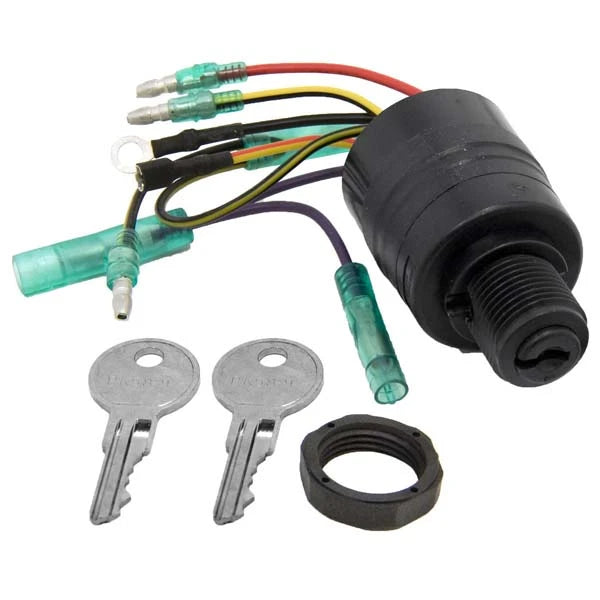

Sierra Switch Ignition Mercury 3 Pos Pot - SIE-MP51090

Sierra MP51090 Mercury Ignition Switch 3 Position

Sierra MP51090 Mercury Ignition Switch replaces Mercury Marine OEM Part # 87-17009A5.

Features:

Exact OEM replacement installation

Heavy duty potted construction

Minimal bleed per circuit

Molded umbrella type key

Push to choke

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential shorts

Specifications:

Back Up Nut: Not Required

Face Nut: Hex Black Plastic

Hole Size: 7/8"

Length: Short: 5/8" maximum panel thickness

Material: Polyester

Rated Choke: 7 Amp @ 12v DC

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Terminal Type: 6 Color Coded Wire Leads/Potted

Switch Positions: Off - Run - Start

TYPE: 3 Position Magneto
