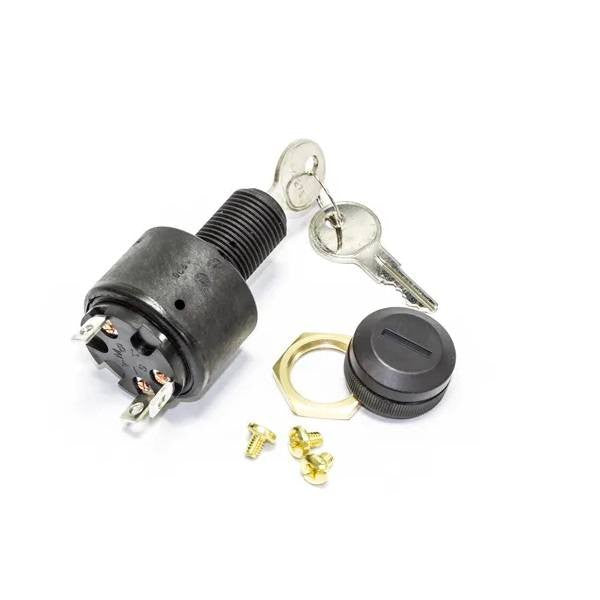

Sierra Switch Ignition 3 Pos Con Cap

Sierra MP41030 3 Position Conventional Ignition Switch

Features:

Back Up Nut: Brass

Face Nut: Knurled Black Plastic with Rubber Cap

Hole Size: 7/8"

Panel Thickness: 5/8" maximum

Material: Marine grade glass-filled Polyester

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Terminal Type: 3 Screw Tab

Switch Positions: Off - Run - Start

Type: 3 Position Conventional

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential short

Interchange:

Seadog

420366-1

Frequently Asked Questions

• What is the Sierra MP41030 3 Position Conventional Ignition Switch used for? The Sierra MP41030 is a 3-position conventional ignition switch with Off, Run, and Start positions. It has a marine-grade glass-filled polyester housing and is rated for 15 amps at 12V DC for ignition and 30 amps at 12V DC for the solenoid.
• What are the mounting requirements for the Sierra MP41030 ignition switch? The Sierra MP41030 requires a 7/8-inch mounting hole and supports a maximum panel thickness of 5/8 inch. It uses a brass backup nut and a knurled black plastic face nut with a rubber cap.
• What type of terminals does the Sierra MP41030 ignition switch use? The Sierra MP41030 uses three screw-tab terminals. The switch has three positions: Off, Run, and Start. Verify the terminal configuration against your existing ignition switch before installation.
• What corrosion protection features does the Sierra MP41030 have? The Sierra MP41030 is designed with maximum corrosion protection to eliminate oxidation. It also has an inner seal between the cylinder lock and contact plate to help protect the switch assembly.
• What is the Sierra MP41030 ignition switch housing made of? The Sierra MP41030 uses a marine-grade glass-filled polyester housing. Its non-conductive housing eliminates potential shorts, according to the product specifications.
• What ignition switch does the Sierra MP41030 interchange with? The Sierra MP41030 is listed as interchangeable with the Seadog 420366-1 ignition switch. Verify the switch specifications and mounting requirements before replacing an existing ignition switch.
