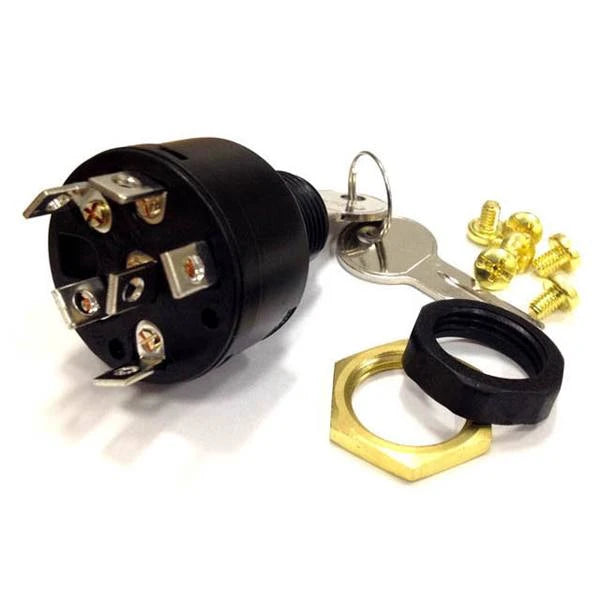

Sierra Switch Ignition 3 Pos Mag Pc - SIE-MP41000

Sierra MP41000 Ignition Switch - 3 Position Magneto

Sierra Marine's replacement engine components are manufactured to meet or exceed OEM requirements. This ignition switch provides maximum corrosion protection and features a non-conductive housing that eliminates potential shorts. It also features an inner seal between the cylinder lock and contact plate.

Specifications:

Push to choke

Back up nut: Brass

Face nut: Hex black plastic

Hole Size: 7/8"

Length: Short 5/8" maximum panel thickness

Material: Marine-grade glass-filled polyester

Rated Choke: 7 Amp @ 12 VDC

Rated Ignition: 15 Amp @ 12 VDC

Rated Solenoid: 30 Amp @ 12 VDC

Terminal Type: 6 Screw tab

Switch Positions: Off - Run - Start

Interchangeable with:

Mercury Marine

87-17393

87-88107

87-88107A5

Mercury Sport Jet

87-88107

87-88107A5

Seadog

420381-1

Frequently Asked Questions

• What is the Sierra MP41000 Ignition Switch - 3 Position Magneto used for? The Sierra MP41000 is a replacement marine ignition switch with three positions: Off, Run, and Start. It features push-to-choke operation, a non-conductive housing, and an inner seal between the cylinder lock and contact plate.
• What are the switch positions on the Sierra MP41000 ignition switch? The Sierra MP41000 has three switch positions: Off, Run, and Start. It also provides push-to-choke operation for applications requiring that function.
• What panel thickness and hole size does the Sierra MP41000 fit? The Sierra MP41000 has a 7/8" hole size and a short 5/8" length with a maximum panel thickness of 5/8". Verify these dimensions against your existing installation before selecting the switch.
• What are the electrical ratings of the Sierra MP41000 ignition switch? The Sierra MP41000 is rated for 7 amps at 12 VDC for the choke, 15 amps at 12 VDC for the ignition, and 30 amps at 12 VDC for the solenoid. It uses a 6 screw tab terminal type.
• What is the Sierra MP41000 ignition switch made from? The Sierra MP41000 uses marine-grade glass-filled polyester for its material. It has a non-conductive housing and an inner seal between the cylinder lock and contact plate.
• Which part numbers are interchangeable with the Sierra MP41000 ignition switch? The Sierra MP41000 is listed as interchangeable with Mercury Marine 87-17393, 87-88107, and 87-88107A5; Mercury Sport Jet 87-88107 and 87-88107A5; and Seadog 420381-1.
