Sierra Switch Ignition

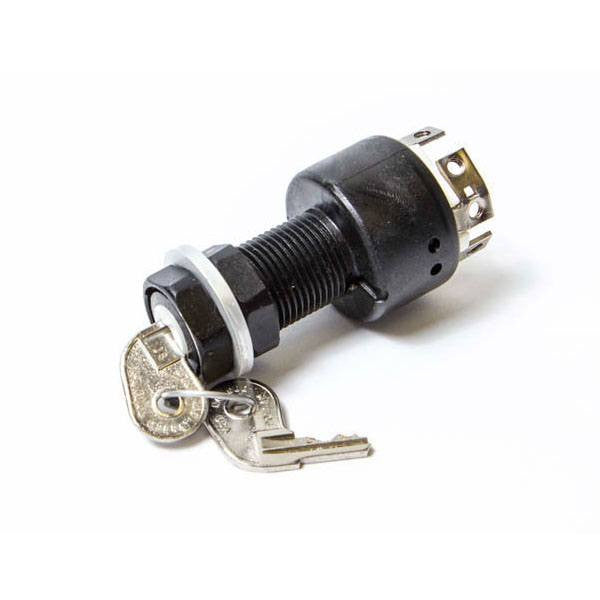

Sierra MP39830 Johnson/Evinrude Ignition Switch

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential shorts

Specifications:

Back Up Nut: Brass

Face Nut: Hex Black Plastic

Hole Size: 7/8"

Length: Long: 1 1/8" maximum panel thickness

Material: Marine grade glass-filled Polyester

Rated Choke: 7 Amp @ 12v DC

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Terminal Type: 6 Screw Tab

Switch Positions: Off - Run - Start

Type: 3 Position Magneto

Interchangeable with:

Johnson/Evinrude Outboard

378238

386545

Seadog

420369-1

Click to Download Sierra MP39830 Installation Instructions
