Sierra Switch Ignition 3 Pos Mag Pc - SIE-MP39760

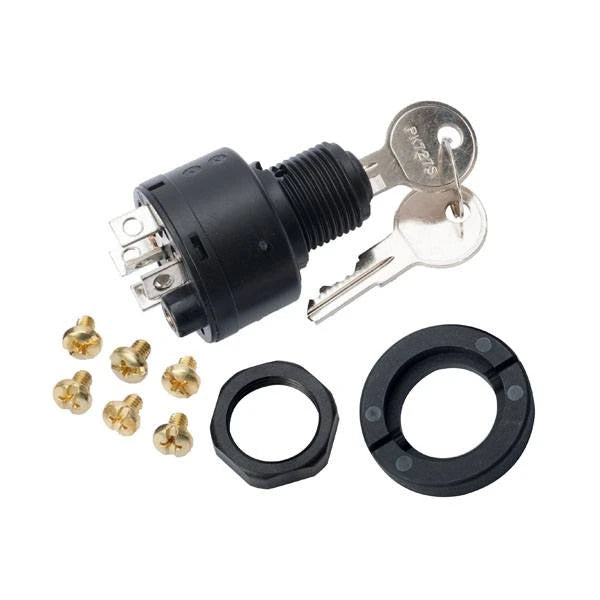

Sierra MP39760 Ignition Switch for Johnson/Evinrude Outboards (3 Position Magneto)

Sierra MP39760 is a replacement ignition switch for Johnson/Evinrude Outboards.

Features:

Push to choke

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential shorts

Specifications:

Back Up Nut: Plastic

Face Nut: Hex Black Plastic

Hole Size: 7/8"

Length: Short: 5/8" maximum panel thickness

Material: Marine grade glass-filled Polyester

Rated Choke: 7 Amp @ 12v DC

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Terminal Type: 5 Screw Tab, 1 Boss Screw

Switch Positions: Off - Run - Start

Type: 3 Position Magneto

Interchangeable with:

Johnson/Evinrude Outboard

393301

508180

Seadog

420382-1

Frequently Asked Questions

• What is the Sierra MP39760 Ignition Switch for Johnson/Evinrude Outboards used for? The Sierra MP39760 is a replacement 3-position magneto ignition switch for Johnson/Evinrude Outboards. It features Off, Run, and Start positions along with a push-to-choke function for the specified application.
• What are the switch positions on the Sierra MP39760 ignition switch? The Sierra MP39760 has three switch positions: Off, Run, and Start. It is a 3-position magneto switch and also includes a push-to-choke function.
• What are the electrical ratings of the Sierra MP39760? The Sierra MP39760 is rated for 7 Amp at 12V DC for the choke, 15 Amp at 12V DC for the ignition, and 30 Amp at 12V DC for the solenoid. It uses a 5 screw tab and 1 boss screw terminal configuration.
• What panel thickness and hole size does the Sierra MP39760 fit? The Sierra MP39760 requires a 7/8-inch mounting hole and has a short length suitable for a maximum panel thickness of 5/8 inch. Verify these dimensions against your existing ignition switch installation before ordering.
• What is the Sierra MP39760 ignition switch made of? The Sierra MP39760 uses a marine-grade glass-filled polyester housing. Its non-conductive housing is designed to eliminate potential shorts, while an inner seal between the cylinder lock and contact plate provides additional protection against oxidation.
• What switches is the Sierra MP39760 interchangeable with? The Sierra MP39760 is interchangeable with Johnson/Evinrude Outboard part numbers 393301 and 508180, as well as Seadog part number 420382-1. Verify your existing part number and application before ordering.
