Sierra Voltmeter Eclipse 2 8-18 Vdc

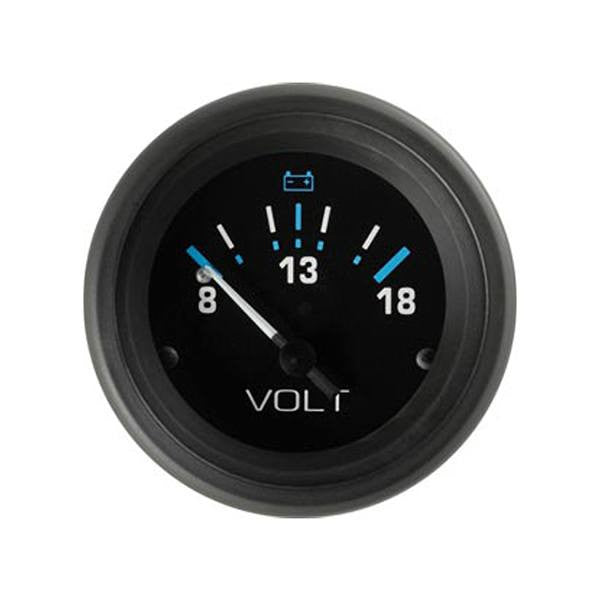

Sierra 68408P Eclipse Series 2" Voltmeter

Smart white and blue graphics on a black dial background, these very low profile bezels follow the curve of the lense to eliminate water trapping. Designed with domed glass sheds water and resists scratching.

Features:

Instruments available for most outboards, sterndrives and gasoline-powerec inboards.

Scratch-resistant domes glass lenses.

Perimeter lighting for excellent readability at night.

U.S. and metric scales, with ISO symbols, where appropriate.

Optional add-on square bezels for modular appearance.

Specifications:

Dial Range: 8-18 VDC

Size: 2"

Sender Code: None Required

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.39

Housing O.D.: 2.08

Hole Size: 2.13

Frequently Asked Questions

• What is the Sierra 68408P Eclipse Series 2" Voltmeter used for? The Sierra 68408P Eclipse Series 2" Voltmeter is designed to display voltage with an 8-18 VDC dial range. It features a black dial with white and blue graphics and is part of an instrument line available for most outboards, sterndrives, and gasoline-powered inboards.
• What voltage range does the Sierra 68408P Voltmeter display? The Sierra 68408P has a dial range of 8-18 VDC and is specified for 12 VDC operation. Its current draw is 0.10-0.15 A.
• Does the Sierra 68408P Eclipse Series Voltmeter require a sender? No. The Sierra 68408P has a sender code of "None Required," so the product description does not specify a separate sender for the voltmeter.
• What are the mounting dimensions of the Sierra 68408P Voltmeter? The Sierra 68408P is a 2-inch gauge with a 2.39-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Verify these dimensions against the available dash opening before installation.
• Does the Sierra 68408P Voltmeter have lighting for nighttime operation? Yes. The Sierra 68408P features perimeter lighting for readability at night. It also uses a scratch-resistant domed glass lens and a low-profile bezel that follows the curve of the lens.
• What are the operating specifications for the Sierra 68408P Eclipse Series Voltmeter? The Sierra 68408P operates at 12 VDC with a current draw of 0.10-0.15 A. Its stated operating temperature range is -40C to +70C, and it has an IP65 ingress protection rating.
