Sierra Water Pressure Kit O/B Eclipse 2 40 Psi

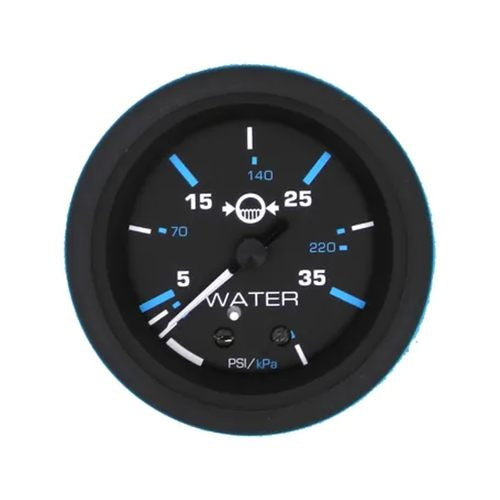

Sierra 68394P Eclipse Series Water Pressure Gauge

Smart white and blue graphics on a black dial background, these very low profile bezels follow the curve of the lens to eliminate water trapping. Designed with domed glass sheds water and resists scratching.

Features:

Instruments available for most outboards, sterndrives and gasoline-powered inboards.

Scratch-resistant domes glass lenses.

Perimeter lighting for excellent readability at night.

U.S. and metric scales, with ISO symbols, where appropriate.

Optional add-on square bezels for modular appearance.

Specifications:

Dial Range: 0-40 PSI

Gauge Description: Outboard Water Pressure Kit, includes fittings and 20 feet of tubing

Size: 2"

Sender Code: Includes ''WP''

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.39

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Eclipse Series

Frequently Asked Questions

• What is the Sierra 68394P Eclipse Series Water Pressure Gauge used for? The Sierra 68394P is a 2-inch outboard water pressure gauge with a 0-40 PSI dial range. The kit includes fittings and 20 feet of tubing and uses a "WP" sender code.
• What is included with the Sierra 68394P water pressure gauge? The Sierra 68394P Outboard Water Pressure Kit includes the 2-inch gauge, fittings, and 20 feet of tubing. The gauge has a 0-40 PSI dial range and a "WP" sender code.
• What applications is the Sierra 68394P water pressure gauge designed for? The Sierra 68394P is part of a gauge line with instruments available for most outboards, sterndrives, and gasoline-powered inboards. This specific model is described as an outboard water pressure kit, so verify your application before installation.
• What are the electrical specifications for the Sierra 68394P? The Sierra 68394P operates at 12 VDC and has a current draw of 0.10-0.15 A. It has an operating temperature range of -40°C to +70°C and an IP65 ingress protection rating.
• What are the mounting dimensions of the Sierra 68394P? The Sierra 68394P has a 2.39-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Verify these dimensions against the available mounting location before installation.
• What features does the Sierra 68394P Eclipse Series gauge have? The gauge has a black dial with white and blue graphics, a scratch-resistant domed glass lens, and perimeter lighting for nighttime readability. It also uses U.S. and metric scales with ISO symbols, where appropriate, and supports optional add-on square bezels.
