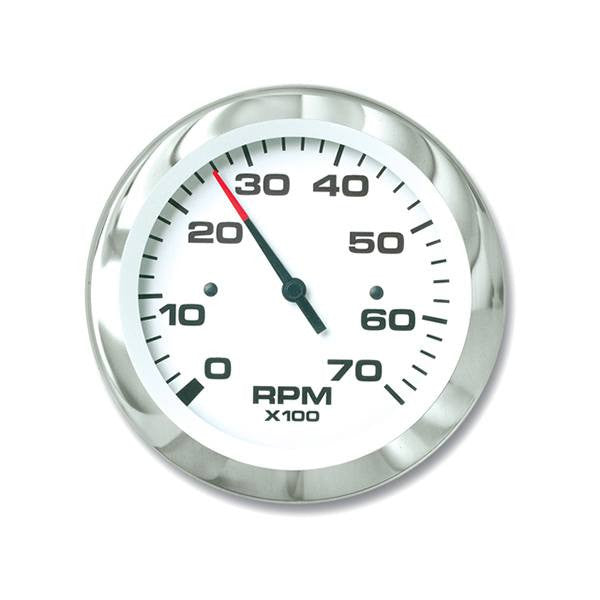

Sierra Tach 7K Lido 3

Sierra 65693P Lido Series Tachometer

The hottest selling white dial line! A comprehensive family of instruments for most engine types.

Features:

White dial, black numerals, black pointer with fire-orange tip.

Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels

U.S. and metric scales, with ISO symbols.

Optional add-on square bezels for modular appearance

White perimeter and red thru-dial lighting.

Specifications:

Dial Range: 0-7000 RPM

Size: 3"

Tachometers (Electric): O/B & 4-Stroke Gas Engines

Sender Code: O/B ALT./COIL

Tachometer: Mariner 30 & 40 HP (2-cylinder) engines require a module (Mercury P/N 17461A2)

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP65

Bezel O.D.: 3.74

Housing O.D.: 3.39

Hole Size: 3.43

Shop All Lido Series

Frequently Asked Questions

• What is the Sierra 65693P Lido Series Tachometer used for? The Sierra 65693P Lido Series Tachometer is an electric tachometer for outboard and 4-stroke gas engines. It has a 0-7000 RPM dial range, operates at 12 VDC, and uses an O/B ALT./COIL sender code.
• What is the RPM range of the Sierra 65693P Lido tachometer? The Sierra 65693P Lido tachometer has a dial range of 0-7000 RPM. The gauge is 3 inches in size, with a 3.74-inch bezel outside diameter, 3.39-inch housing outside diameter, and 3.43-inch hole size.
• Are there any special requirements for using the Sierra 65693P tachometer with Mariner engines? Yes. Mariner 30 and 40 HP 2-cylinder engines require a module when using the Sierra 65693P tachometer. The specified module is Mercury part number 17461A2.
• What are the electrical specifications of the Sierra 65693P Lido tachometer? The Sierra 65693P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its specified operating temperature range is -40°C to +70°C, and it has an IP65 ingress protection rating.
• What design features does the Sierra 65693P Lido Series Tachometer have? The gauge features a white dial, black numerals, and a black pointer with a fire-orange tip. It has a scratch-resistant curved glass lens with a polished stainless steel near-flush bezel, plus white perimeter and red thru-dial lighting.
• Does the Sierra 65693P Lido tachometer use U.S. and metric scales? Yes. The Sierra 65693P Lido Series Tachometer uses U.S. and metric scales with ISO symbols. Optional add-on square bezels are also available for a modular appearance.
