Sierra Water Temperature Lido 2 I/O Ib

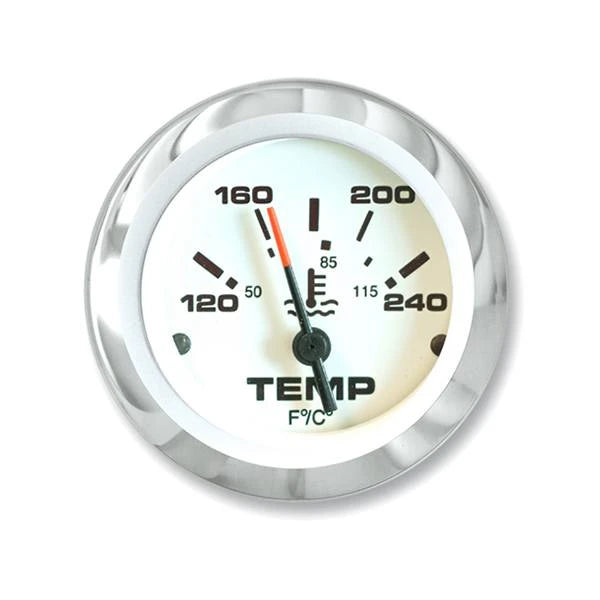

Sierra 65509P Lido Series Water Temperature Gauge

The hottest selling white dial line! A comprehensive family of instruments for most engine types, Lido features crisp white dials and fire orange pointer tips. Red through dial and white perimeter lighting provide great night readability.

Features:

White dial, black numerals, black pointer with fire-orange tip.

Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels

U.S. and metric scales, with ISO symbols.

Optional add-on square bezels for modular appearance

White perimeter and red thru-dial lighting.

Additional Details:

Dial Range: 120-240°F

Gauge Description: Water Temp. Gauge (I/O, I/B)

Size: 2"

Sender Code: Requires ''D''

Operating Temperature: -40C to +70C

Ingress Protection: undefined

Bezel O.D.: 2.34

Housing O.D.: 2.08

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Shop All Lido Series

Frequently Asked Questions

• What is the Sierra 65509P Lido Series Water Temperature Gauge used for? The Sierra 65509P Lido Series Water Temperature Gauge is a 2" water temperature gauge designed for inboard and sterndrive applications. It has a 120-240°F dial range and requires a sender with code "D".
• What is the temperature range of the Sierra 65509P water temperature gauge? The Sierra 65509P has a dial range of 120-240°F. This range allows the gauge to display water temperature readings within the specified temperature scale.
• What are the dimensions of the Sierra 65509P Lido water temperature gauge? The gauge has a 2" size, a 2.34" bezel outside diameter, and a 2.08" housing outside diameter. Verify these dimensions against the available mounting space before installation.
• What sender is required for the Sierra 65509P water temperature gauge? The Sierra 65509P requires a sender with code "D". Verify that the sender in your application matches this specified sender code before using the gauge.
• Does the Sierra 65509P have lighting for nighttime use? Yes. The Sierra 65509P features white perimeter lighting and red thru-dial lighting. The gauge also has a white dial, black numerals, and a black pointer with a fire-orange tip for its Lido Series appearance.
• What are the electrical requirements for the Sierra 65509P water temperature gauge? The Sierra 65509P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its specified operating temperature range is -40C to +70C.
