Sierra Voltmeter Lido 2 8-18 Vdc

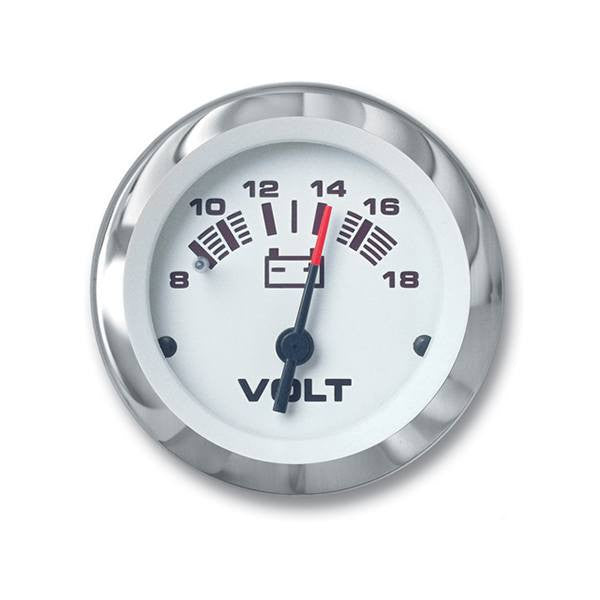

Sierra 65506P Lido Series 2" Voltmeter

The hottest selling white dial line! A comprehensive family of instruments for most engine types, Lido features crisp white dials and fire orange pointer tips. Red through dial and white perimeter lighting provide great night readability.

Features:

White dial, black numerals, black pointer with fire-orange tip.

Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels

U.S. and metric scales, with ISO symbols.

Optional add-on square bezels for modular appearance

White perimeter and red thru-dial lighting.

Additional Details:

Dial Range: 8-18 VDC

Gauge Description: Voltmeter-12 Volt

Size: 2"

Sender Code: None Required

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP65

Bezel O.D.: 2.34

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Lido Series

Frequently Asked Questions

• What is the Sierra 65506P Lido Series 2" Voltmeter used for? The Sierra 65506P Lido Series 2" Voltmeter is a 12-volt voltmeter with an 8-18 VDC dial range. It features a white dial, black numerals, a black pointer with a fire-orange tip, and white perimeter and red thru-dial lighting.
• What voltage range does the Sierra 65506P voltmeter display? The Sierra 65506P has a dial range of 8-18 VDC. The gauge is described as a 12-volt voltmeter and operates at 12 VDC.
• Does the Sierra 65506P voltmeter require a sender? No. The Sierra 65506P does not require a sender. Its specifications list the sender requirement as "None Required."
• What are the dimensions of the Sierra 65506P Lido voltmeter? The Sierra 65506P has a 2" size, a 2.34" bezel outside diameter, a 2.08" housing outside diameter, and a 2.13" required hole size. Verify these dimensions against your intended mounting location.
• Does the Sierra 65506P have lighting for nighttime readability? Yes. The Sierra 65506P features white perimeter lighting and red thru-dial lighting. It also uses a white dial, black numerals, and a black pointer with a fire-orange tip.
• What are the operating specifications for the Sierra 65506P voltmeter? The Sierra 65506P operates at 12 VDC with a current draw of 0.10-0.15 A. Its specified operating temperature range is -40C to +70C, and its ingress protection rating is IP65.
