Sierra Trim Lido 2 J/E Suz 4 Stroke 02

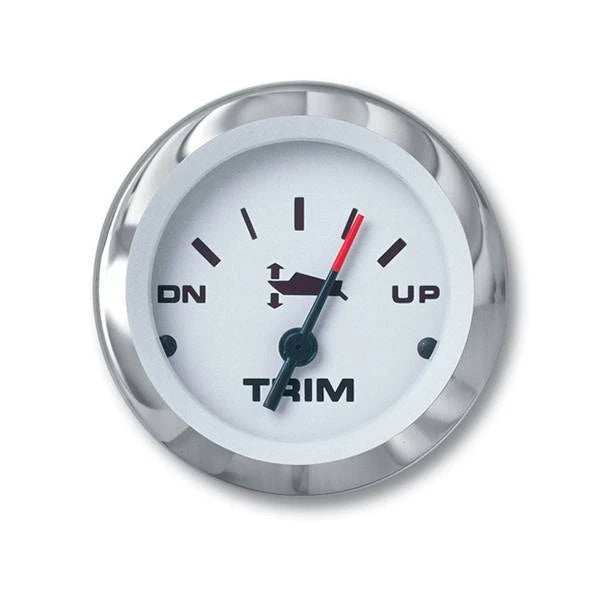

Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge

The hottest selling white dial line! A comprehensive famiily of instruments for most engine types, Lido features crisp white dials and fire orange pointer tips. Red through dial and white perimeter lighting provide great night readability.

Features:

White dial, black numerals, black pointer with fire-orange tip.

Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels

U.S. and metric scales, with ISO symbols.

Optional add-on square bezels for modular apperance

White perimeter and red thru-dial lighting.

Additional Details:

Dial Range: UP-DOWN

Size: 2"

Trim Gauges (Outboard, I/O): Evinrude/Johnson Outboard, Suzuki 4-Stroke 2002 to date

Sender Code: BY ENG. MFR

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP65

Bezel O.D.: 2.34

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Lido Series

Frequently Asked Questions

• What is the Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge used for? The Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge displays trim position using an UP-DOWN dial range. It is listed for Evinrude/Johnson outboards and Suzuki 4-stroke applications from 2002 to date.
• What engines is the Sierra 65502P Lido Series Trim Gauge compatible with? The Sierra 65502P is listed for Evinrude/Johnson Outboard and Suzuki 4-Stroke 2002 to date applications. Verify your engine's requirements before purchasing or installing the gauge.
• What sender does the Sierra 65502P Trim Gauge require? The Sierra 65502P has a sender code of "BY ENG. MFR," meaning the sender specification is determined by the engine manufacturer. Verify the required sender for your specific application before installation.
• What are the mounting dimensions of the Sierra 65502P Trim Gauge? The Sierra 65502P is a 2-inch gauge with a 2.34-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Check these dimensions against the available dash opening before installation.
• Does the Sierra 65502P Trim Gauge have lighting for nighttime operation? Yes. The Sierra 65502P features white perimeter lighting and red thru-dial lighting for night readability. It also has a white dial, black numerals, and a black pointer with a fire-orange tip.
• What are the electrical and environmental specifications for the Sierra 65502P? The Sierra 65502P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its stated operating temperature range is -40C to +70C, and it has an IP65 ingress protection rating.
