Sierra Oil Pressure Lido 2 0-80 Psi

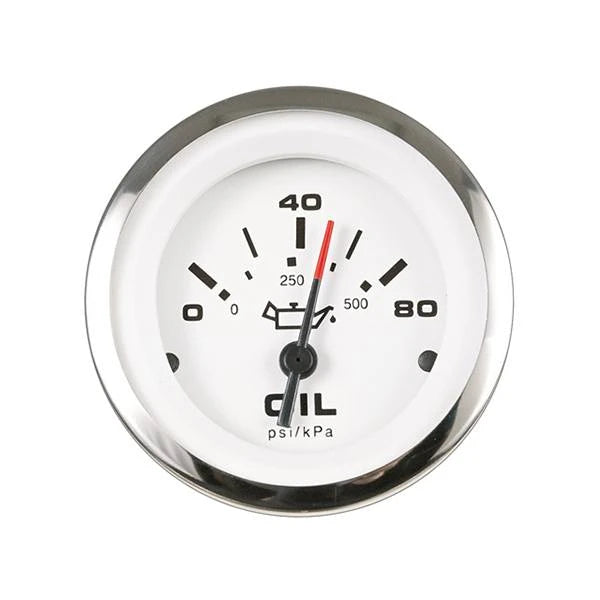

Sierra 65501P Lido Series Oil Pressure Gauge

The hottest selling white dial line! A comprehensive family of instruments for most engine types, Lido features crisp white dials and fire orange pointer tips. Red through dial and white perimeter lighting provide great night readability.

Features:

White dial, black numerals, black pointer with fire-orange tip.

Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels

U.S. and metric scales, with ISO symbols.

Optional add-on square bezels for modular appearance

White perimeter and red thru-dial lighting.

Additional Details:

Dial Range: 0-80 PSI

Size: 2"

Sender Code: Requires ''C''

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.34

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Lido Series

Frequently Asked Questions

• What is the Sierra 65501P Lido Series Oil Pressure Gauge used for? The Sierra 65501P Lido Series Oil Pressure Gauge is a 2" oil pressure gauge with a 0-80 PSI dial range. It uses a sender code that requires "C" and operates at 12 VDC.
• What oil pressure range does the Sierra 65501P gauge display? The Sierra 65501P has a dial range of 0-80 PSI. The 2" gauge is designed to display oil pressure within this specified range.
• What sender does the Sierra 65501P oil pressure gauge require? The Sierra 65501P uses sender code "C" and requires a compatible sender with that code. Verify the sender requirement before installing the gauge in your application.
• What are the main design features of the Sierra 65501P Lido oil pressure gauge? The Sierra 65501P features a white dial, black numerals, and a black pointer with a fire-orange tip. It has a scratch-resistant curved glass lens, polished stainless steel near-flush bezel, and white perimeter and red thru-dial lighting.
• What are the electrical specifications of the Sierra 65501P oil pressure gauge? The Sierra 65501P operates at 12 VDC and draws 0.10-0.15 A. Its specified operating temperature is -40C to +70C, and it has IP65 ingress protection.
• What are the dimensions of the Sierra 65501P Lido Series Oil Pressure Gauge? The Sierra 65501P is a 2" gauge with a 2.34" bezel outside diameter, 2.08" housing outside diameter, and 2.13" hole size. Optional add-on square bezels are available for a modular appearance.
