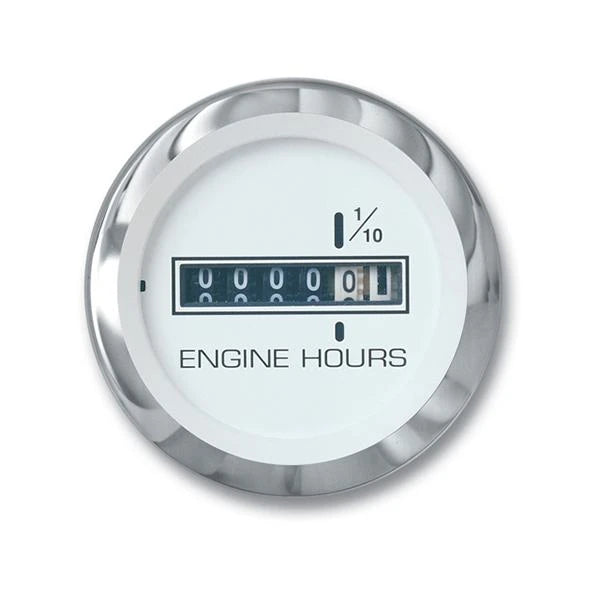

Sierra Hourmeter Lido 2 12-24Vdc

Sierra 65497P Lido Series 2" Hourmeter

The hottest selling white dial line! A comprehensive famiily of instruments for most engine types, Lido features crisp white dials and fire orange pointer tips. Red through dial and white perimeter lighting provide great night readability.

Features:

White dial, black numerals, black pointer with fire-orange tip.

Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels

U.S. and metric scales, with ISO symbols.

Optional add-on square bezels for modular apperance

White perimeter and red thru-dial lighting.

Additional Details:

Dial Range: 10,000 Hrs.

Size: 2"

Sender Code: None Required

Voltage: 12 / 24 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.34

Housing O.D.: 2.01

Hole Size: 2.06

Shop All Lido Series

Frequently Asked Questions

• What is the Sierra 65497P Lido Series 2" Hourmeter used for? The Sierra 65497P Lido Series 2" Hourmeter is designed to track engine operating hours with a dial range of 10,000 hours. It features a white dial, black numerals, and a black pointer with a fire-orange tip for clear readability.
• Does the Sierra 65497P hourmeter require a sender? No. The Sierra 65497P has no sender requirement. Its listed sender code is "None Required," so no separate sender is specified for operation of this hourmeter.
• What voltage does the Sierra 65497P Lido Series Hourmeter use? The Sierra 65497P operates on either 12 VDC or 24 VDC. It has a listed current draw of 0.10-0.15 A, which should be considered when verifying the gauge's electrical specifications for your application.
• What are the dimensions of the Sierra 65497P 2" Hourmeter? The Sierra 65497P is a 2-inch hourmeter with a 2.34-inch bezel outside diameter, 2.01-inch housing outside diameter, and 2.06-inch hole size. Verify the available dash opening against these dimensions before installation.
• Does the Sierra 65497P have lighting for nighttime operation? Yes. The Sierra 65497P uses white perimeter lighting and red thru-dial lighting to provide night readability. It also has a scratch-resistant curved glass lens and a polished stainless steel, near-flush bezel.
• What are the operating temperature and ingress protection ratings of the Sierra 65497P? The Sierra 65497P has a stated operating temperature range of -40C to +70C and an IP65 ingress protection rating. These specifications indicate the environmental conditions and protection rating provided for the hourmeter.
