Sierra Trim Amega 2 Merc Volvo Dp Sx Yam01

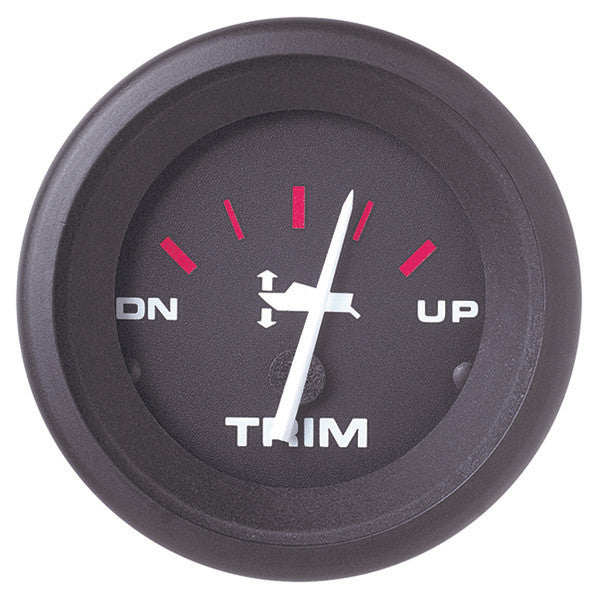

Sierra 57905P Amega Series Mercury Trim Gauge

Hottest selling black dial line! Amega Domed has clean-looking black dials with white and red graphics plus through-dial and perimeter lighting for great readability. Amega has been very popular, available in several styles since its debut in 1986.

FEATURES:

Black dial, red graduations, white numerals, vivid white pointer staff.

Scratch resistant curved glass lenses, with black, near-flush bezels.

U.S. and Metric Scales, with ISO symbols, where appropriate.

Perimeter and thru-dial lighting.

A comprehensive array of outboard water pressure instrument kits.

Optional add-on square bezels for modular appearance.

Specifications:

Dial Range: UP-DOWN

Gauge Description: Mariner/Merc/Cobra/Volvo DP, SX, Yamaha 2001 and on

Size: 2"

Sender Code: BY ENG. MFR

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.39

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Amega Series

Frequently Asked Questions

• What is the Sierra 57905P Amega Series Mercury Trim Gauge used for? The Sierra 57905P Amega Series Mercury Trim Gauge displays trim position with an UP-DOWN dial range. Its listed gauge description covers Mariner/Mercury/Cobra/Volvo DP, SX, and Yamaha 2001 and newer applications. Verify your engine manufacturer's requirements before installation.
• What engines or applications is the Sierra 57905P Mercury Trim Gauge designed for? The Sierra 57905P is listed for Mariner/Mercury/Cobra/Volvo DP, SX, and Yamaha 2001 and newer applications. Its sender code is specified as "BY ENG. MFR," so the appropriate sender is determined by the engine manufacturer.
• What are the electrical specifications for the Sierra 57905P trim gauge? The Sierra 57905P operates at 12 VDC and has a current draw of 0.10-0.15 A. These electrical specifications should be verified against the requirements of your application before installation.
• What are the dimensions of the Sierra 57905P Amega Series trim gauge? The Sierra 57905P is a 2-inch gauge with a 2.39-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Check the available dash opening against these dimensions before installation.
• Does the Sierra 57905P have lighting for nighttime operation? Yes. The Sierra 57905P features both perimeter and thru-dial lighting for readability in low-light conditions. It also uses a scratch-resistant curved glass lens and a black, near-flush bezel.
• What are the operating temperature and ingress protection ratings of the Sierra 57905P? The Sierra 57905P has a stated operating temperature range of -40C to +70C and an IP65 ingress protection rating. These specifications describe the gauge's listed environmental operating range and protection rating.
