Sierra Oil Pressure Amega 2 0-80 Psi

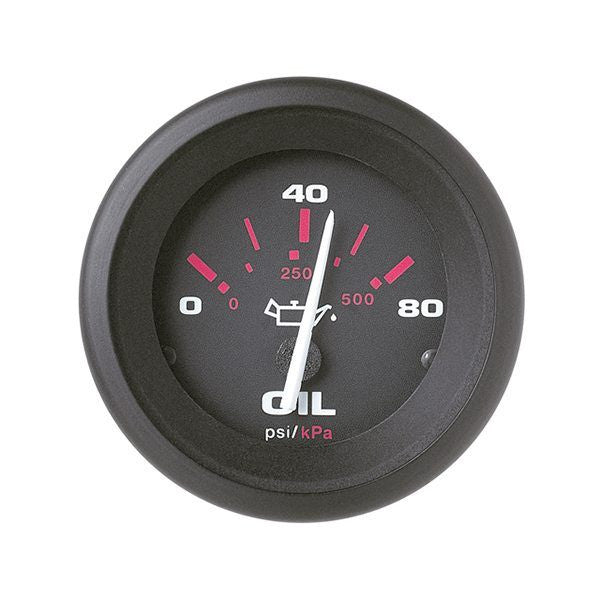

Sierra 57903P Amega Series Oil Pressure Gauge

Hottest selling black dial line! Amega Domed has clean-looking black dials with white and red graphics plus through-dial and perimeter lighting for great readability. Amega has been very popular, available in several styles since its debut in 1986.

FEATURES:

Black dial, red graduations, white numerals, vivid white pointer staff.

Scratch resistant curved glass lenses, with black, near-flush bezels.

U.S. and Metric Scales, with ISO symbols, where appropriate.

Perimeter and thru-dial lighting.

A comprehensive array of outboard water pressure instrument kits.

Optional add-on square bezels for modular appearance.

Specifications:

Dial Range: 0-80 PSI

Size: 2"

Sender Code: Requires ''C''

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.39

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Amega Series

Frequently Asked Questions

• What is the Sierra 57903P Amega Series Oil Pressure Gauge used for? The Sierra 57903P Amega Series Oil Pressure Gauge is designed to display oil pressure with a 0-80 PSI dial range. It features a black dial with red graduations, white numerals, and a vivid white pointer staff.
• What sender does the Sierra 57903P Oil Pressure Gauge require? The Sierra 57903P requires a sender with a "C" sender code. Verify that the sender in your application has the required "C" code before purchasing or installing the gauge.
• What are the mounting dimensions of the Sierra 57903P Oil Pressure Gauge? The Sierra 57903P is a 2-inch gauge with a 2.39-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Verify these dimensions against the available dash opening before installation.
• Does the Sierra 57903P Amega Series Oil Pressure Gauge have lighting? Yes. The Sierra 57903P features perimeter and thru-dial lighting for gauge readability. It also uses a scratch-resistant curved glass lens with a black, near-flush bezel.
• What are the electrical and environmental specifications for the Sierra 57903P? The Sierra 57903P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its stated operating temperature range is -40C to +70C, and it has an IP65 ingress protection rating.
• Can the Sierra 57903P Oil Pressure Gauge use an optional square bezel? Yes. The Sierra 57903P supports an optional add-on square bezel for a modular appearance. The gauge has a black, near-flush bezel as supplied.
