Sierra Voltmeter Amega 2 8-18 Vdc

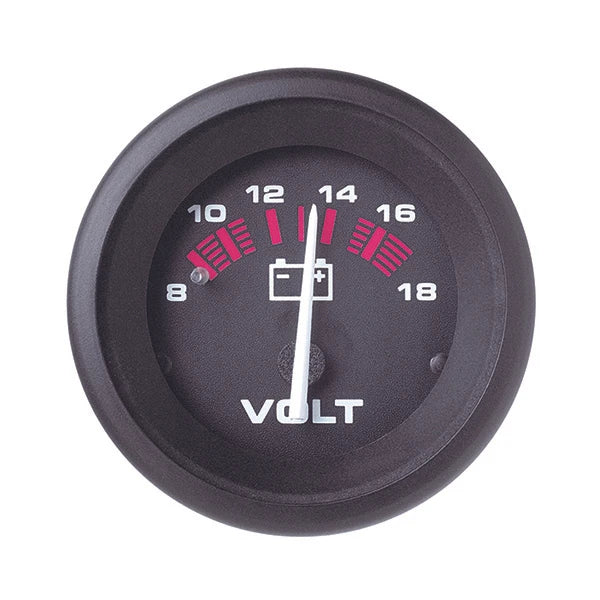

Sierra 57901P Amega Series 2" Voltmeter

Hottest selling black dial line! Amega Domed has clean-looking black dials with white and red graphics plus through-dial and perimeter lighting for great readability. Amega has been very popular, available in several styles since its debut in 1986.

Features:

Black dial, red graduations, white numerals, vivid white pointer staff.

Scratch resistant curved glass lenses, with black, near-flush bezels.

U.S. and Metric Scales, with ISO symbols, where appropriate.

Perimeter and thru-dial lighting.

A comprehensive array of outboard water pressure instrument kits.

Optional add-on square bezels for modular appearance.

Specifications:

Dial Range: 8-18 VDC

Gauge Description: Voltmeter-12 Volt

Size: 2"

Sender Code: None Required

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.39

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Amega Series

Frequently Asked Questions

• What is the Sierra 57901P Amega Series 2" Voltmeter used for? The Sierra 57901P Amega Series 2" Voltmeter is a 12-volt marine voltmeter with an 8-18 VDC dial range. It is designed to display voltage and does not require a sender.
• What voltage range does the Sierra 57901P voltmeter display? The Sierra 57901P has an 8-18 VDC dial range. This 2" voltmeter is specified as a 12-volt gauge and has a current draw of 0.10-0.15 A.
• Does the Sierra 57901P voltmeter require a sender? No. The Sierra 57901P has a sender code listed as none required, so no sender is specified for this voltmeter.
• What are the main design features of the Sierra 57901P Amega voltmeter? The Sierra 57901P features a black dial with red graduations, white numerals, and a vivid white pointer staff. It also has a scratch-resistant curved glass lens, black near-flush bezel, and perimeter and thru-dial lighting.
• What are the electrical and environmental specifications of the Sierra 57901P? The Sierra 57901P operates as a 12-volt gauge with a current draw of 0.10-0.15 A. Its specified operating temperature is -40C to +70C, and it has IP65 ingress protection.
• What are the dimensions of the Sierra 57901P Amega Series Voltmeter? The Sierra 57901P is a 2" gauge with a 2.39" bezel outside diameter, 2.08" housing outside diameter, and 2.13" hole size. Optional add-on square bezels are available for a modular appearance.
