Sierra Water Pump Kit - SIE-18-3392

Sierra 18-3392 Johnson/Evinrude Water Pump Kit with Housing

The Sierra 18-3392 Water Pump Kit is a replacement kit for Johnson/Evinrude Outboards. Sierra replacement engine parts are designed to meet or exceed OEM requirements. Includes housing.

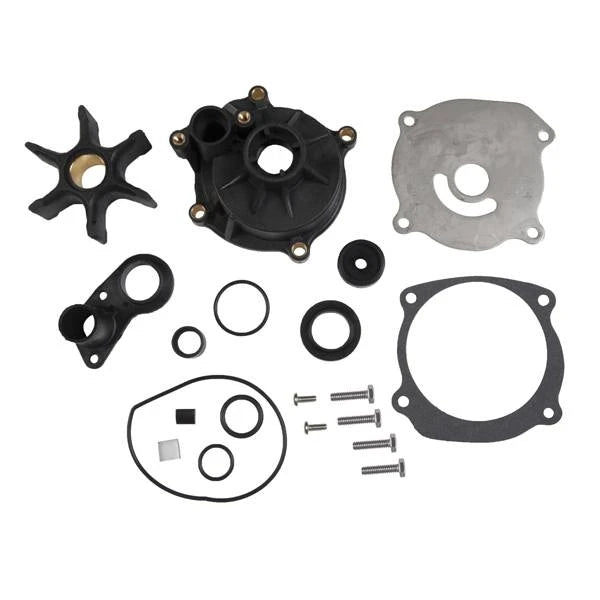

Kit Includes:

(1) 18-3059 - Impeller w/ Key

(1) 18-3348 - Cup & Plate Assy.

(1) 18-3299 - Impeller Key

(1) 18-7158 - O-Ring

(2) 18-3135 - Stainless Steel Screw

(1) 18-2703 - Grommet

(1) 18-2704 - Grommet

(1) 18-2706 - Grommet

(4) 18-3136 - Stainless Steel Bolts

(1) 18-2769 - Rubber Seal

(1) 18-2557 - Impeller Gasket

(4) 18-3133 - Stainless Steel Bolts

Replaces:

GLM

12102

EMP

46-0013

Mallory

9-48203

Johnson/Evinrude

434421

5001594

390768

392750

395062

Applications:

85 1979-95

90 1979-Up

100 1979-Up

100 Comm. 1984-Up

115 1979-Up

125 ESX 25" 1993-94

125 ESX 25" 1994-95

140 1979-Up

150 1979-Up

150 20" 1993 & UP

200 Comm. 1990

225 20" 1993 & UP

235 1979-Up

V4 Cross 20" & 25" 1993 & UP

V4 Loop 20" 1993 & UP

V4,V6,V8 ➄ 1982-94

V6,V8 20" 1993 & UP

Sea Drives 1979-Up

How to Install Sierra 18-3392 Water Pump Kit

Frequently Asked Questions

• What is the Sierra 18-3392 Johnson/Evinrude Water Pump Kit with Housing used for? The Sierra 18-3392 Johnson/Evinrude Water Pump Kit with Housing is a replacement water pump kit for specified Johnson/Evinrude outboard applications. The kit includes the water pump housing along with an impeller, cup and plate assembly, gaskets, seals, grommets, keys, and stainless steel hardware.
• What Johnson/Evinrude outboards does the Sierra 18-3392 water pump kit fit? The Sierra 18-3392 fits the listed 85 HP through 235 HP applications, including specified 100 HP Commercial, 125 HP ESX, 150 HP 20-inch, 200 HP Commercial, and 225 HP 20-inch applications. It also covers specified V4, V6, V8, and Sea Drive applications within the years and configurations listed in the product description.
• What components are included in the Sierra 18-3392 Water Pump Kit? The kit includes an 18-3059 impeller with key, 18-3348 cup and plate assembly, 18-3299 impeller key, 18-7158 O-ring, stainless steel screws and bolts, 18-2703, 18-2704, and 18-2706 grommets, 18-2769 rubber seal, and 18-2557 impeller gasket.
• Does the Sierra 18-3392 water pump kit include the housing? Yes. The Sierra 18-3392 is specifically described as a Water Pump Kit with Housing, and the product description states that the kit includes the housing along with the listed water pump components and hardware.
• What part numbers does the Sierra 18-3392 water pump kit replace? The Sierra 18-3392 replaces GLM 12102, EMP 46-0013, Mallory 9-48203, and Johnson/Evinrude part numbers 434421, 5001594, 390768, 392750, and 395062.
• Does the Sierra 18-3392 fit V4, V6, and V8 Johnson/Evinrude outboards? Yes. The listed applications include V4 Cross and V4 Loop configurations, as well as specified V4, V6, and V8 applications. The description also lists V6 and V8 20-inch applications from 1993 and newer, so fitment should be verified against the specific engine configuration and year before installation.
