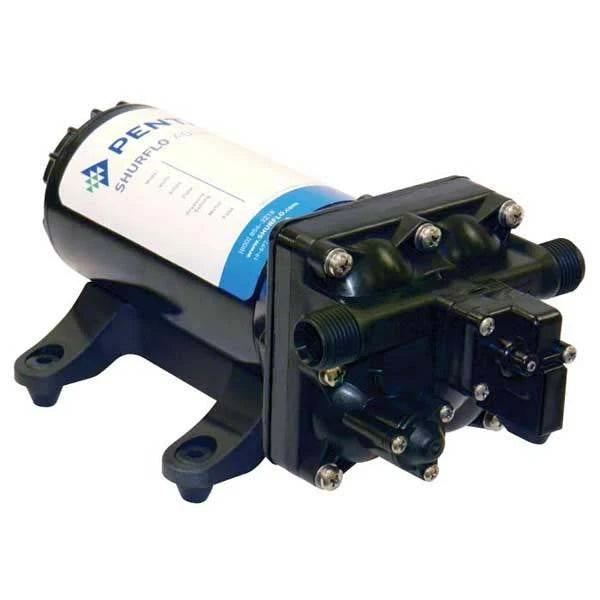

Shurflo Aqua King II Supreme 5.0 Fresh Water Pump

Shurflo Aqua King II Supreme 5.0 Fresh Water Pump

The Shurflo Aqua King II Supreme Fresh Water Pump is designed for boats with multi-fixtures, providing "just like home" pressure. A built-in mechanical bypass function enables this pump to operate at lower flow conditions with minimal cycling. Features a heavy-duty, seamless shell and electro-coated motor to withstand the tough marine environment. O-ring sealed end bells and completely sealed wired entries ensure a long running life. The Aqua King II Supreme pump is self-priming and can run dry without damage. Pump is designed to operate quietly and are easy to install. Includes inlet strainer and two 1/2" hose barb fittings.

Features:

For boats with multi-fixtures

Co-molded diaphragm

Adjustable switch and by-pass

Self-priming up to 6 feet

Dry run capability

Sealed switch and motor

Corrosion-resistant, electro-coated motor

Thermally protected

Ignition Protected 8846

CE, IMCI Certified

3 Year Warranty

Specifications:

Voltage: 12 VDC / 24 VDC

Flow Rate: 5.0 GPM

Dimensions: 10" x 5" x 4.75"

Amps (Max): 13 / 7

Shut-Off Pressure: 55 PSI

Fuse: 20 / 7.5

Replacement for p/n 5901

Click to Download Shurflo Aqua King II Supreme Fresh Water Pump Installation Instructions

Frequently Asked Questions

• What is the Shurflo Aqua King II Supreme 5.0 Fresh Water Pump used for? The Shurflo Aqua King II Supreme 5.0 Fresh Water Pump is designed for boats with multiple fixtures and provides water pressure intended to feel like home. Its built-in mechanical bypass allows operation at lower flow conditions with minimal cycling.
• What is the flow rate and shut-off pressure of the Shurflo Aqua King II Supreme? The Shurflo Aqua King II Supreme has a flow rate of 5.0 GPM and a shut-off pressure of 55 PSI. It is available in 12 VDC and 24 VDC versions, with maximum current draws of 13 amps and 7 amps respectively.
• Is the Shurflo Aqua King II Supreme self-priming and capable of running dry? Yes. The Shurflo Aqua King II Supreme is self-priming up to 6 feet and has dry-run capability. The product description states that it can run dry without damage.
• What fittings are included with the Shurflo Aqua King II Supreme? The Shurflo Aqua King II Supreme includes an inlet strainer and two 1/2" hose barb fittings. The pump also features a sealed switch and motor for its marine application.
• What features protect the Shurflo Aqua King II Supreme in a marine environment? The Shurflo Aqua King II Supreme features a heavy-duty seamless shell, corrosion-resistant electro-coated motor, O-ring sealed end bells, and completely sealed wired entries. It is also thermally protected and ignition protected to 8846.
• What are the dimensions and fuse requirements for the Shurflo Aqua King II Supreme? The Shurflo Aqua King II Supreme measures 10 inches x 5 inches x 4.75 inches. The listed fuse ratings are 20 amps for the 12 VDC version and 7.5 amps for the 24 VDC version.
• What pump does the Shurflo Aqua King II Supreme replace? The Shurflo Aqua King II Supreme Fresh Water Pump is listed as a replacement for part number 5901.
