Shakespeare Antennas 4ft Quick Connect

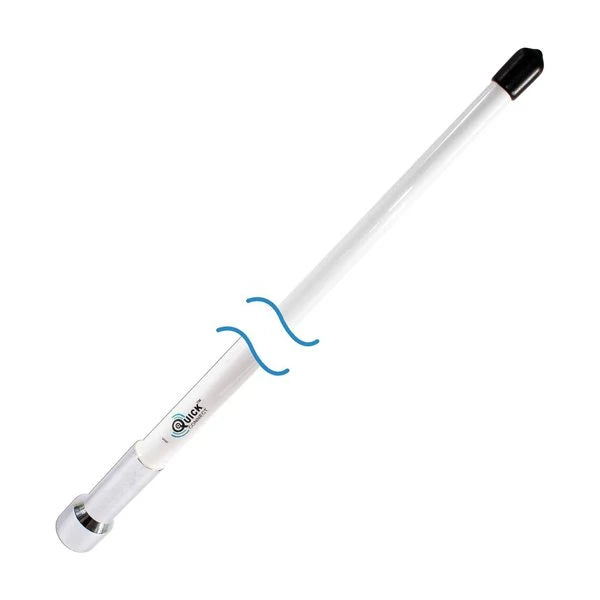

Shakespeare 4' Quick Connect VHF Antenna

The Shakespeare 4' Quick Connect VHF Antenna features a splash protection cap to protect the connector on the mount when the antenna is disconnected. The standard mount design allows you to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount. With a quick connect system, it allows you to screw or unscrew the antenna to disconnect or connect. The high quality connection makes it so that no noise is generated due to vibrations.

Features:

Splash Protection Cap To Protect The Connector On The Mount When Antenna Is Disconnected

Standard Mount Designed To Easily Upgrade To A High-End Shakespeare Antenna Without Purchasing A New Mount

Quick Connect System, Screw Or Unscrew Antenna To Disconnect Or Connect

High Quality Connection So That No Noise Is Generated Due To Vibrations

Centerpin PL-259 Connector Is An Easy Crimp-On Type Connector

2 Year Warranty

Note: Mount Required. Can Only Be Used With Quick Connect Mounts.

Specifications:

Color/Finish: White Fiberglass

Bandwidth: 5 MHz Within 2.0:1 VSWR

Band: VHF Marine Band

Antenna Gain: 3dB

SWR: Nominally 1.3:1 At 156.8 MHz

Max. Input Power: 50 Watts

Ferrule: Chrome-Plated Brass

Impedance: 50 Ohms (With QC Mount Attached)

DC Ground: No DC Ground - The Antenna Will Read Open On Continuity Test

Polarity: Vertical

Coax Supplied: None

Connector Supplied: None
