Shakespeare Antennas Am Fm 3' W/1"-14 Thrd

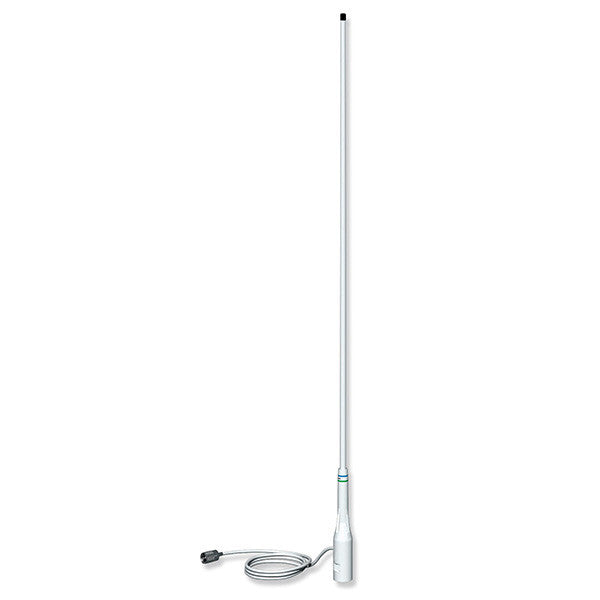

Shakespeare 4351 3' AM/FM Boat Antenna with 1"-14 Thread

Enjoy your favorite stations even when you're far from shore. The Shakespeare 4351 AM/FM Antenna is a one-piece, AM/FM antenna with 3' of overall length with cable. This antenna has a 1" 14 thread ferrule for mounting (mounts sold separately). Brass and copper elements provide standard range and reception. The smooth, durable, high-gloss white fiberglass finish prevents yellowing.

Features:

Classic AM/FM antenna

Nylon ferrule

Includes 10' RG-62 coax with Motorola plug

2 year warranty

Recommended mounting options: 4187 or 4186

Specifications:

Frequency: 550-1600 KHz, 88-108 MHz

Bandwidth: N/A

SWR: N/A

Impedance (Ohms): 93

Gain: N/A

Max. Input (Watts): N/A

DC Ground: N/A

Termination: 10' RG-62 cable, Motorola Plug

Height (feet): 3

Polarization: Vertical

Radiation pattern: Omni-directional

How to Install Shakespeare 4351 Antenna

Choose a mounting location that is a s free as possible from obstructions, and as far as possible from other antennas and sources of RF. It should also be within reach of the supplied cable.

Mount the antenna using a suitable mount (see above).

Follow the instructions included with the mount.

The antenna can be mounted self-supporting using the recommended mounts.

Route the cable to your AM/FM radio.

This antenna does not require an external grounding system, and works equally well on fiberglass ,wood, or metal boats.

Click to Download Shakespeare 4351 Antenna Installation Instructions
