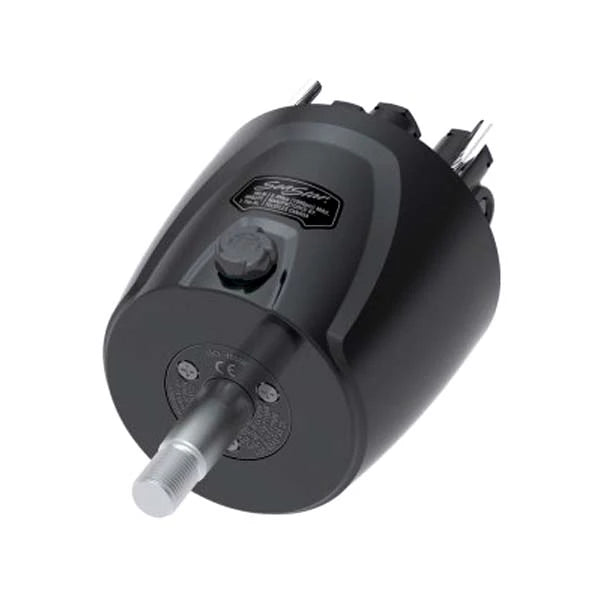

Teleflex Marine SeaStar Standard Hydraulic Helm

SeaStar Standard Hydraulic Steering Helm

Hydraulic steering is a must to handle high-speed boats with high-torque engines. It enables optimal yet safe performance. As part of the steering system, the helm is made of two components- a hydraulic pump and a valve system to pump steering fluid through the hydraulic lines. As the industry leader, SeaStar helms enable steering that offers both comfort and control. Superior design, precision manufacturing, and rigid quality control from SeaStar results in an outstanding product.

SeaStar Steering Helm Features and Benefits:

Available in 1.7, 2.0, and 2.4 cubic inch displacements

Convenient front of dash fill

Small 3.0” hole cutout on dash

Can be retrofitted into old SeaStar 4.5” hole cutout (part number HA5418)

HELM DESCRIPTION

MOUNT TYPE

PART NO

DISPLACEMENT

RELIEF VALVE SETTINGS

CU.IN/REV

CC/REV

PSI

BAR

SEASTAR 1.4

FRONT

HH5269

1.4

23.0

1000

70

SEASTAR 1.7

FRONT

HH5271

1.7

27.8

1000

70

SEASTAR 2.0

FRONT

HH5273

2.0

32.8

1000

70

SEASTAR 2.4

FRONT

HH5272

2.4

39.3

1000

70

SEASTAR PRO

FRONT

HH5779

1.7

27.8

1500

103

SEASTAR PRO

FRONT

HH5770

2.0

32.8

1500

103

SEASTAR PRO

FRONT

HH5772

2.4

39.3

1500

103

Dimensions:

Frequently Asked Questions

• What is the SeaStar Standard Hydraulic Steering Helm used for? The SeaStar Standard Hydraulic Steering Helm is a component of a hydraulic boat steering system. It combines a hydraulic pump and valve system to move steering fluid through the hydraulic lines, providing steering control for boats using compatible hydraulic steering systems.
• What displacement options are available for the SeaStar Standard Hydraulic Steering Helm? The SeaStar Standard Hydraulic Steering Helm is available in 1.4, 1.7, 2.0, and 2.4 cubic inch per revolution displacements. The standard SeaStar models are HH5269 at 1.4 cu. in., HH5271 at 1.7 cu. in., HH5273 at 2.0 cu. in., and HH5272 at 2.4 cu. in.
• What dash cutout is required for the SeaStar Standard Hydraulic Steering Helm? The SeaStar Standard Hydraulic Steering Helm uses a small 3.0-inch hole cutout on the dash and features a convenient front-of-dash fill. It can also be retrofitted into an older SeaStar 4.5-inch hole cutout using part number HA5418.
• What is the relief valve setting of the standard SeaStar hydraulic steering helms? The standard SeaStar hydraulic steering helms listed have a relief valve setting of 1,000 PSI, or 70 BAR. The 1.4, 1.7, 2.0, and 2.4 cubic inch models all use this listed relief valve setting.
• What are the SeaStar Standard Hydraulic Steering Helm part numbers? The SeaStar Standard Hydraulic Steering Helm part numbers are HH5269 for the 1.4 cu. in. model, HH5271 for the 1.7 cu. in. model, HH5273 for the 2.0 cu. in. model, and HH5272 for the 2.4 cu. in. model. All four are front-mount helms.
