Teleflex Marine Baystar Hydraulic Kit W/O Tube (SS HK4300A-3)

SeaStar BayStar Hydraulic Steering Kit without Hydraulic Hoses

If you are noticing issues with your steering, and it is harder to maneuver, it may be time to repair your hydraulic steering system. When it comes to repairing or upgrading your steering systems, the Baystar Hydraulic Steering kit has everything you need. This kit is ISO compliant and manufactured with only the highest quality materials.

The Baystar Hydraulic Steering kit is designed with a low-friction helm, compact balanced cylinder and comes with hydraulic oil, tubing, and filler kit. It is a perfect choice for smaller motor wells. The Baystar steering kit is rated for single outboard engines up to 150HP with ABYC standard engine tilt tubes. It is not designed for faster, higher-performance boats. This kit does not include hydraulic hoses, see below to view the available kits.

NOTE: BayStar is not intended for high speed, high performance type boats, such as bass boats.

Supersedes HK4300A-3

Features:

Patented No Feedback Steering lock valves

5 Turns lock-tolock

Fixed cylinder

Use with SeaStar Hydraulic Hose Kits (sold separately)

BayStar hydraulic tubing cut to suit application

Requires 3" cut-out hole in dash

Requires 21" splashwell width

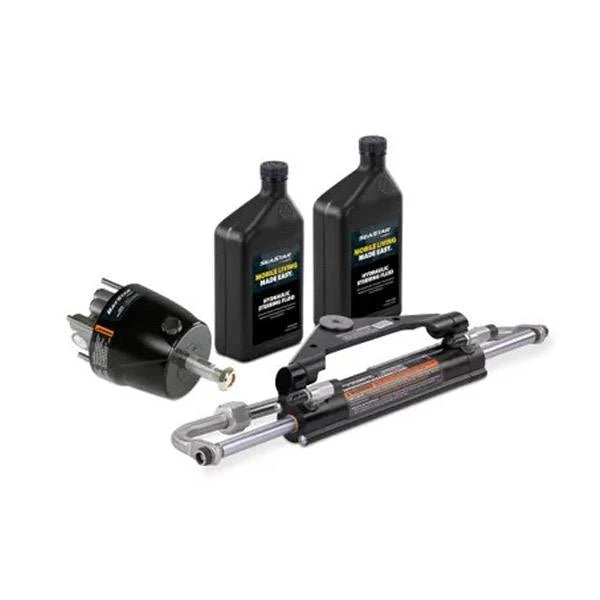

BayStar Steering Kit HK4300-4 Includes:

(1) HA5438 Helm Fill Kit

(2) HA5430H 1qt Hydraulic Steering Fluid

(1) HH4314-3 Baystar Helm 1.4 Front Mount Orb

(1) HC4645-3 BC Cylinder Compact Orb

Note: This kit does not include hoses or tubes. You are able to choose a SeaStar hose kit that fits your desired length.

Application Chart:

Manufacturer

Year

Model

Force

1985 - Current

90-150 HP

Honda

1992 - Current

30-90 HP

2001 - Current

150 HP

2003 - Current

BF 135 HP

2010 - Current

115-150 HP

Johnson/Evinrude

1991 - Current

40-150 HP

1997 - Current

75-150 HP FICHT

Mercury/Mariner

1984 - Current

75-150 HP

Nissan

1990 - Current

120-140 HP

Suzuki

1986 - Current

150 HP

1987 - 2002

115-140 HP*

1990 - 2002

90-100 HP

1998 - Current

40-70 HP 4-Stroke*

Tohatsu

1990 - Current

40-140 HP

Yamaha

1998 - Current

40-50 HP*

1998 - Current

60 HP*

1986 - Current

70-90 HP*

1997 - Current

80-150 HP 4-Stroke

2014 - Current

115B 4-Stroke

Yanmar

1990 - Current

27-36 HP

*Applications with an asterisk may require a spacer kit or for the engine clamp brackets to be cut or ground. Please refer to the Owners Manual linked below for more information regarding these specific applications.

Click to Download Teleflex Baystar Hydraulic Steering Kit Owners Manual/Installation Instructions
