Teleflex Marine O/B Fm Pp Cylinder

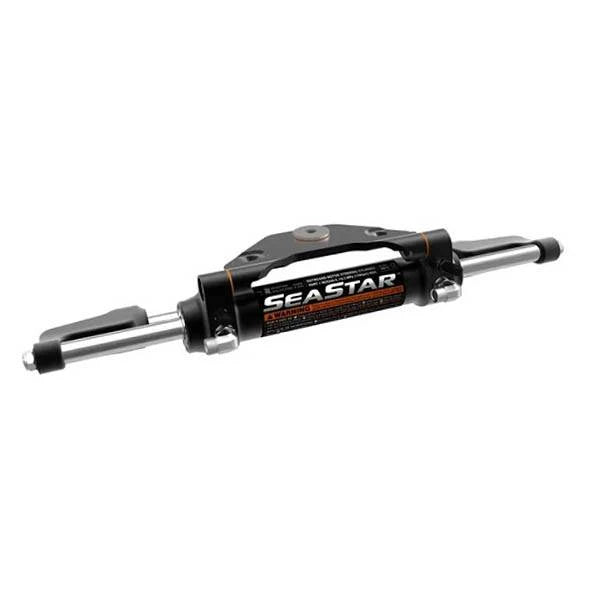

SeaStar HC5345-3 Outboard Steering Cylinder

This SeaStar HC5345-3 outboard hydraulic cylinder features an upgrade to the barrel, sealing system and fittings. The robust barrel and new graphics complement the styling on new boats and motors. The new sealing system offers excellent resistance to repeated compression set and is designed to better withstand the harsh environment.

Features:

Independent engine tilt for twin/triple engine installations

Easy steering

Suitable for use with all SeaStar Helms & SeaStar Power Assist

Varying lock to lock turn ratio, dependent on helm selection

State of the art proprietary sealing system offers excellent resistance to repeated compression set

Stainless steel adjustable O-Ring (ORB) fitting for easier installation

Specifications:

Shaft Dia: .75"

Stroke: 8"

Seal Kit: HS5157

Volume Cu.: 8.34"

----------------------------------------------------------------------------------------------------------------------

Single Engine Application:

Honda

1996-Present, 75-90 HP

1998-Present, 30-50 HP

2003-Present, BF135 HP

2010-Present, 115HP

2015-Present, BF100 HP

Johnson/Evinrude

1991-Present, 40-300 HP

1997-2006, 75-300 HP Ficht

2002-Present, 200-225 HP 4-Stroke

2007-Present, 3.3L V6 200-250 HP

OXE

2017-Present, 200 HP Diesel I4 2.4L

Selva

2014-Present, 115 HP

2000-Present, 150 HP

2007-Present, 200-300 HP 4.2L V6

Suzuki

1986-2000, DT-100 HP

1986-2002, 115-140 HP

1986-2013, 150-225 HP 2 & 4-Stroke

2004-Present, DF200-300 HP 3.6-4.0L V6

2017-Present, DF325-350 HP 4.4L V6

Tohatsu

1990-Present, 40-140 HP

2014-Present, BFT60-BFT150

2014-Present, BFT200-BFT250

Yamaha

1990-2003, 40-90 HP 2-Stroke

1986-Present, 100-300 HP 2-Stroke

1997-Present, 80-250 HP 4-Stroke

2000-Present, 150-300 HPDI

2007-Present, 200-300 HP 4.2L V6 4-Stroke

2007-Present, F300-F350 HP 5.3V8

2012-Present, 150-200 HP 2.8L 4 Cyl.

2014-Present, F115B

Frequently Asked Questions

• What is the SeaStar HC5345-3 Outboard Steering Cylinder used for? The SeaStar HC5345-3 Outboard Steering Cylinder is a hydraulic steering cylinder designed for outboard applications. It features an upgraded barrel, sealing system, and fittings for marine use. The cylinder provides easy steering and is suitable for use with SeaStar Helms and SeaStar Power Assist systems.
• Which outboard engines are compatible with the SeaStar HC5345-3 steering cylinder? The SeaStar HC5345-3 is listed for numerous single-engine applications from Honda, Johnson/Evinrude, OXE, Selva, Suzuki, Tohatsu, and Yamaha. Compatibility varies by manufacturer, horsepower, engine type, and model year, so verify your specific engine against the listed application information before purchasing.
• Can the SeaStar HC5345-3 be used with twin or triple outboard engines? The SeaStar HC5345-3 features independent engine tilt for twin and triple engine installations. However, the supplied application information specifically lists single-engine applications by manufacturer, horsepower, and model year. Verify the requirements for your particular multi-engine setup before installation.
• What are the specifications of the SeaStar HC5345-3 Outboard Steering Cylinder? The SeaStar HC5345-3 has a 0.75-inch shaft diameter, an 8-inch stroke, and a hydraulic volume of 8.34 cubic inches. The specified seal kit is HS5157. It also uses a stainless steel adjustable O-Ring (ORB) fitting to support easier installation.
• What type of sealing system does the SeaStar HC5345-3 use? The SeaStar HC5345-3 uses a proprietary sealing system designed to provide resistance to repeated compression set and better withstand the harsh marine environment. The cylinder also features an upgraded barrel and stainless steel adjustable O-Ring (ORB) fitting.
• What should I verify before purchasing the SeaStar HC5345-3? Verify your outboard manufacturer, horsepower, engine type, and model year against the listed applications for the SeaStar…
