Sea Dog Marine Ign. Sw. 3 Term. 3 Pos. Poly

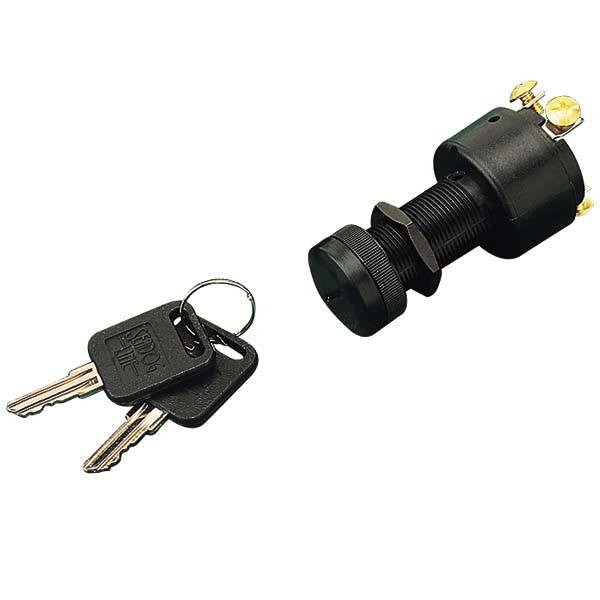

Sea Dog Poly Marine Ignition Switch 3 Position - 3 Terminal

Sea Dog three position polypropylene ignition switch for off, ignition and start functions. Rated: Ignition 15 Amp @ 12VDC, Solenoid 30 Amp @ 12VDC.

13/16" Diameter Long Style Shaft

Maximum panel thickness: 1-1/8"

3 Screw terminal electrical connection

Includes 2 keys

Frequently Asked Questions

• What is the Sea Dog Poly Marine Ignition Switch 3 Position - 3 Terminal used for? The Sea Dog Poly Marine Ignition Switch 3 Position - 3 Terminal provides three ignition functions: off, ignition, and start. It is designed for marine applications and uses a three-terminal electrical connection for connecting the ignition and starting functions.
• What are the electrical ratings for the Sea Dog Poly Marine Ignition Switch? The ignition circuit is rated at 15 amps at 12VDC, while the solenoid circuit is rated at 30 amps at 12VDC. Verify that these ratings match the electrical requirements of your marine application before installation.
• What type of shaft does this marine ignition switch have? This Sea Dog ignition switch features a 13/16-inch diameter long-style shaft. The switch accommodates panels up to 1-1/8 inches thick, making these dimensions important to verify before installation.
• How does the Sea Dog three-position ignition switch connect electrically? The switch uses three screw terminals for its electrical connections. The three-position design provides off, ignition, and start functions. Follow the applicable equipment wiring instructions when connecting the terminals.
• How many keys are included with the Sea Dog Poly Marine Ignition Switch? Two keys are included with the Sea Dog Poly Marine Ignition Switch. The switch is supplied with the keys needed for operating its three-position off, ignition, and start functions.
• What panel thickness can the Sea Dog Poly Marine Ignition Switch accommodate? The switch is designed for a maximum panel thickness of 1-1/8 inches. Before installation, verify that your mounting panel thickness is within this specified limit and that the 13/16-inch diameter long-style shaft is suitable for the application.
