Sea Dog Marine Open Base Galvanized Cast Iron Dock Cleat

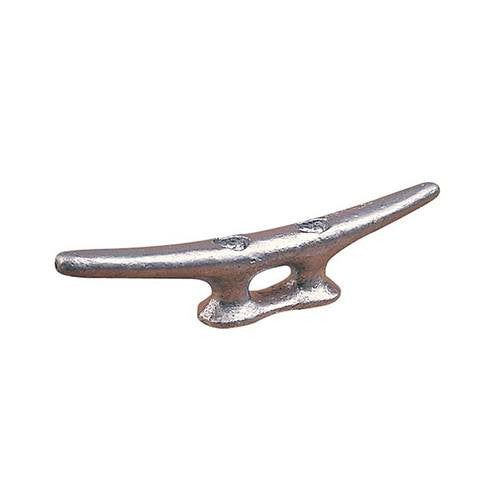

Sea Dog Open Base Galvanized Cast Iron Dock Cleat

These Sea Dog heavy-duty dock cleats are made from corrosion resistant hot dipped galvanized iron. Their rugged construction makes them ideal for docks, piers and workboats. The large open base is designed to handle multiple dock lines and distribute heavy loads with ease. Cleats have recessed sockets for FH boats.

Features:

Flat Head

Hot Dipped Galvanized Iron

Fasteners Not Included

Part Number

A

B

C

D

Fastener

040104-1

4"

1-1/8"

7/8"

1-7/8"

#10

040105-1

5"

1-5/16"

1-1/16"

2-3/16"

#12

040106-1

6"

1-3/8"

1-1/4"

2-3/16"

1/4" Bolt

040108-1

8"

2-1/8"

1-11/16"

3-1/4"

5/16" Bolt

040110-1

10"

2-1/2"

2-3/8"

4-1/16"

3/8" Bolt

040112-1

12"

2-7/8"

3-3/8"

5-1/2"

3/8" Bolt

Frequently Asked Questions

• What is the Sea Dog Open Base Galvanized Cast Iron Dock Cleat used for? The Sea Dog Open Base Galvanized Cast Iron Dock Cleat is designed for docks, piers, and workboats. Its large open base can accommodate multiple dock lines and distribute heavy loads. The cleats feature a rugged hot-dipped galvanized iron construction.
• What is the Sea Dog Open Base Dock Cleat made from? The Sea Dog Open Base Dock Cleat is made from hot-dipped galvanized iron. The cleats also feature a flat-head design and recessed sockets for flat-head fasteners.
• What sizes are available for the Sea Dog Galvanized Dock Cleat? The Sea Dog Galvanized Dock Cleat is available in 4", 5", 6", 8", 10", and 12" sizes. The corresponding part numbers are 040104-1, 040105-1, 040106-1, 040108-1, 040110-1, and 040112-1.
• What fastener size is required for each Sea Dog Galvanized Dock Cleat? The 4" cleat uses #10 fasteners, the 5" cleat uses #12 fasteners, and the 6" cleat uses a 1/4" bolt. The 8" cleat uses a 5/16" bolt, while the 10" and 12" cleats use 3/8" bolts. Fasteners are not included.
• What are the dimensions of the Sea Dog Galvanized Dock Cleats? The 4" model measures A 4", B 1-1/8", C 7/8", D 1-7/8". The 5" model measures A 5", B 1-5/16", C 1-1/16", D 2-3/16". The 6" model measures A 6", B 1-3/8", C 1-1/4", D 2-3/16". The 8" model measures A 8", B 2-1/8", C 1-11/16", D 3-1/4". The 10" model measures A 10", B 2-1/2", C 2-3/8", D 4-1/16", and the 12" model measures A 12", B 2-7/8", C 3-3/8", D 5-1/2".
• Why does the Sea Dog Galvanized Dock Cleat have an open base? The large open base is designed to handle multiple dock lines and distribute heavy loads. This makes the cleats suitable for the docks, piers, and workboats specified for this product.
