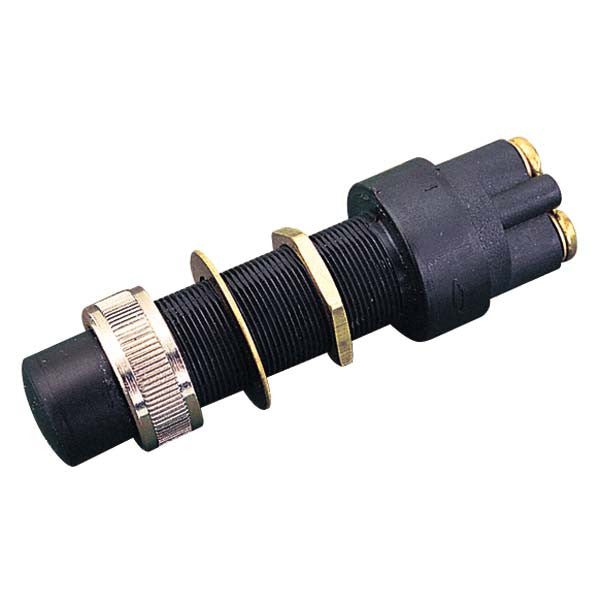

Sea Dog Marine Push Button Mom. Switch Poly

Sea Dog Momentary Push Button Switch with Cap

Sea Dog momentary on/off push button switch with glass reinforced housing for corrosion resistance. Features an Elastometic rubber internal gasket and ultrasonic welding for increased water resistance. Compact behind-dash panel dimensions allow for mounting in confined spaces.

2 Boss copper alloy screw terminal contacts

30 Amps @ 12 VDC

Overall Length: 2-7/8"

Mounting Stem: 1-7/16L x 5/8"-32 thread

Maximum Panel Thickness: 1-1/8"

Rubber boot nut included
