Sea Dog Marine Illuminating Marine Toggle Switch

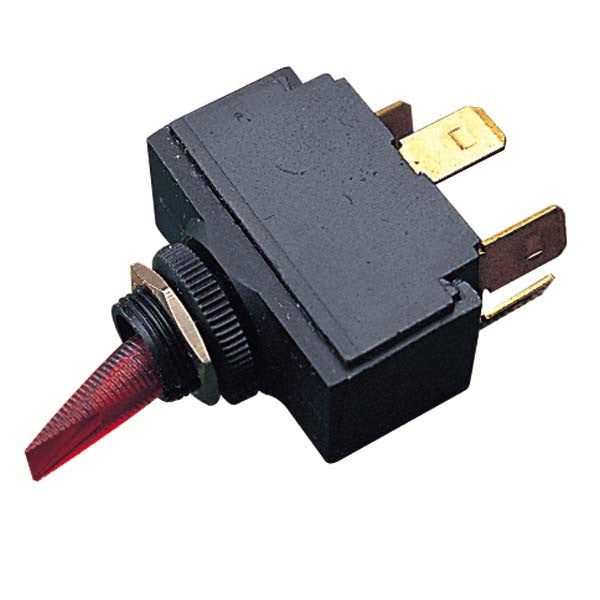

Sea Dog Illuminating Marine Toggle Switch

Sea Dog Illuminating Marine Toggle Switch is made of durable stamped brass and injection molded nylon to hold up in marine environments. Requires a 15/32" mounting hole and fits panels up to 1/4" thick. Easy to install with 1/4" spade terminals. The locking ring and lever seal increase water penetration resistance. The polycarbonate toggle paddle illuminates red when in the ON position.

Product Specifications:

Rated 15 Amps @ 12 Volts DC

Max Panel Thickness : 1/4"

Requires 15/32" mounting hole

1/4" Spade Terminals

Injection Molded Nylon

Paddle illuminates red in ON position

Locking ring and lever seal

Stamped Brass

Click here to download Sea Dog Illuminating Marine Toggle Switch Installation Instructions
