Sea Dog Marine Switch Panel 6 Gang-Vertical

Sea Dog Aluminum Vertical 6 Gang Switch Panel

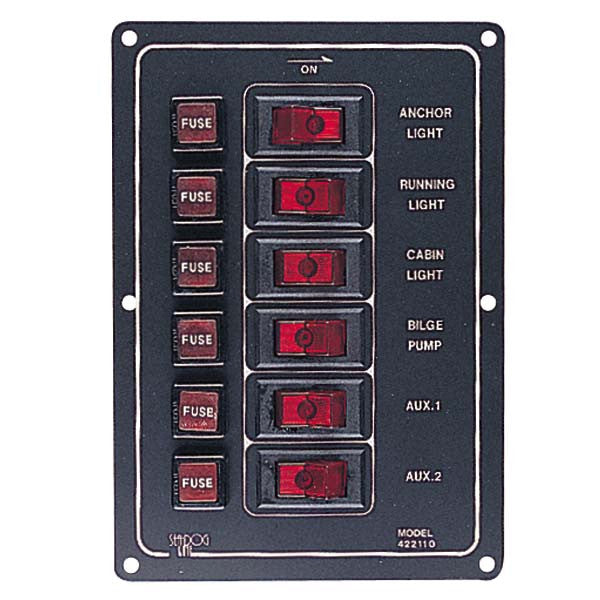

Sea Dog Marine brings an anodized stamped aluminum switch panel that is perfect for any boat. The Rocker switch panel features six 15Amp 12VDC illuminated on/off rocker switches as well as six 10Amp 12VDC fuse holders.

Product Features:

12 Volts DC

Individual circuit 10 Amps

37 Amps total

Six Illuminated rocker switches

Six fuse holders

Product Specifications:

Total Dimensions: 6-1/2" x 4-1/2"

Cutout Dimensions: 5-1/2" x 3-1/2"

Installation Instructions:

Connect the positive terminal of the battery (12V only) to the bar identified with a "+" tag

Connect the negative terminal of the battery (or ground) to the identified with a "-" tag

Connect the positive wire of each individual circuit to the #2 spade on the corresponding rocker switch on the panel

Connect the remaining wire or negative wire of each circuit to the common ground of the boat, if so equipped, or directly to the negative terminal of the battery or the negative bar of the panel. NOTE: Do not attach any additional wires to the remaining terminal on the fuse holder

Your Sea-Dog switch panel is supplied with 8 fuses : (2) 3A, (5) 5A, and (2) 10A (Warning:Do not use fuse rated over 10A)

Click here to download Sea Dog Aluminum Vertical Switch Panel Installation Instructions
