Sea Dog Marine Switch Panel 6 Gang Horizontal

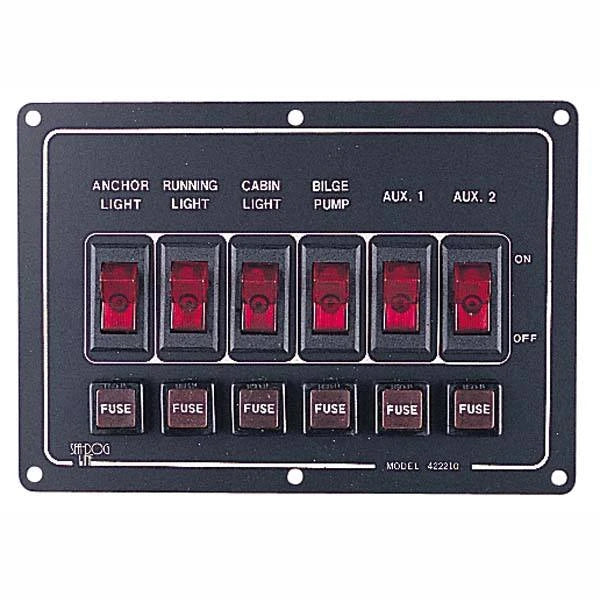

Sea Dog Aluminum Horizontal Switch Panel

Sea Dog Marine brings an anodized stamped aluminum switch panel that is perfect for any boat. The Rocker switch panel features six 15Amp 12VDC illuminated on/off rocker switches as well as six 10Amp 12VDC fuse holders.

Product Features:

12 Volts DC

Individual circuit 10 amps.

37 amps total

4 1/2" tall x 6 1/2" long

Six illuminated rocker switches

Six fuse holders

Product Specifications:

Total Dimensions: 4-1/2" x 6-1/2"

Cutout Dimensions: 3-1/2" x 5-1/2"

Installation Instructions:

Connect the positive terminal of the battery (12V only) to the bar identified with a "+" tag

Connect the negative terminal of the battery (or ground) to the identified with a "-" tag

Connect the positive wire of each individual circuit to the #2 spade on the corresponding rocker switch on the panel

Connect the remaining wire or negative wire of each circuit to the common ground of the boat, if so equipped, or directly to the negative terminal of the battery or the negative bar of the panel. NOTE: Do not attach any additional wires to the remaining terminal on the fuse holder

Your Sea-Dog switch panel is supplied with 8 fuses : (2) 3A, (5) 5A, and (2) 10A (Warning:Do not use fuse rated over 10A)

Click here to download Sea Dog Aluminum Horizontal Switch Panel Installation Instructions

Frequently Asked Questions

• What is the Sea Dog Aluminum Horizontal Switch Panel used for? The Sea Dog Aluminum Horizontal Switch Panel is a 12V DC marine switch panel with six illuminated on/off rocker switches and six fuse holders. It provides individual circuit switching and fuse protection for compatible boat electrical circuits.
• How many switches and fuse holders does the Sea Dog Aluminum Horizontal Switch Panel have? The panel has six illuminated rocker switches and six fuse holders. The rocker switches are rated at 15 amps and 12V DC, while the individual circuits use 10-amp fuse holders.
• What are the dimensions of the Sea Dog Aluminum Horizontal Switch Panel? The Sea Dog Aluminum Horizontal Switch Panel measures 4-1/2 inches tall by 6-1/2 inches long. The specified cutout dimensions are 3-1/2 inches by 5-1/2 inches.
• What voltage and amperage is the Sea Dog Aluminum Horizontal Switch Panel designed for? The Sea Dog Aluminum Horizontal Switch Panel is designed for 12V DC electrical systems. Each individual circuit is rated at 10 amps, with a listed total capacity of 37 amps. Do not use a fuse rated over 10 amps.
• How do you wire the Sea Dog Aluminum Horizontal Switch Panel? Connect the positive battery terminal to the panel terminal marked with a "+" tag and the negative terminal or ground to the "-" connection. Connect the positive wire from each circuit to the corresponding #2 spade on the rocker switch, then connect the remaining circuit wire to the boat's common ground or battery negative.
• What fuses are included with the Sea Dog Aluminum Horizontal Switch Panel? The supplied fuses include 3A, 5A, and 10A ratings. The installation instructions specify two 3A fuses, five 5A fuses, and two 10A fuses, and warn not to use a fuse rated over 10 amps. Do not attach additional wires to the remaining fuse-holder terminal.
